Home >> Ford >> 2001 >> F 150 2WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Generic Electronic Module (GEM)/Central Timer Module (CTM)

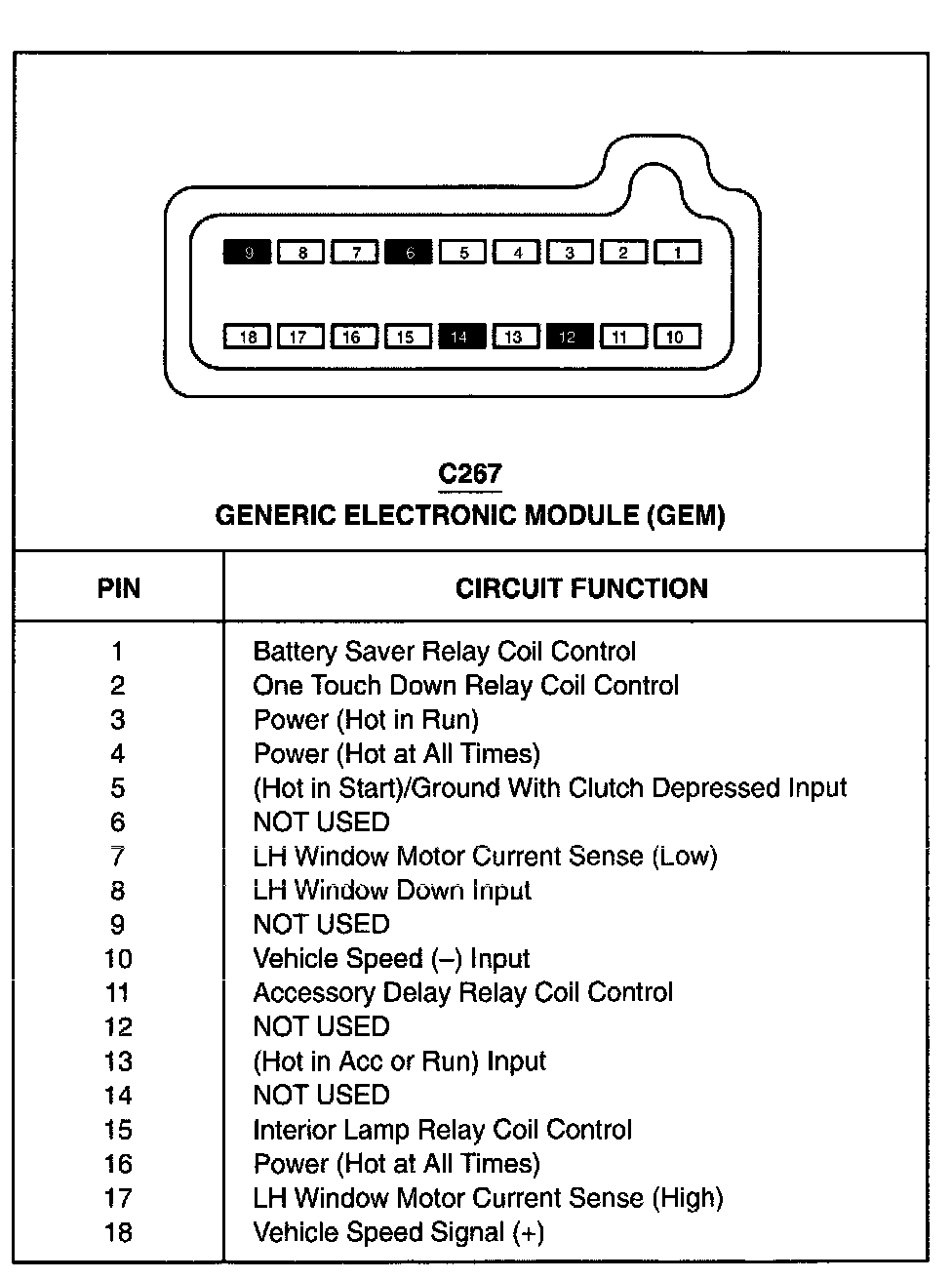

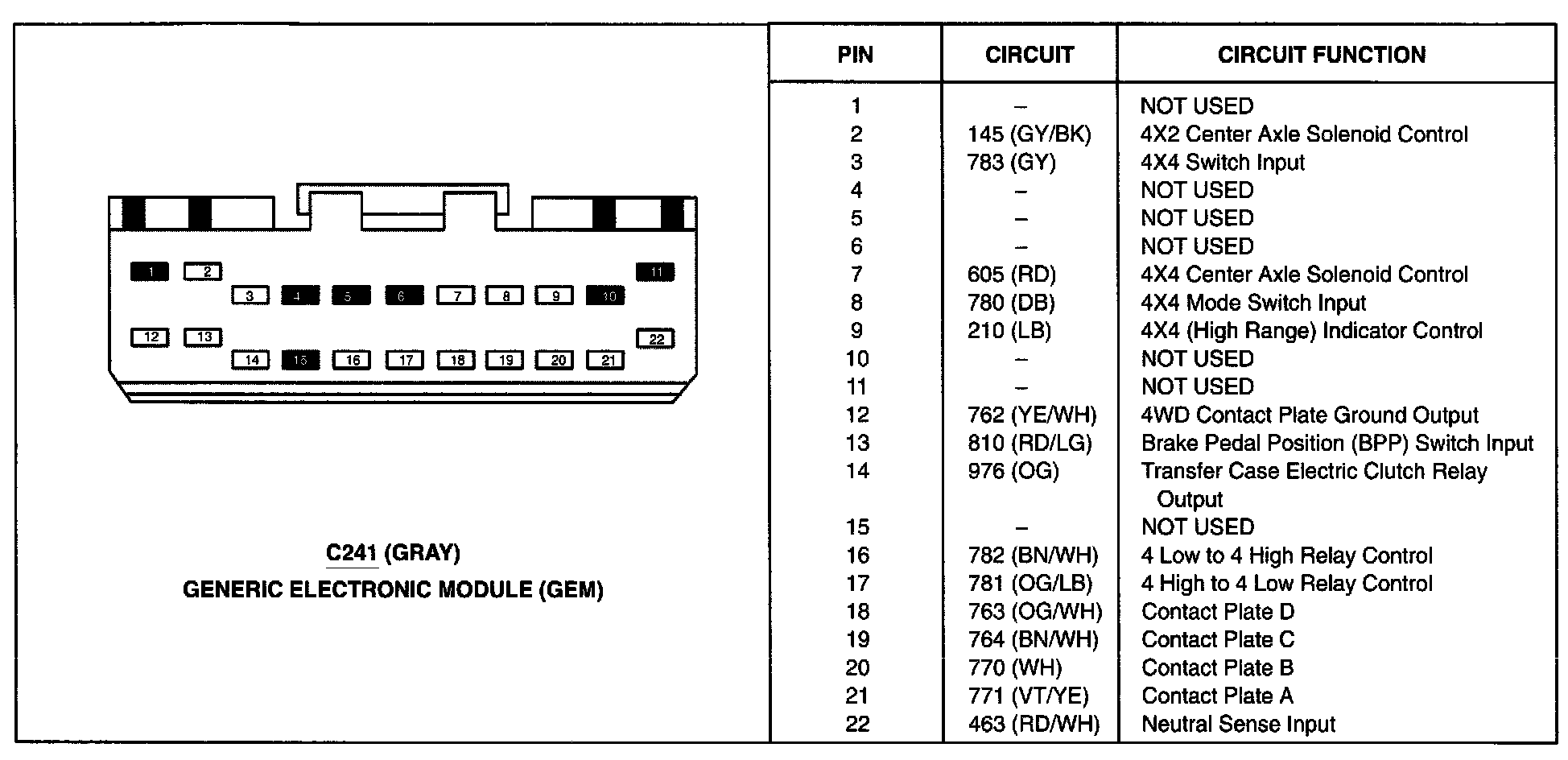

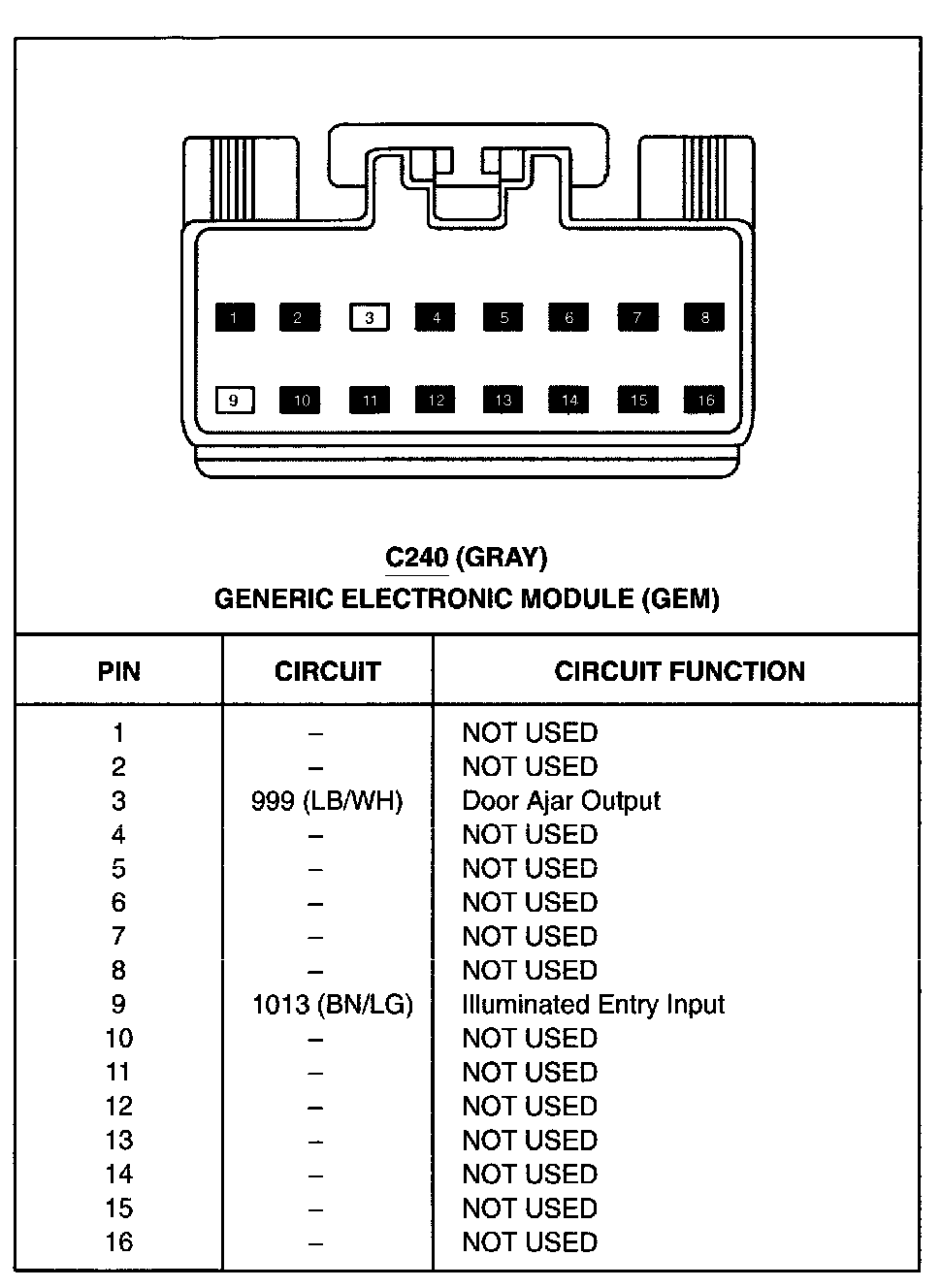

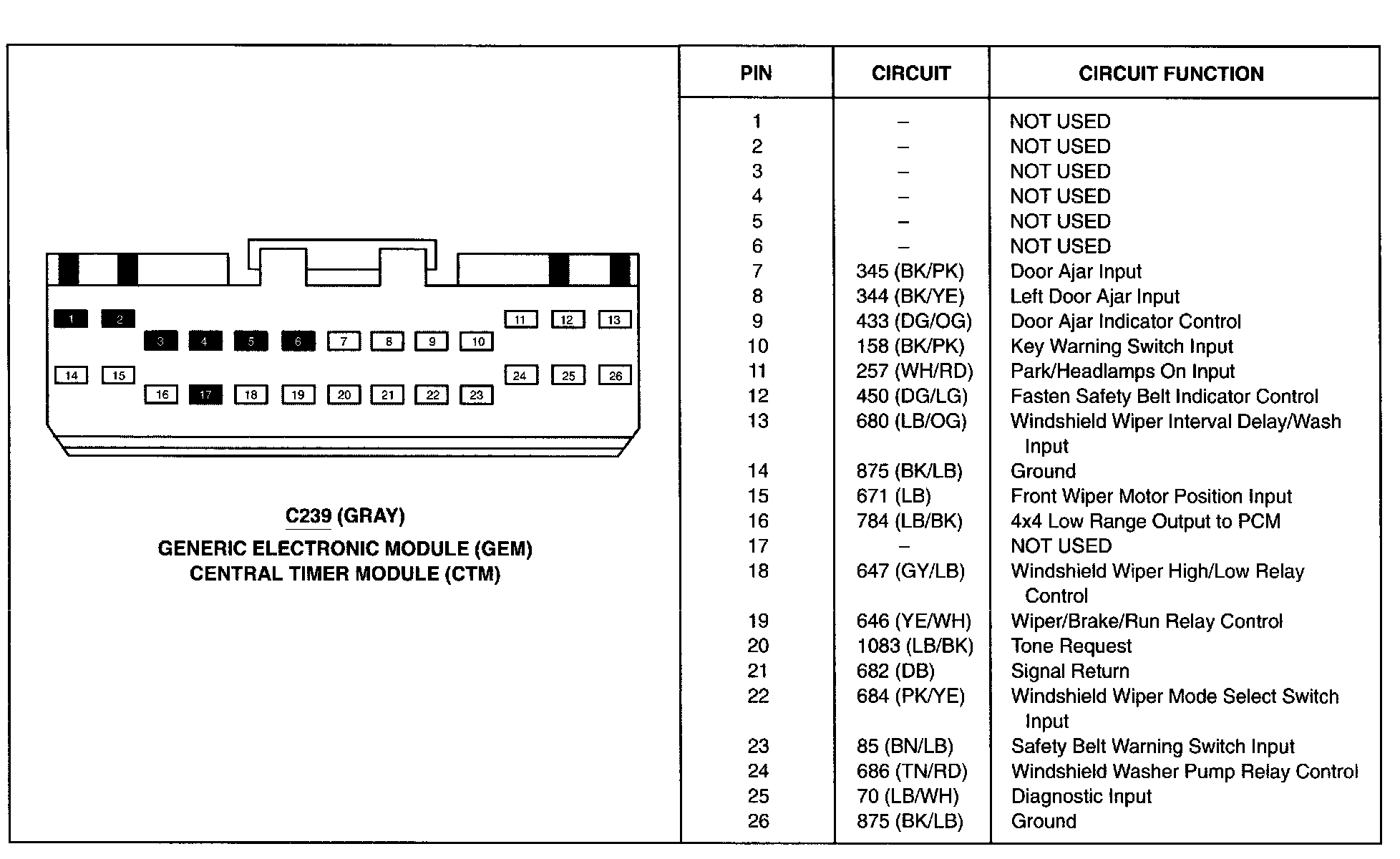

Generic Electronic Module (GEM)/Central Timer Module (CTM)
