F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Component Tests
Component Tests

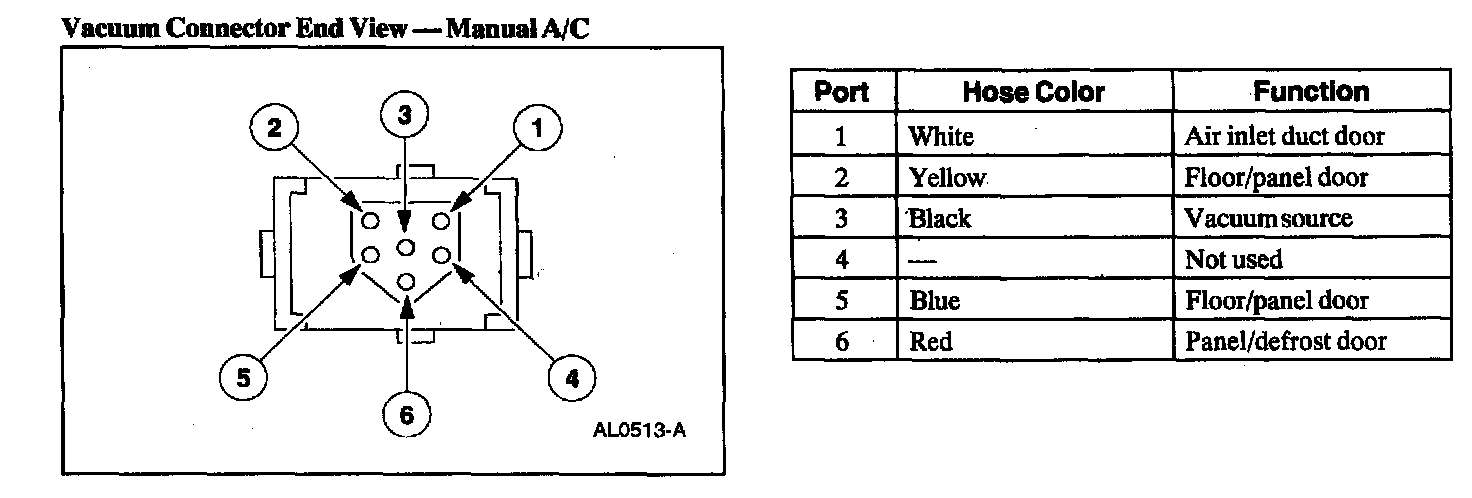

Vacuum Connector End View-Manual A/C:

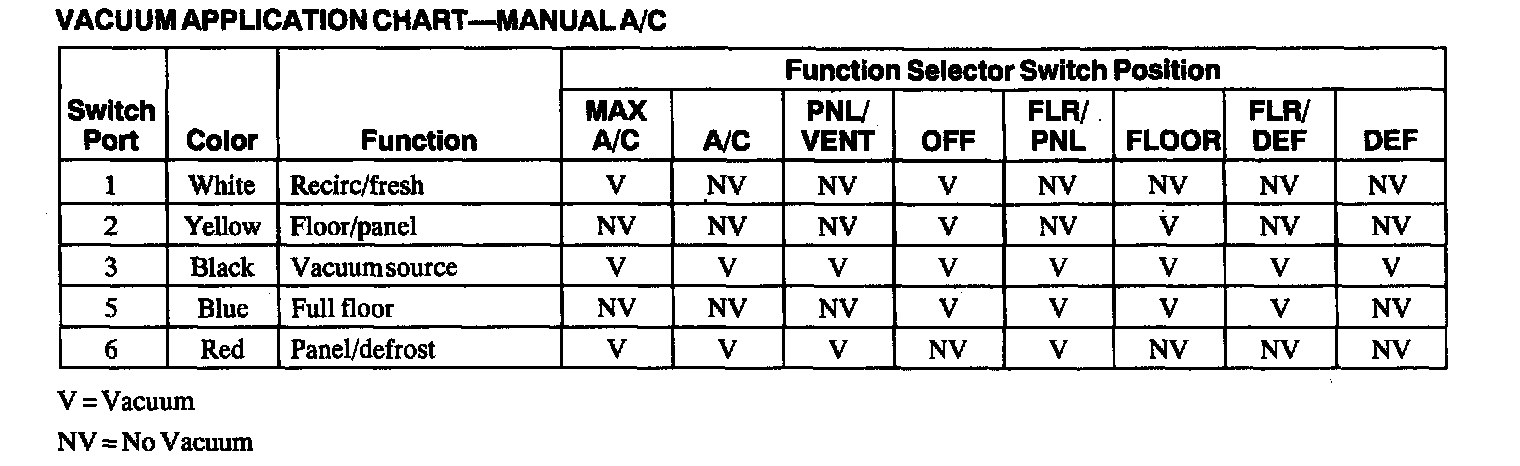

Vacuum Application Chart-Manual A/C:
