Connector Locations

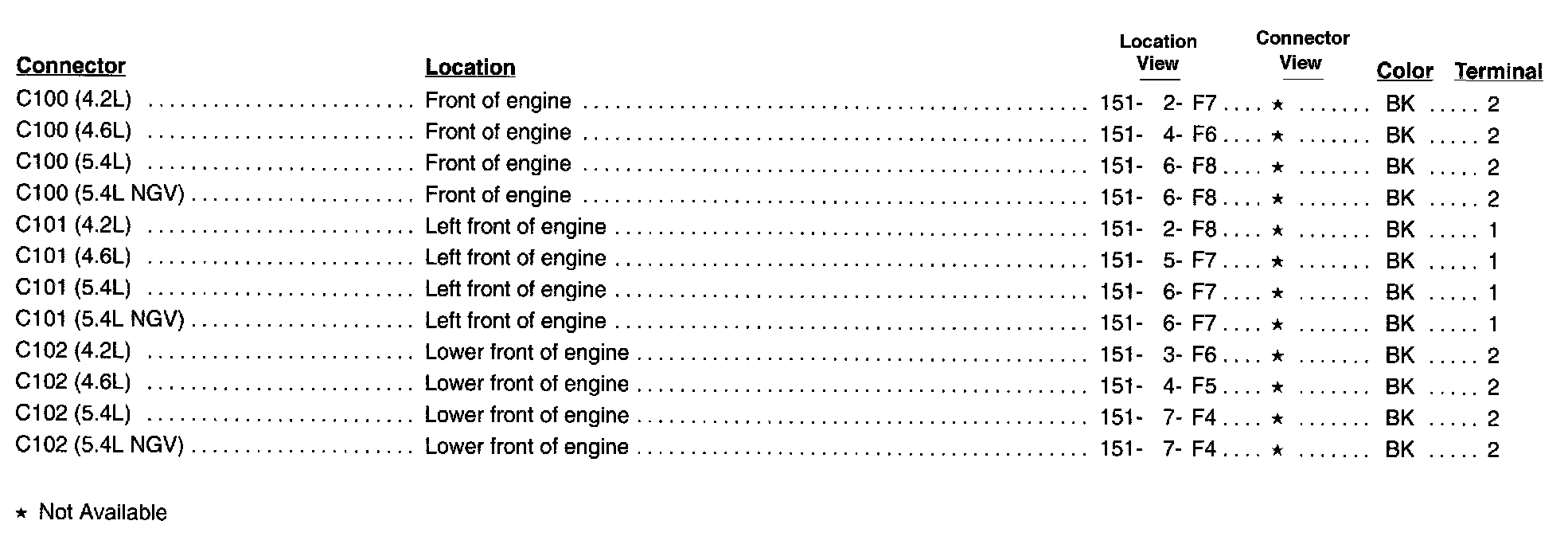

C100 - C102:

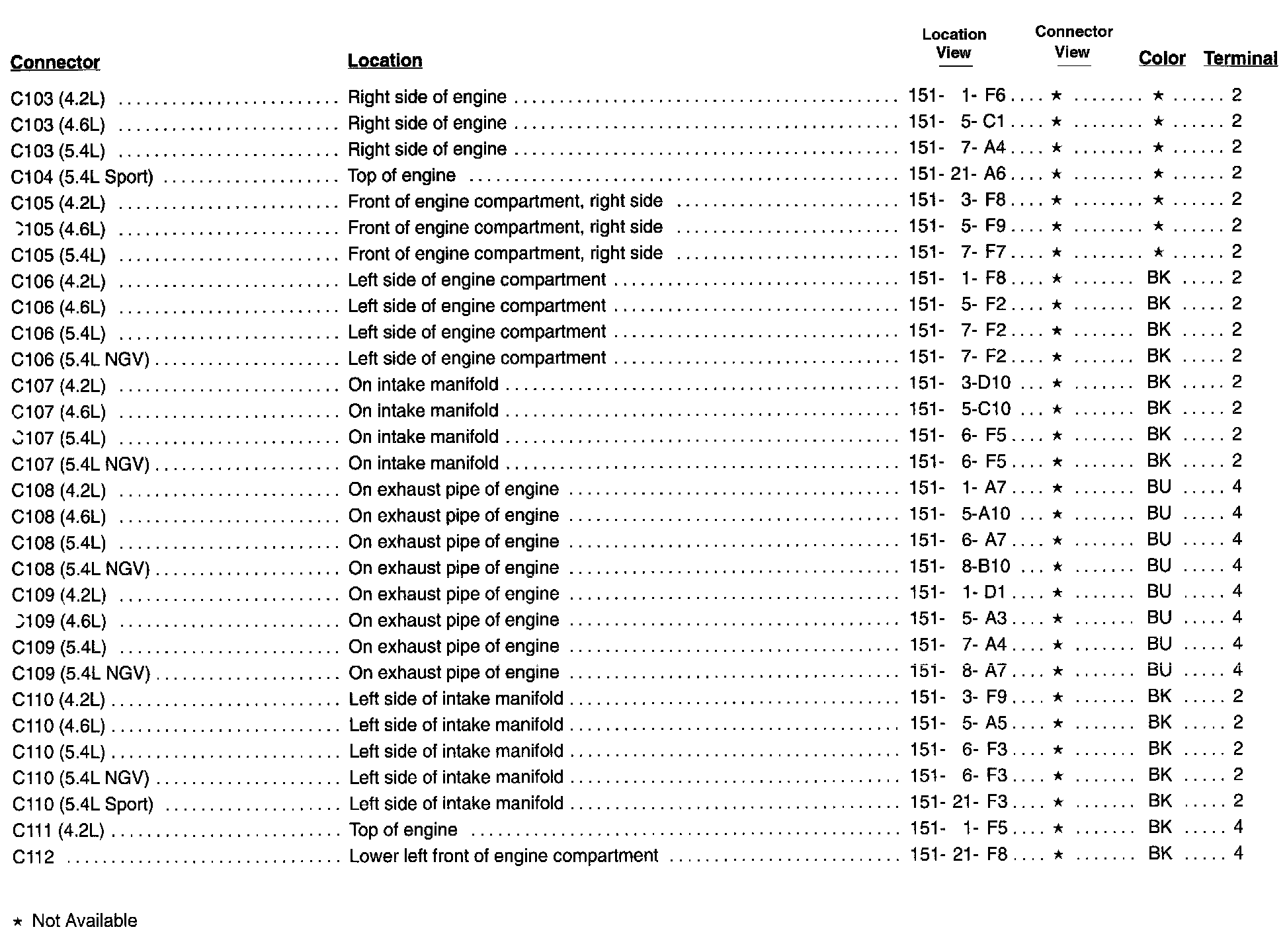

C103 - C112:

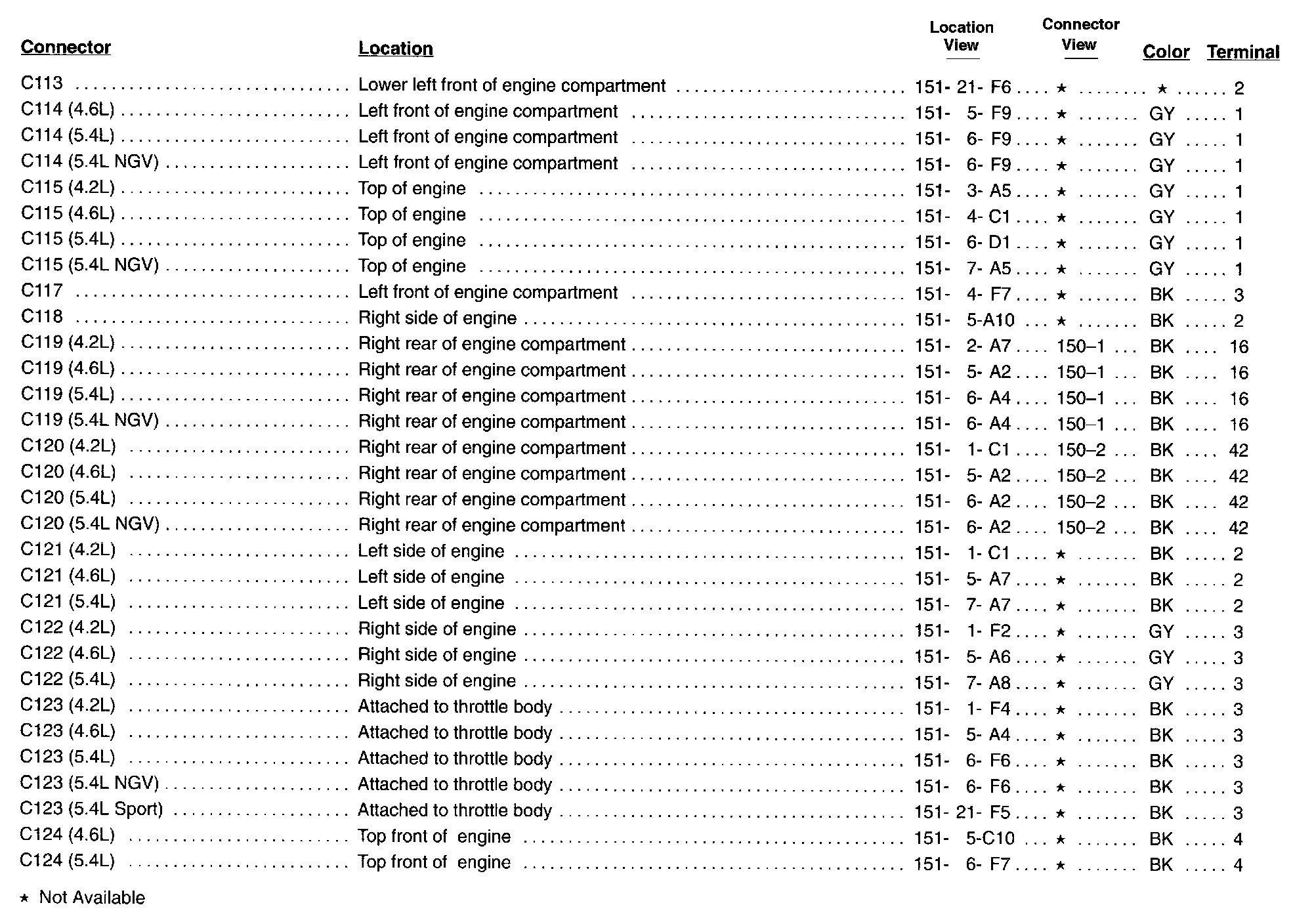

C113 - C124:

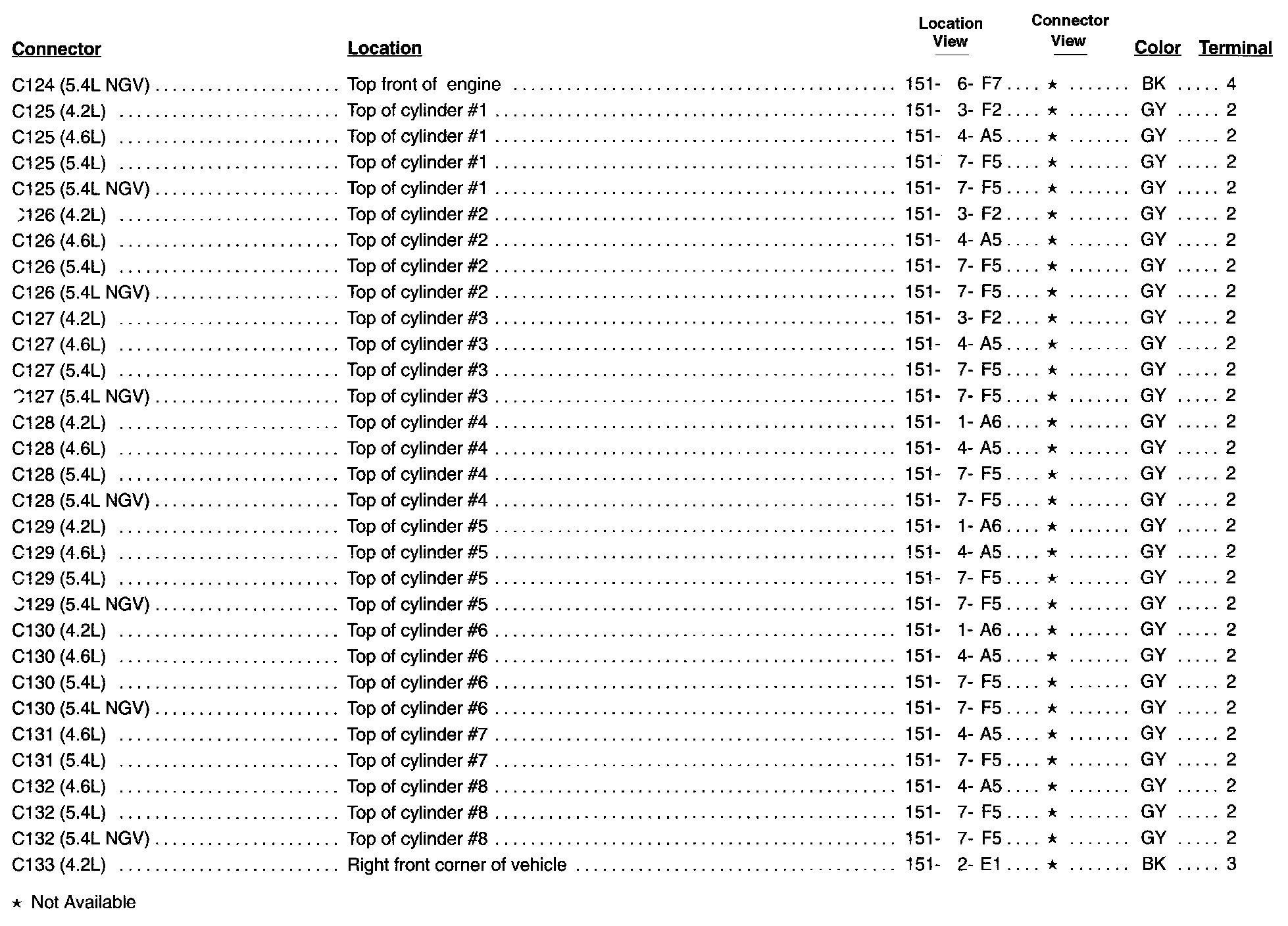

C124 - C133:

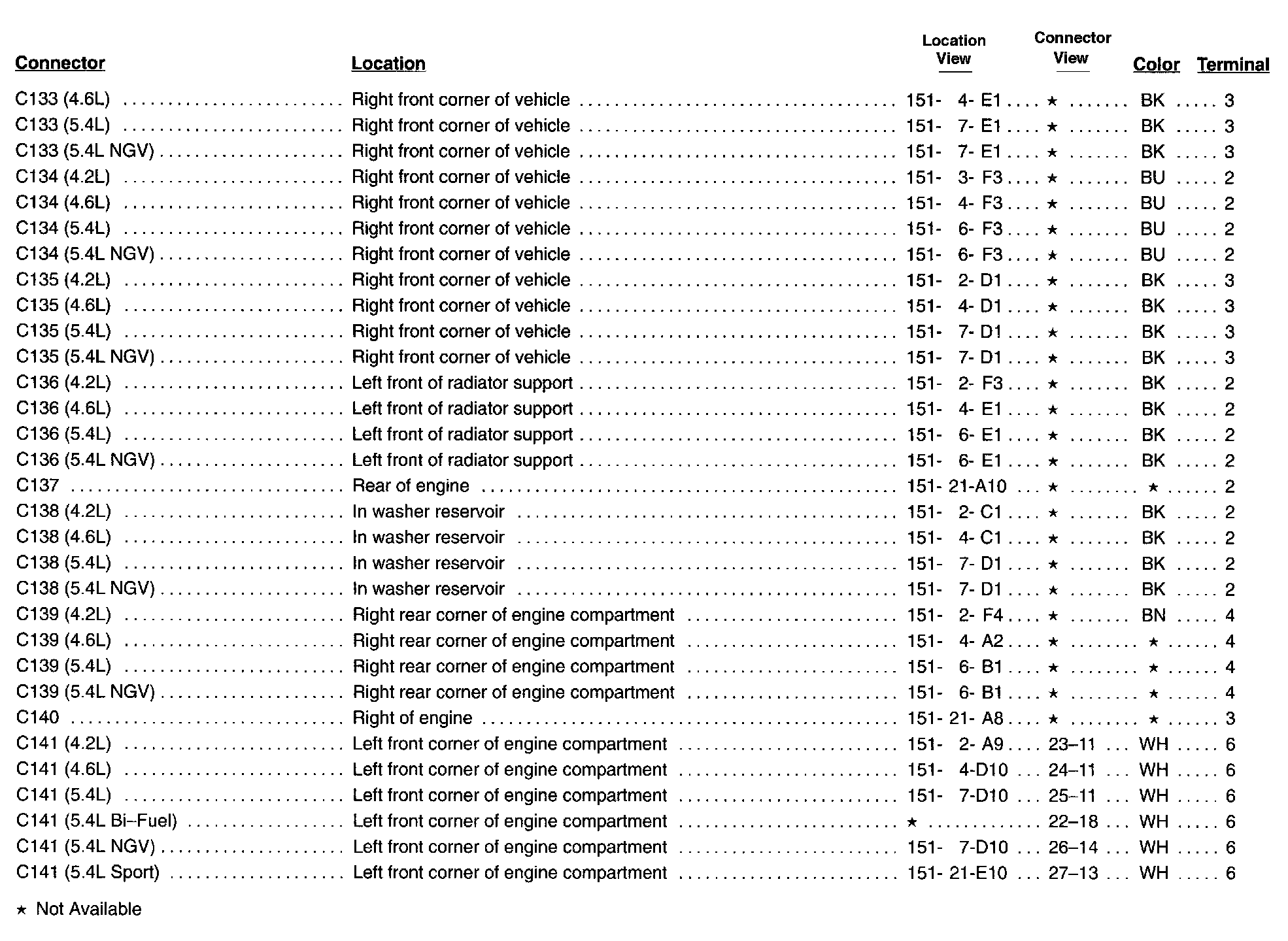

C133 - C141:

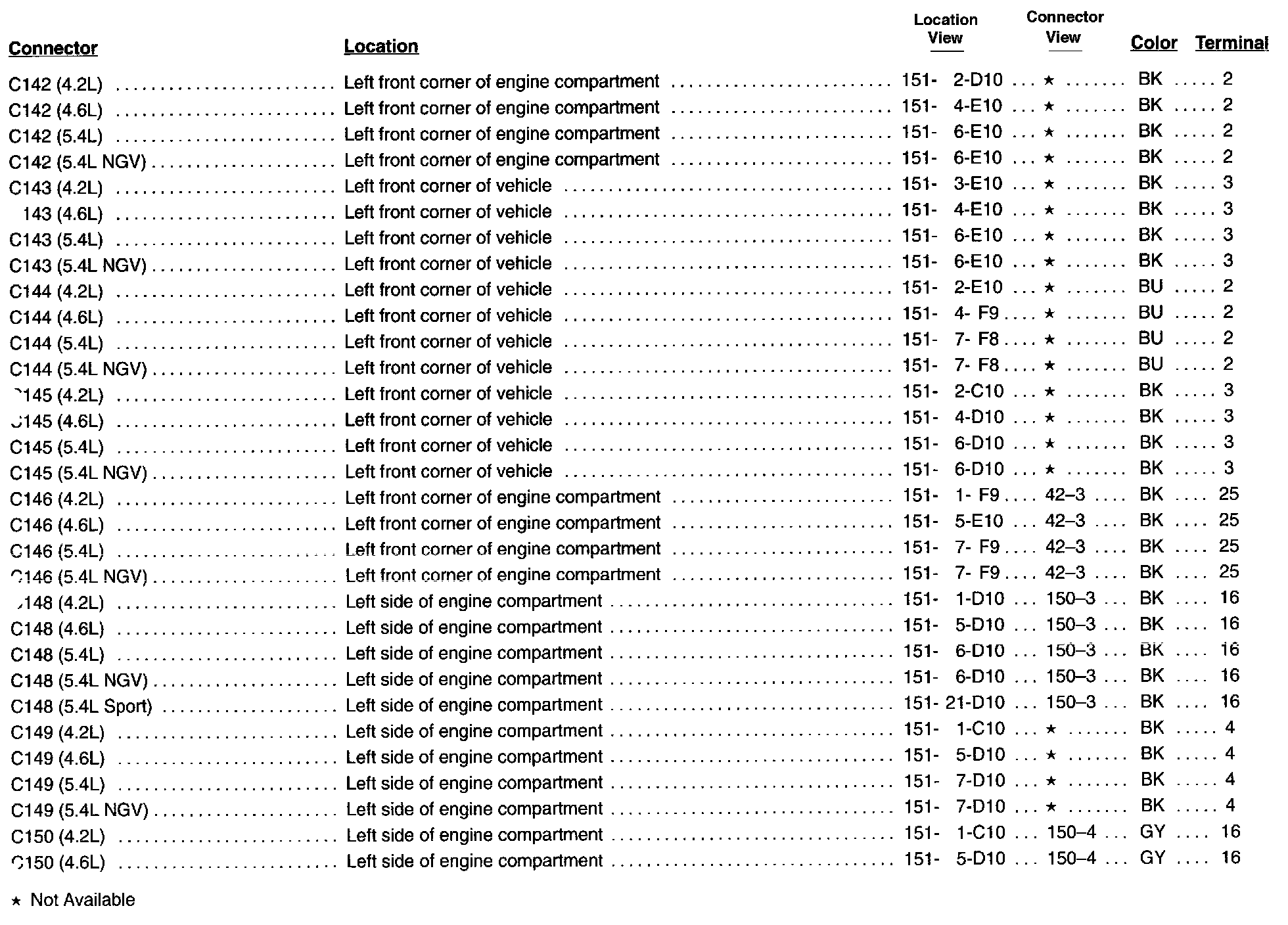

C142 - C150:

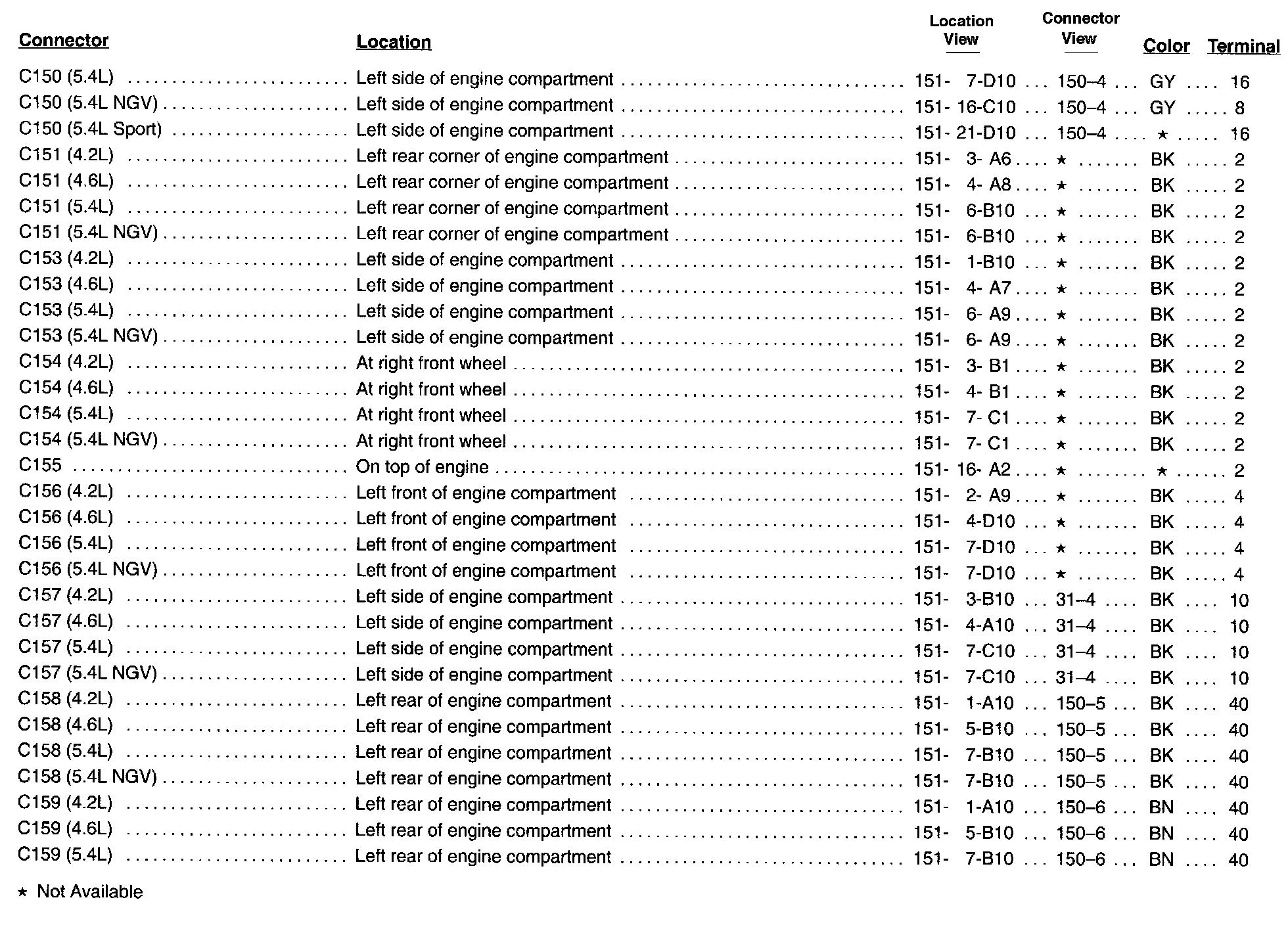

C150 - C159:

C159 - C167:

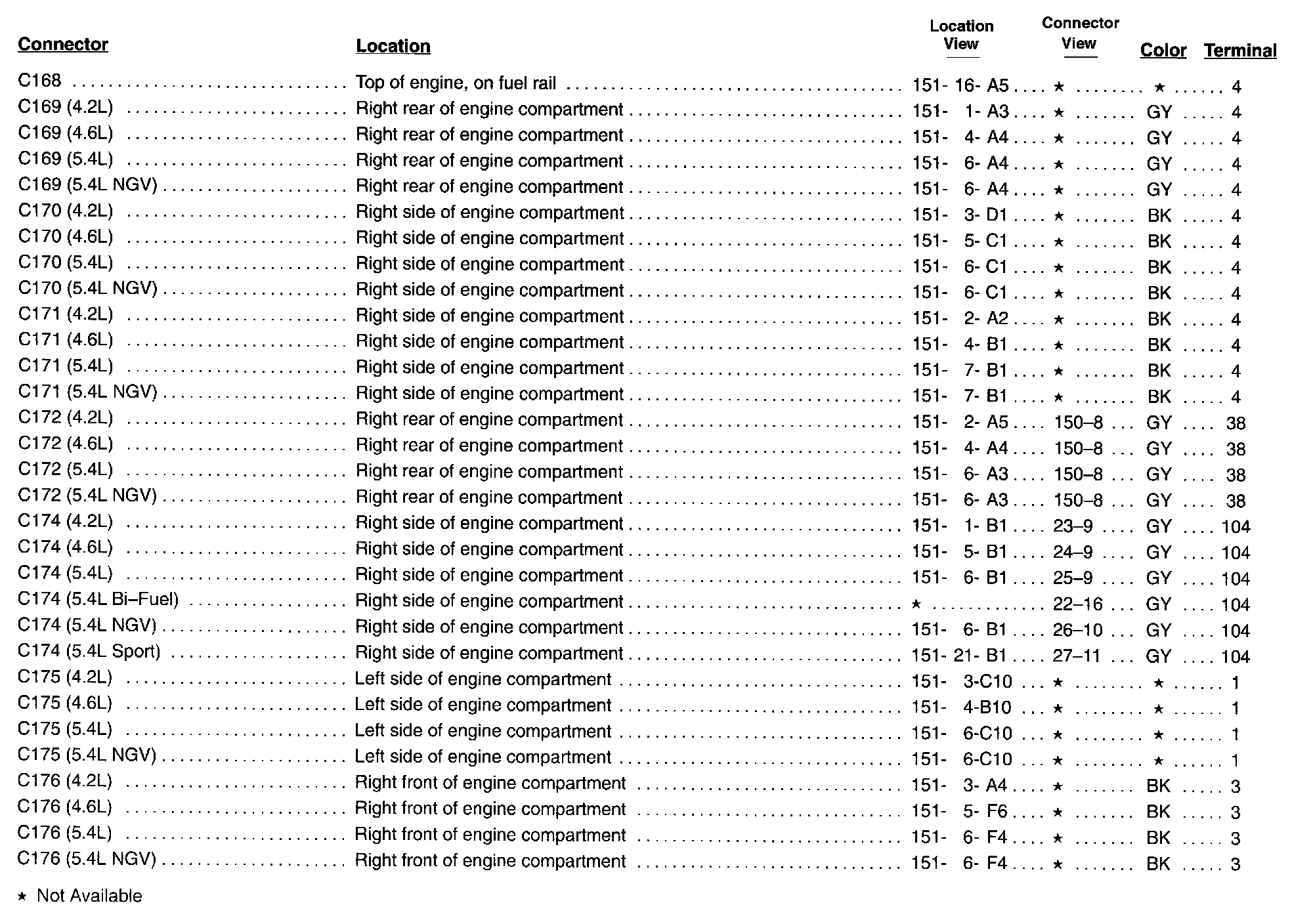

C168 - C176:

C177 - C184:

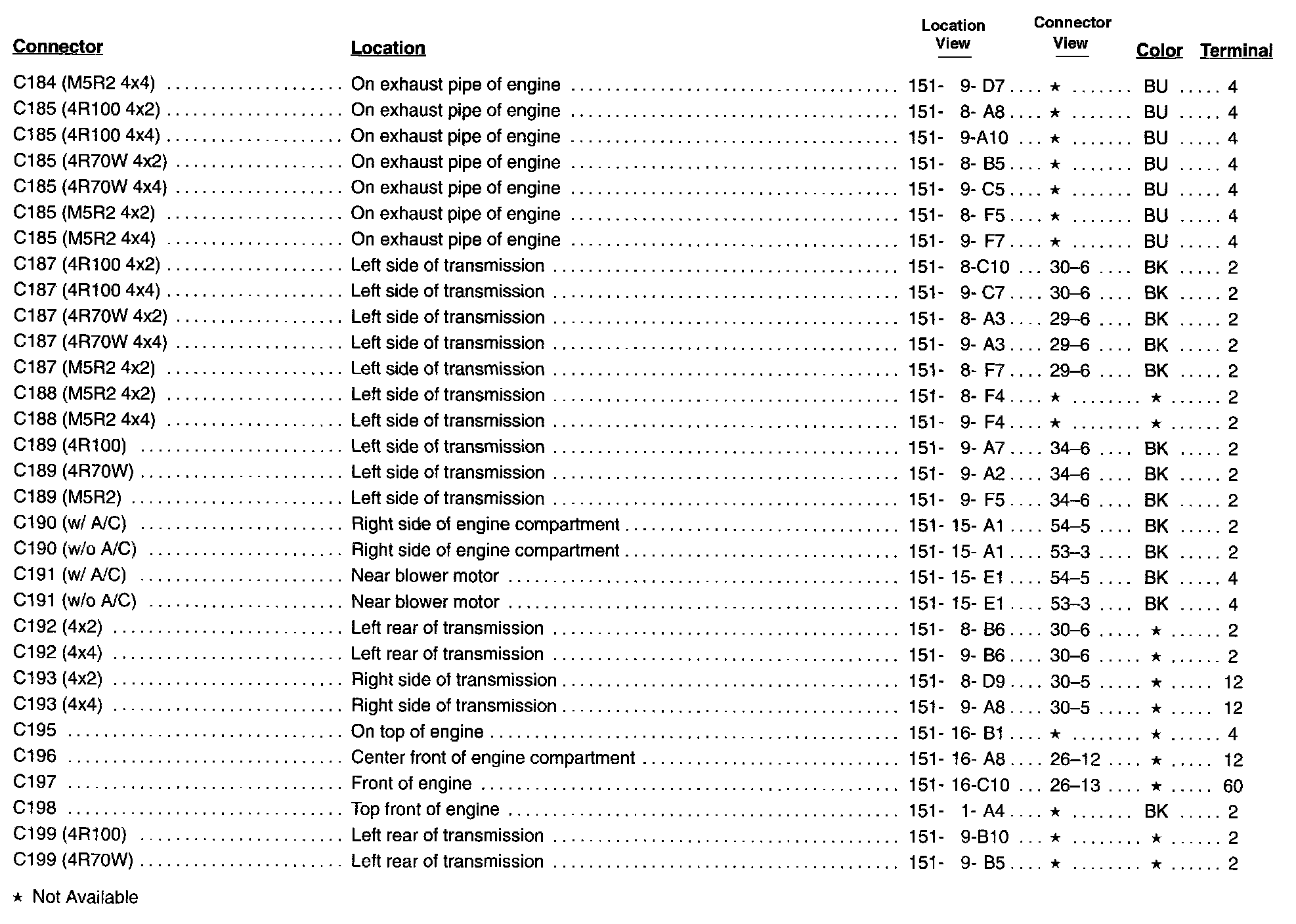

C184 - C199:

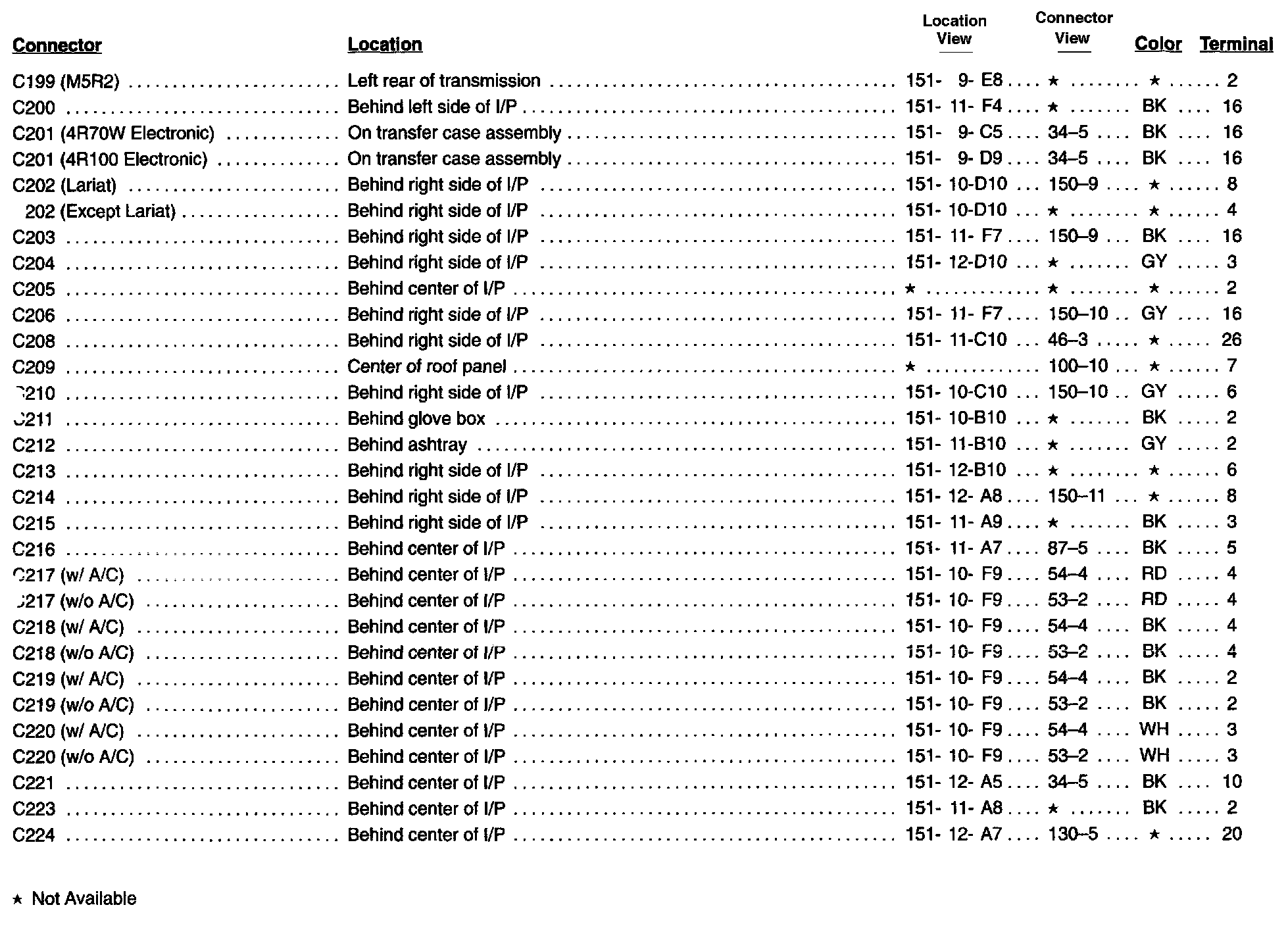

C199 - C224:

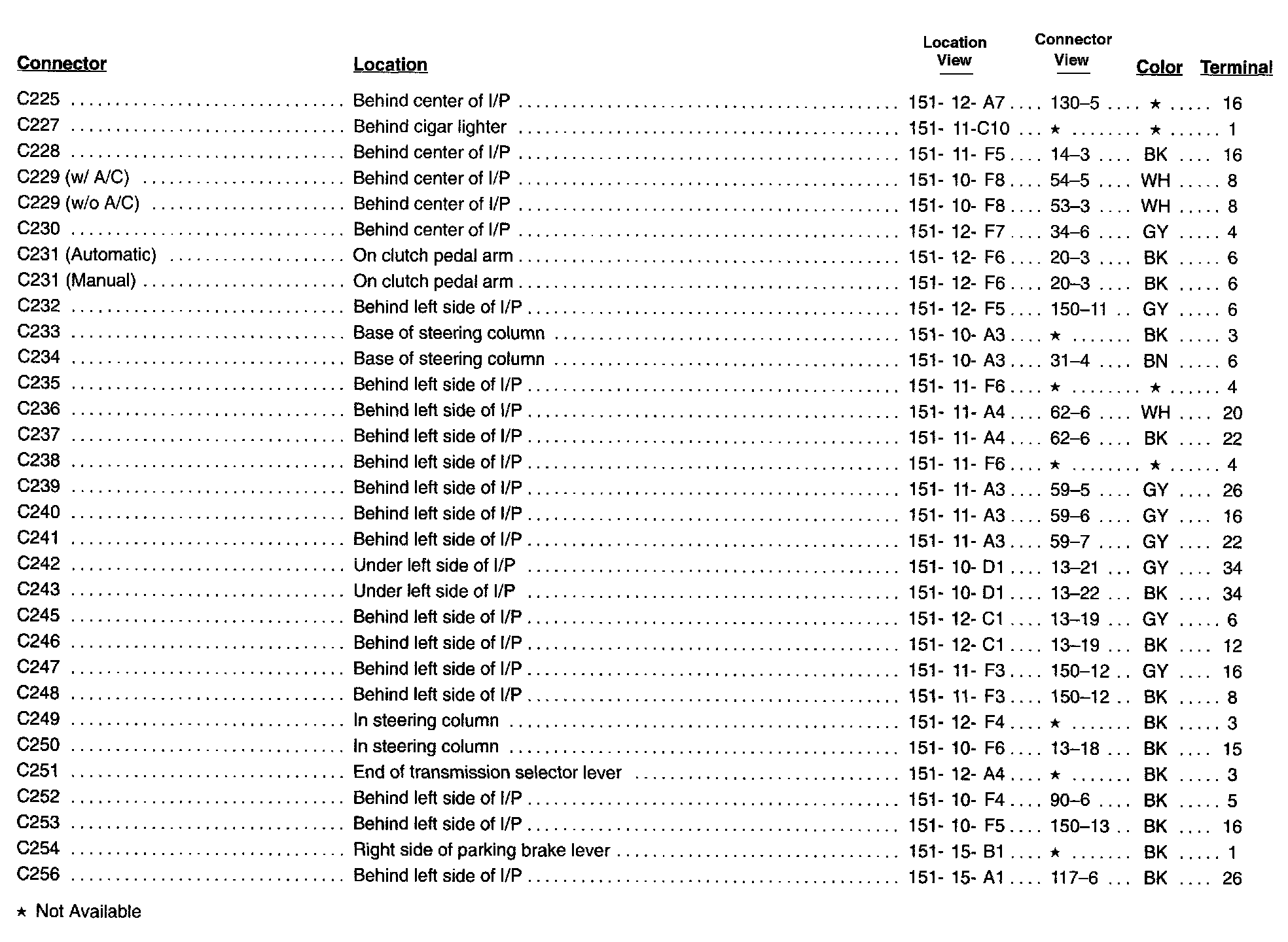

C225 - C256:

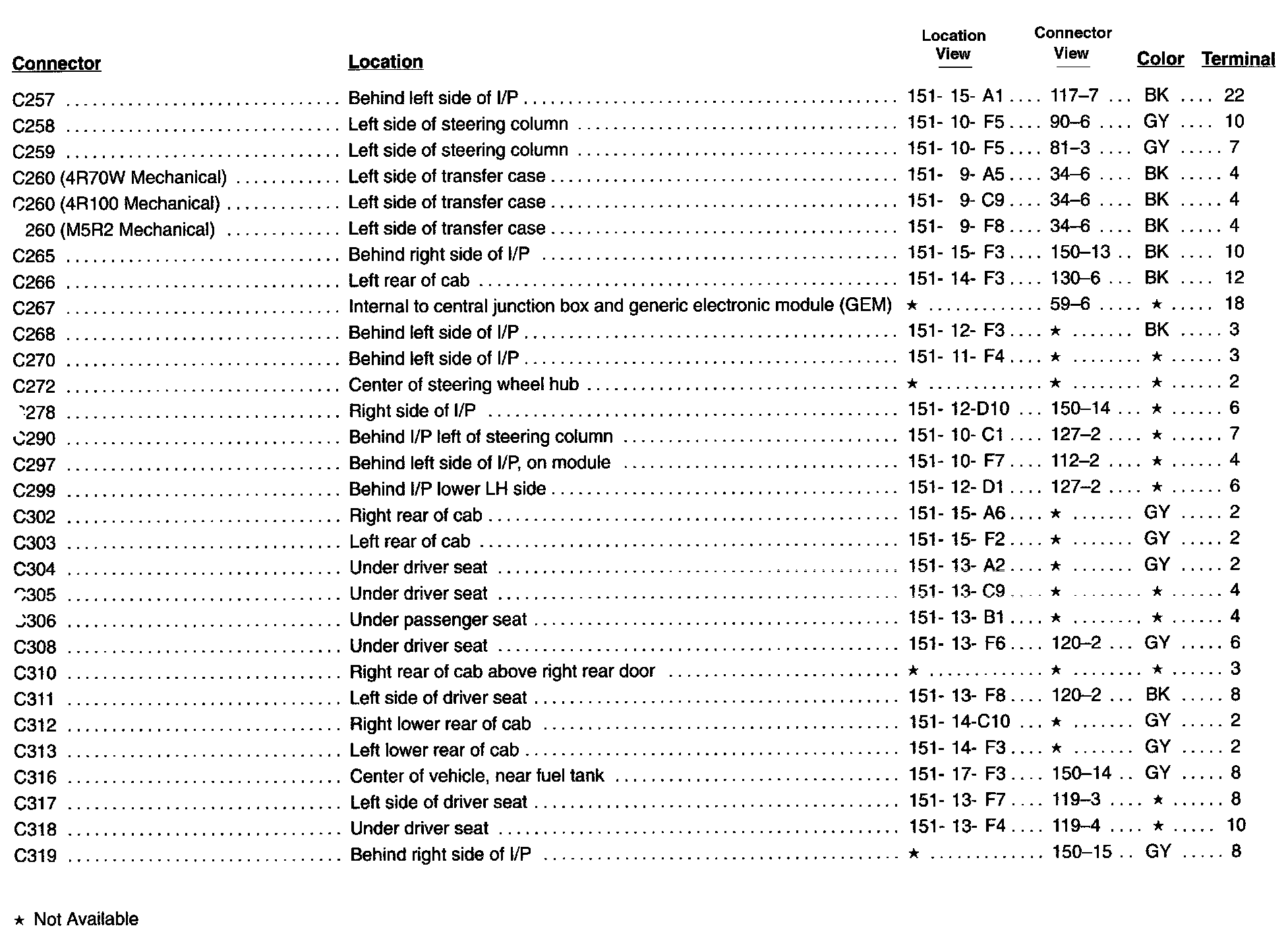

C257 - C319:

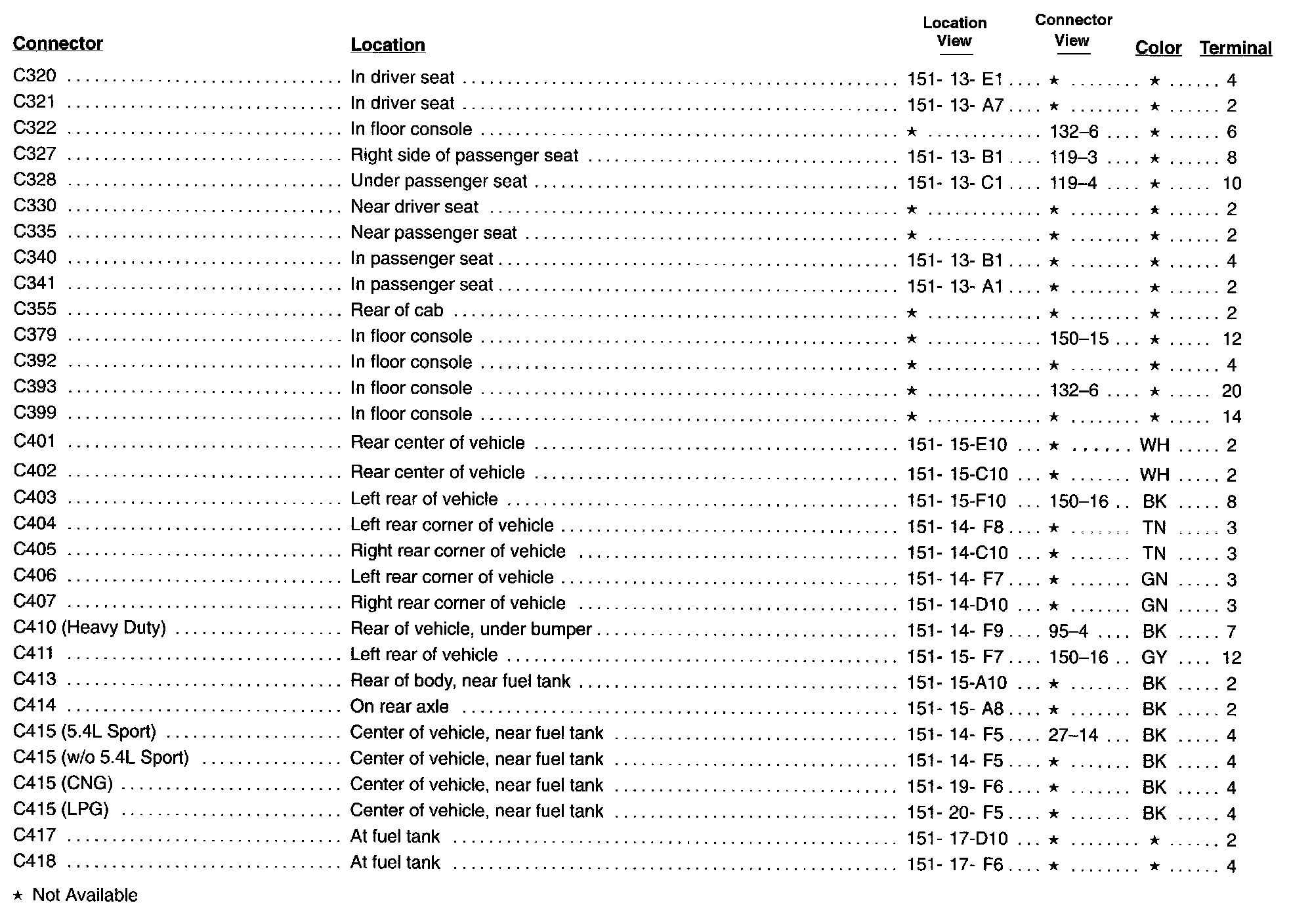

C320 - C418:

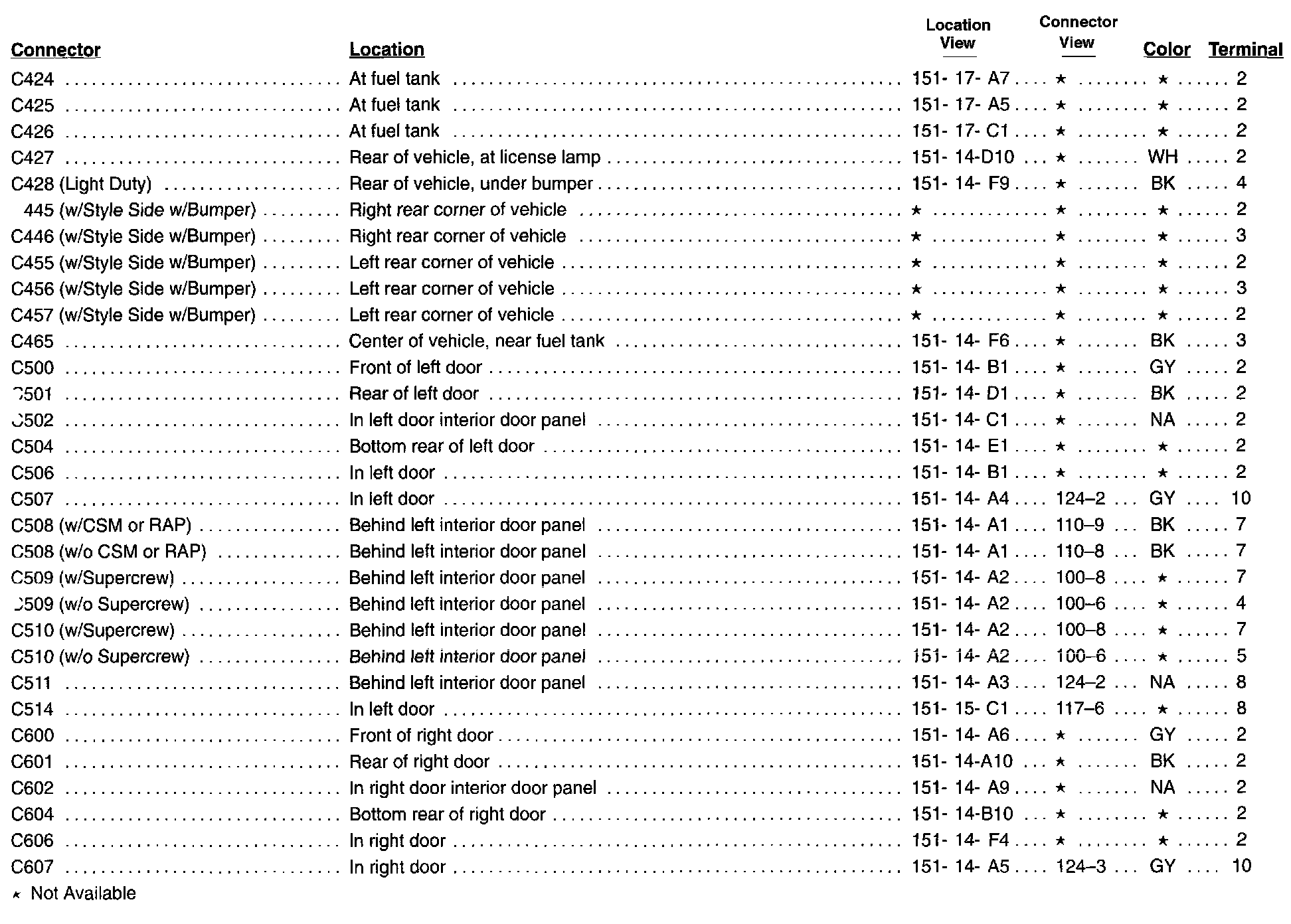

C424 - C607:

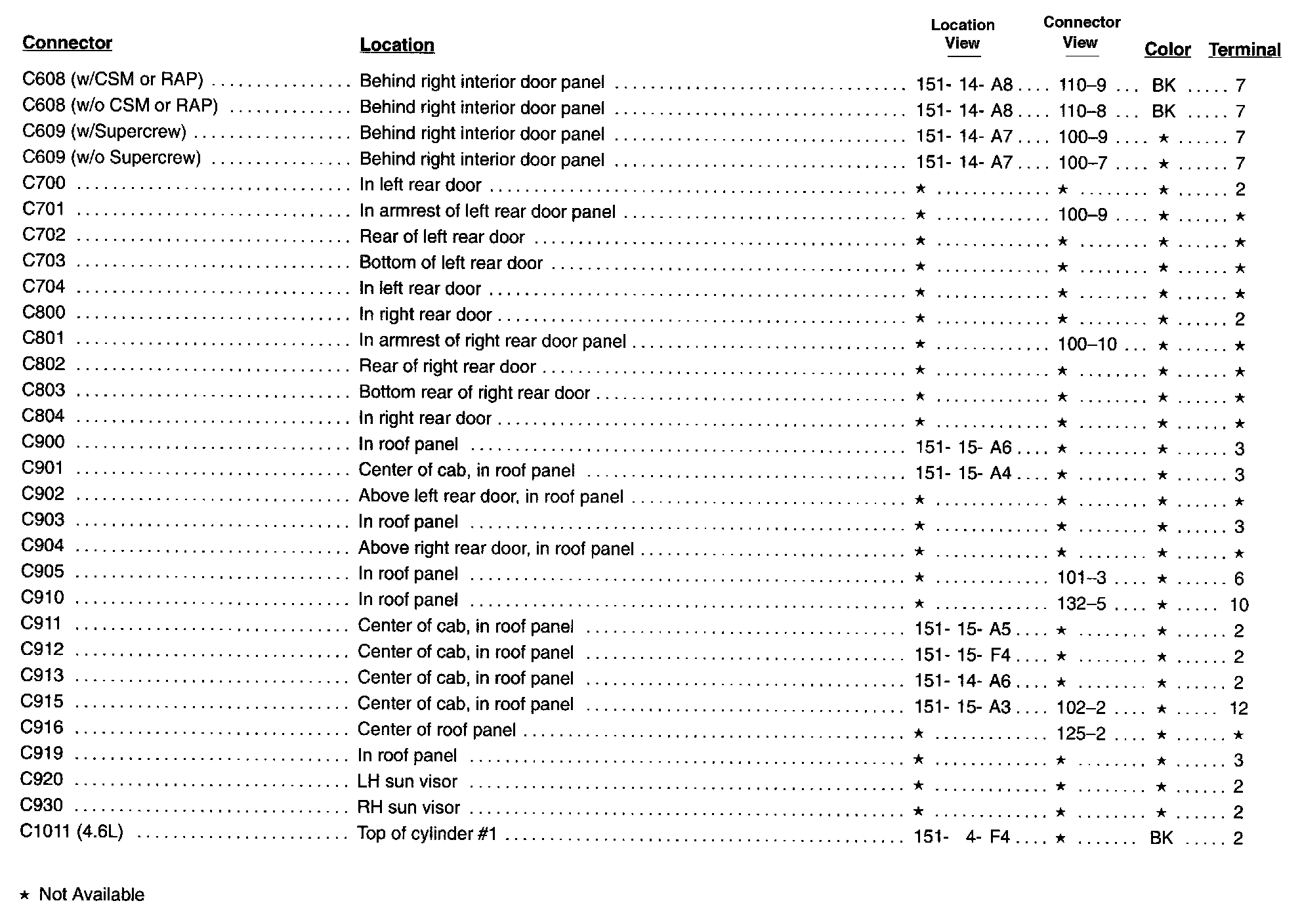

C608 - C1011:

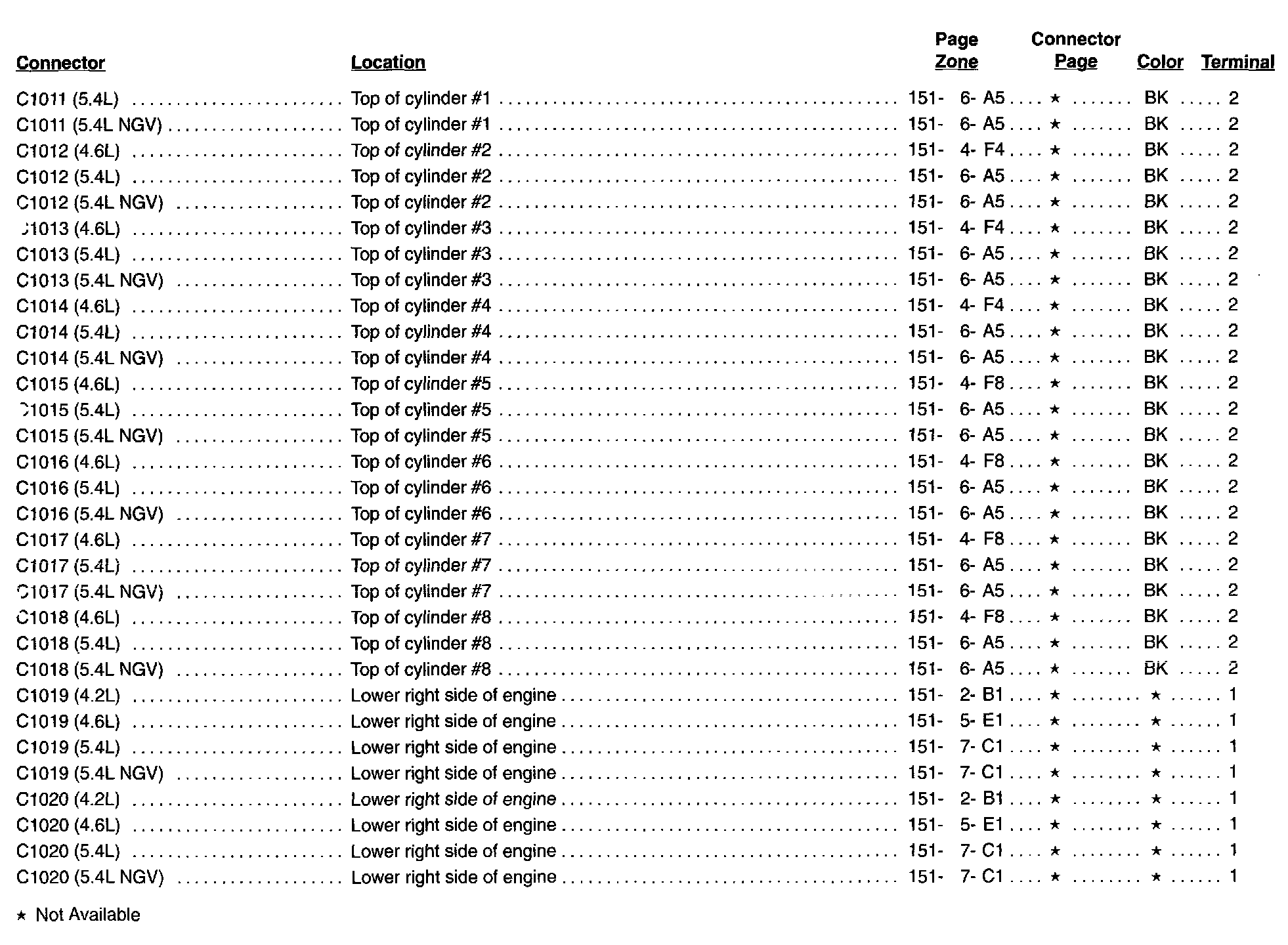

C1011 - C1020:

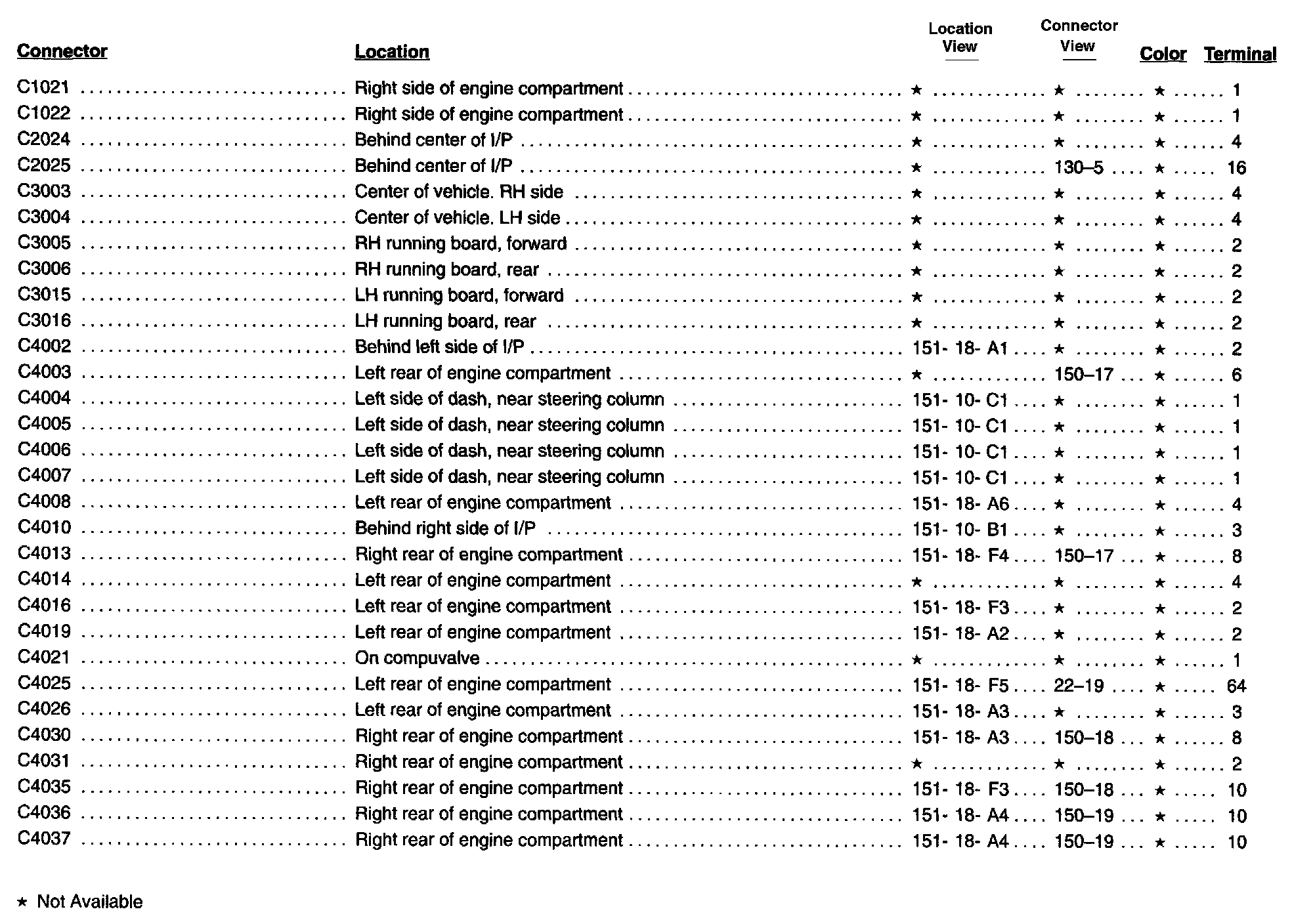

C1021 - C4037:

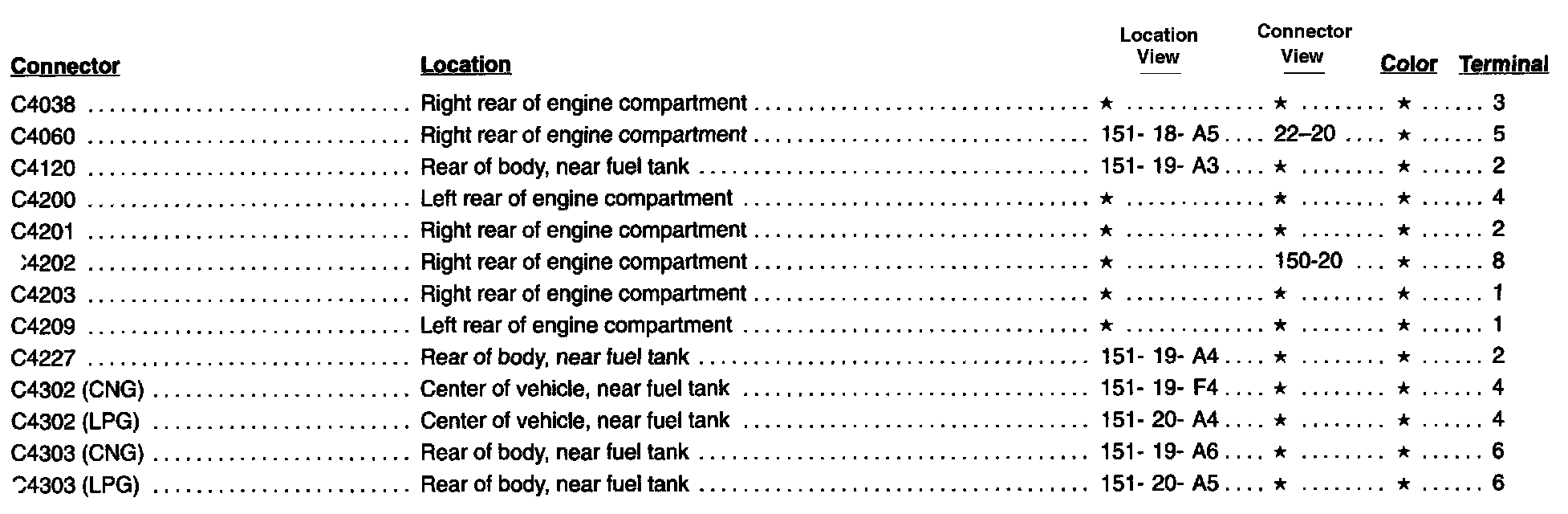

C4038 - C4303:
