Clutch Switch: Service and Repair

REMOVAL

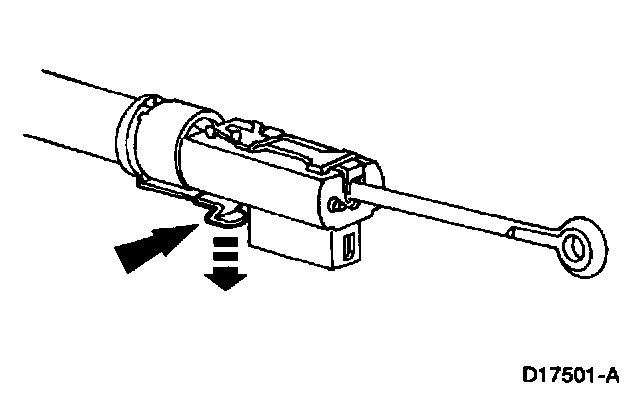

1. Disconnect the clutch pedal position switch electrical connector.

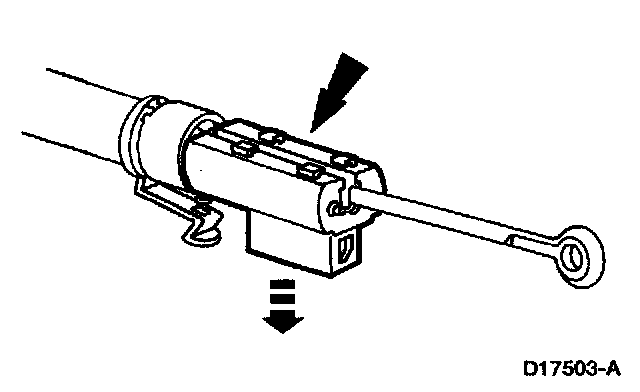

2. Release the CPP switch from the orientation clip.

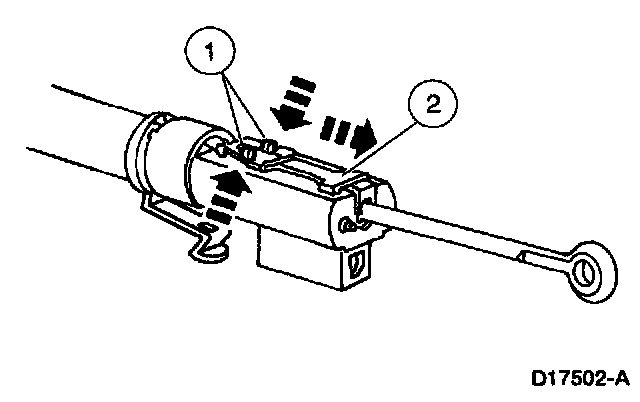

3. Remove the plastic retainer.
1 Push the lock tabs together.
2 Slide the plastic retainer off the CPP switch.

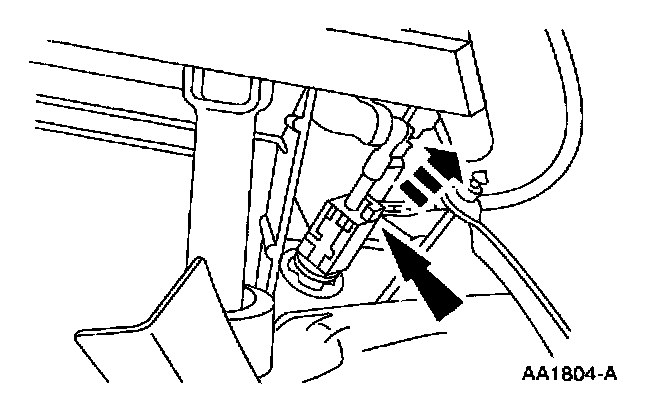

4. Remove the CPP switch.

INSTALLATION
1. To install, reverse the removal procedure.
