Alternator: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable.
2.
Remove the drive belt.
3.
Disconnect the generator electrical connectors.
1
Disconnect the generator stator and
voltage regulator connectors.
2
Remove the generator B+ cable nut.
3
Disconnect the generator B+ cable.
4.

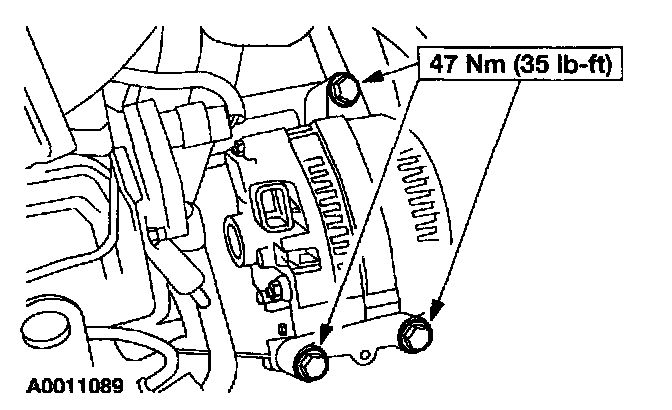

Remove the generator.
^
Remove the generator mounting bolts.
INSTALLATION 1.
To install, reverse the removal procedure.
