Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Left Front
Left Front

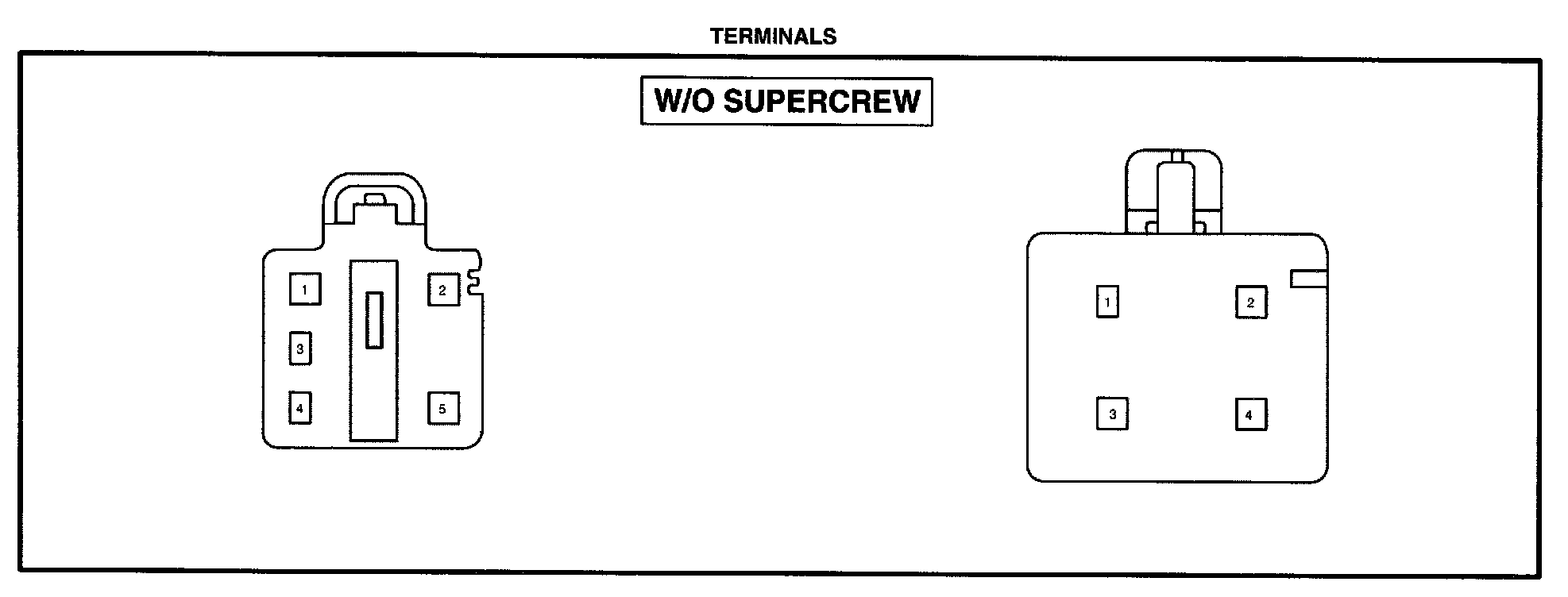

Component Testing Procedure:

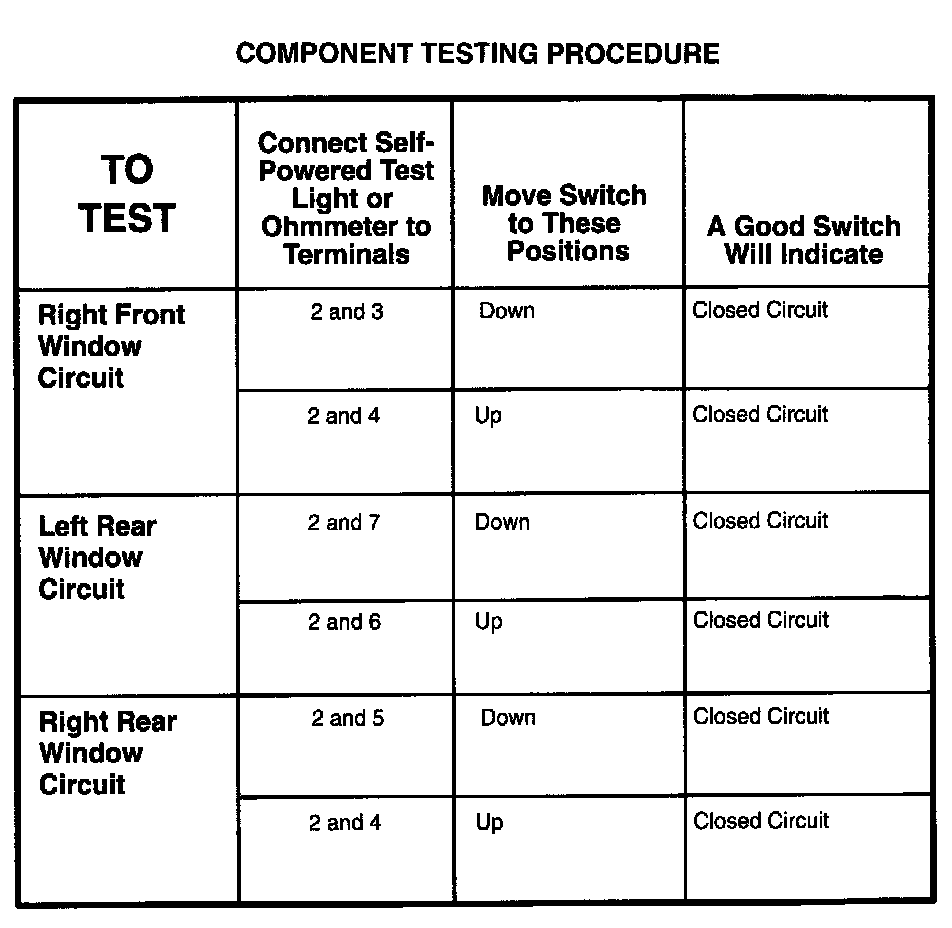

Component Testing Procedure (Part 1 Of 2):

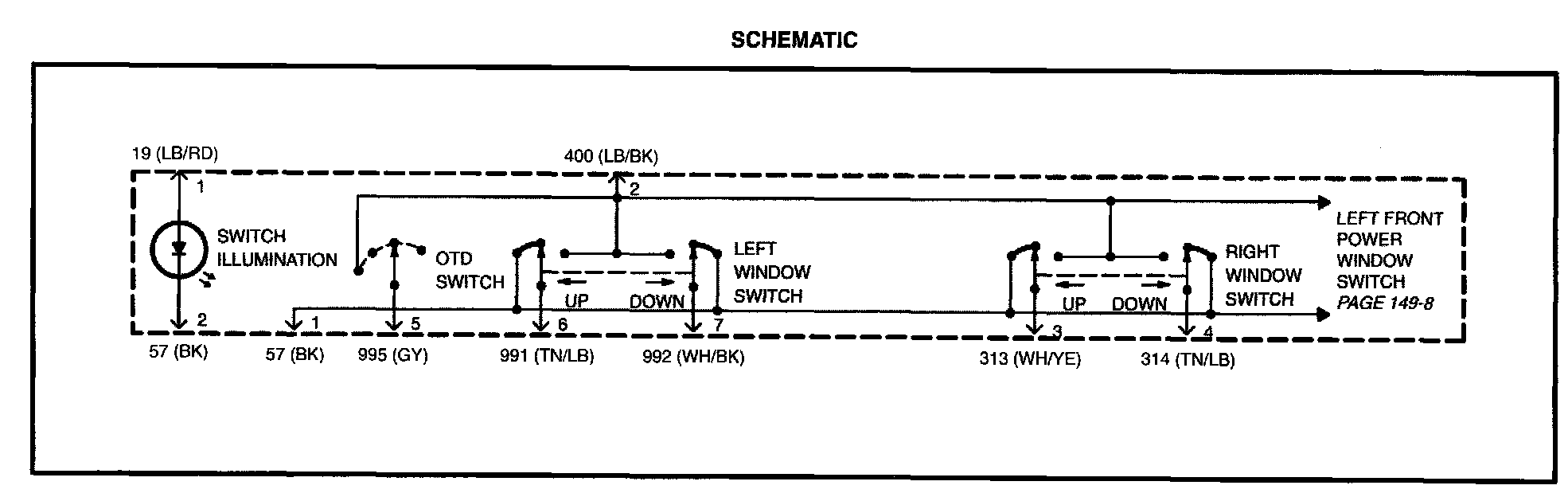

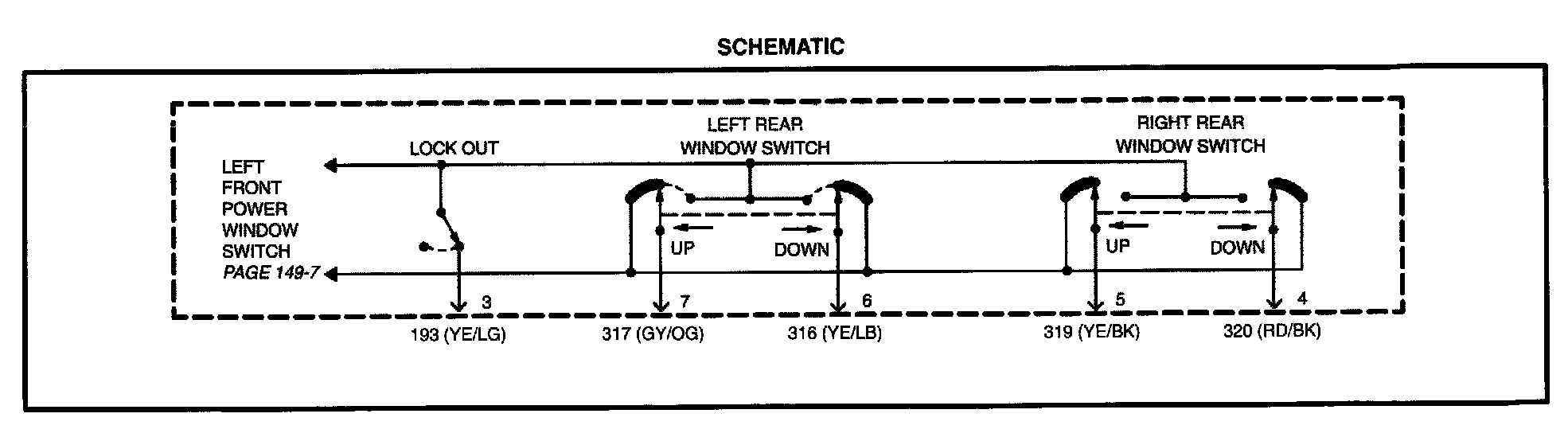

Schematic:
