Torque



LH cylinder head






NOTE: Make sure to tighten the bolts in sequence in three stages.

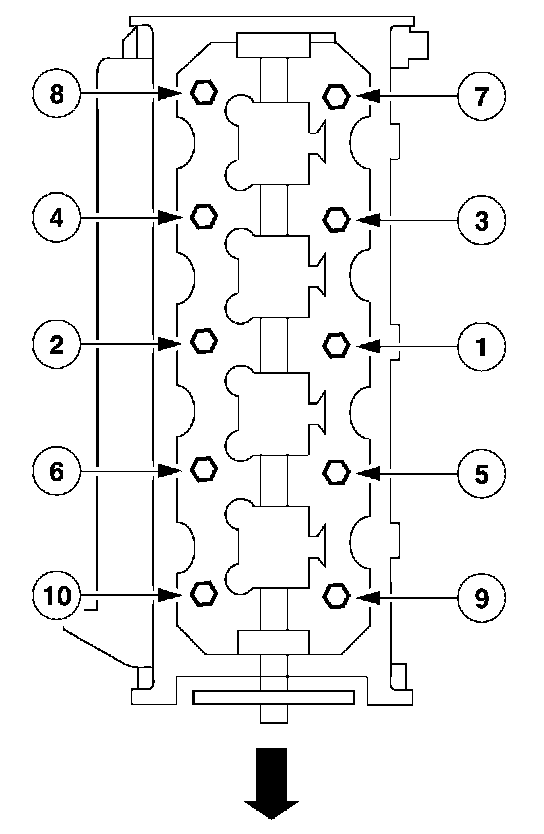

Tighten the LH bolts in the sequence shown.
- Stage 1: Tighten to 40 Nm (30 ft. lbs.).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Tighten an additional 90 degrees.

RH cylinder head






NOTE: Make sure to tighten the bolts in sequence in three stages.

Tighten the RH bolts in the sequence shown.
- Stage 1: Tighten to 40 Nm (30 ft. lbs.).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Tighten an additional 90 degrees.
