Test C: Torque Converter Clutch (TCC) Solenoid

PINPOINT TEST C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.





Test C1-C2

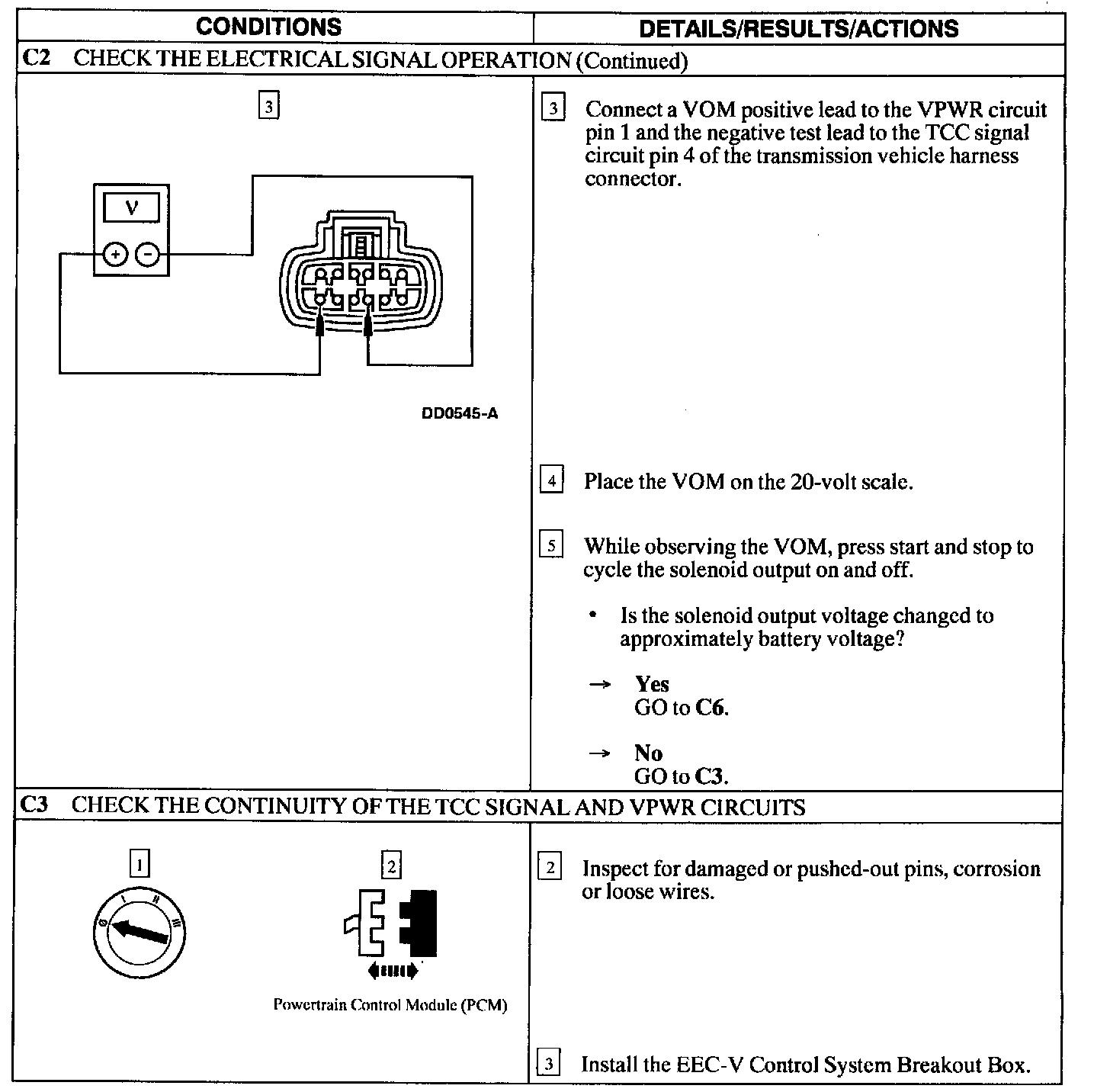

Test C2-C3

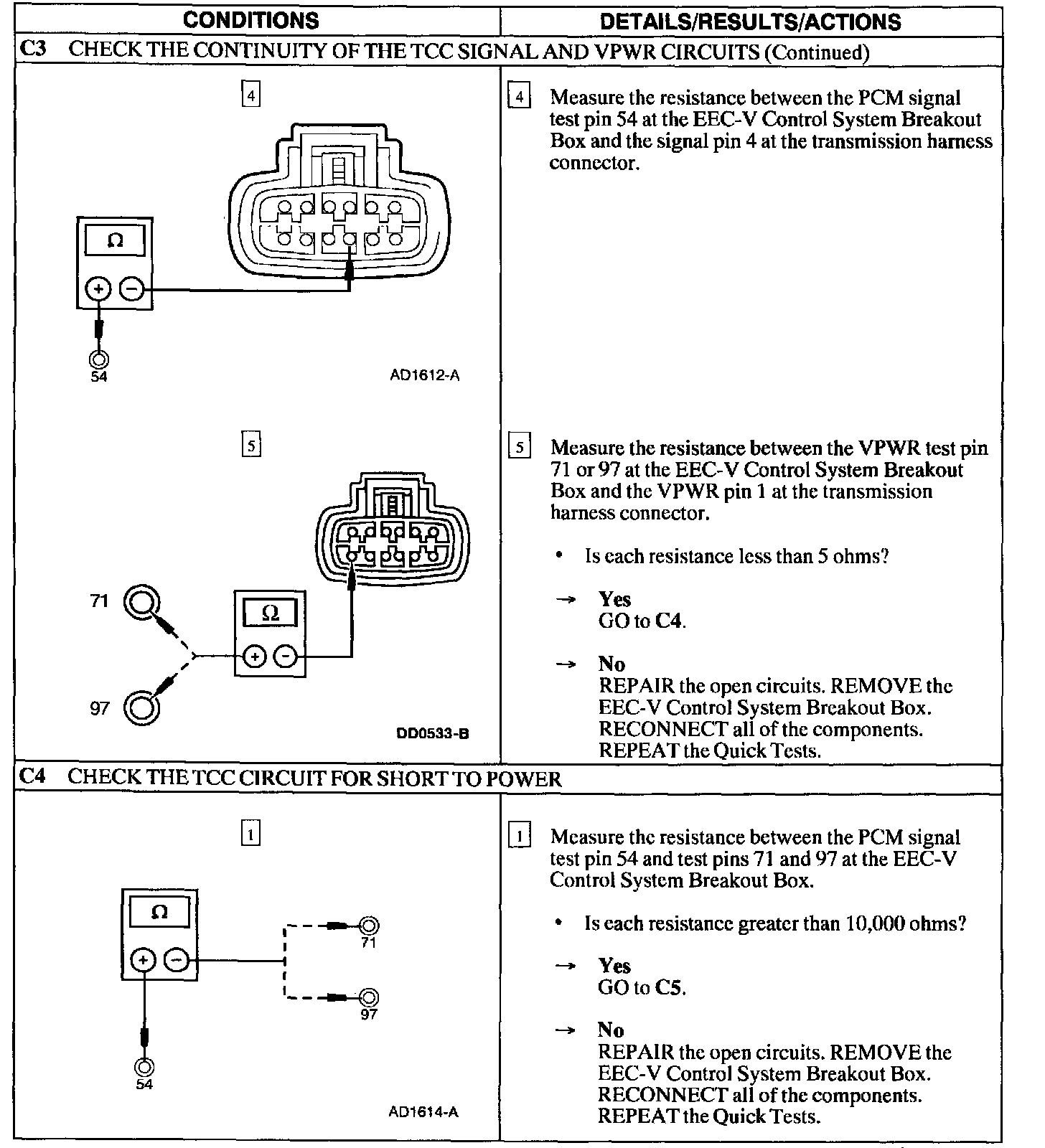

Test C3-C4





Test C5-C6





Test C7-C8





Test C8-C9
