Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
F 150 4WD Pickup V8-5.4L CNG VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Bi-Fuel Models (Bi-Fuel/CNG System)
>>
Test DD: Fuel Tank Temperature Sensor
Test DD: Fuel Tank Temperature Sensor

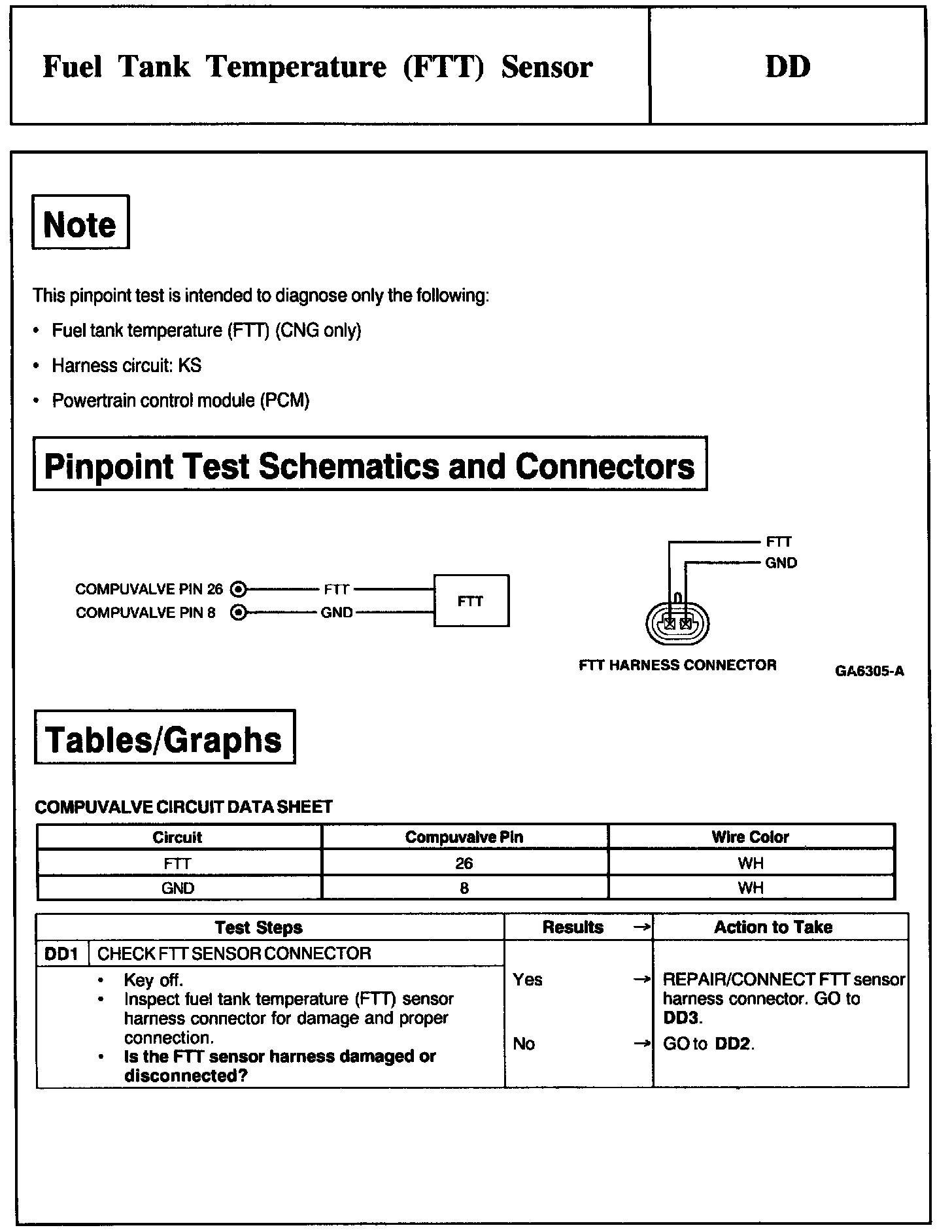

Test Note, Test Schematic, Table, Test DD1:

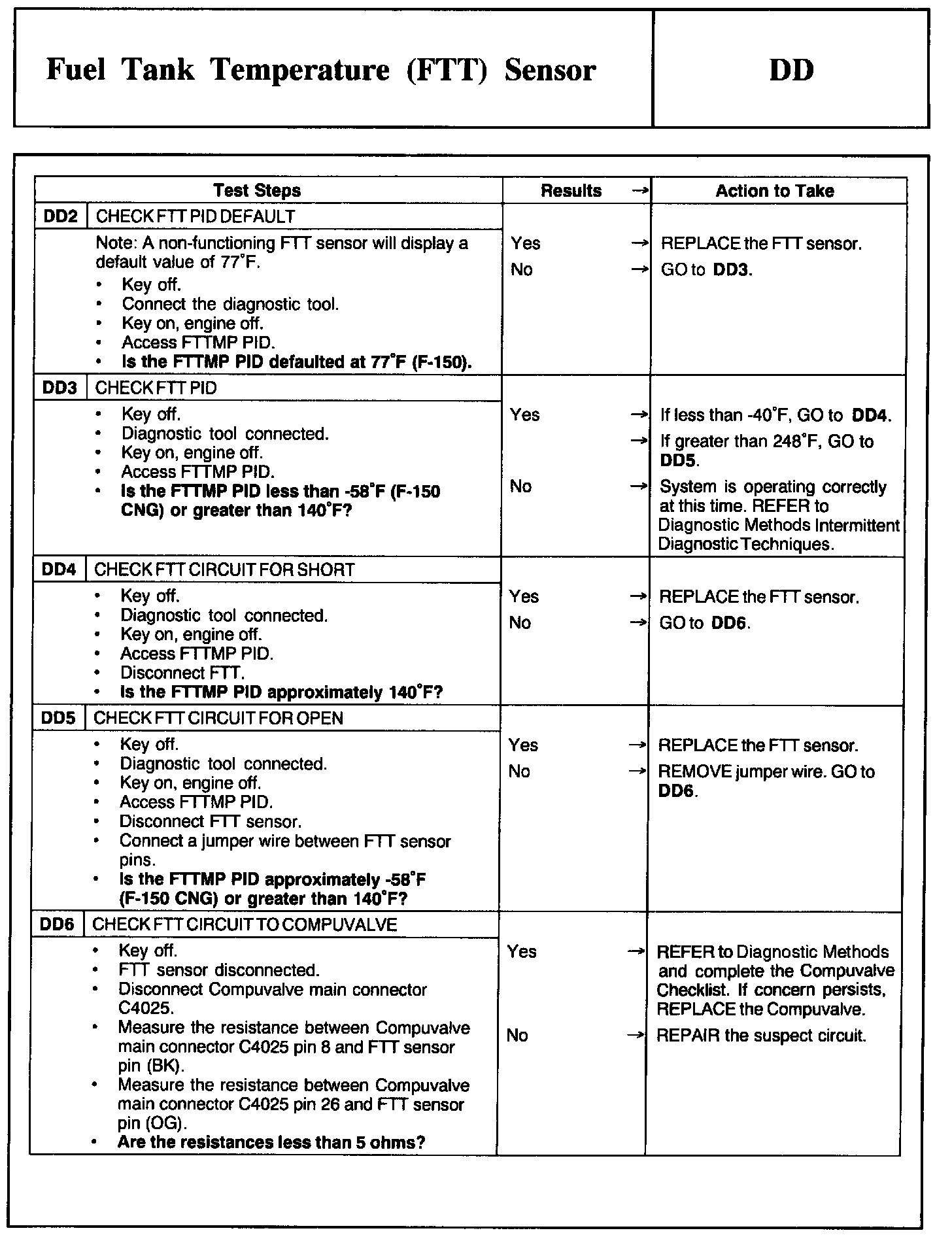

DD2 - DD6:
