Instrument Panel Air Distribution Ducts

DISASSEMBLY
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

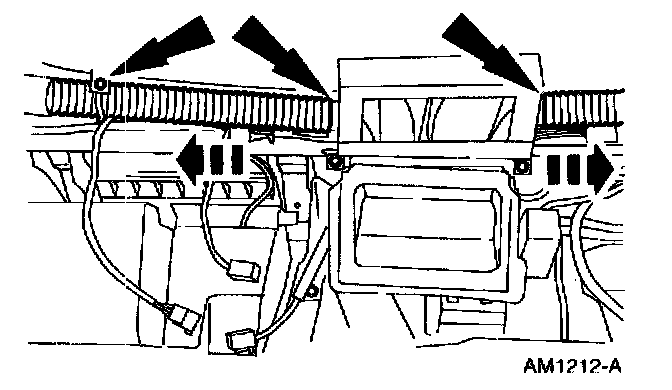

2. Disengage the hose retainer and remove the demister hoses.

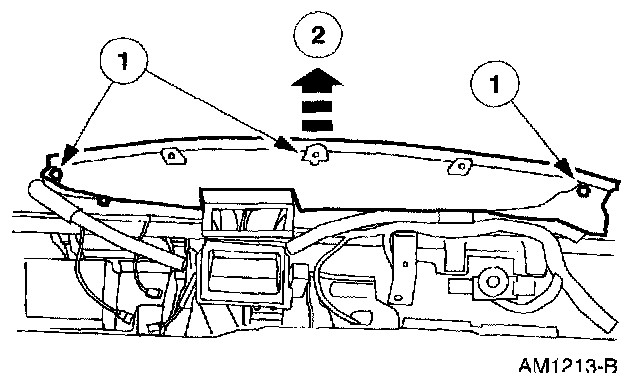

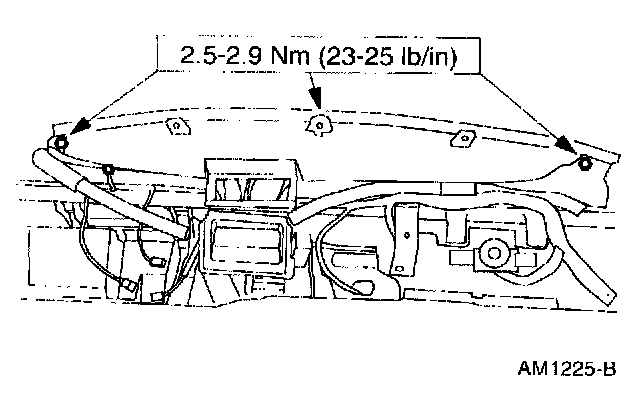

3. Remove the defroster nozzle and duct.
1 Remove the three screws.
2 Remove the defroster nozzle and duct.

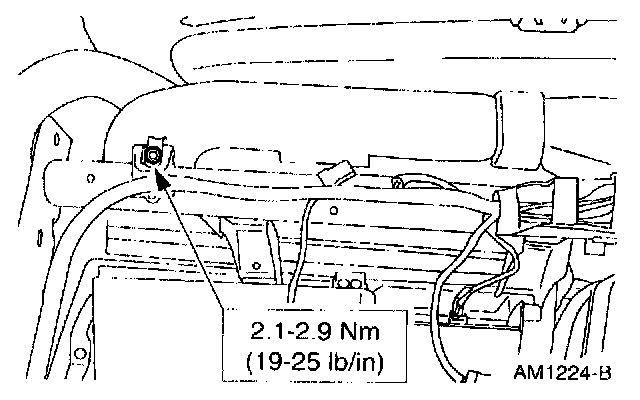

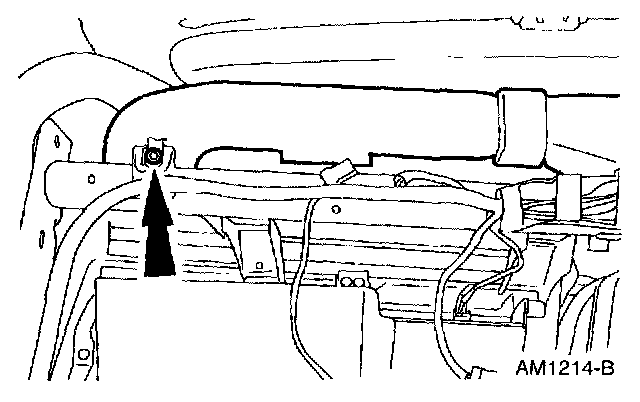

4. Remove the screws and remove the RH evaporator extension duct.

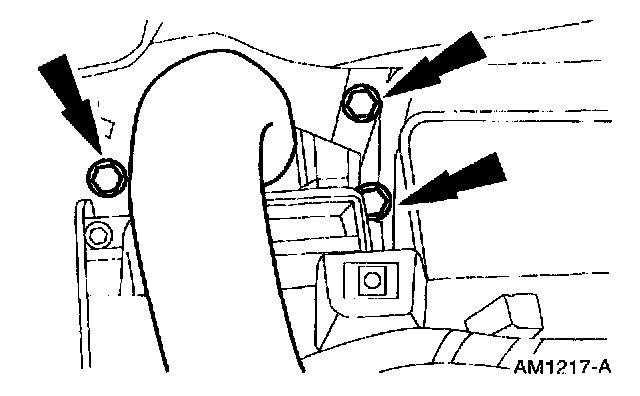

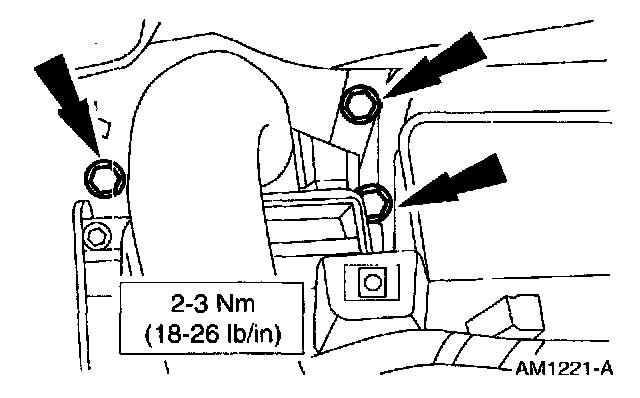

5. Remove the three screws and remove the LH evaporator extension duct.

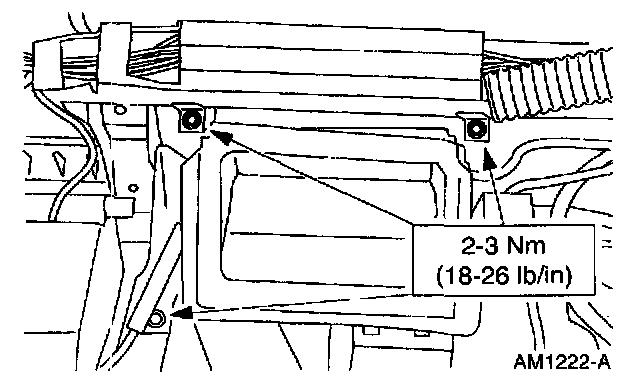

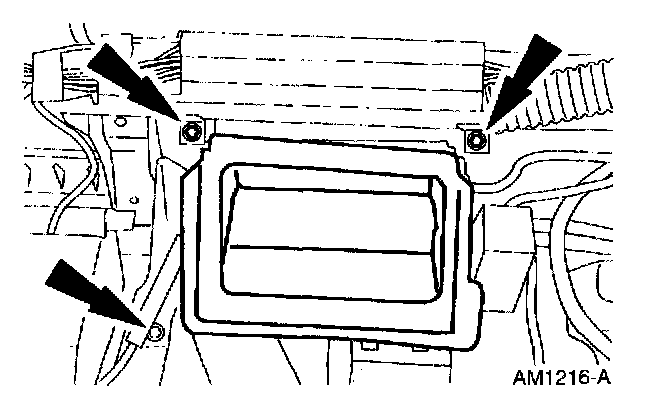

6. Remove the screws and remove the center duct.

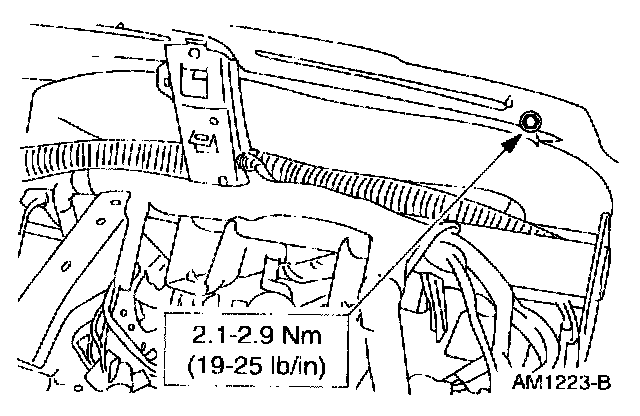

7. Remove the nuts and remove the RH side window demister hose and nozzle.

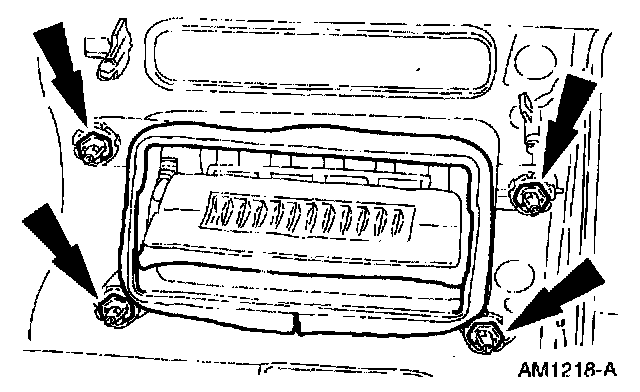

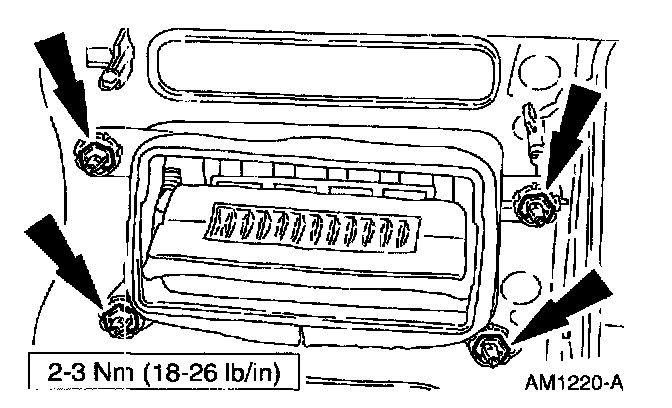

8. Remove the nuts and remove the RH A/C register assembly.

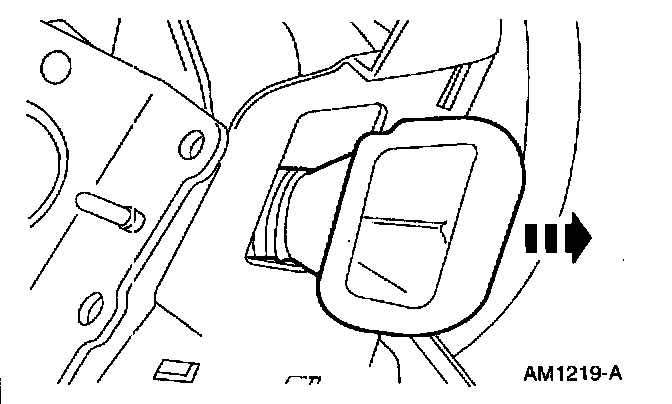

9. Release the lock tabs and remove the LH side window demister hose and nozzle.

ASSEMBLY
































1. Follow the disassembly procedure in reverse order.
