Test E: PATS Transceiver Signal Is Not Received

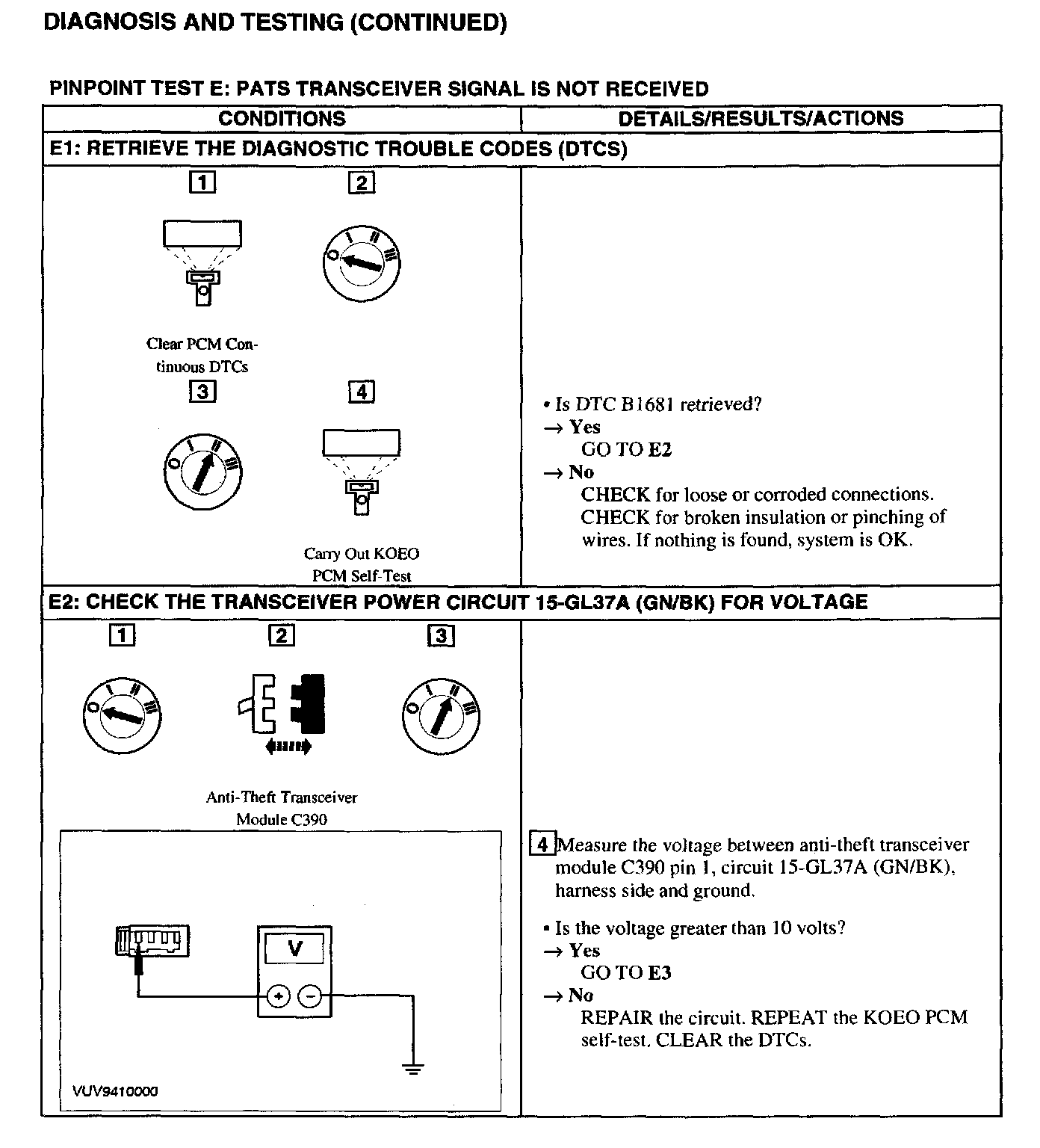

E1 - E2:

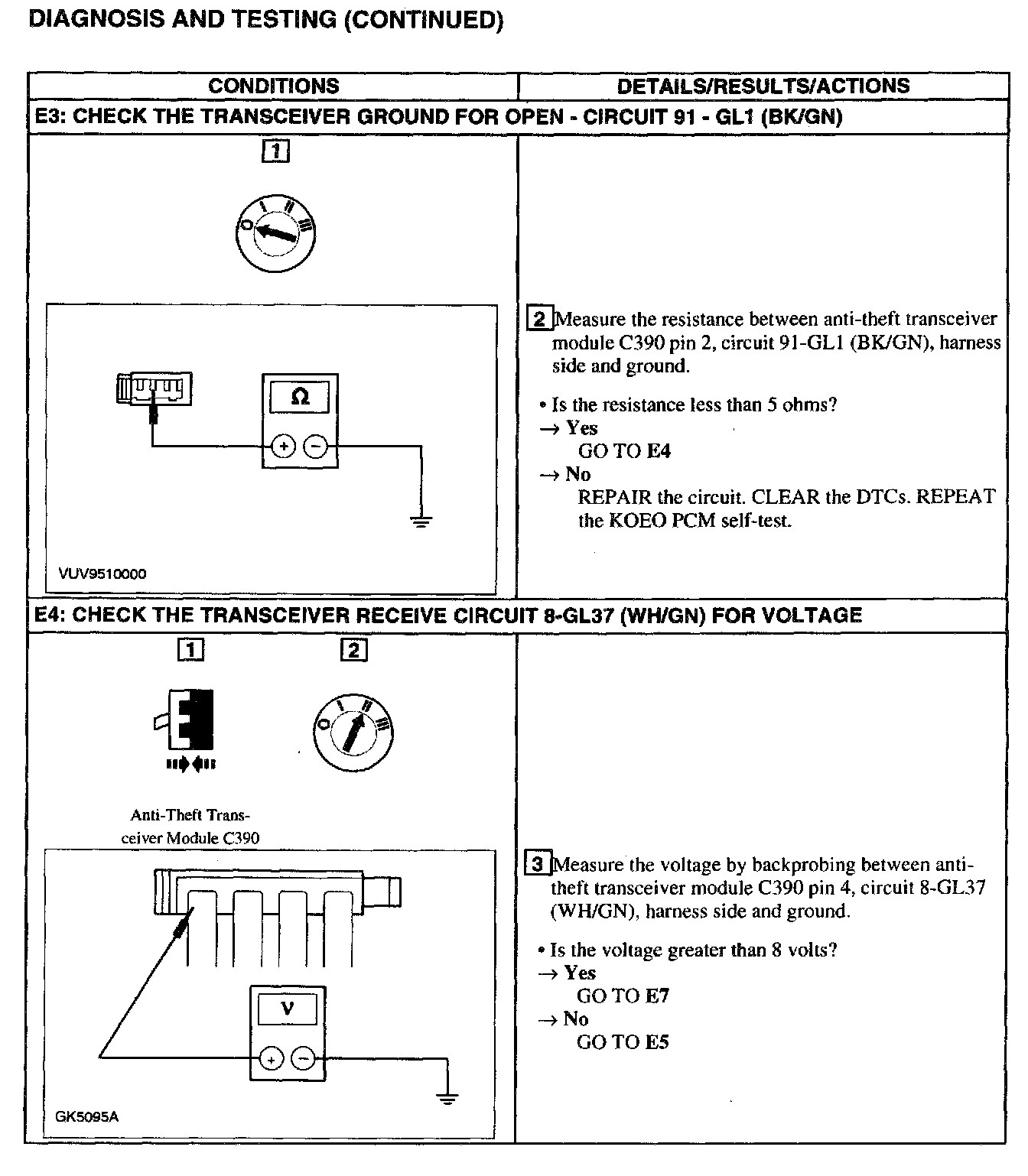

E3 - E4:

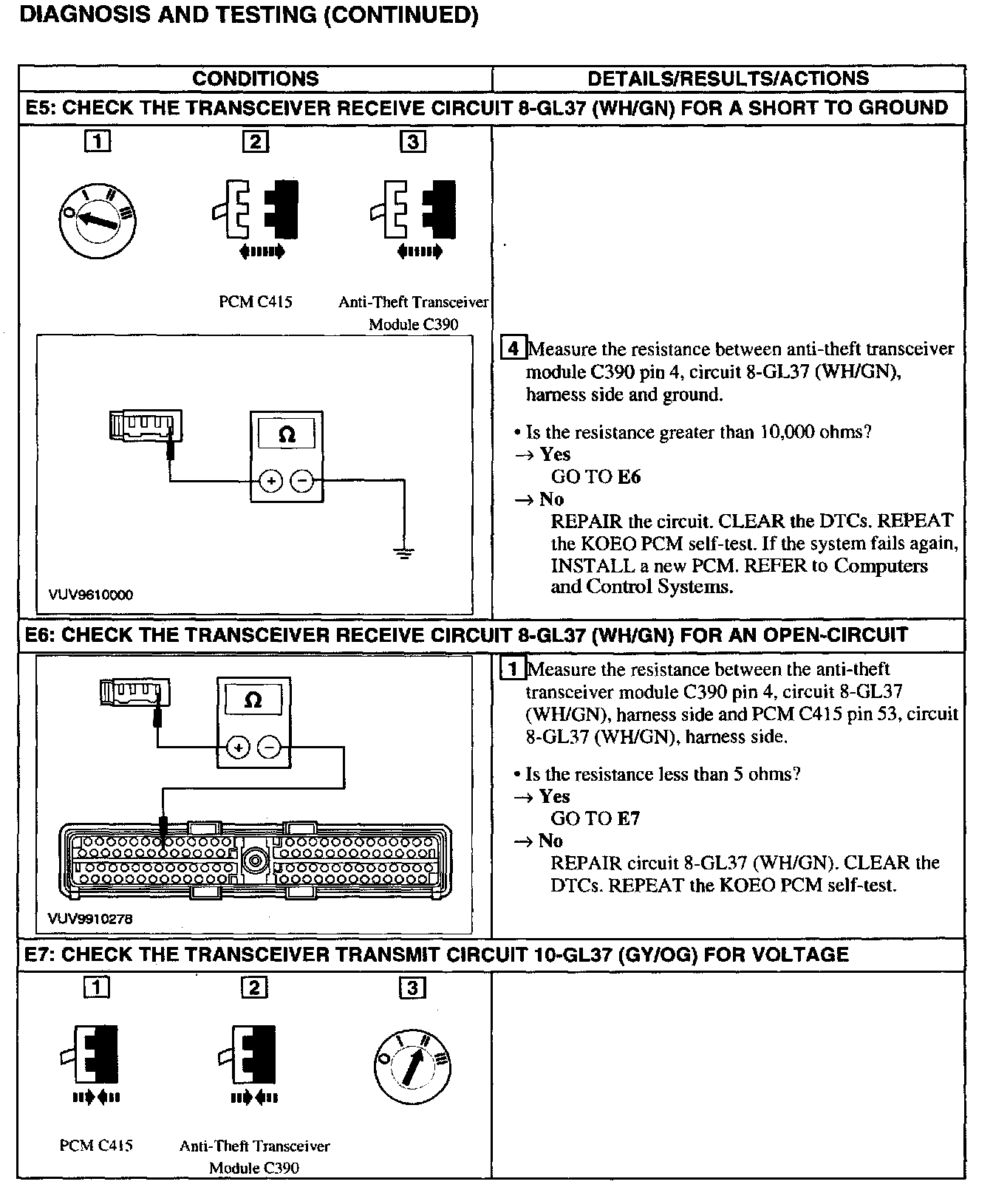

E5 - E7:






E7 - E9:

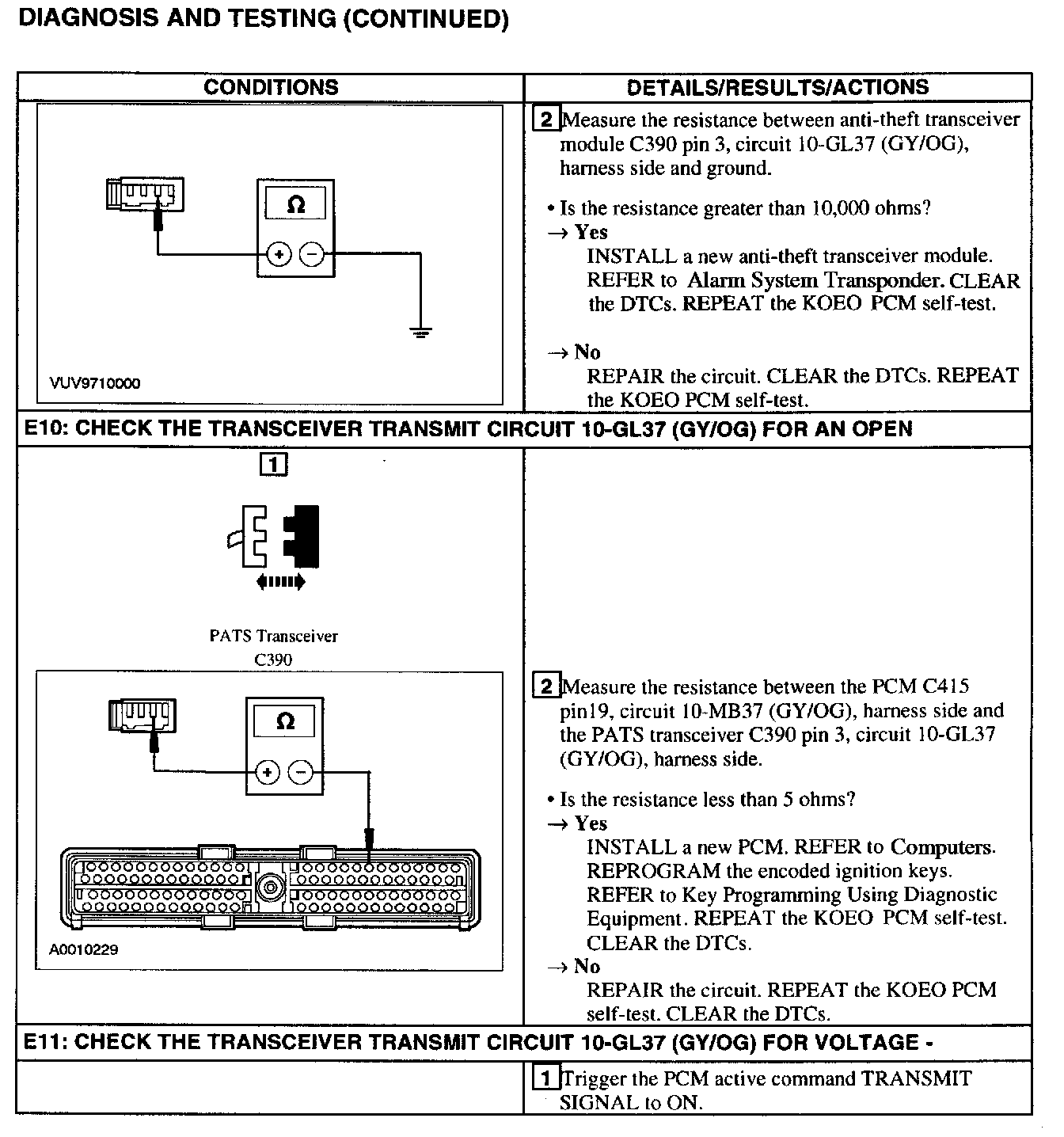

E9 - E11:

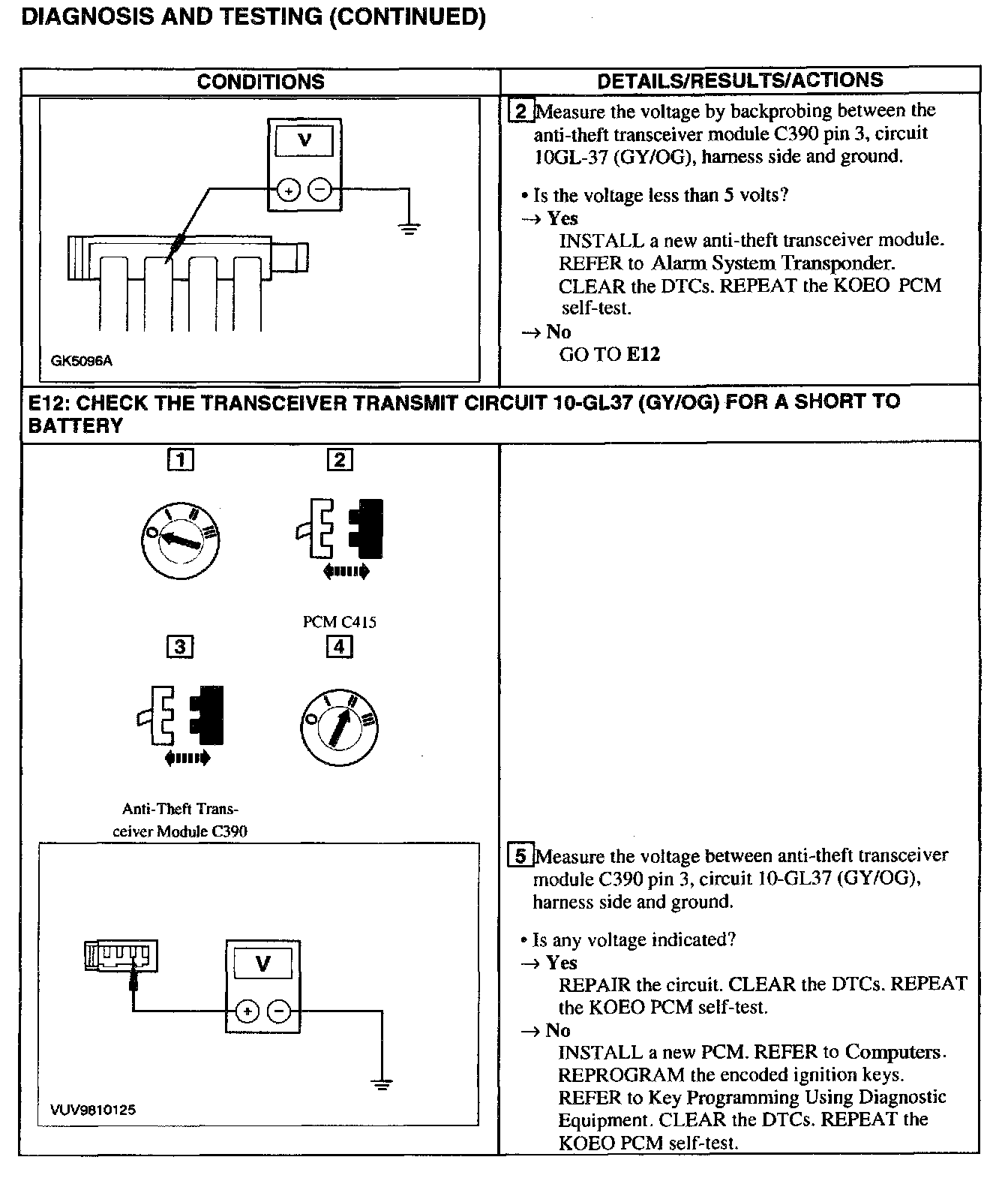

E11 - E12:
