Home >> Ford >> 2001 >> Focus ZX3 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

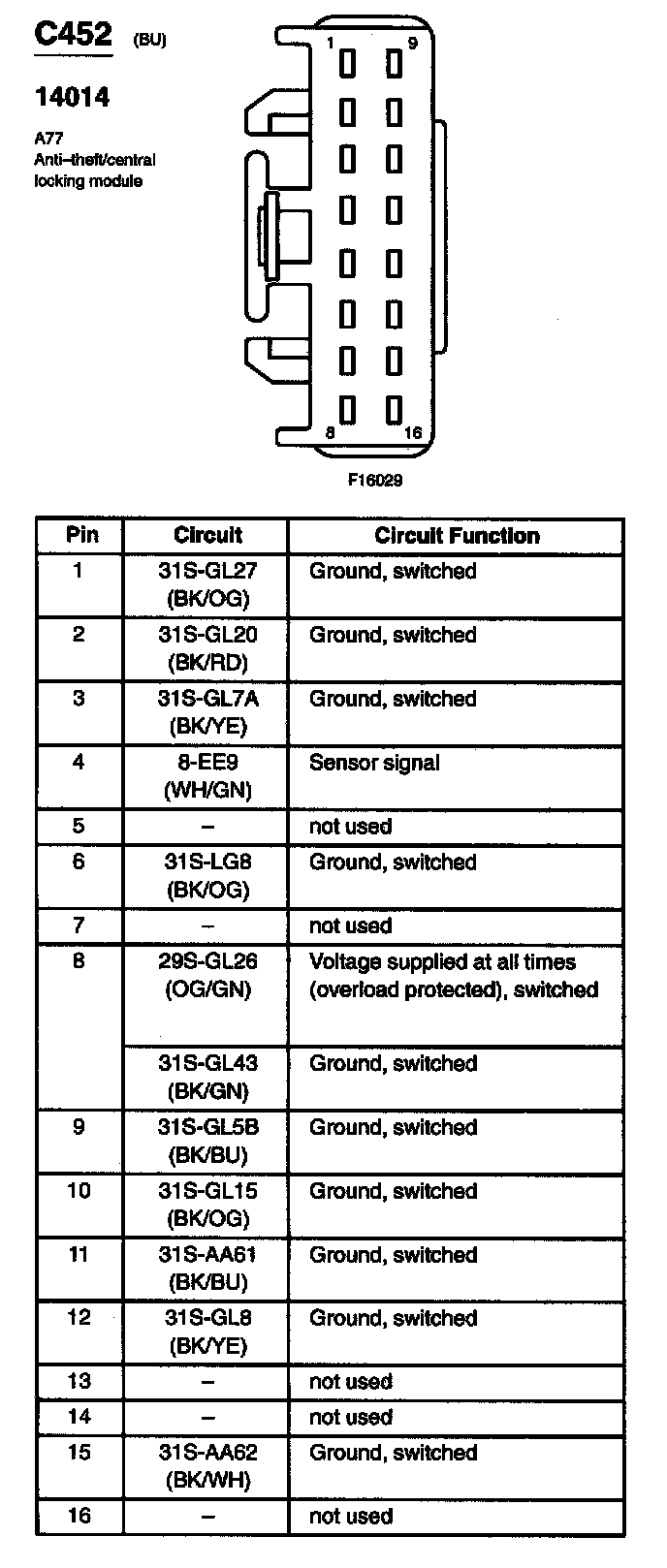

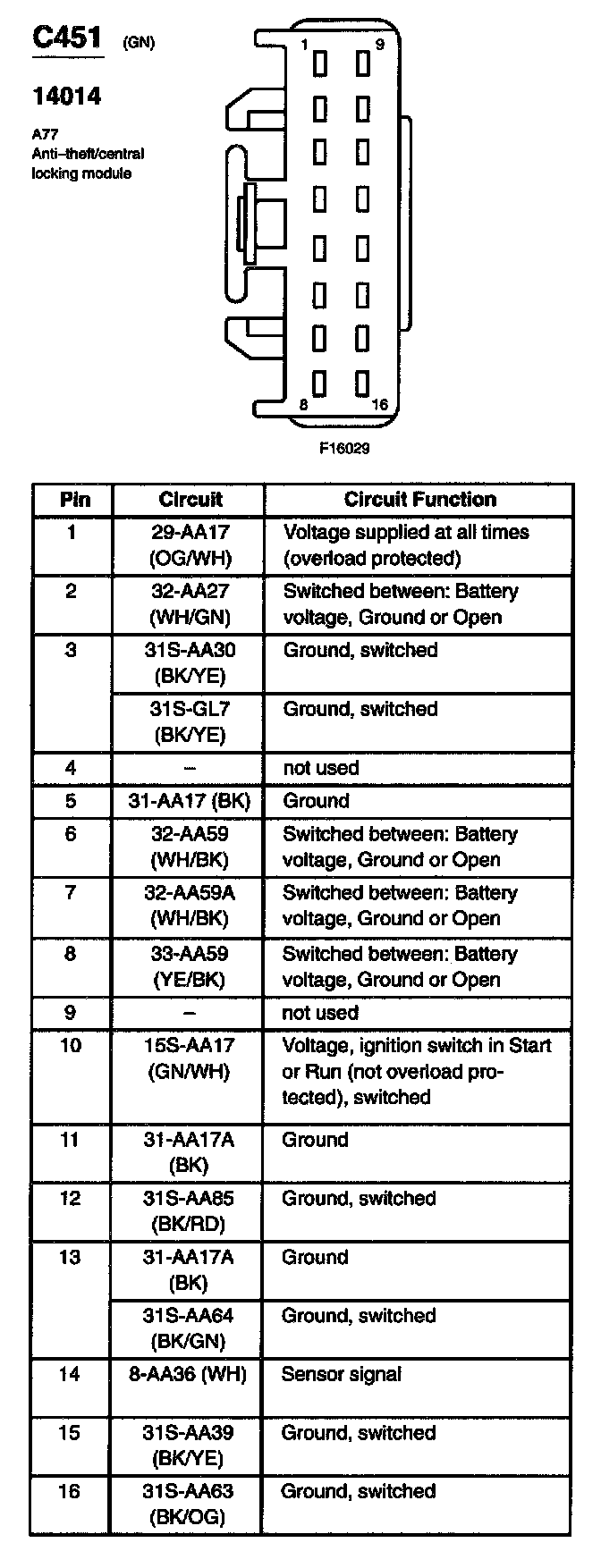

Alarm Module, (Vehicle Antitheft)
