Vehicles Equipped With Electronic Stability Control
Electronic Stability Program Module
Connector Views

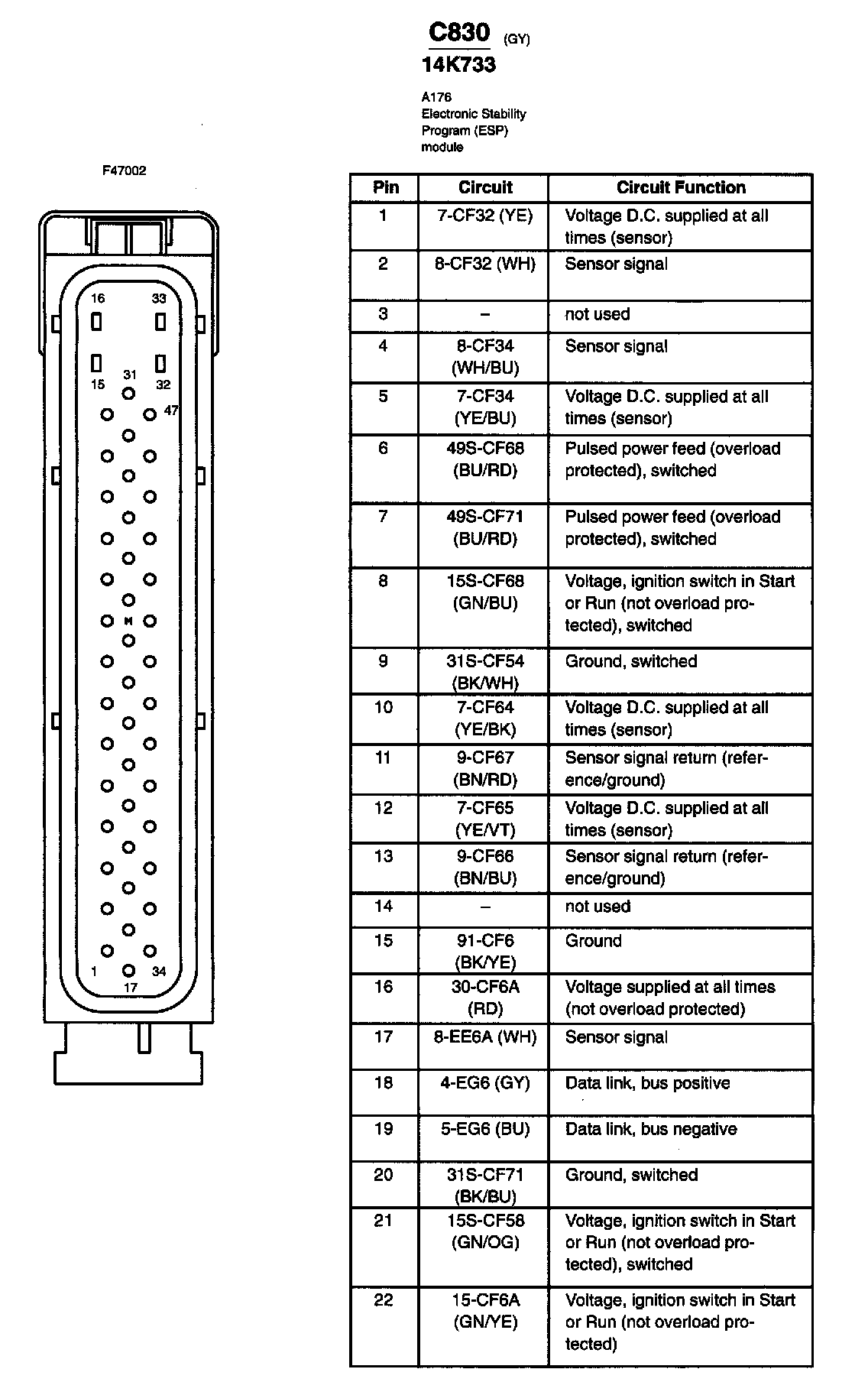

Part 1:

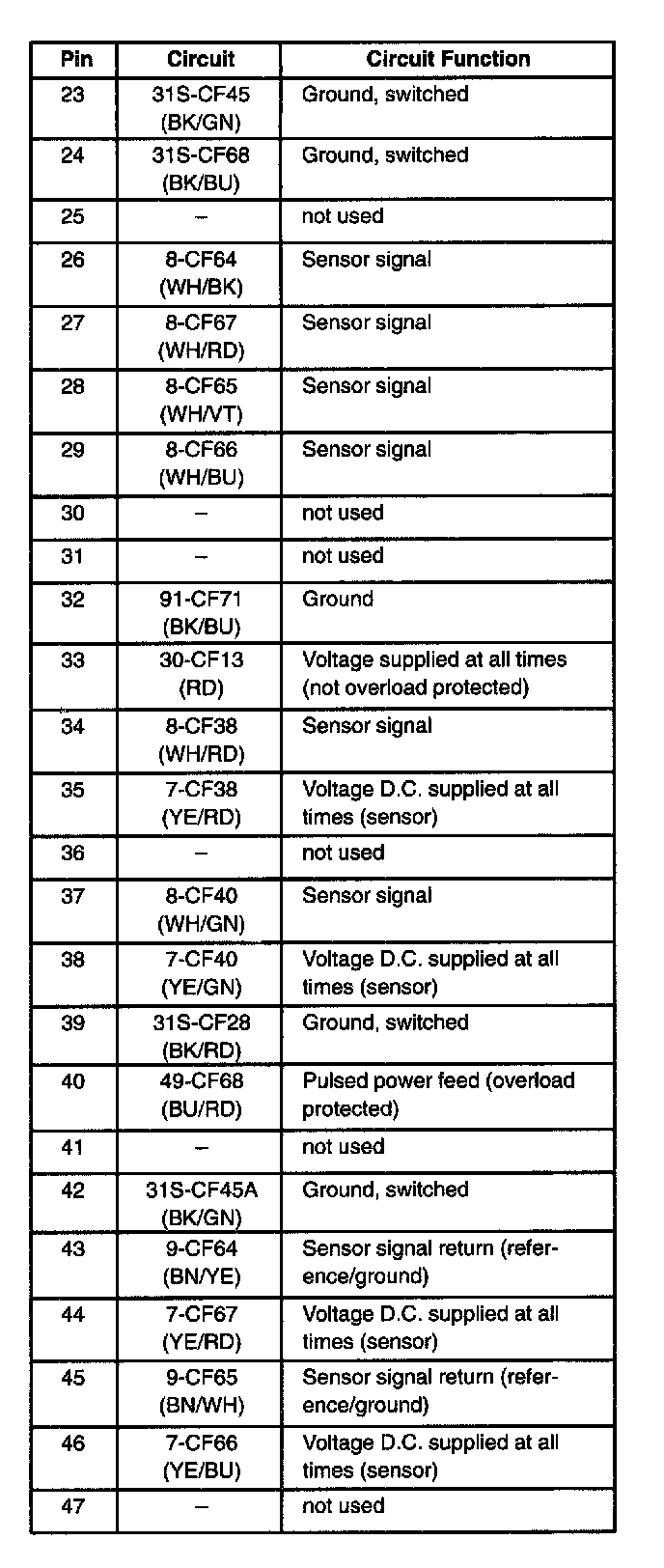

Part 2:
