Focus ZX3 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

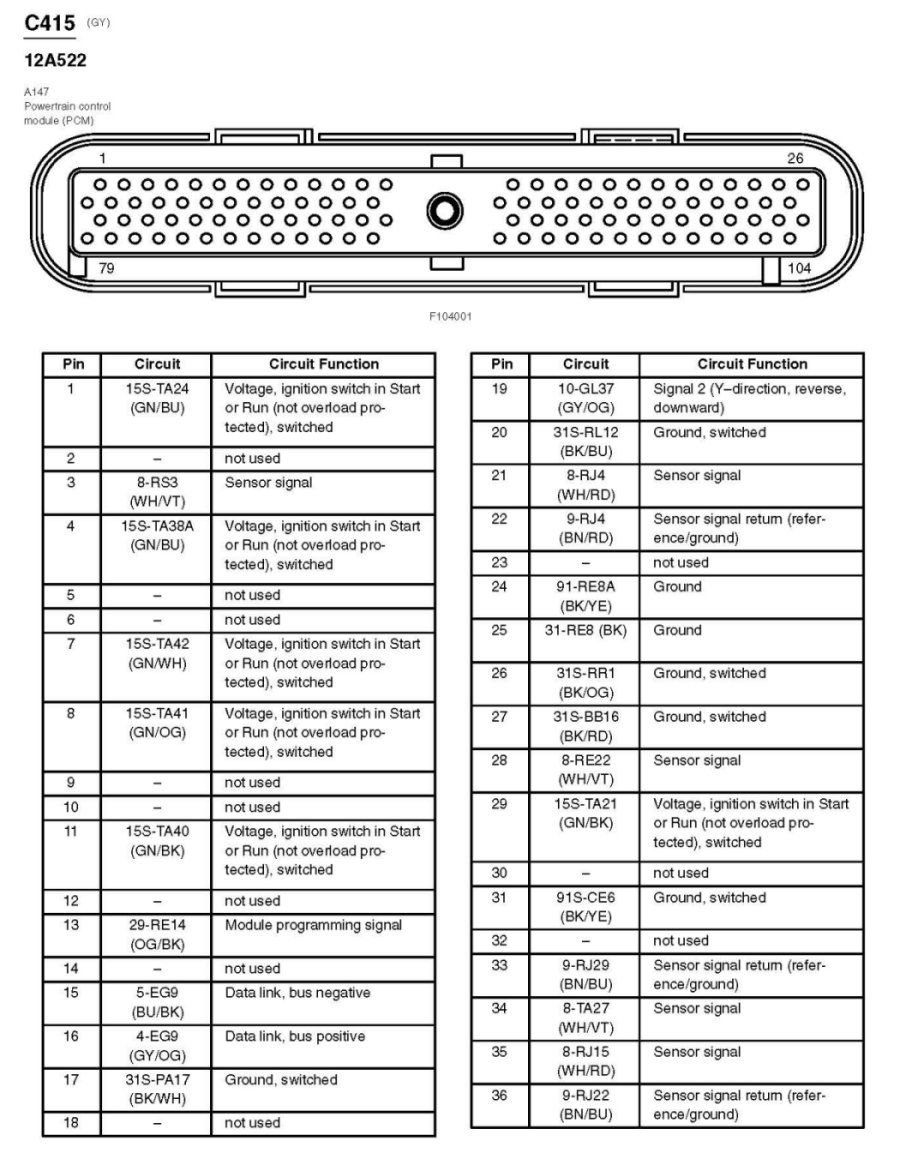

1 Of 3:

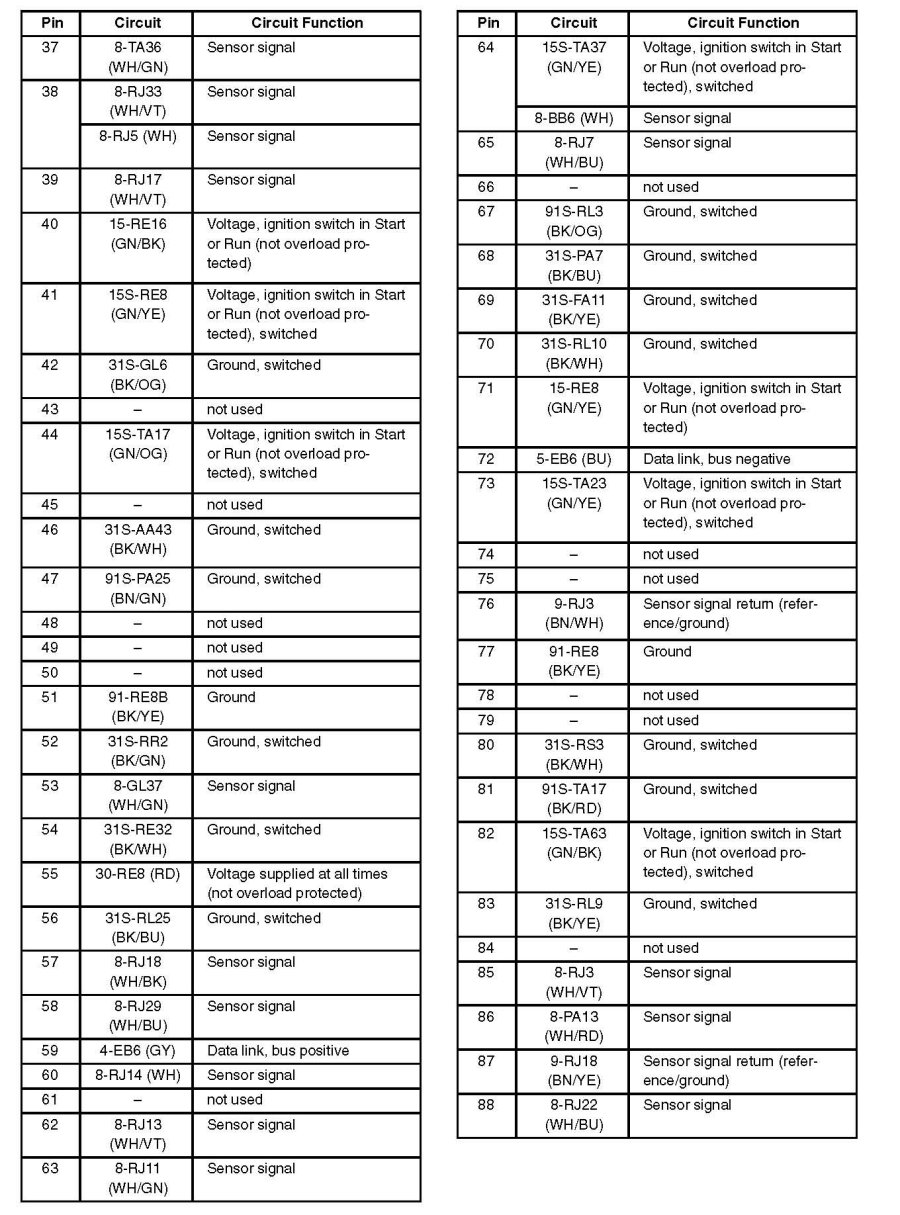

2 Of 3:

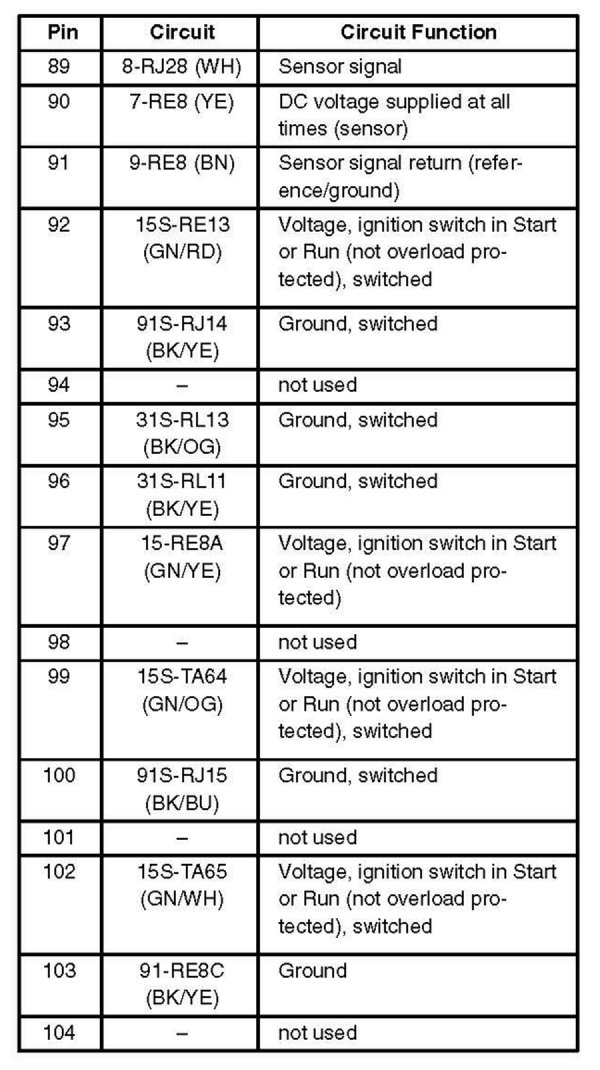

3 Of 3:
