Data Link Connector

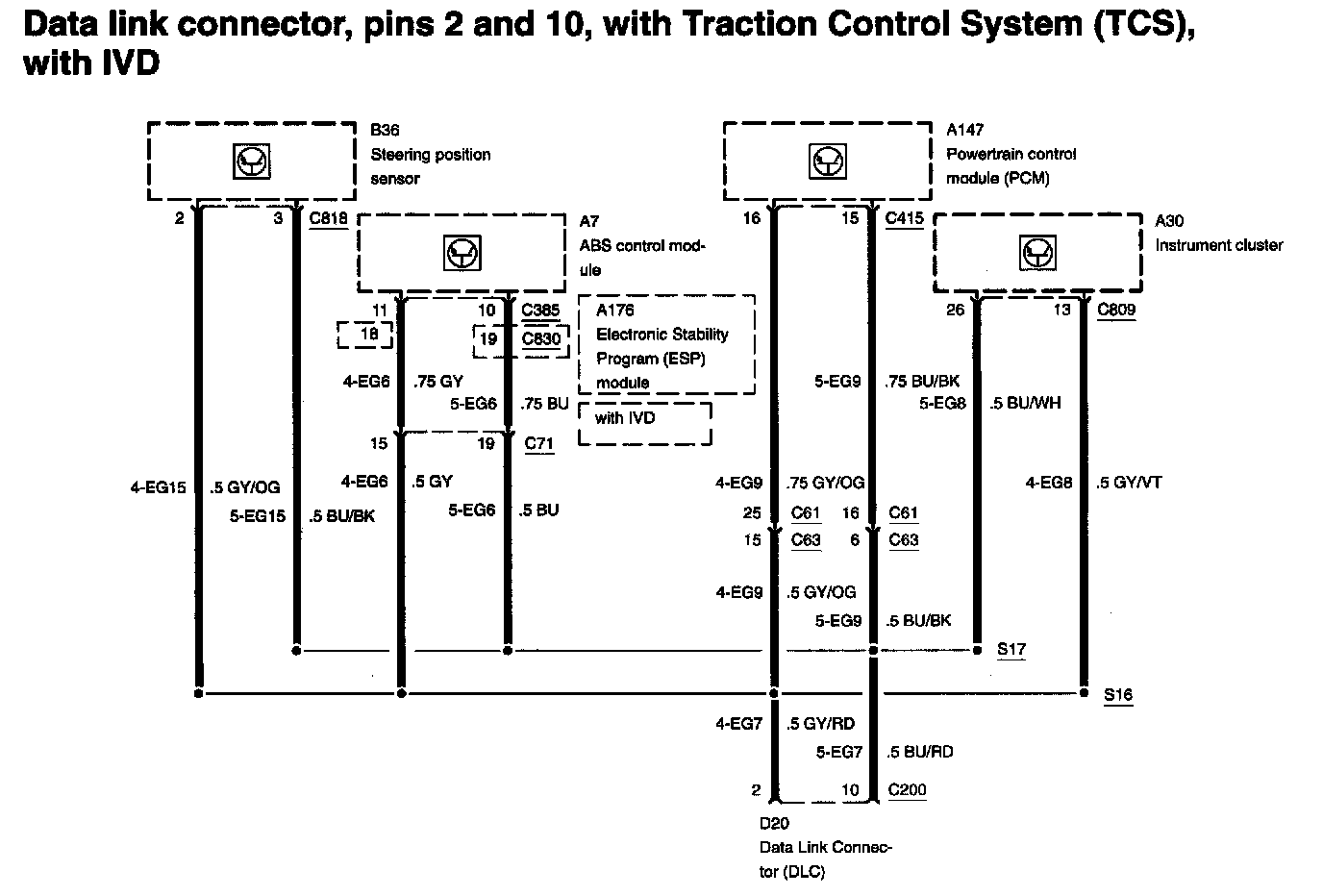

Diagram 418-00b-00-1:

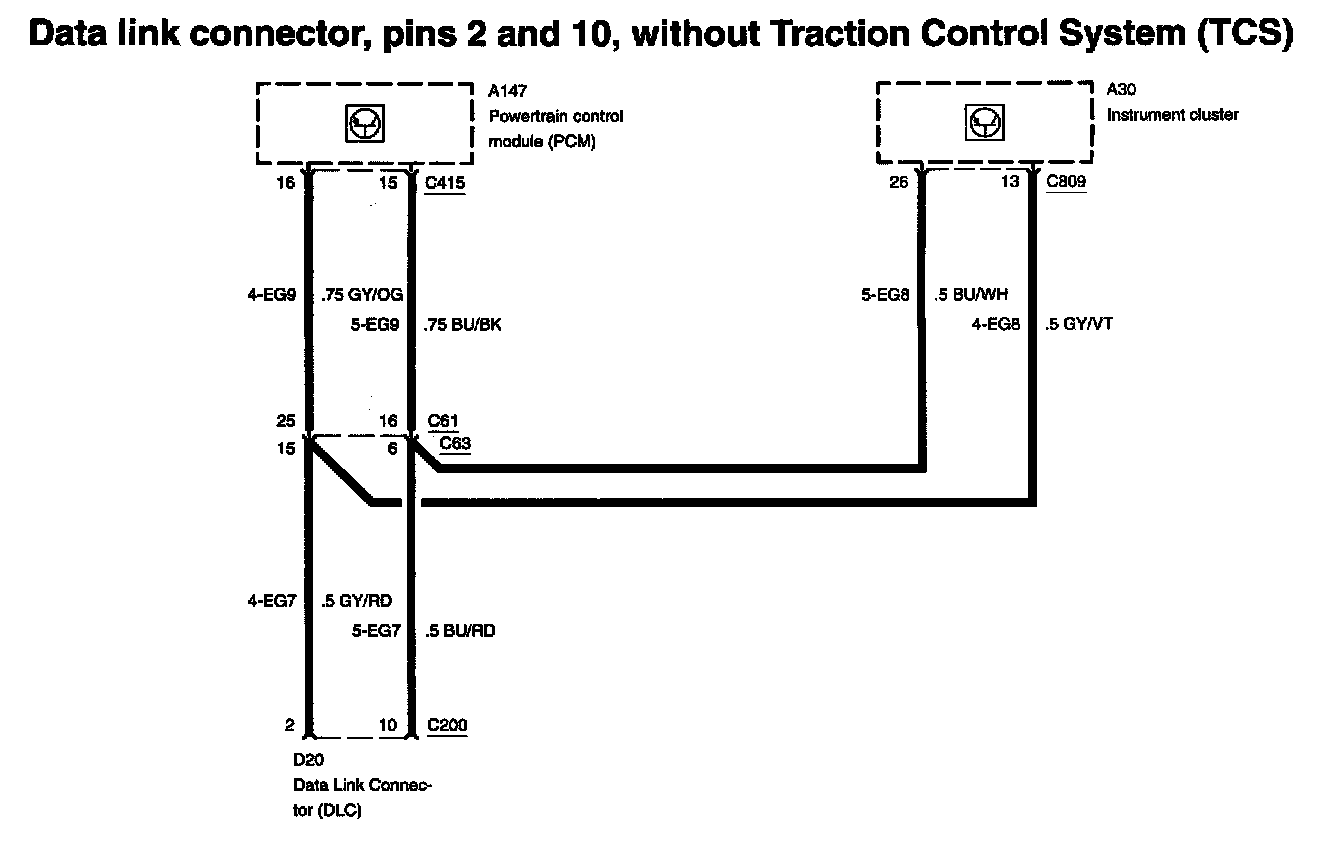

Diagram 418-00b-00-2:

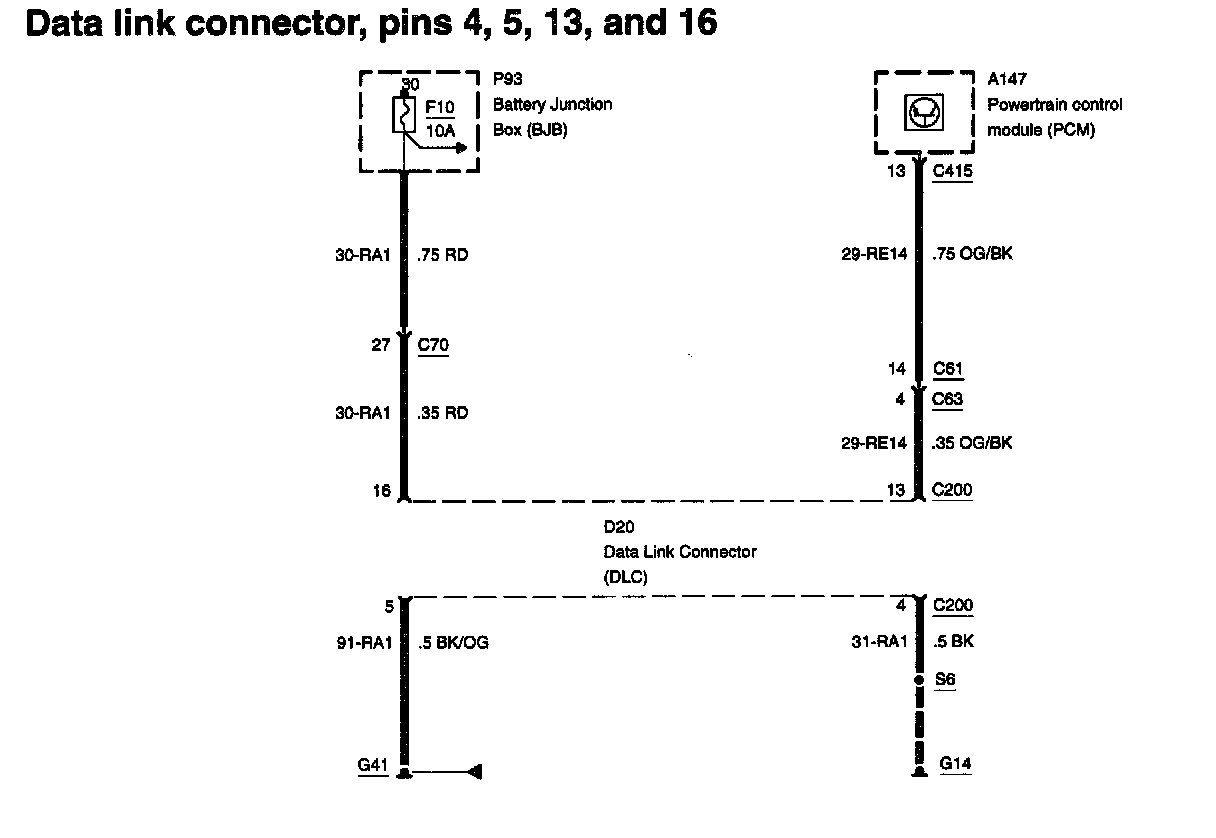

Diagram 418-00b-00-3:

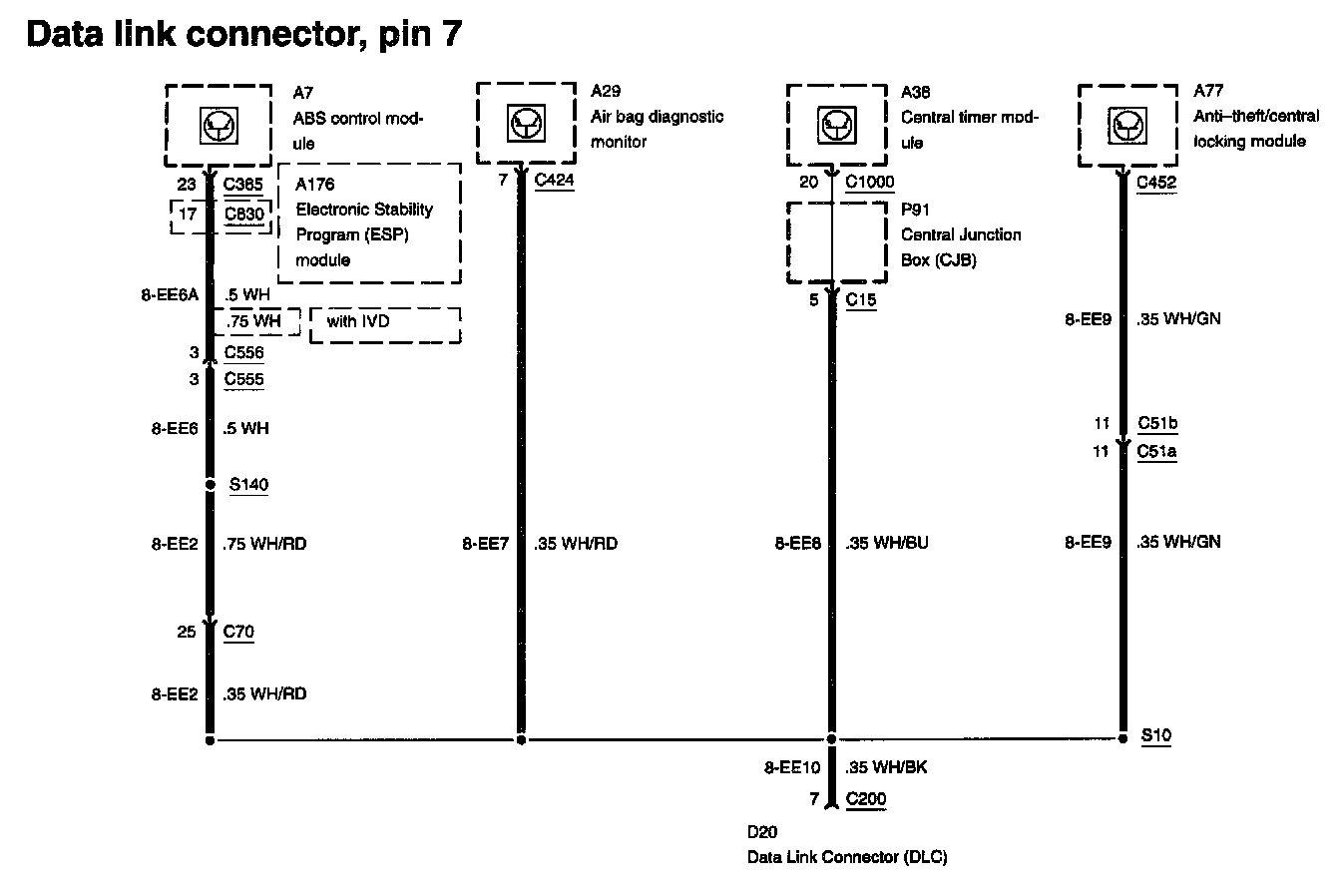

Diagram 418-00b-00-4:
