Automatic Transmission

DETAILED DIAGRAMS

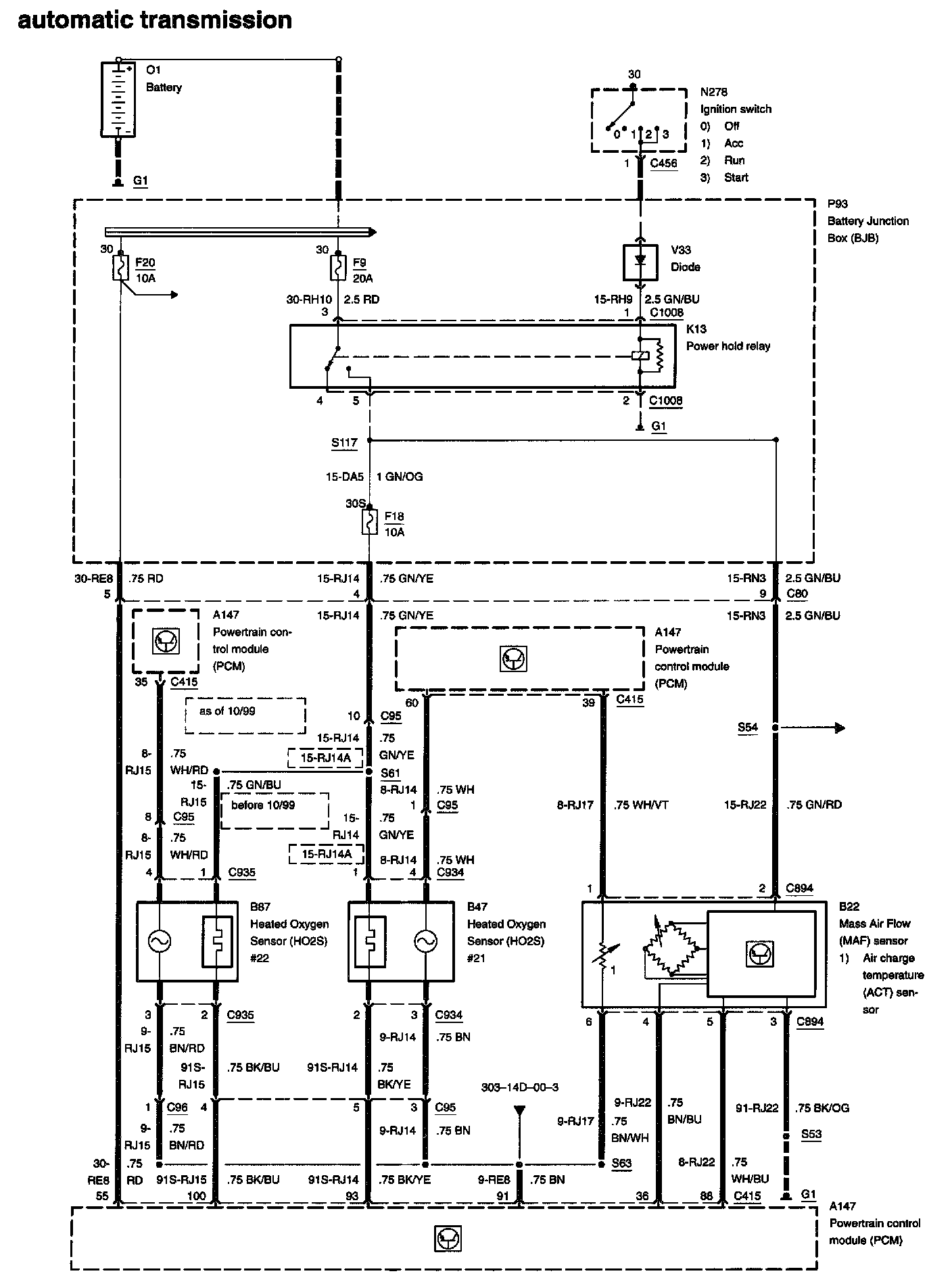

Diagram 303-14d-00-1:

Air Charge Temperature Sensor
Battery
Battery Junction Box
Heated Oxygen Sensor #21
Heated Oxygen Sensor #22
Ignition Switch
Mass Air Flow Sensor
Power Hold Relay
Powertrain Control Module

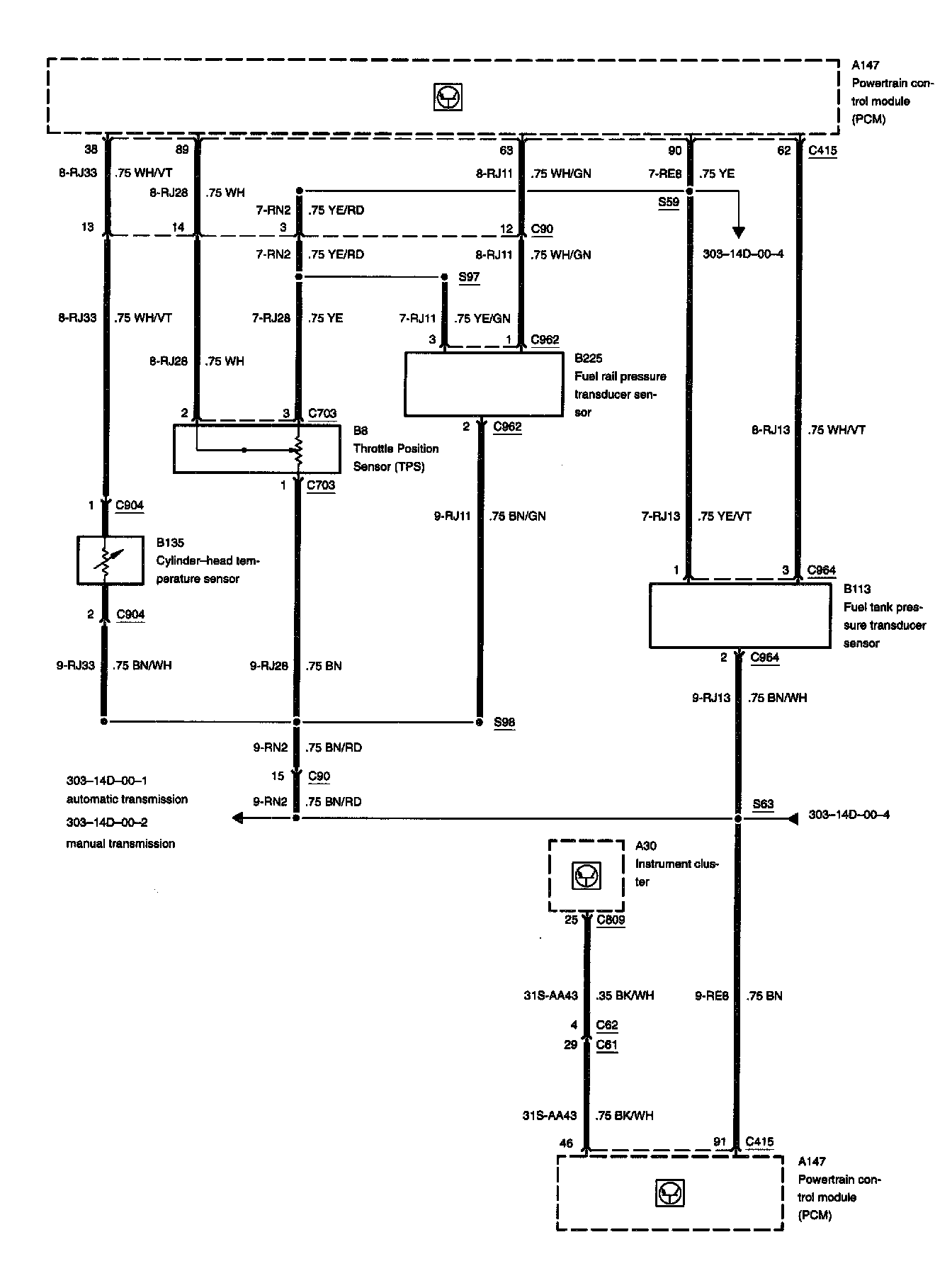

Diagram 303-14d-00-3:

Cylinder-head Temperature Sensor
Fuel Rail Pressure Transducer Sensor
Fuel Tank Pressure Transducer Sensor
Instrument Cluster
Powertrain Control Module
Throttle Position Sensor

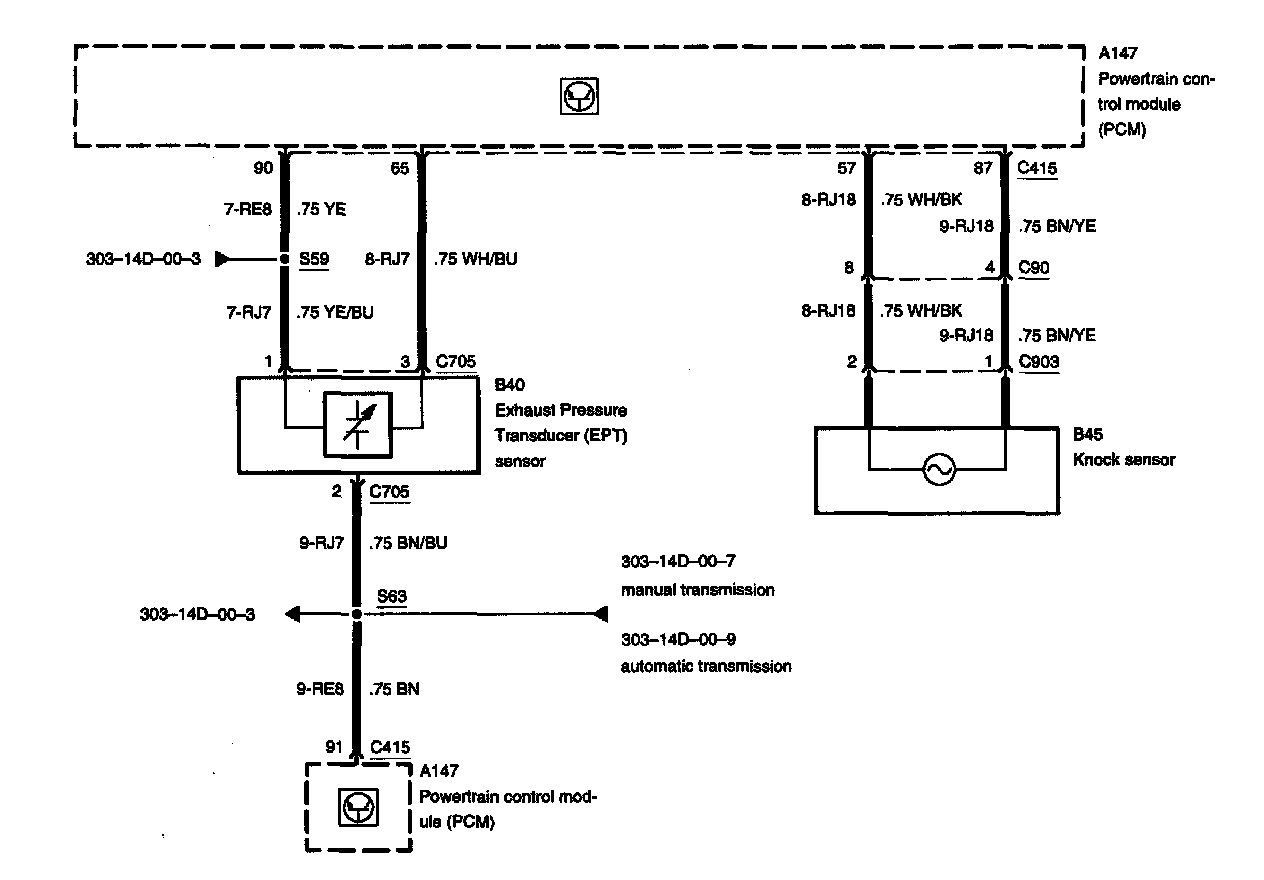

Diagram 303-14d-00-4:

Exhaust Pressure Transducer Sensor
Knock Sensor
Powertrain Control Module

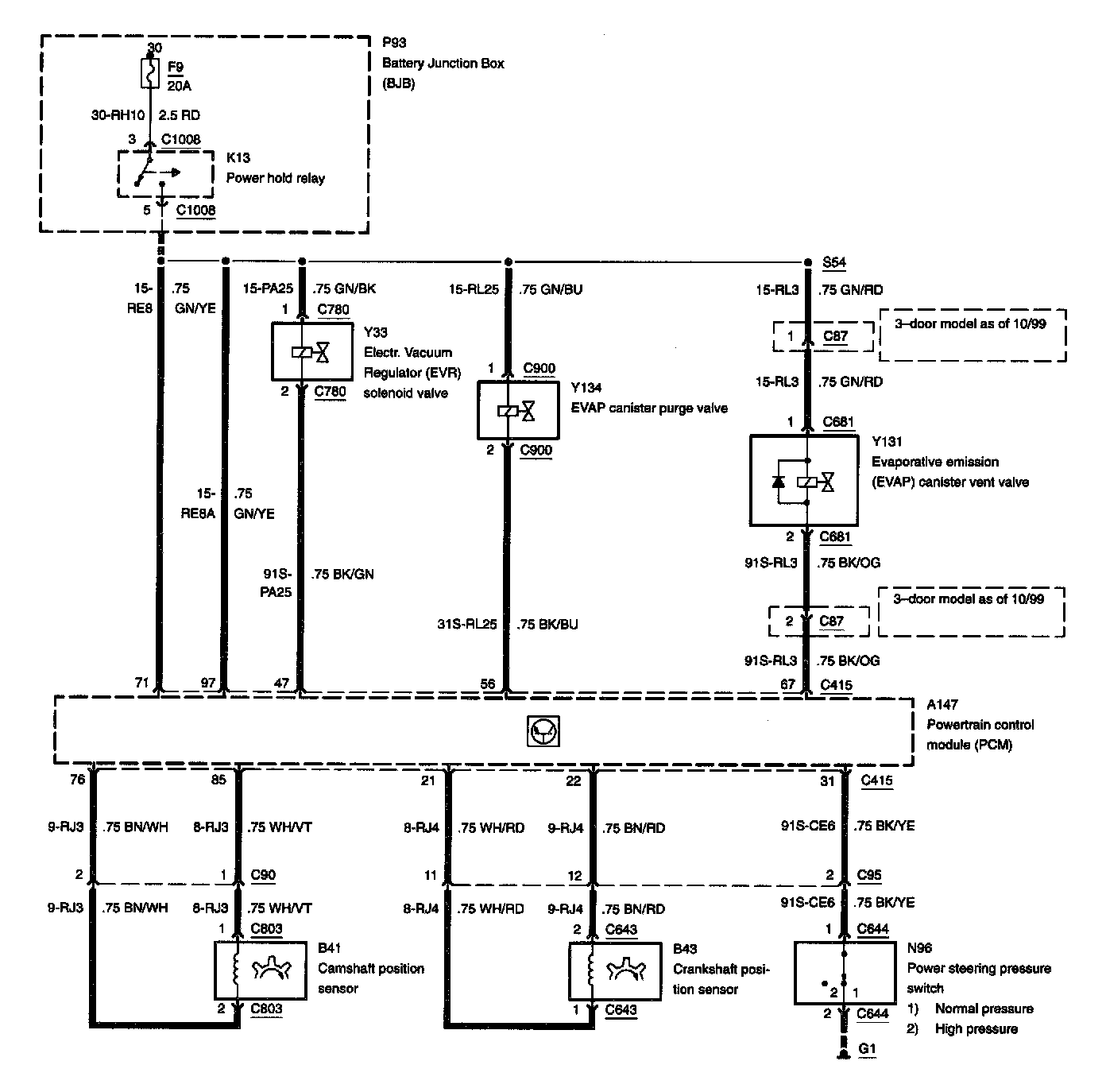

Diagram 303-14d-00-5:

Battery Junction Box
Camshaft Position Sensor
Crankshaft Position Sensor
Electronic Vacuum Regulator Solenoid Valve
Evaporative Canister Purge Valve
Evaporative Emission Canister Vent Valve
Power Hold Relay
Power Steering Pressure Switch
Powertrain Control Module

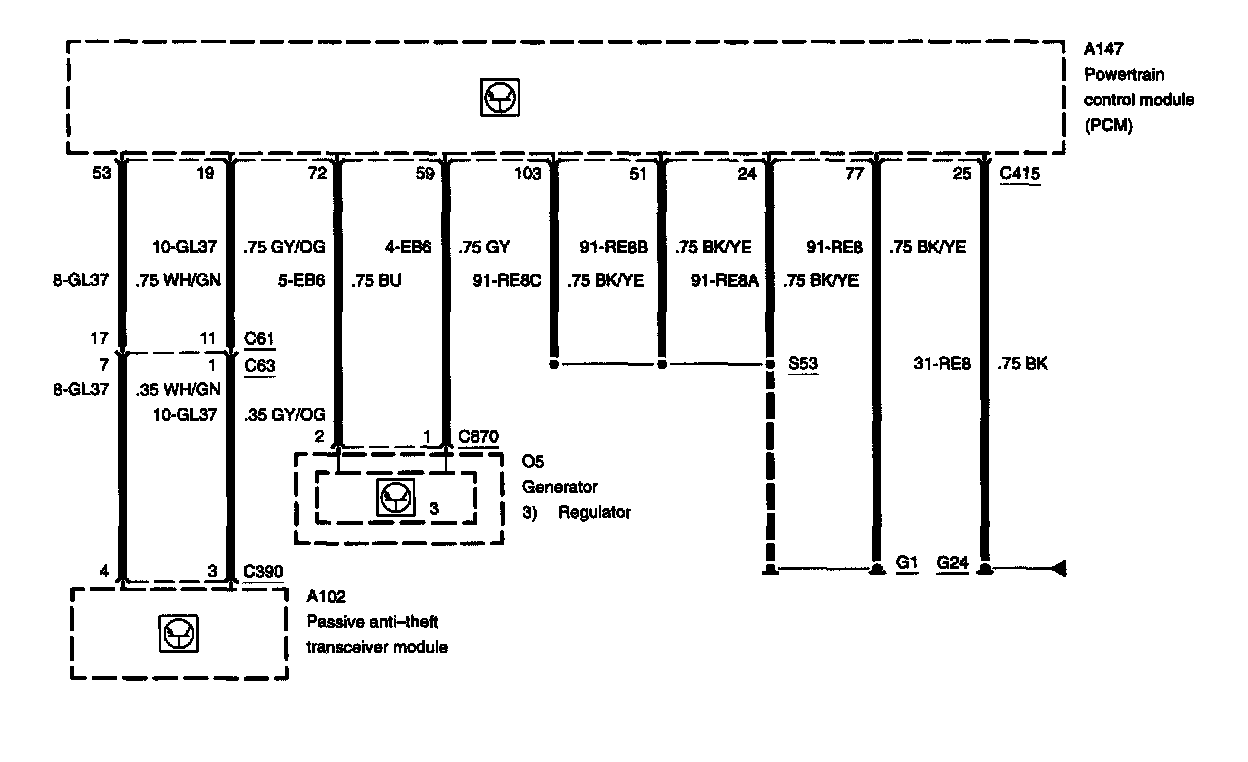

Diagram 303-14d-00-6:

Generator
Passive Anti-Theft Transceiver Module
Powertrain Control Module

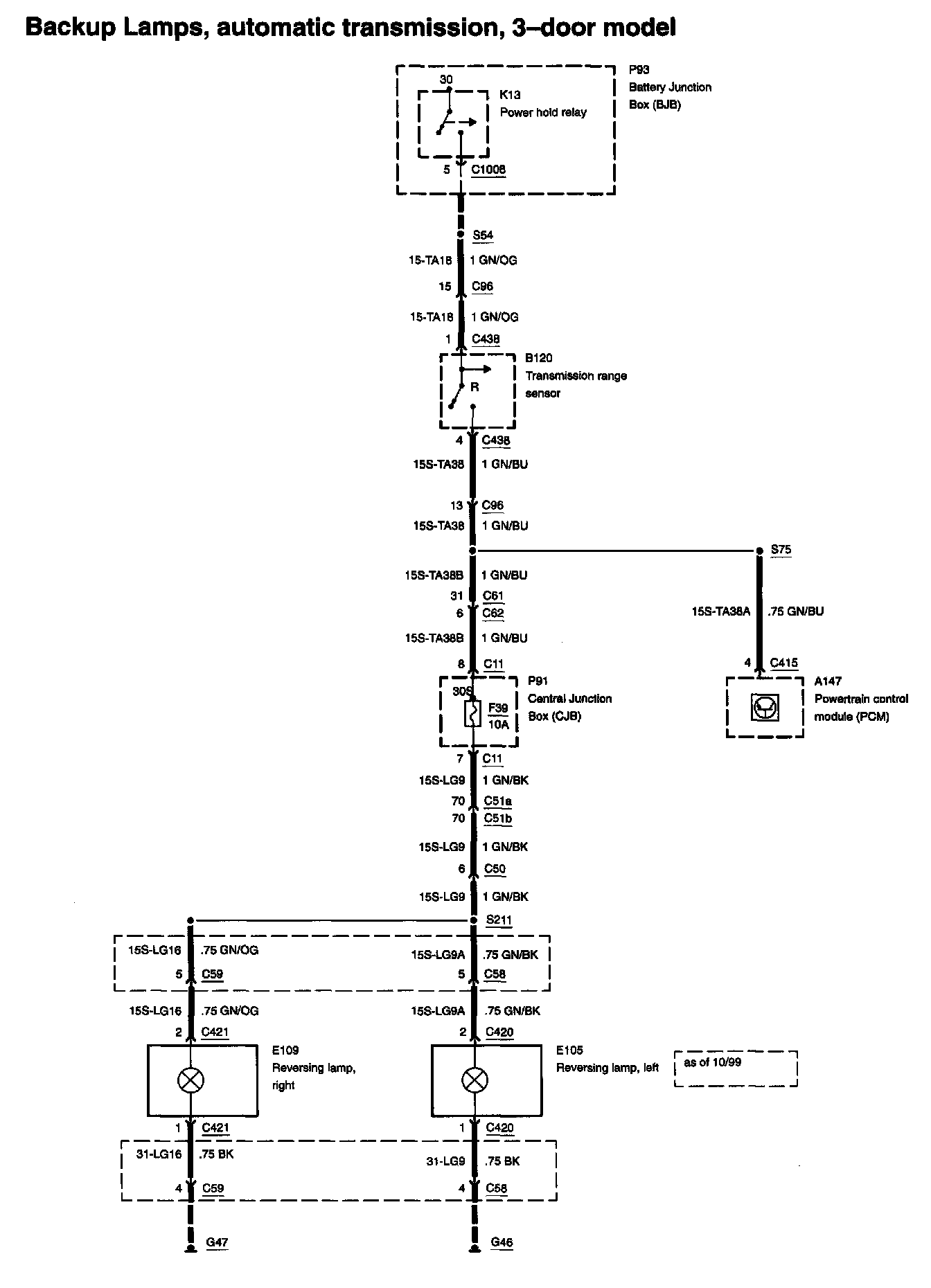

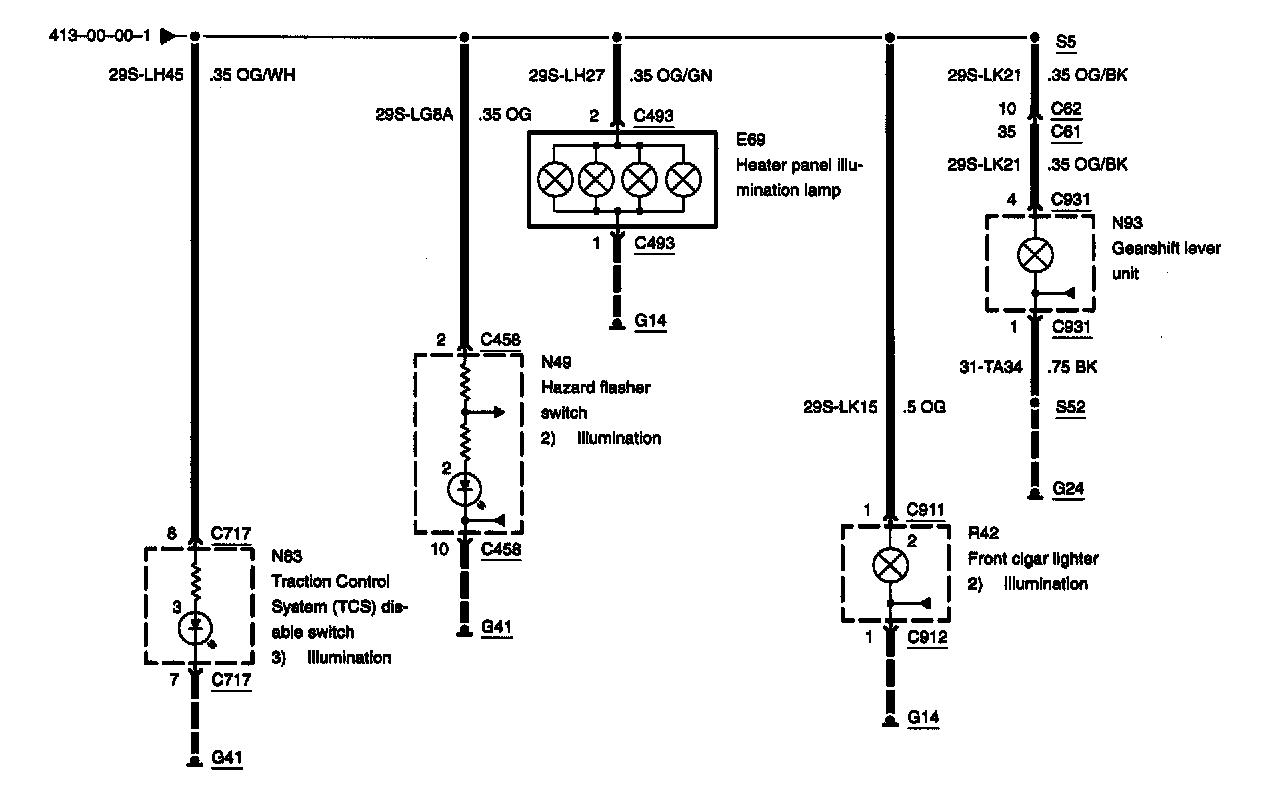

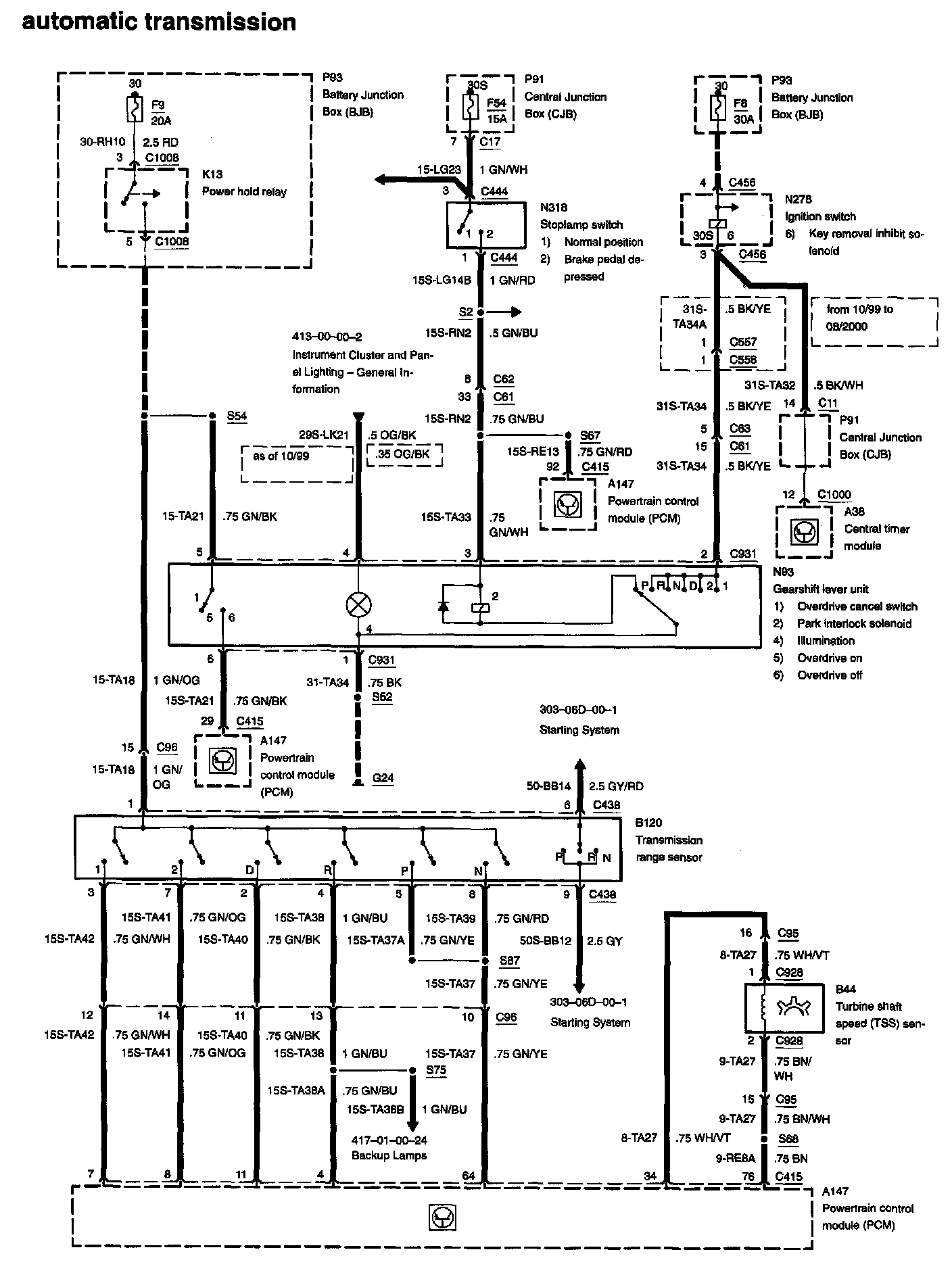

Diagram 303-14d-00-8:

Battery Junction Box
Central Junction Box
Central Timer Module
Gearshift Lever Unit
Ignition Switch
Overdrive Cancel Switch
Park Interlock Solenoid
Power Hold Relay
Powertrain Control Module
Stoplamp Switch
Transmission Range Sensor
Turbine Shaft Speed Sensor

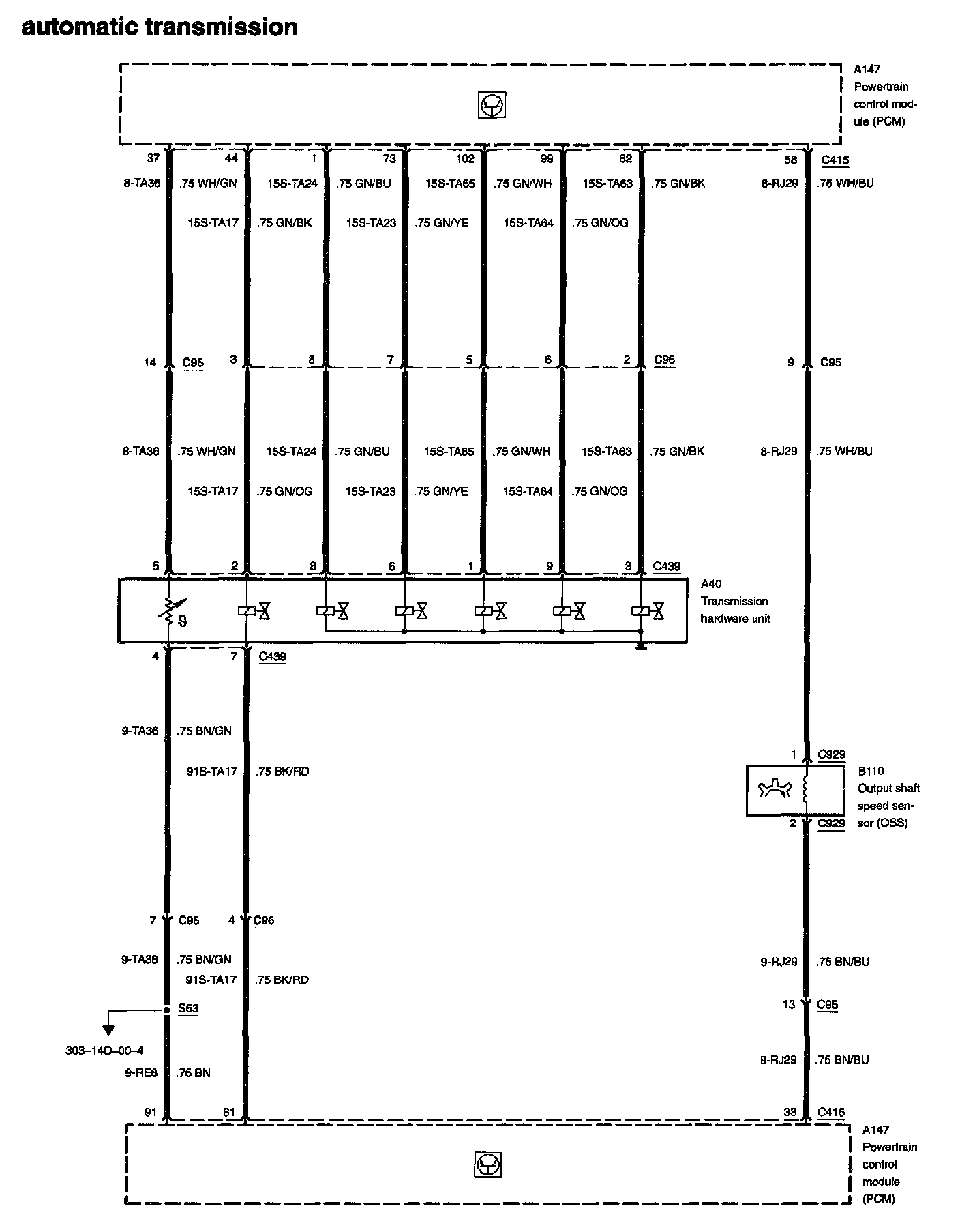

Diagram 303-14d-00-9:

Output Shaft Speed Sensor
Powertrain Control Module
Transmission Hardware Unit
