Home
>>
Ford
>>
2001
>>
Focus ZX3 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
>>
Manual Transmission
Manual Transmission

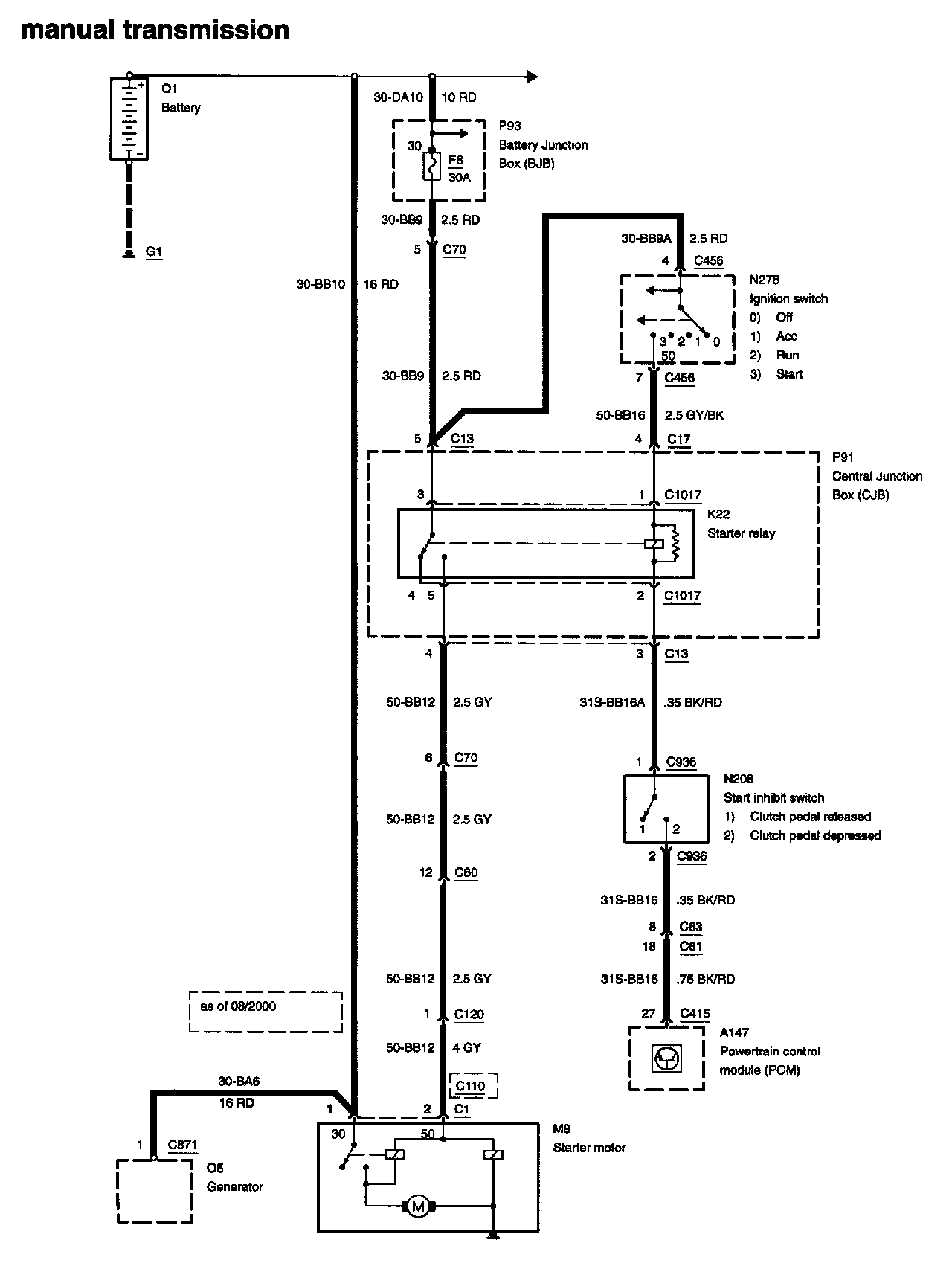

Diagram 303-06d-00-2:
