Focus ZX3 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Main Control Assembly
Main Control Assembly

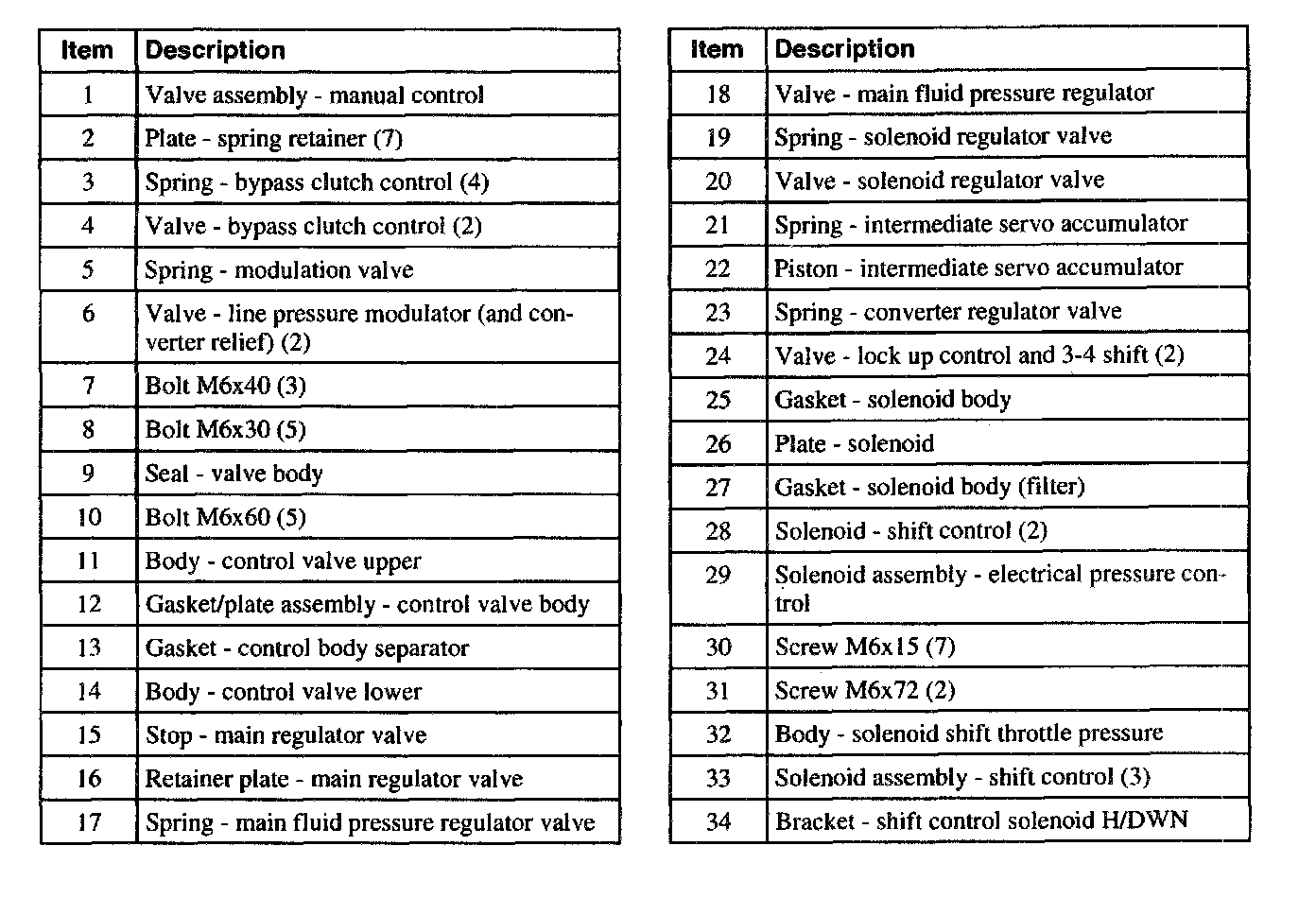

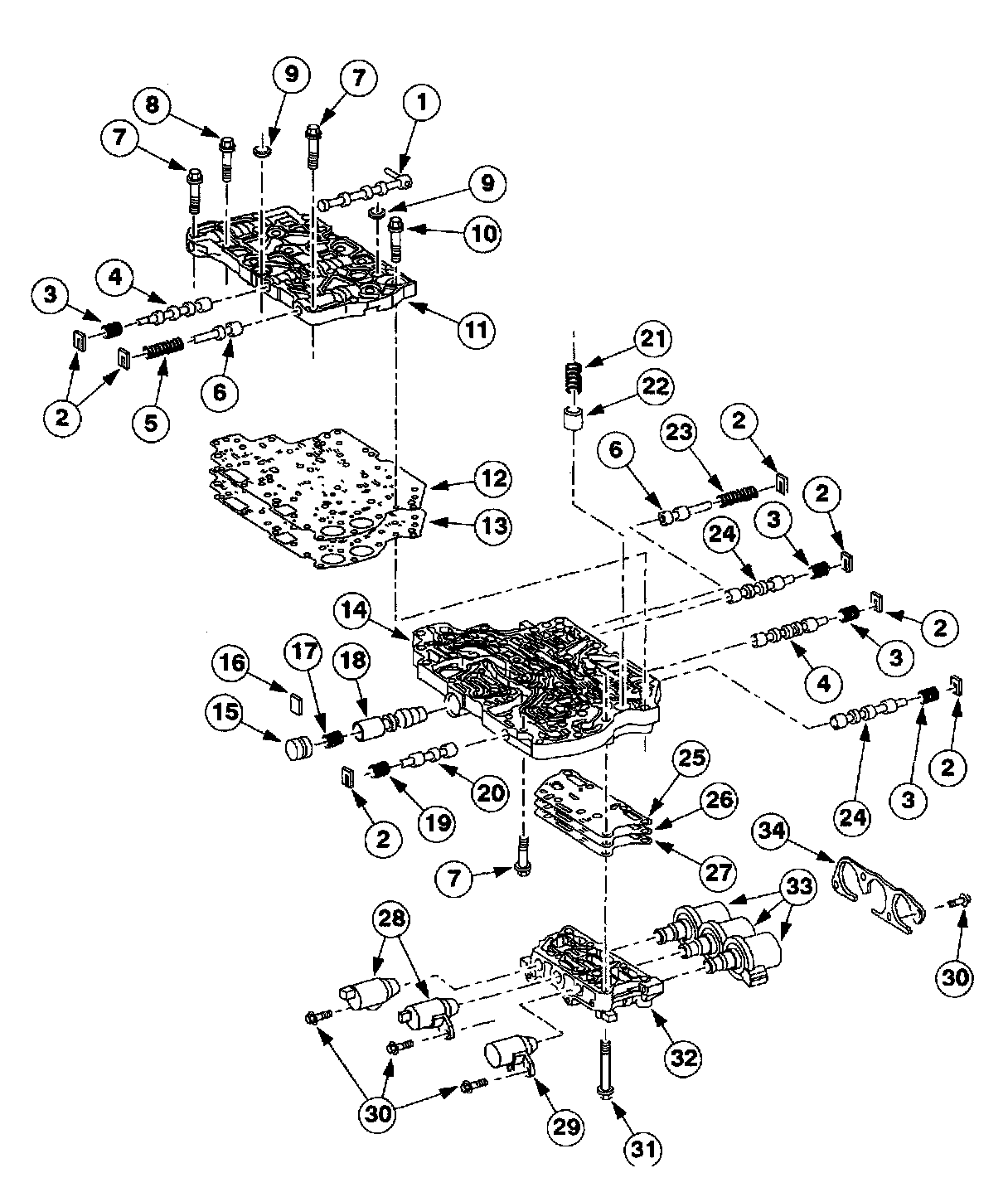

Main control assembly
Part 1 of 2
Part 2 of 2
