Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
Focus ZX3 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
Exploded Views

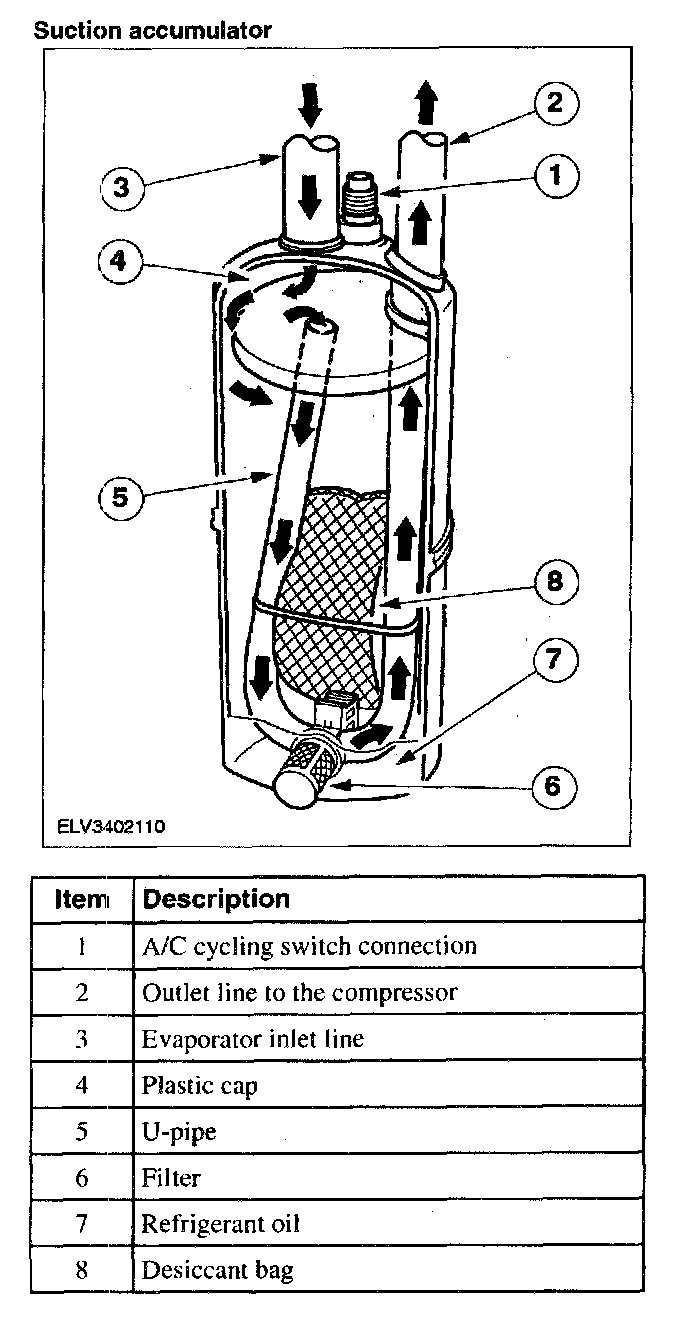

Suction Accumulator:
Fixed Orifice Tube:
