Initial Inspection - Instrument Cluster

1. Verify the customer concern by operating the Instrument Cluster (IC) to reproduce the condition. Observe the indicators, warning displays, and gauges to determine if they are operating correctly with the ignition switch:
^ in the ON position with the engine off.
^ in the START position before the ignition switch is released.
^ in the ON position with the engine running.
2. Visually inspect for obvious signs of mechanical and electrical damage:

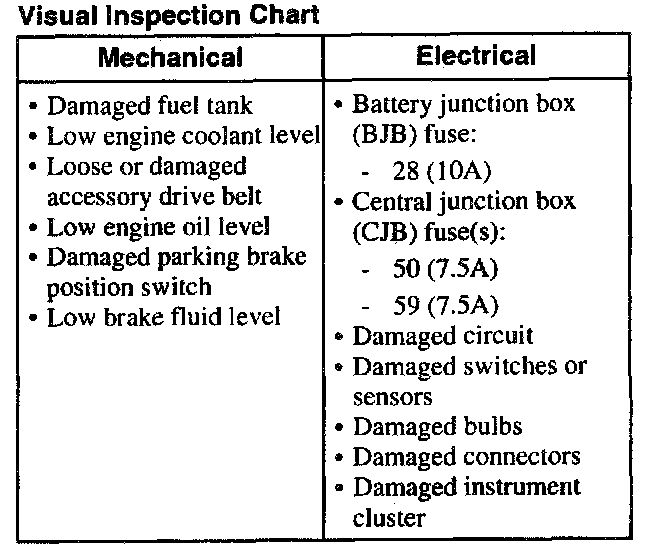

Visual Inspection Chart:

3. If the inspection reveals obvious concern(s), repair as required.
4. If the cause of the fault is not visually evident, proceed to the Scan Tool Tester Diagnostics. Scan Tool Diagnostics
