Test V: Door Ajar Indicator Is Always On
Test V: Door Ajar Indicator Is Always On

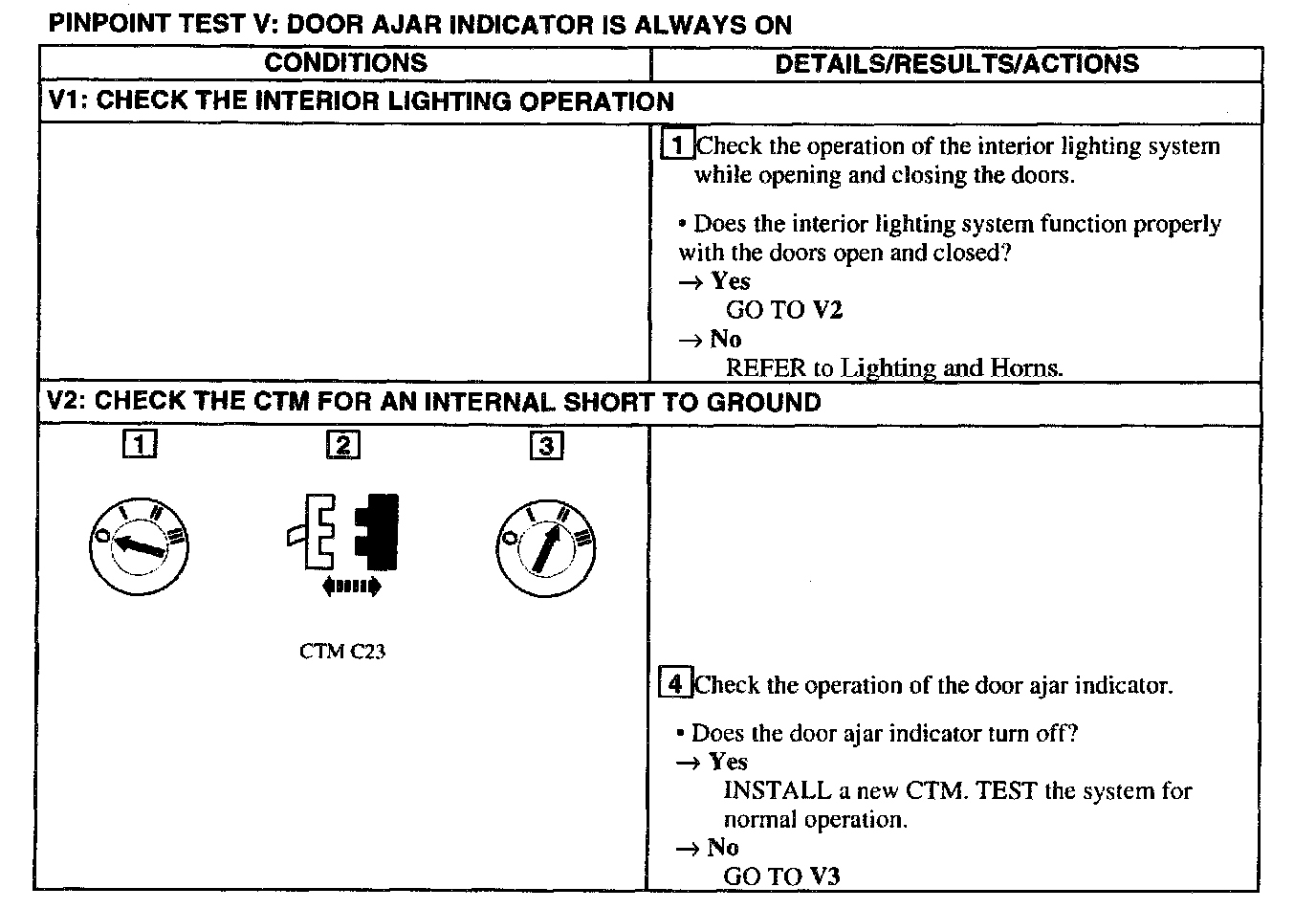

V1 - V2:

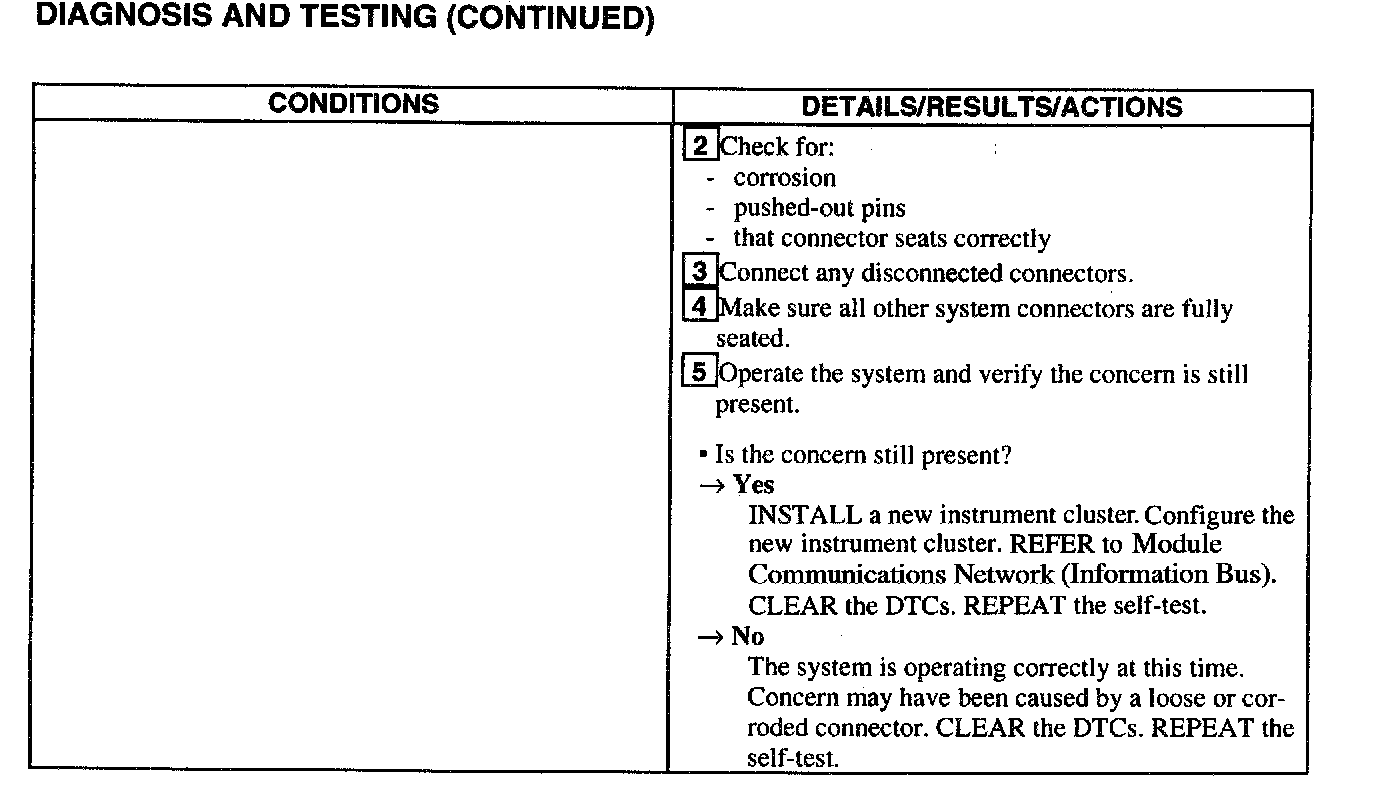

V3 - V5:
V5:
