Light Switch Circuits

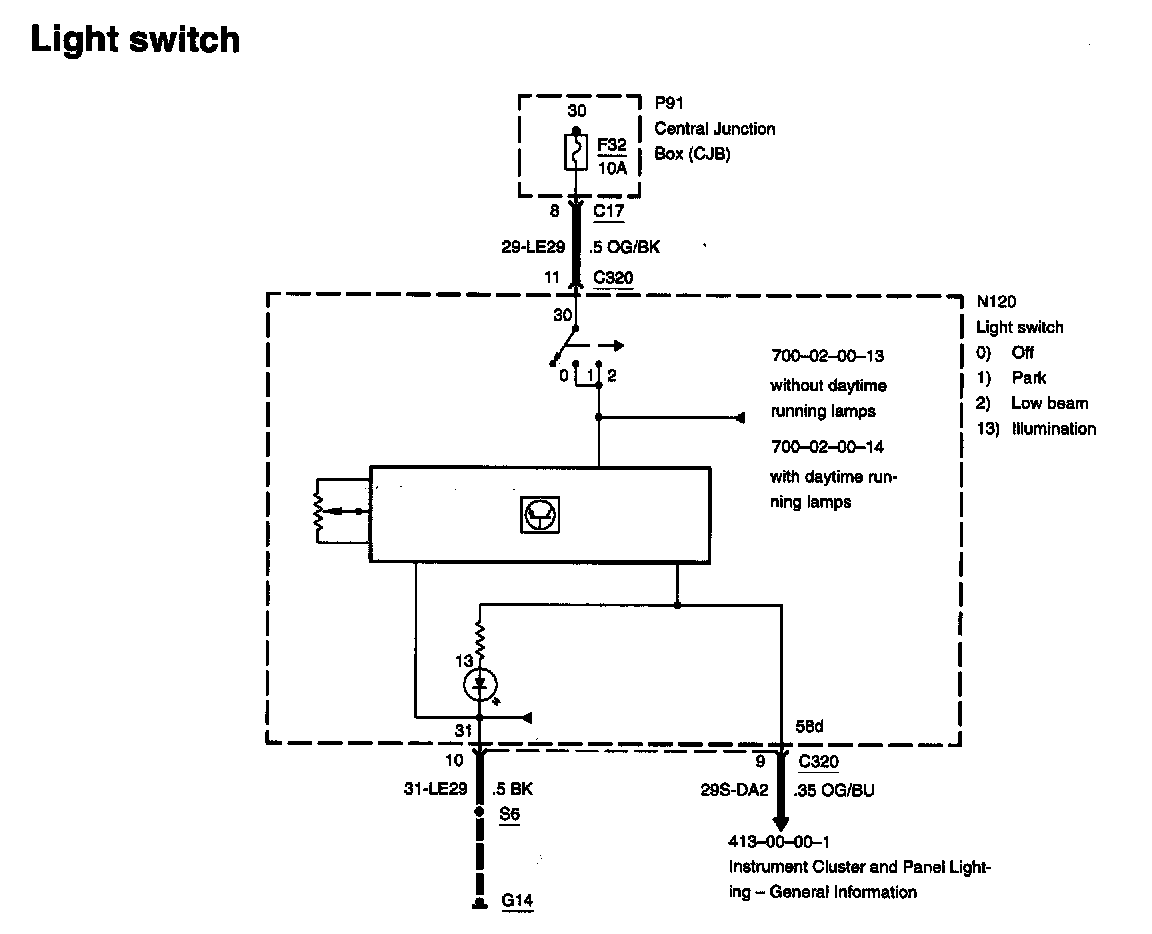

Diagram 700-02-00-8:






Diagram 700-02-00-9:






Diagram 700-02-00-13:






Diagram 700-02-00-14:






Diagram 700-02-00-15:






Diagram 700-02-00-16:
