Home >> Ford >> 2001 >> Focus ZX3 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Fog/Driving Lamp Relay >> Diagrams

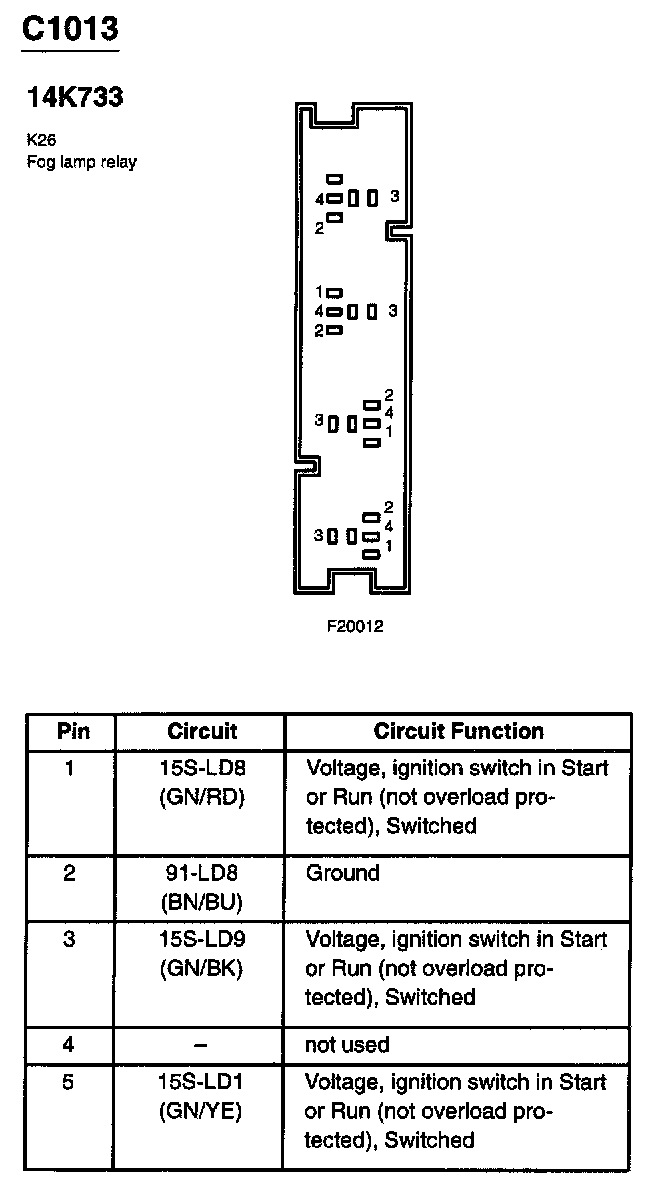

Fog/Driving Lamp Relay: Diagrams
