Exploded Views

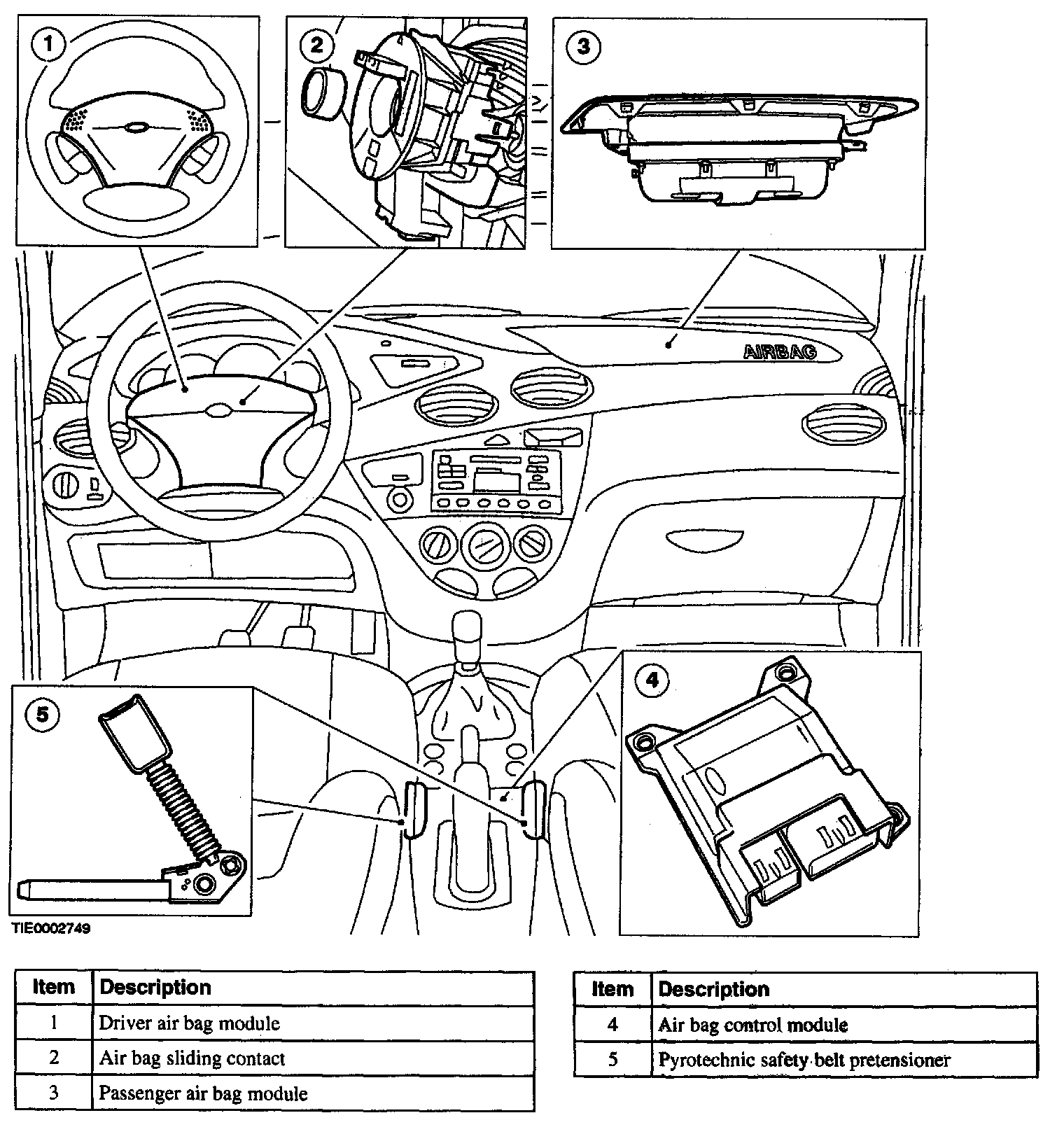

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS):

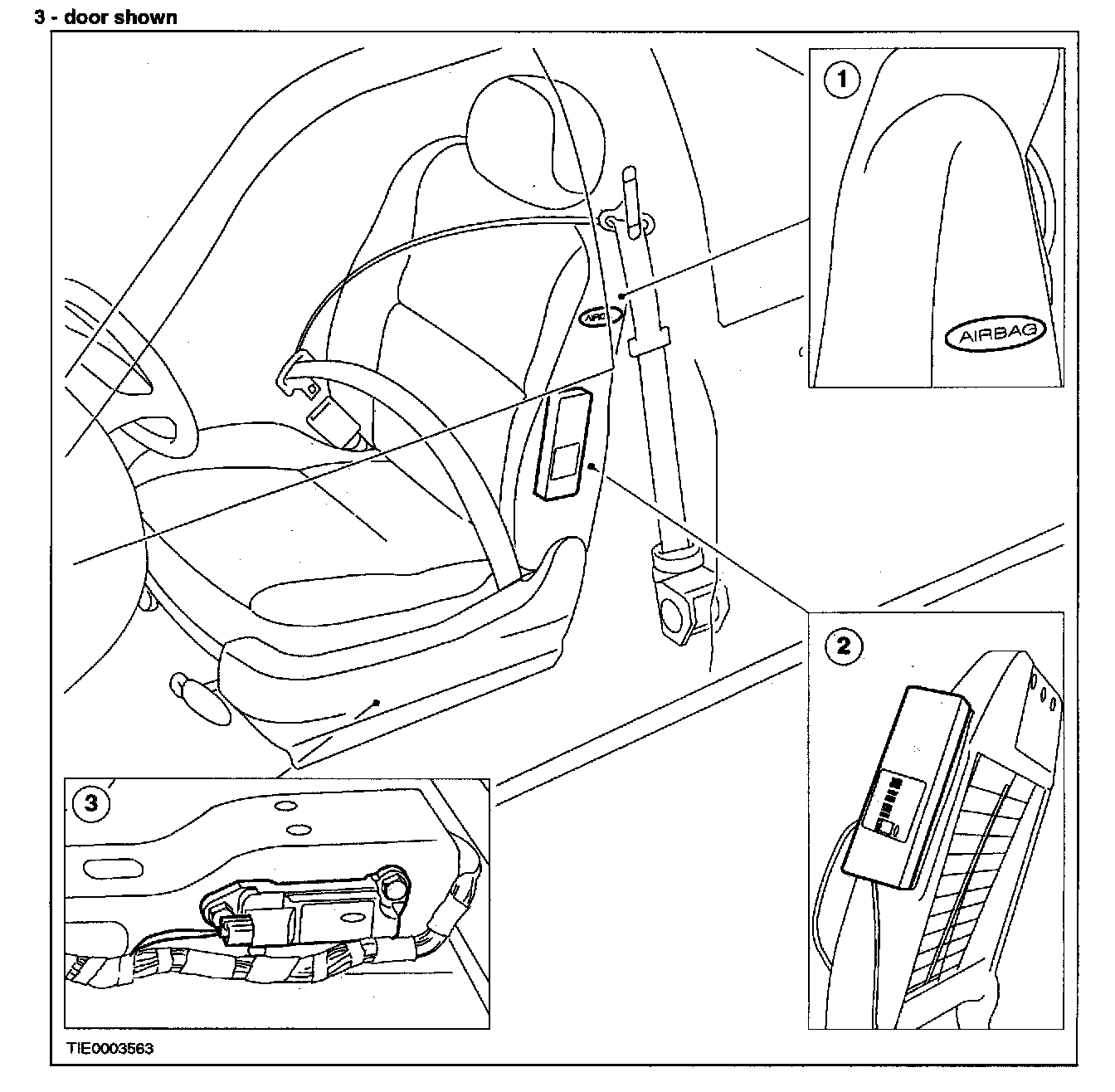

3-door Shown, Part 1:

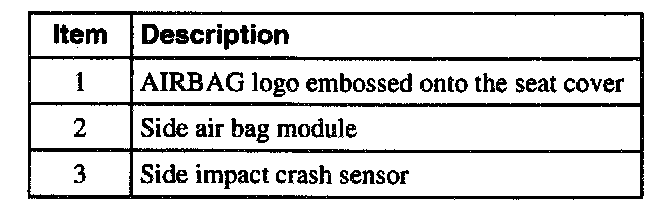

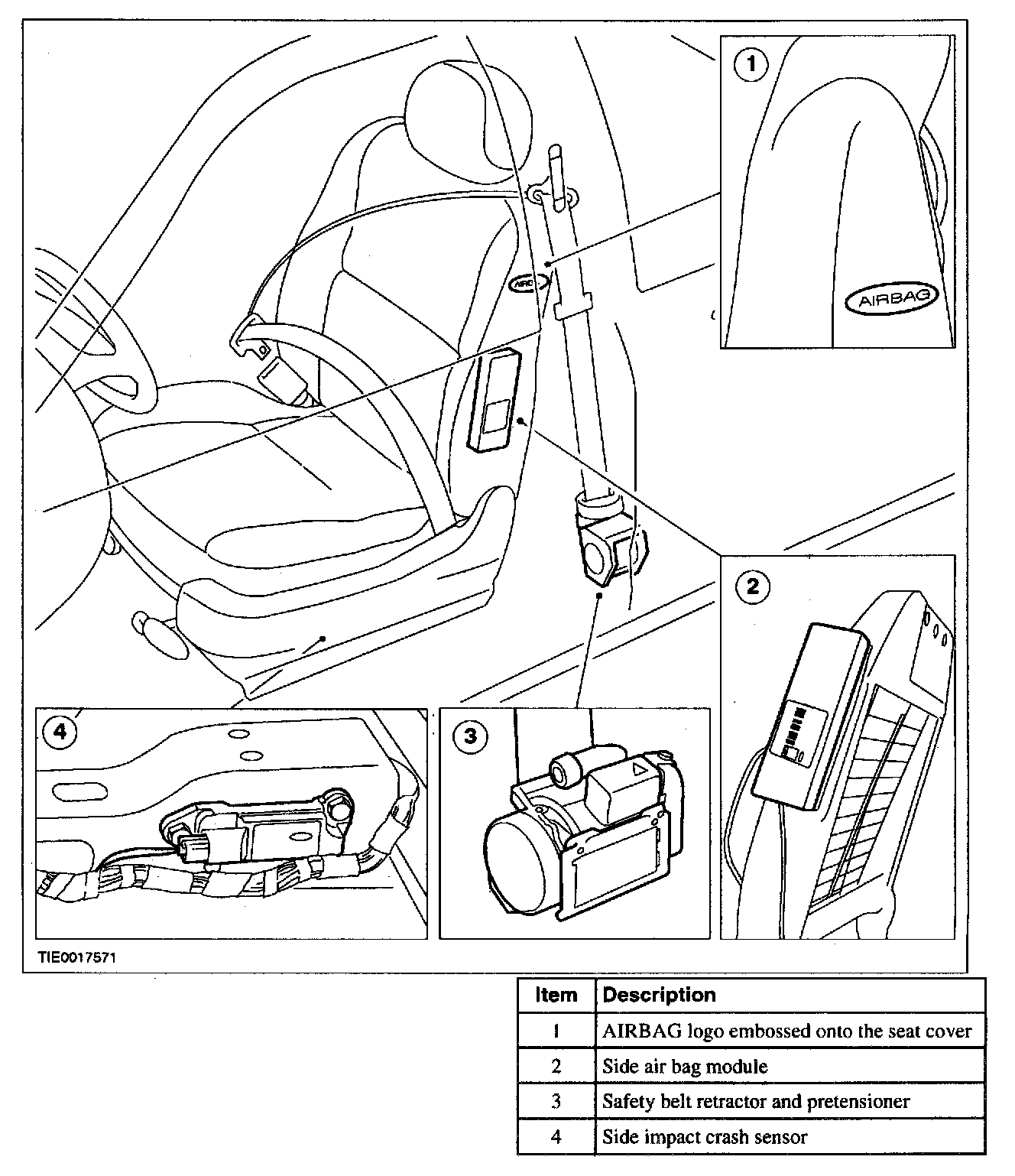

Part 2:
