General

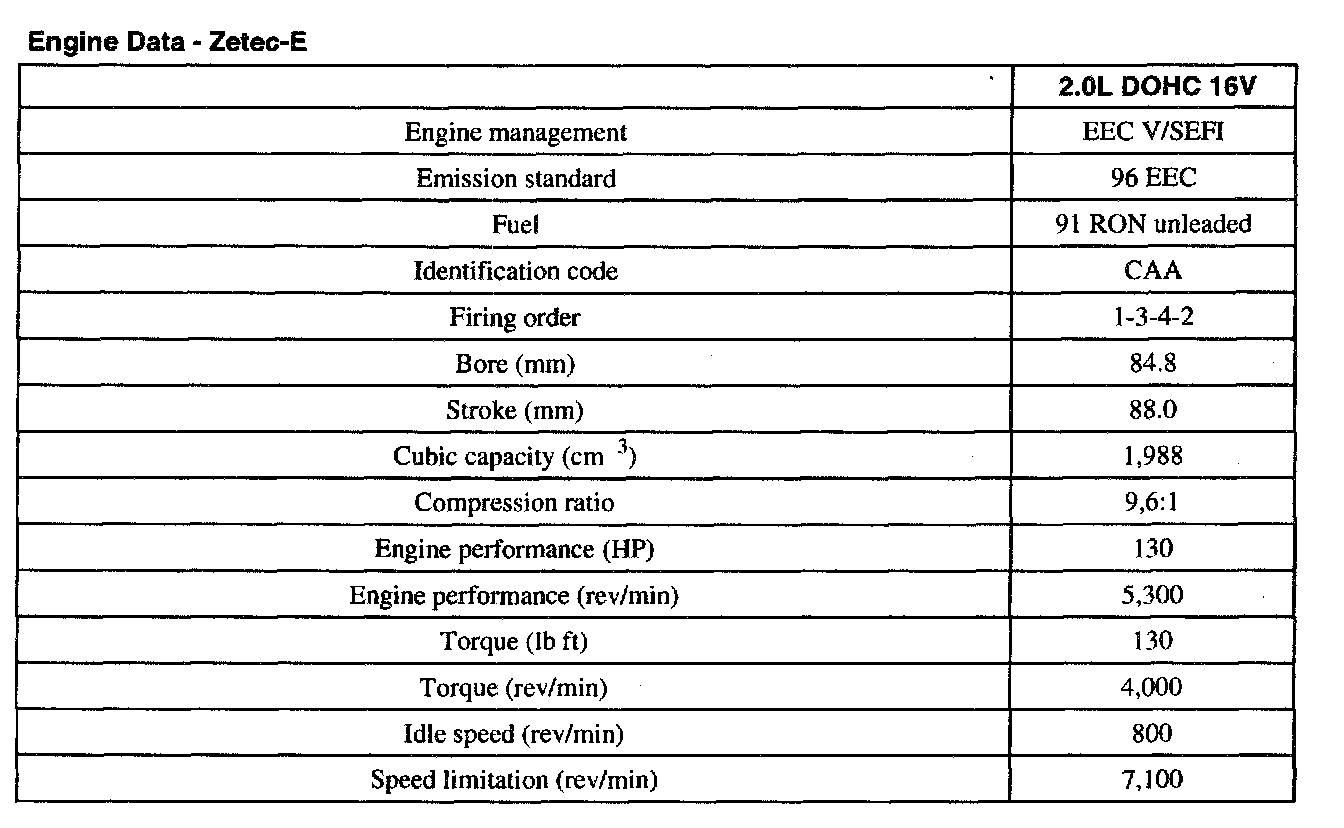

Engine Data














Dimensions






Crankshaft






Lower Crankcase






Connecting rod






Piston Pin










Camshaft






Valves






Cylinder Head
