Dimensions













Dimensions

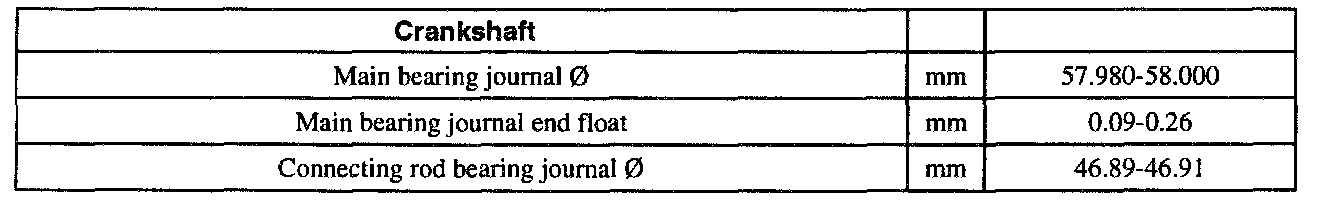

Crankshaft

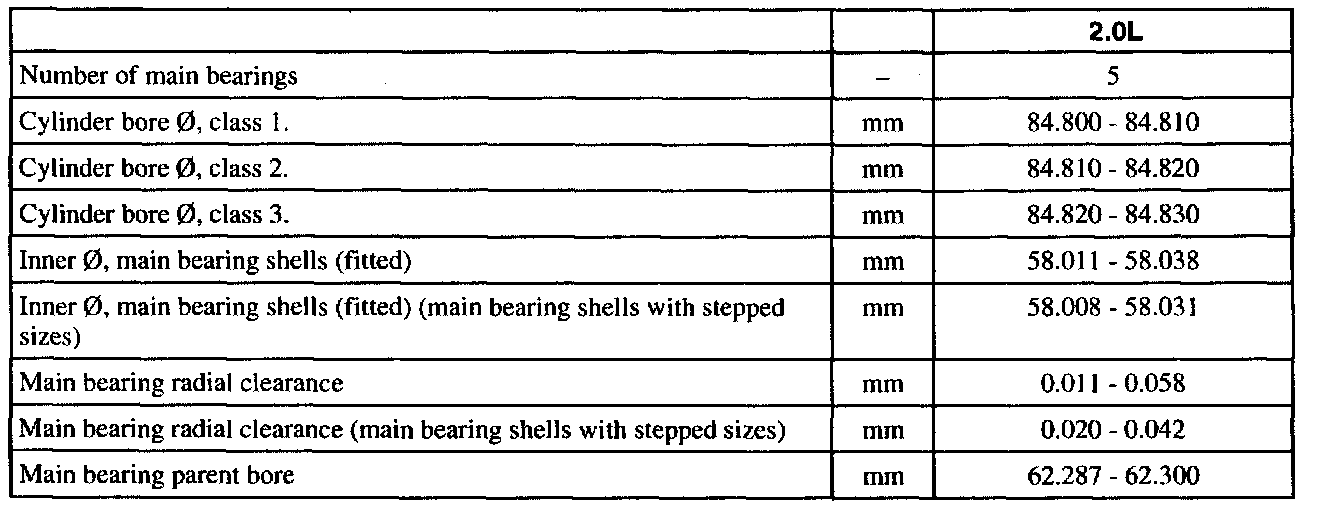

Lower Crankcase

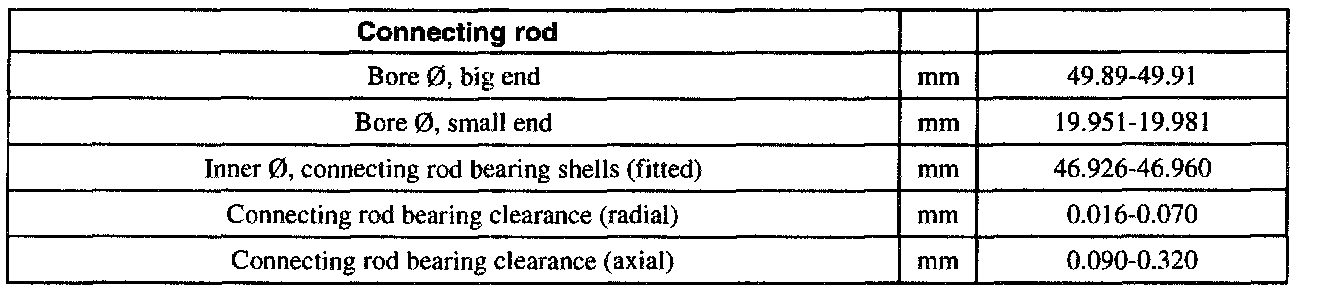

Connecting rod

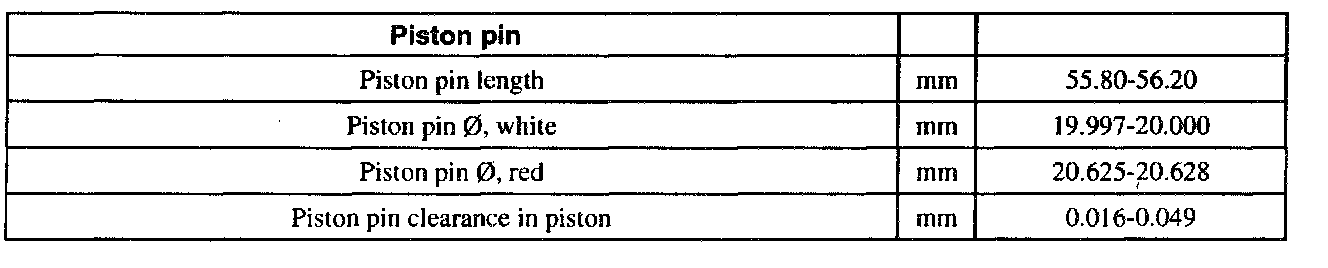

Piston Pin

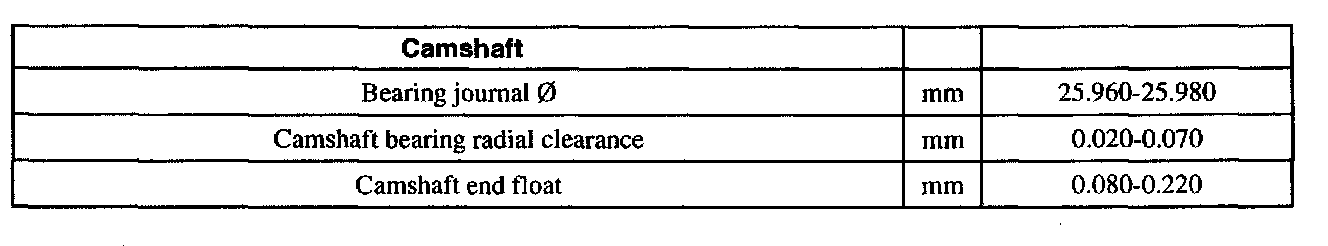

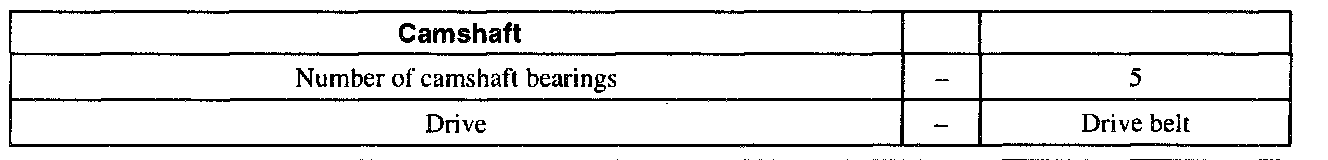

Camshaft

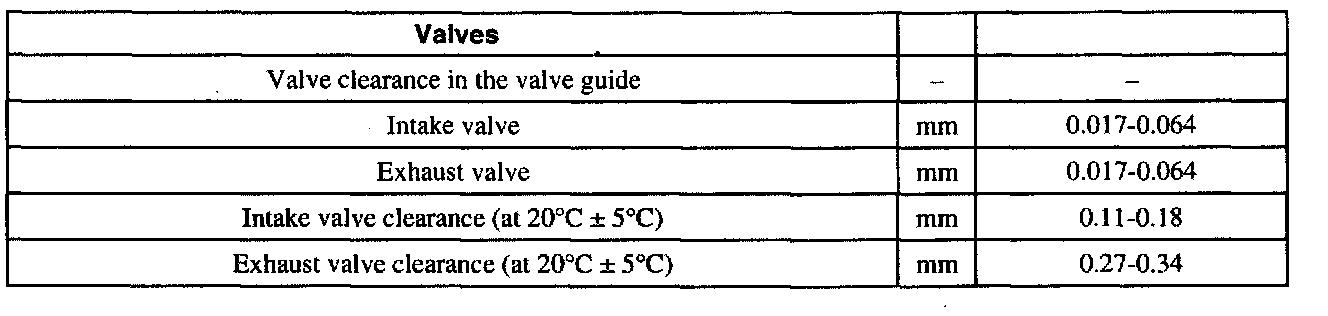

Valves

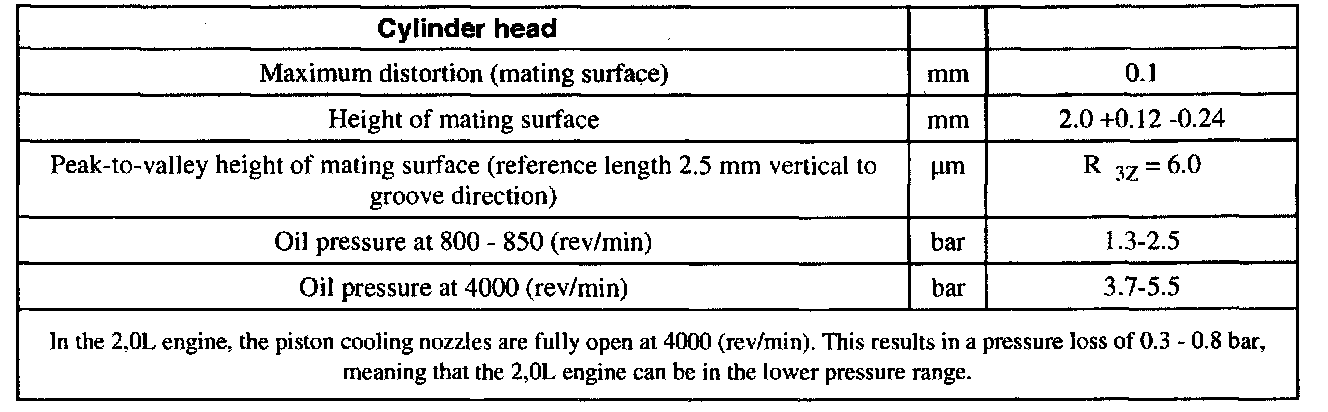

Cylinder Head
