Central Junction Box
Central Junction Box

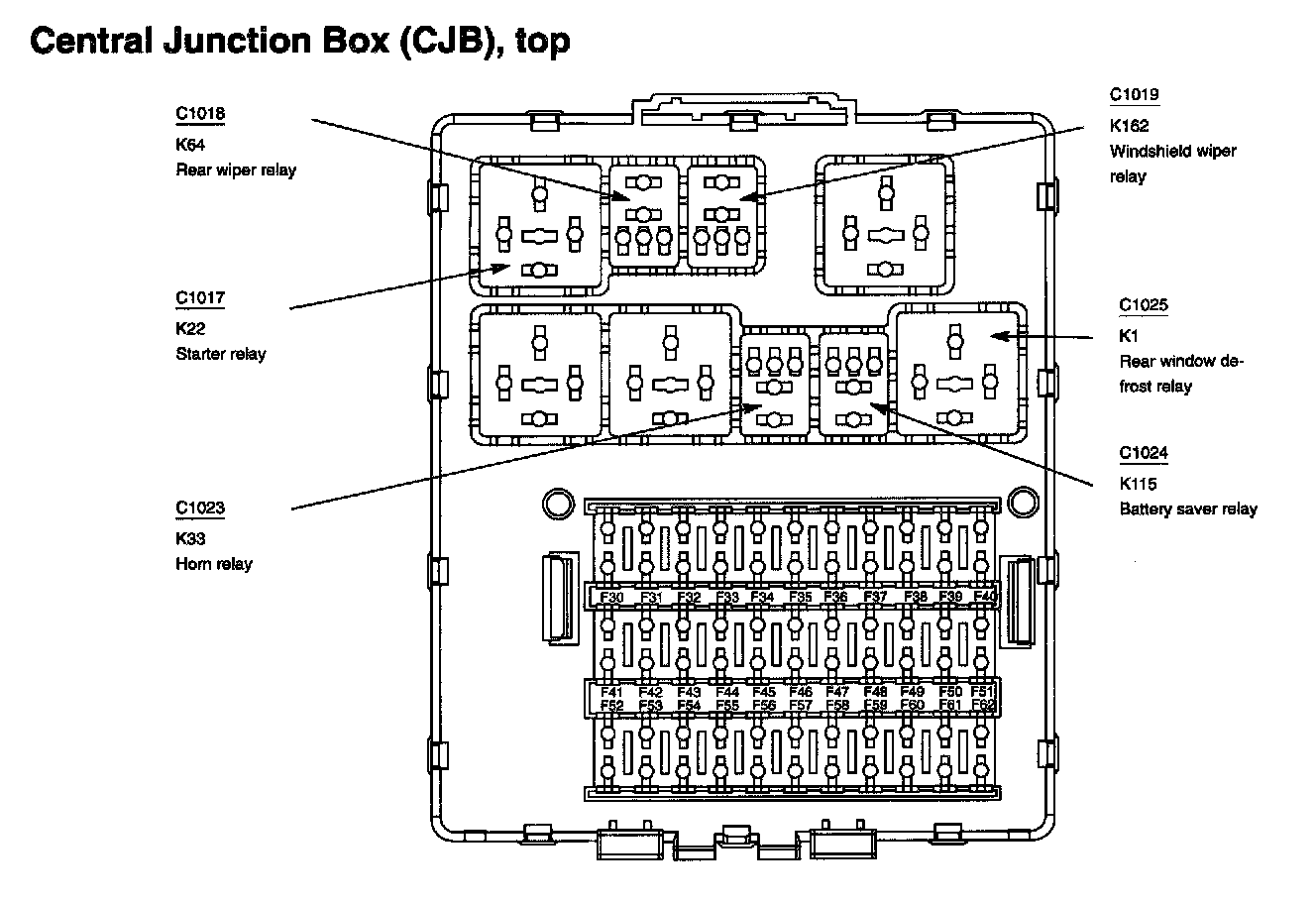

Diagram 700-01-00-1, Top, C1017 - C1019, C1023 - C1024:

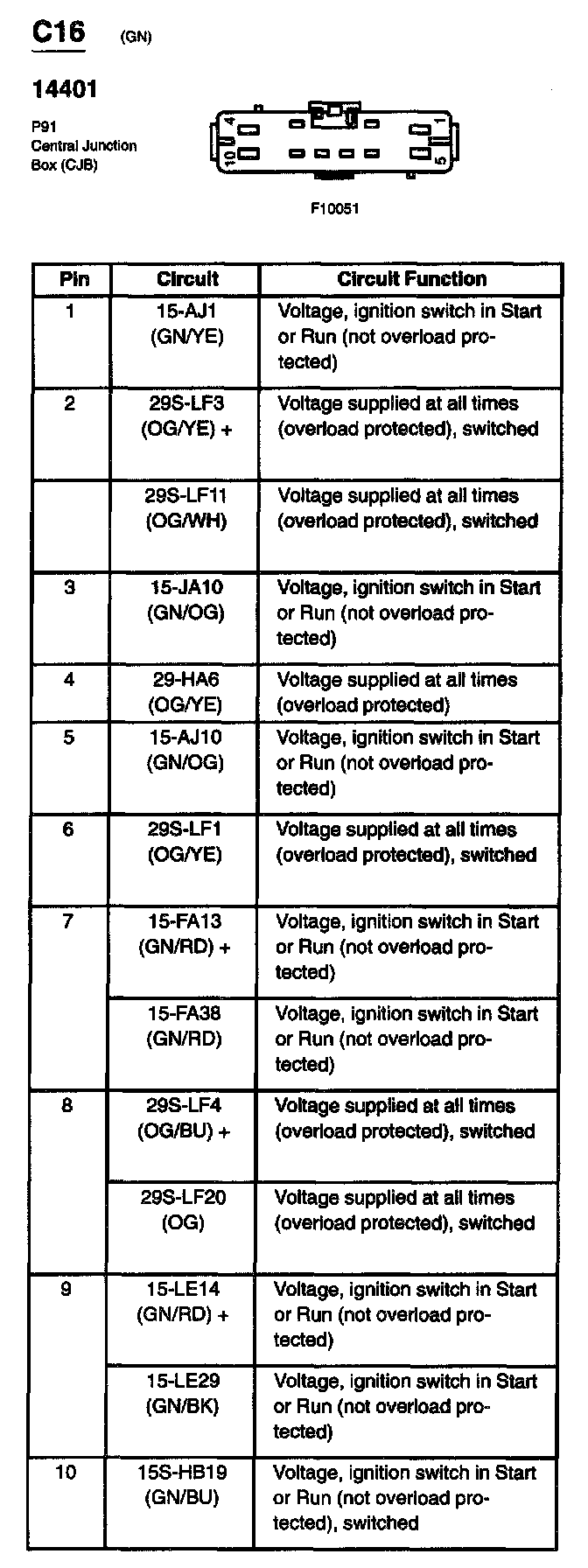

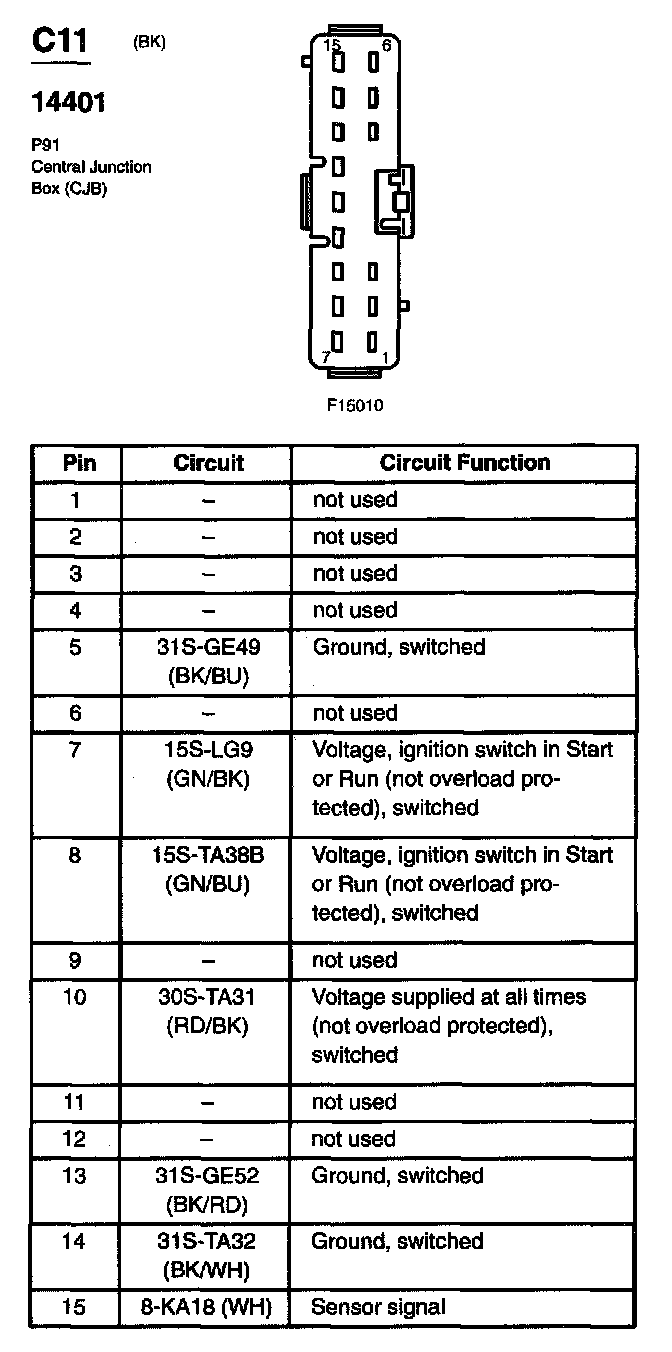

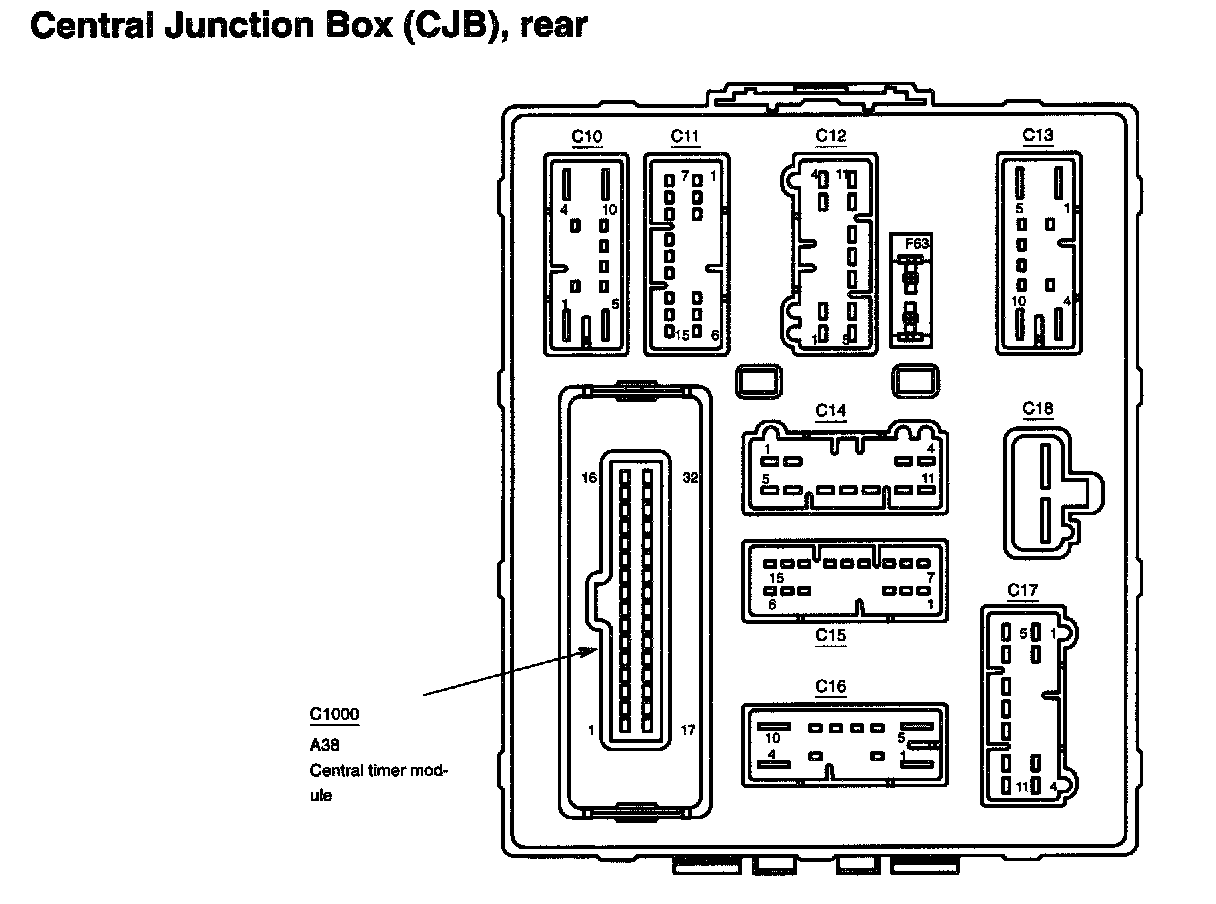

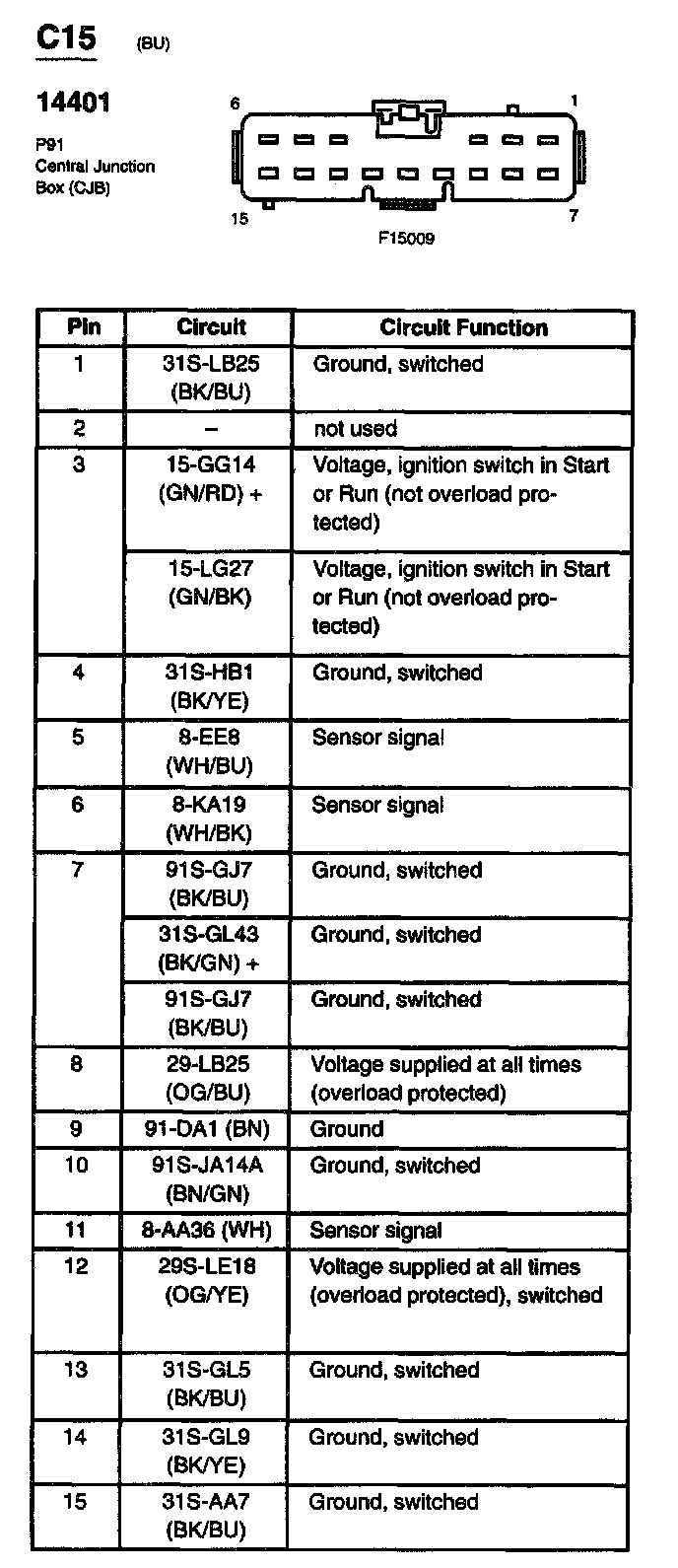

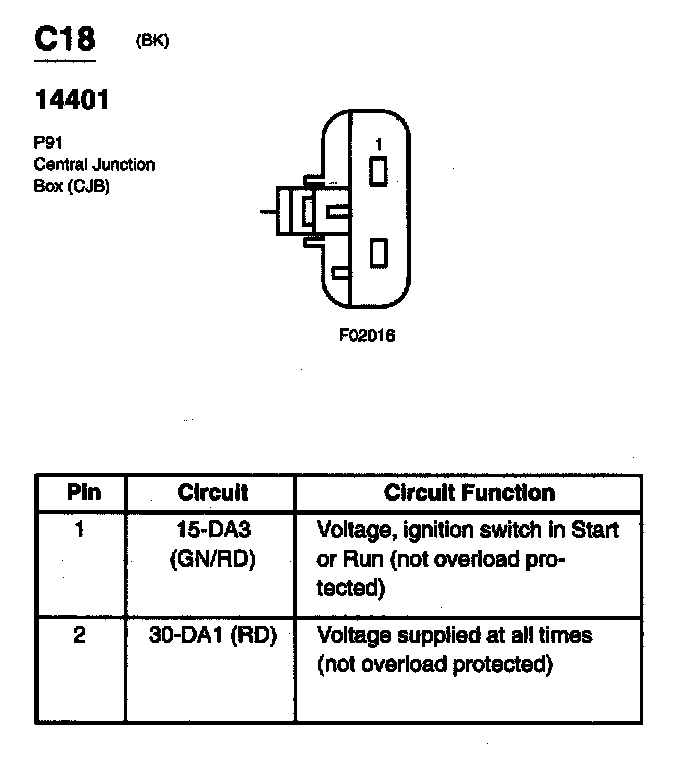

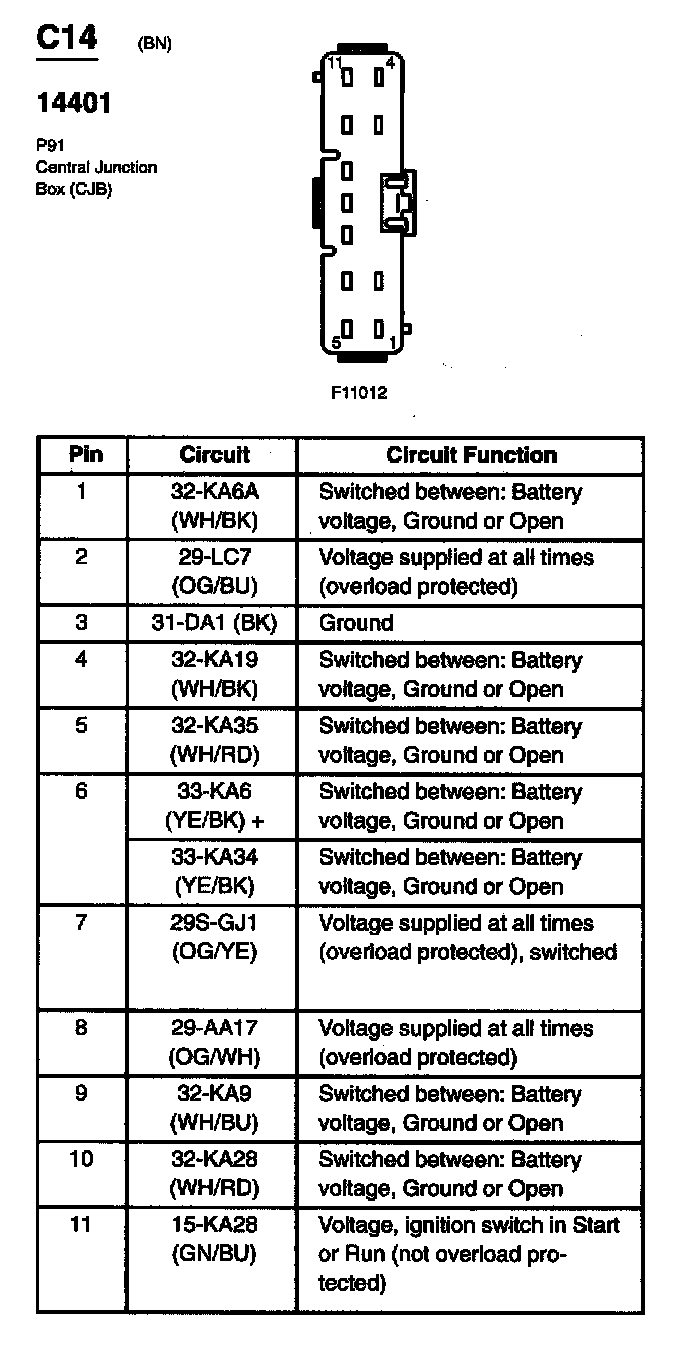

Diagram 700-01-00-2, REAR, C10-C18, C1000. F63:
