Ignition Lock Cylinder - Non Functional

IGNITION LOCK CYLINDER - NON FUNCTIONAL

Removal and Installation
1. Remove the steering wheel.
2. Remove the passive anti-theft transceiver.

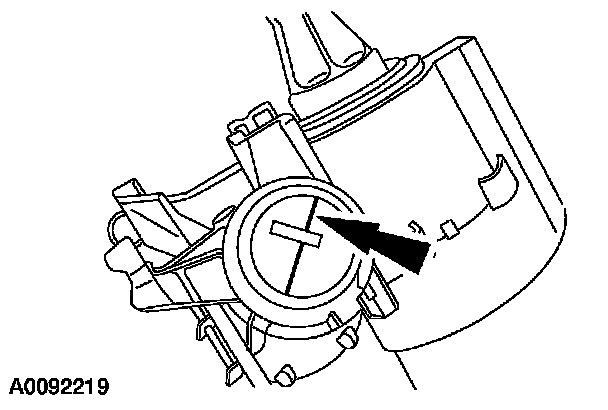

3. Draw a line through the middle of the ignition lock cylinder face 90 degrees to the key slot.

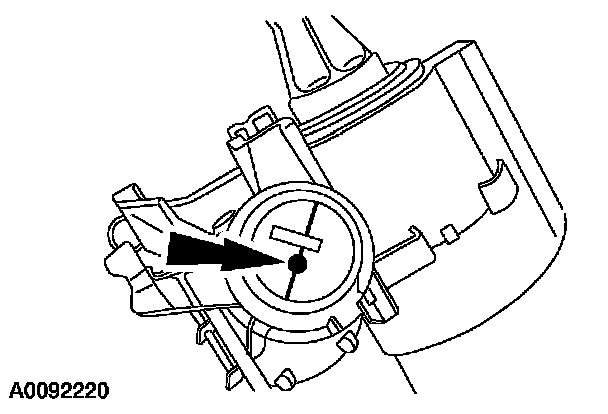

4. Mark a point on the line 3 mm (0.11 in) down from the slot which is just beyond the center of the lock face.
5. Drill a 4 mm (0.15 in) pilot hole 3 mm (0.11 in) deep.
6. Drill a 10 mm (0.39 in) hole 35 mm (1.37 in) deep.







7. Remove the lockbar from the side of the hole.

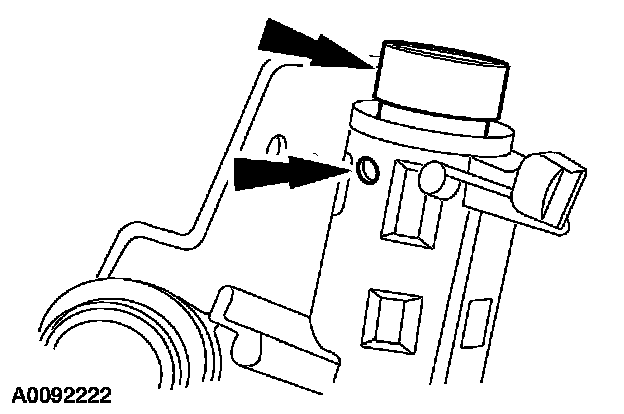

8. Rotate the ignition lock cylinder while pressing the retainer pin on the housing and pull out.







9. Use the lock cylinder repair kit (XS4Z-11582-AA) and install the ignition lock cylinder.

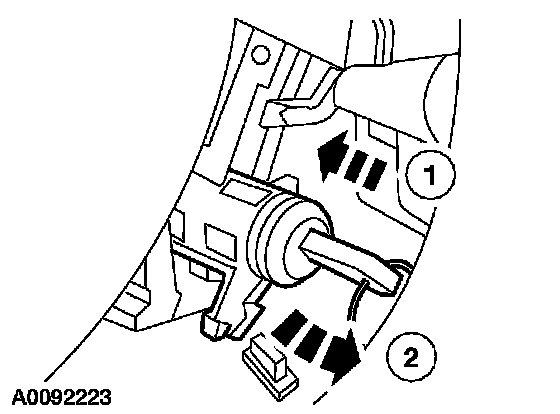

1 With the key in the ACC position insert the ignition lock cylinder.
2 Turn the key to the OFF position and remove the key.

10. Install the passive anti-theft transceiver.
11. Install the steering wheel.
