Ignition Lock Cylinder - Removal and Replacement

IGNITION LOCK CYLINDER

REMOVAL
1. Disconnect the battery ground cable.

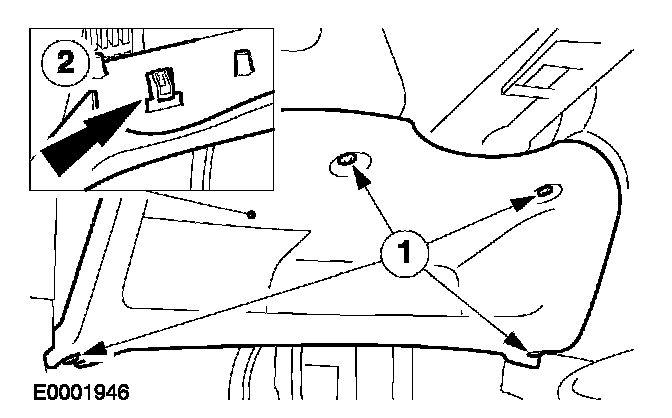

2. Remove the instrument panel lower panel.
1 Remove the screws.
2 Release the fastener.

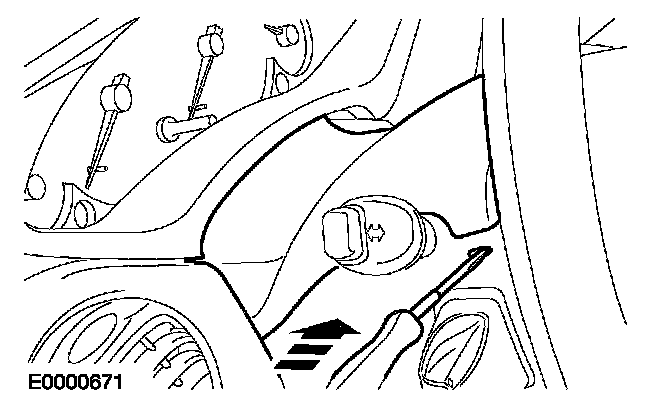

3. Detach the steering column upper shroud.
- Using a thin bladed screwdriver, release the two clips (one each side).

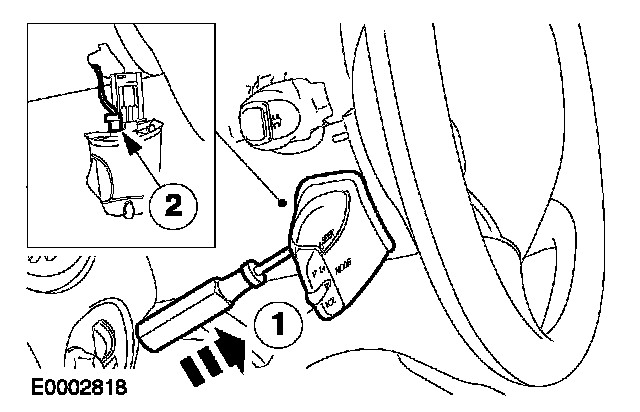

4. Remove the audio control switch (if equipped).
1 Using a thin bladed screwdriver, release the locking tang.
2 Disconnect the electrical connector.

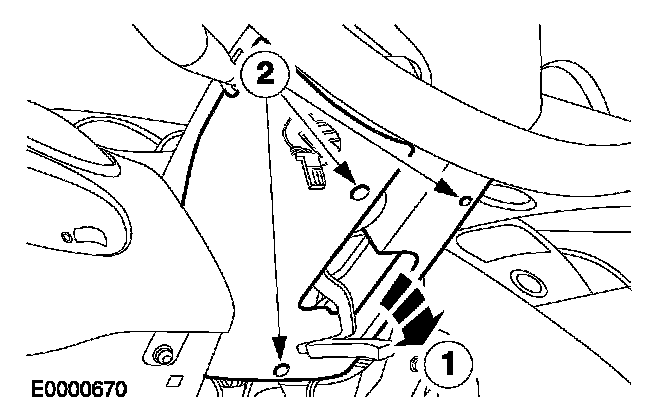

5. Remove the steering column lower shroud.
1 Release the steering column locking lever.
2 Remove the screws.
- Remove the ignition key.







6. Remove the ignition lock cylinder.
1 Insert and turn the ignition key to position I (Accessory).
2 Using a thin bladed screwdriver, depress the detent.
3 Remove the lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.
2. Initialize the door window motors. Refer to: Widows and Glass.
