Test C: No Power In Run





Pinpoint Test C1

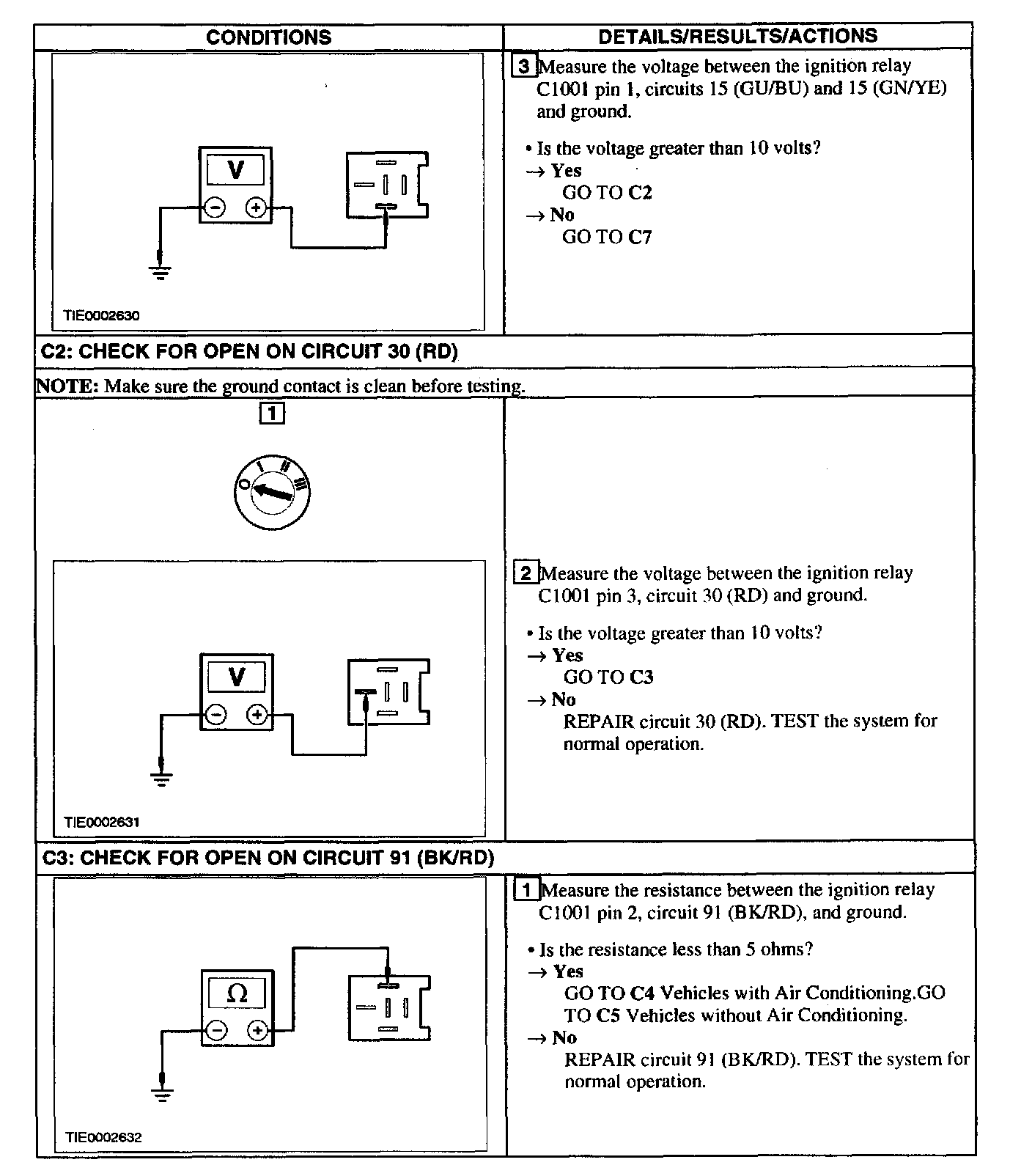

Pinpoint Test C1 through C3

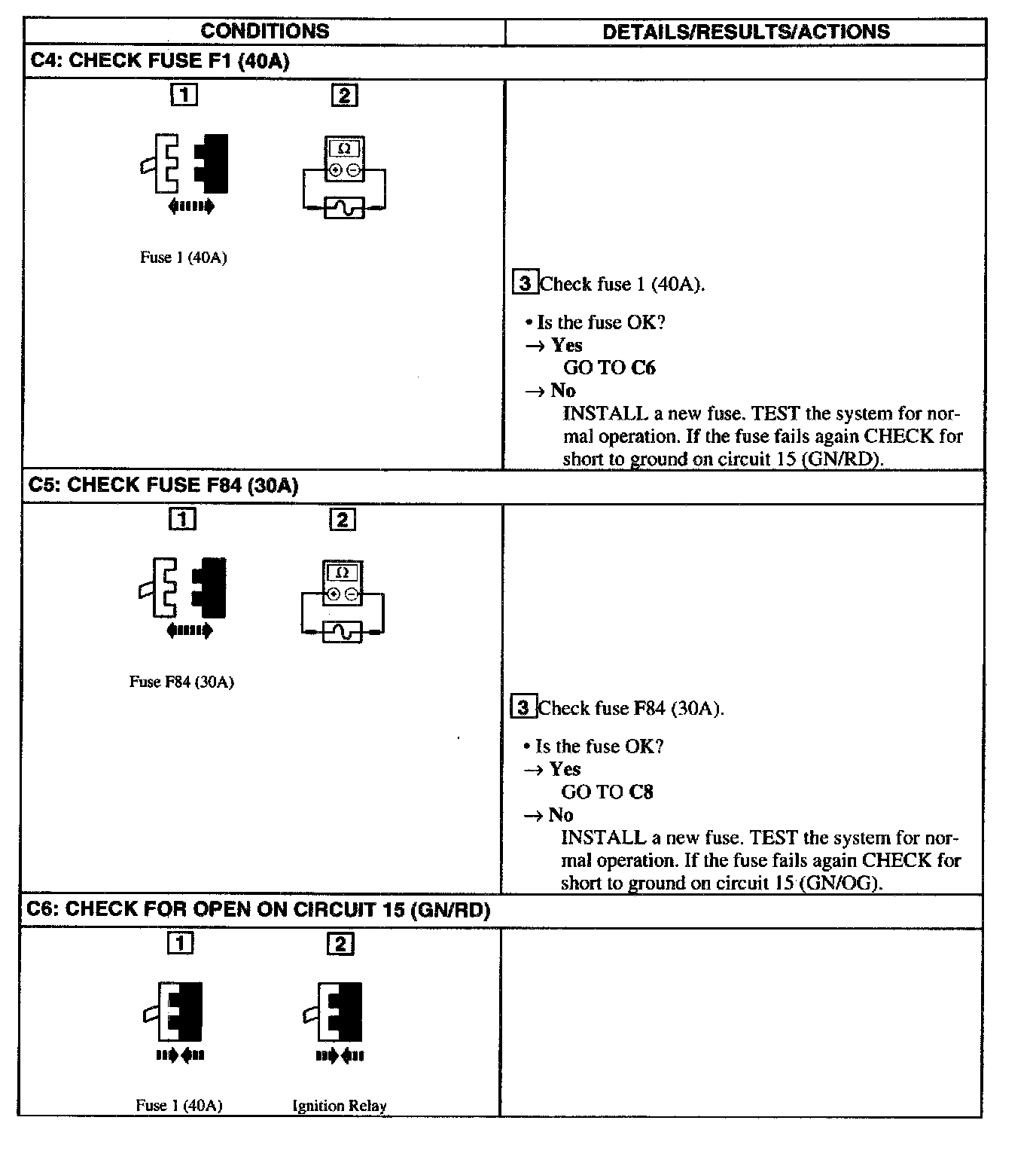

Pinpoint Test C4 through C6





Pinpoint Test C6 through C8





Pinpoint Test C9

PINPOINT TEST C: NO POWER IN RUN
