Planetary Assembly
Planetary AssemblyDisassembly

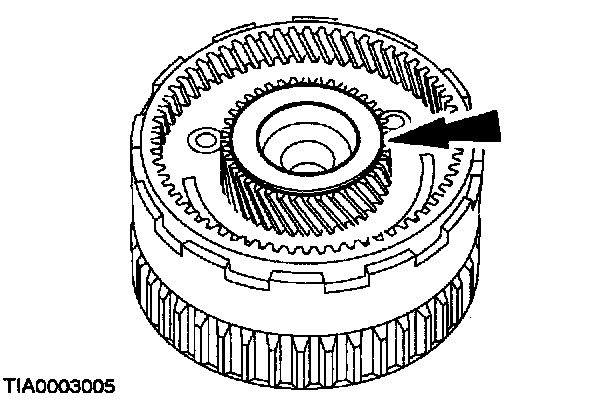

1. Inspect the planet internal bearing for damage.

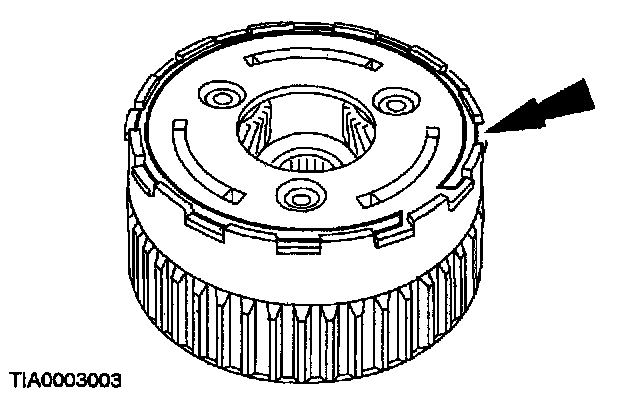

2. Remove the snap ring.
3. Remove the rear planet assembly.

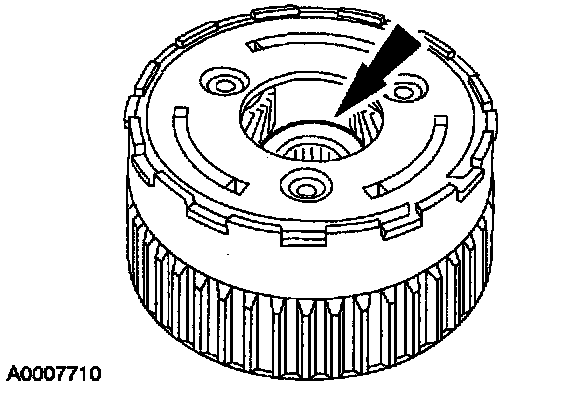

4. Remove the thrust bearing.
5. Remove the forward planet sun gear.
6. Remove the thrust bearing.
7. Remove the forward planet assembly.

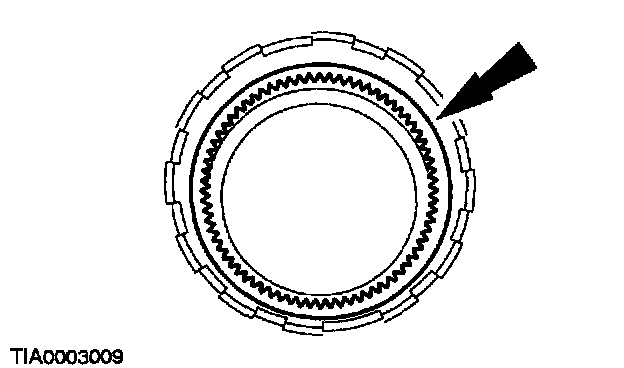

8. Inspect the low and reverse ring gear.

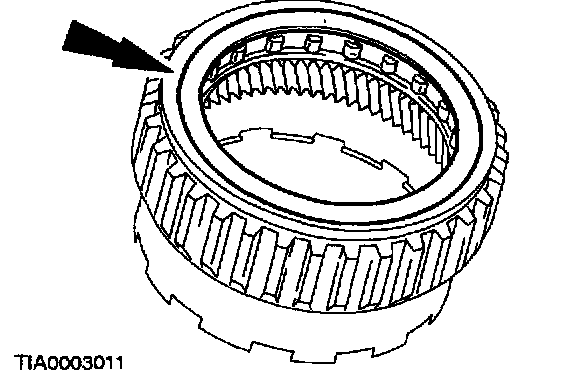

9. Remove the top retainer of the one-way clutch.

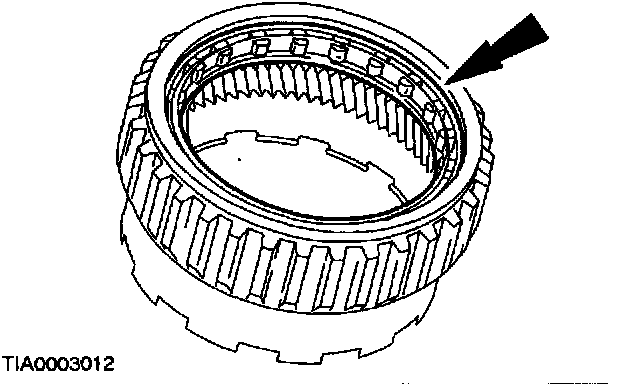

10. Remove the top one-way clutch ring.

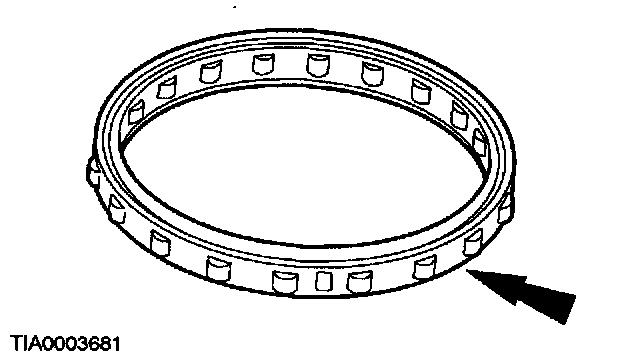

11. Remove the low one-way clutch assembly.
12. Remove the lower one-way ring.
Assembly

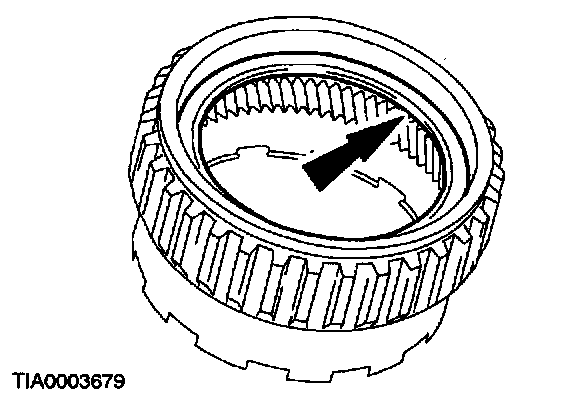

1. Install the lower one-way ring.
2. Inspect the rollers and the springs of the one-way clutch.

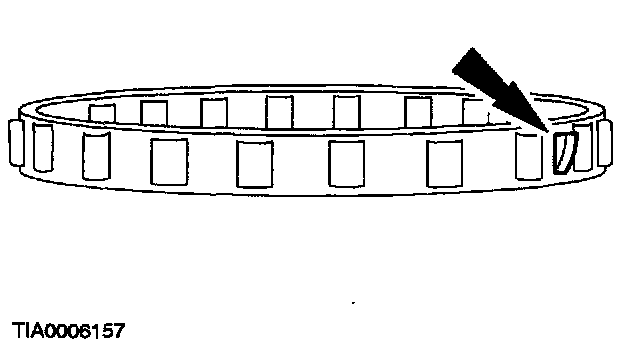

3. Make sure the low one-way clutch is installed with the tab pointing in the direction as shown.
4. Install the low one-way clutch.

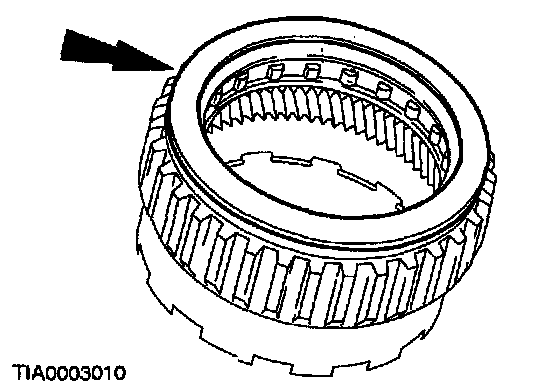

5. Install the top one-way clutch ring.
6. Install the top retainer of the one-way clutch.

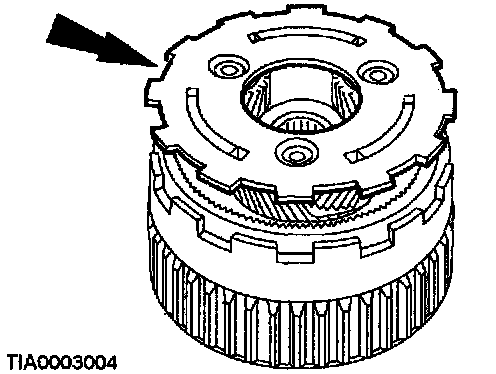

7. Install the forward planet assembly.
8. Install the thrust bearing.

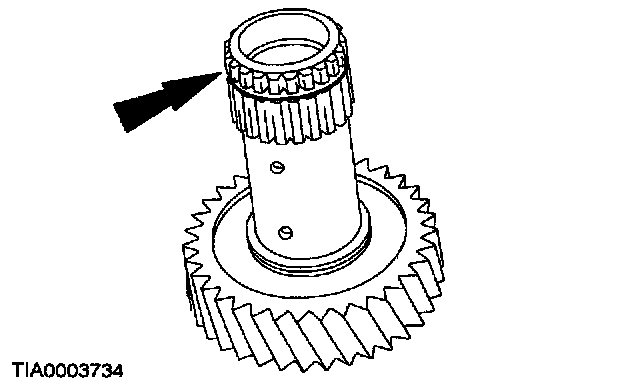

9. Inspect the front sun gear retaining ring.
10. Install the forward planet sun gear.
11. Install the thrust bearing.
12. Install the rear planet assembly.
13. Install the snap ring.
