Test B: Transmission Fluid Temperature (TFT) Sensor

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

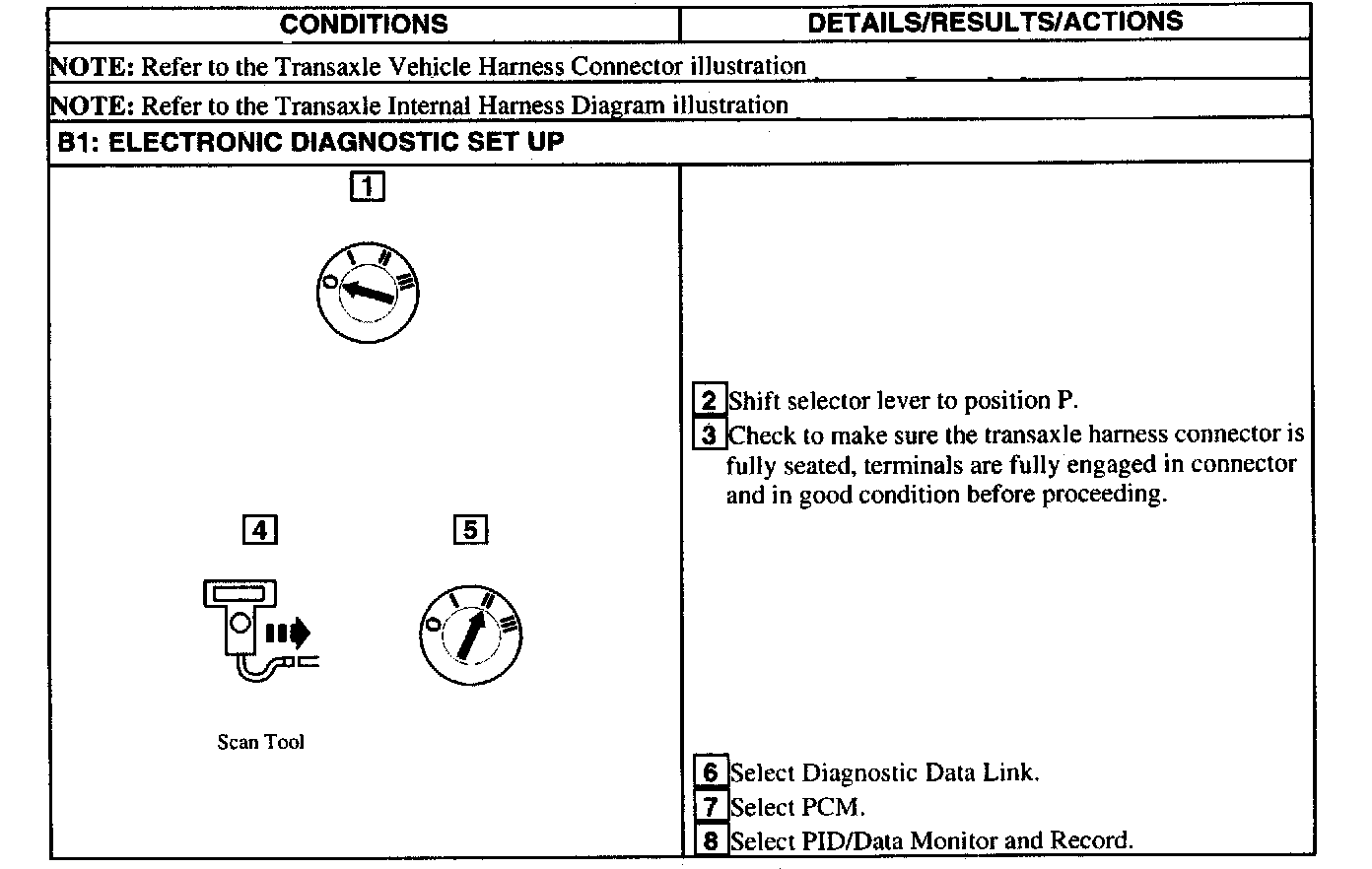

Test - B1

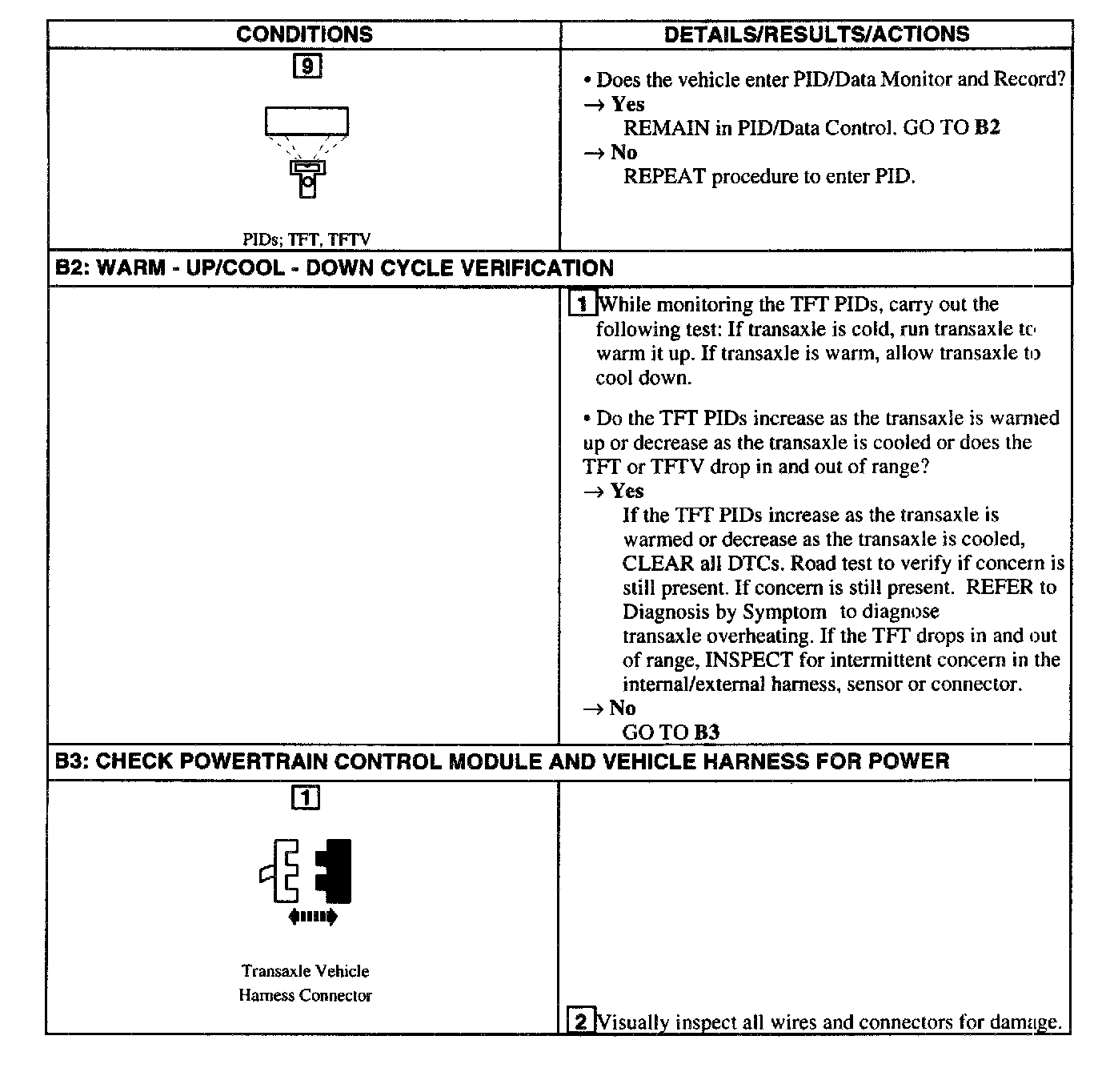

Test B2 - B3

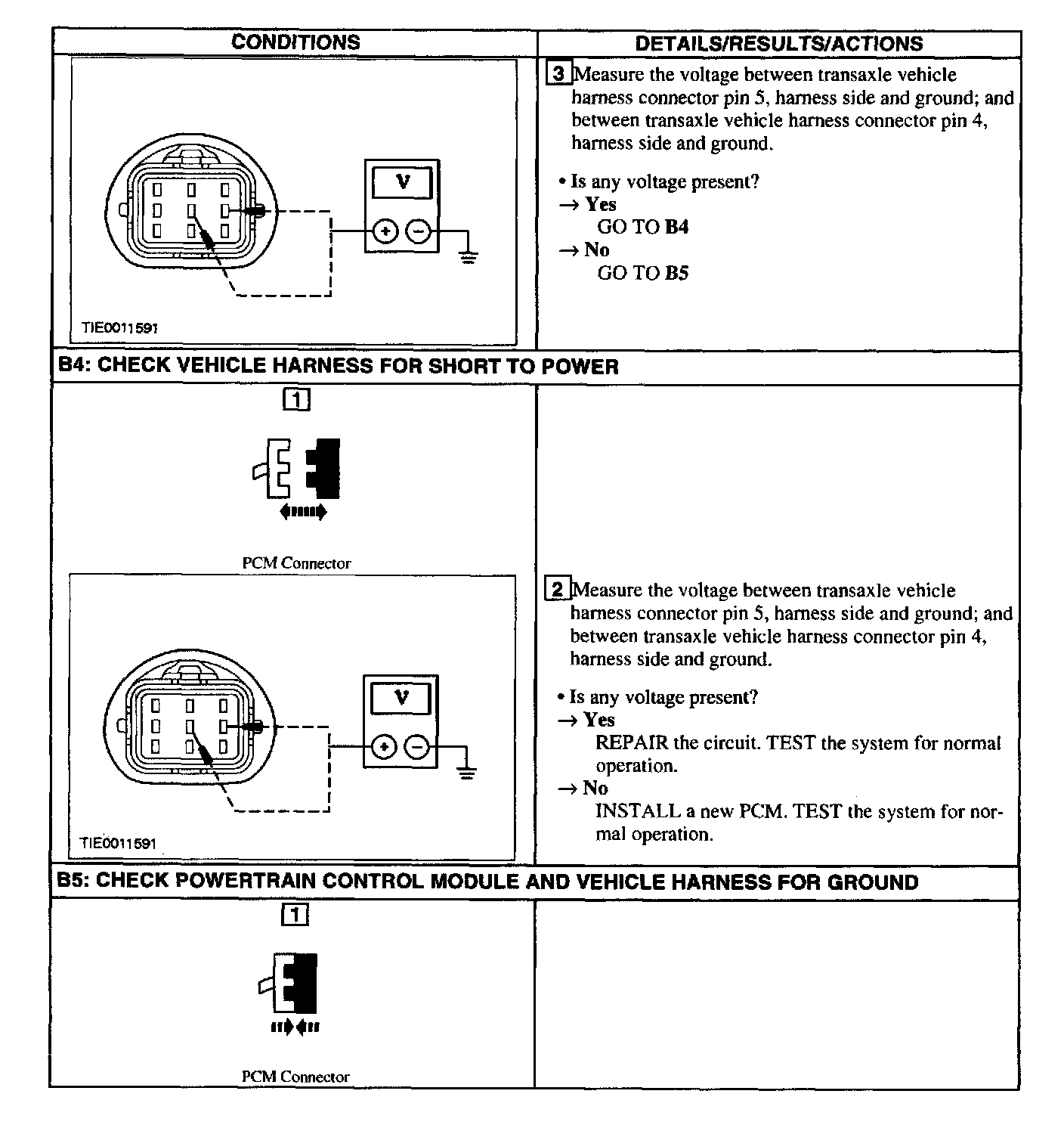

Test B4 - B5

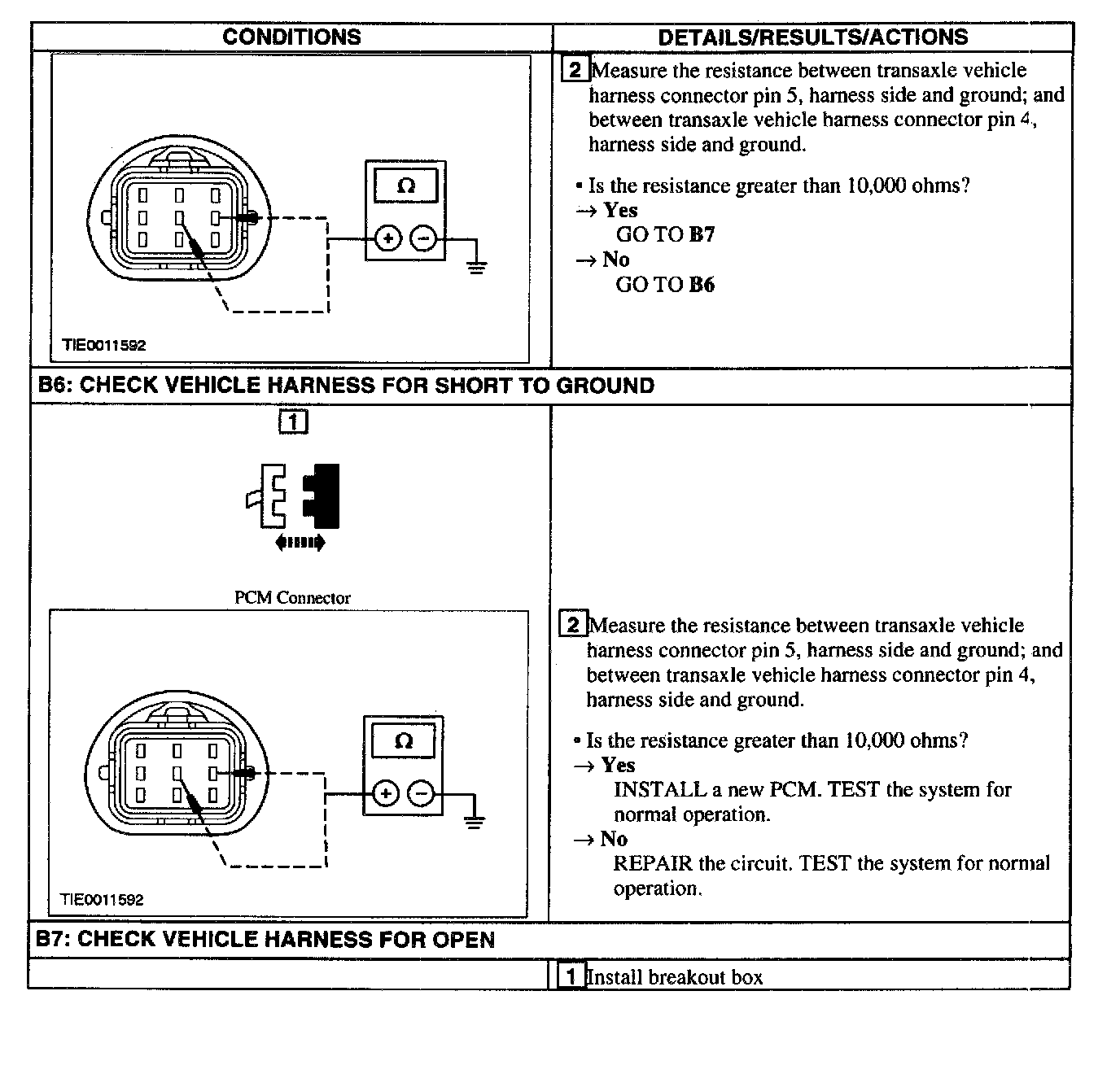

Test B6 - B7

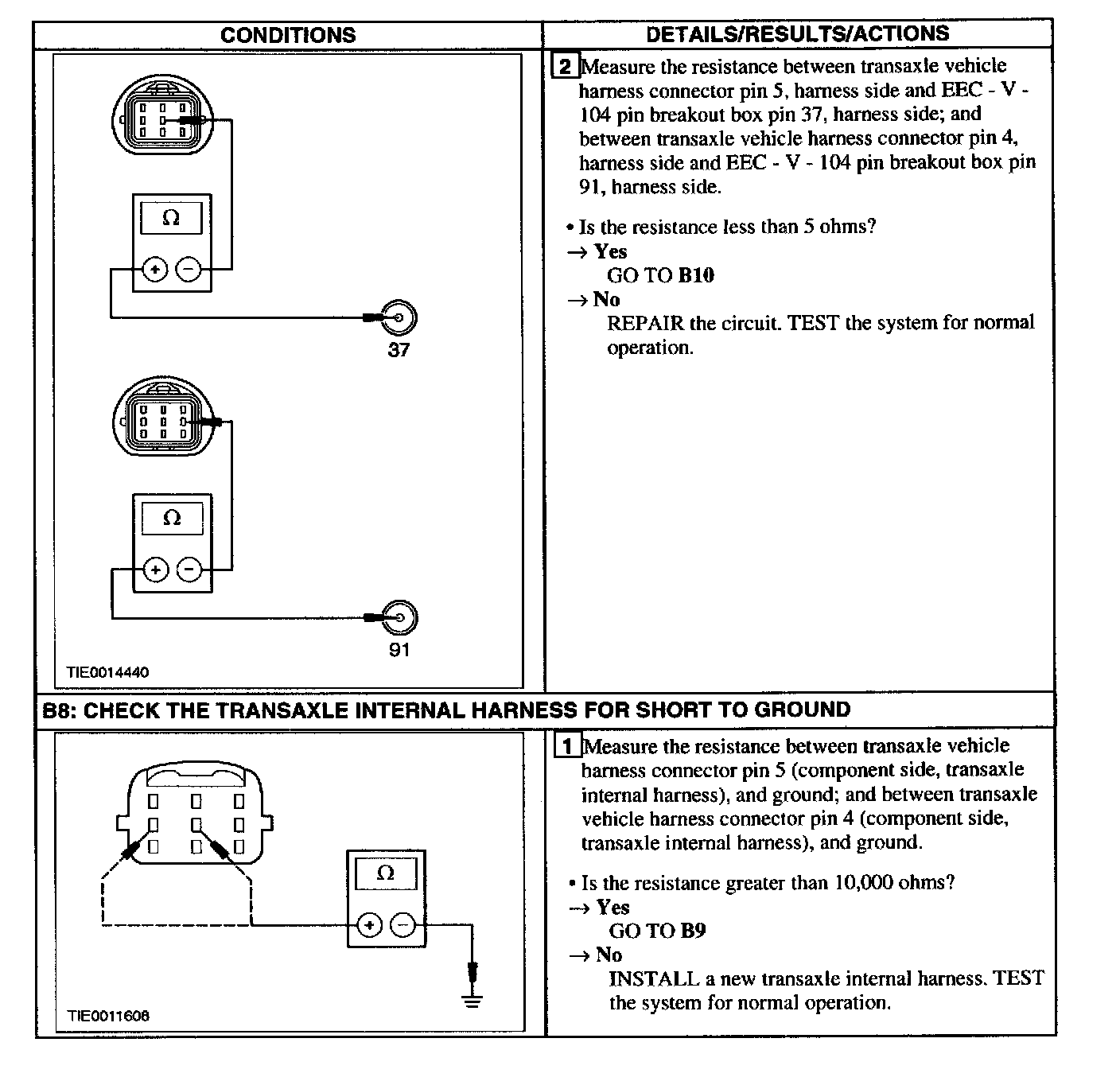

Test - B8

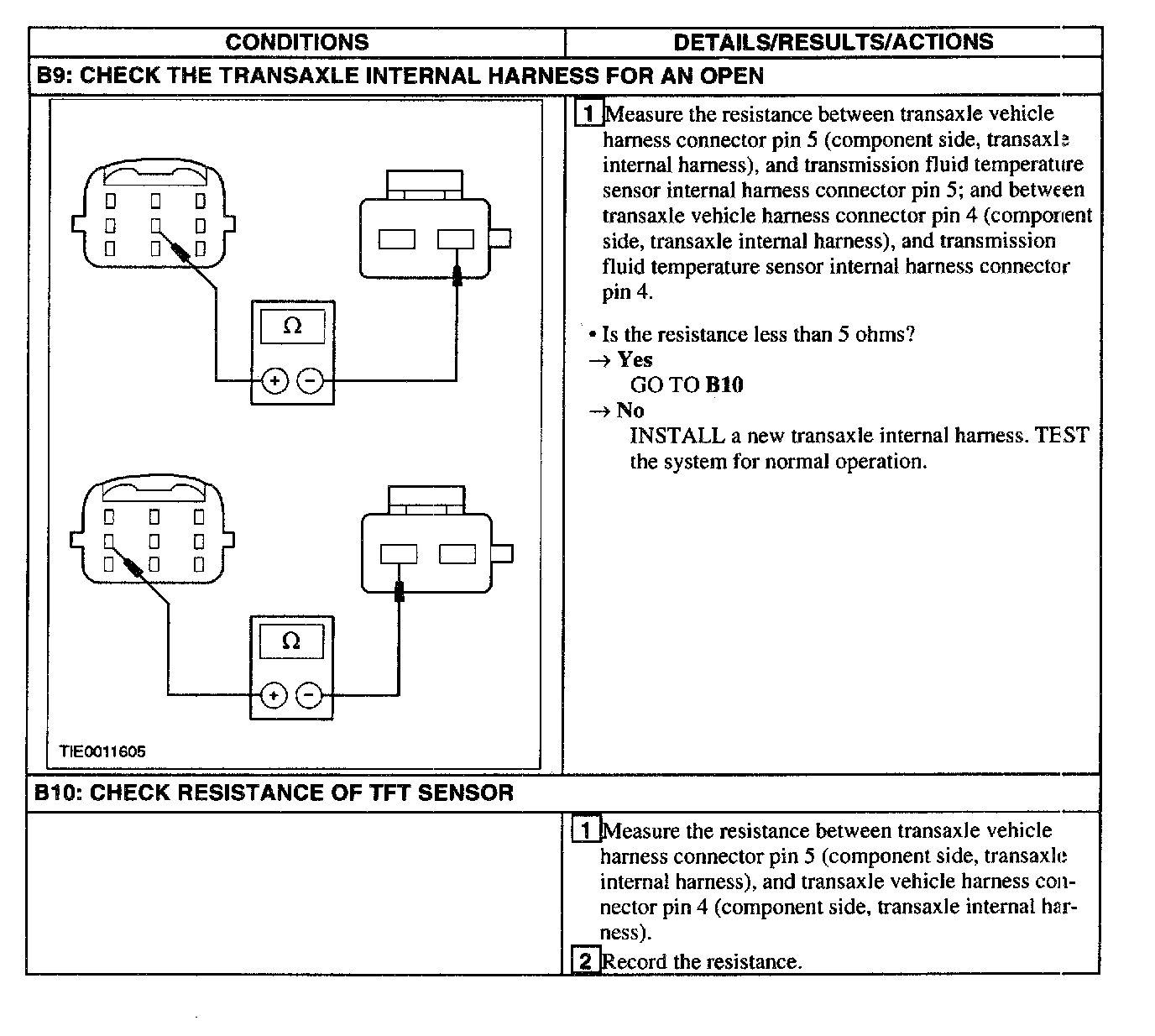

Test B9 - B10

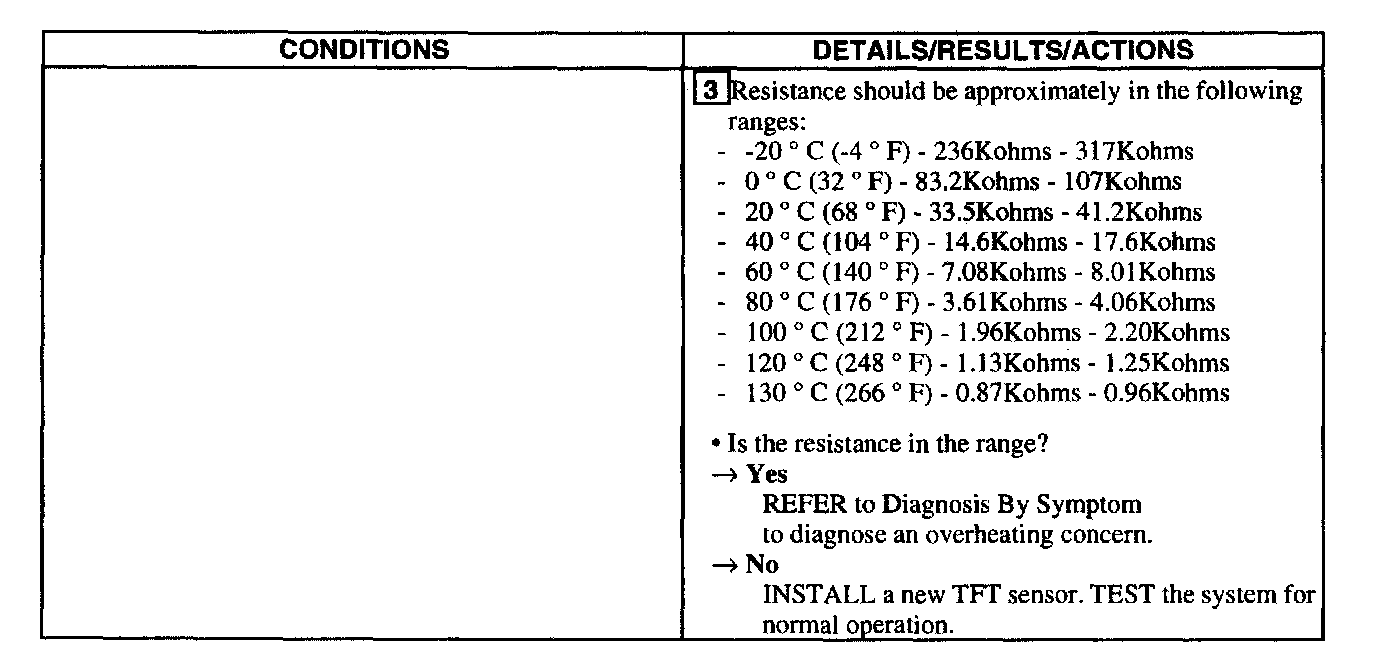

Test - B10
