Test C: Transmission Range (TR) Sensor

PINPOINT TEST C - TRANSMISSION RANGE [TR] SENSOR

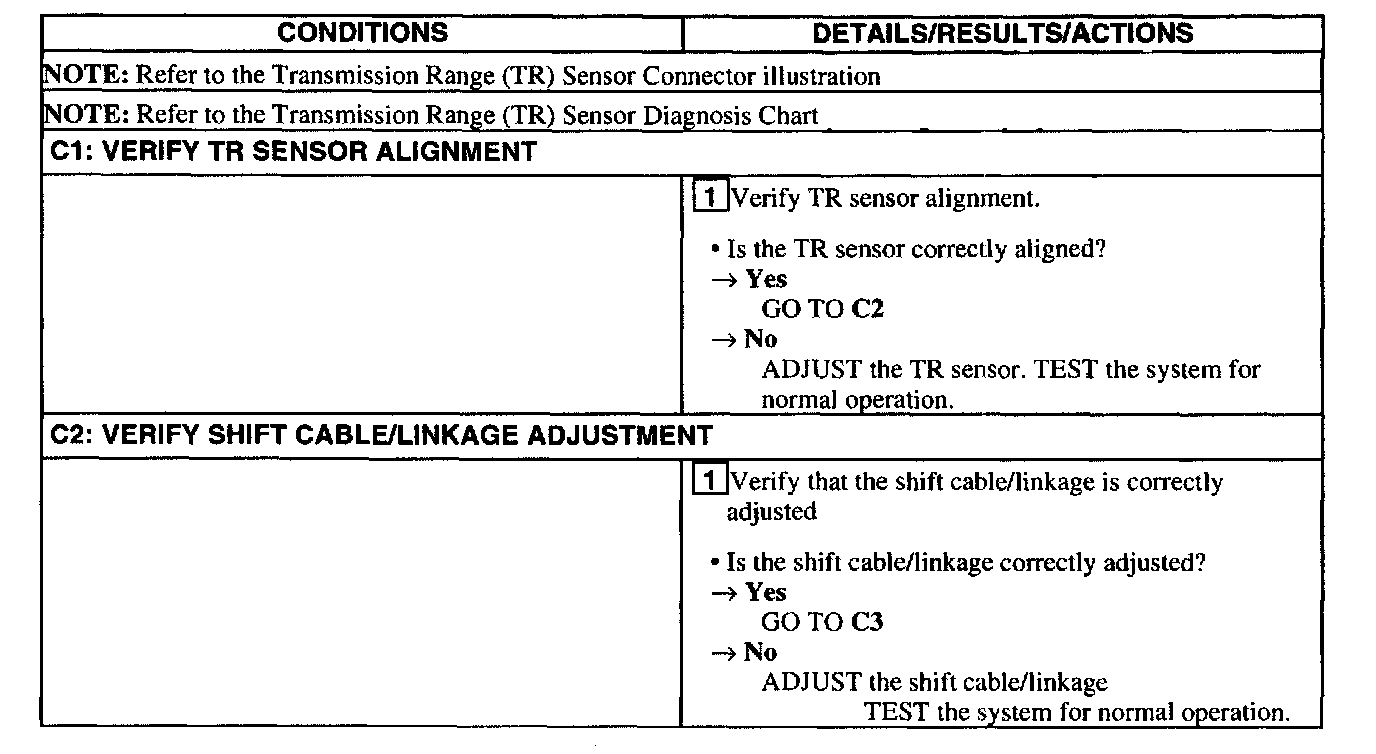

Test C1 - C2

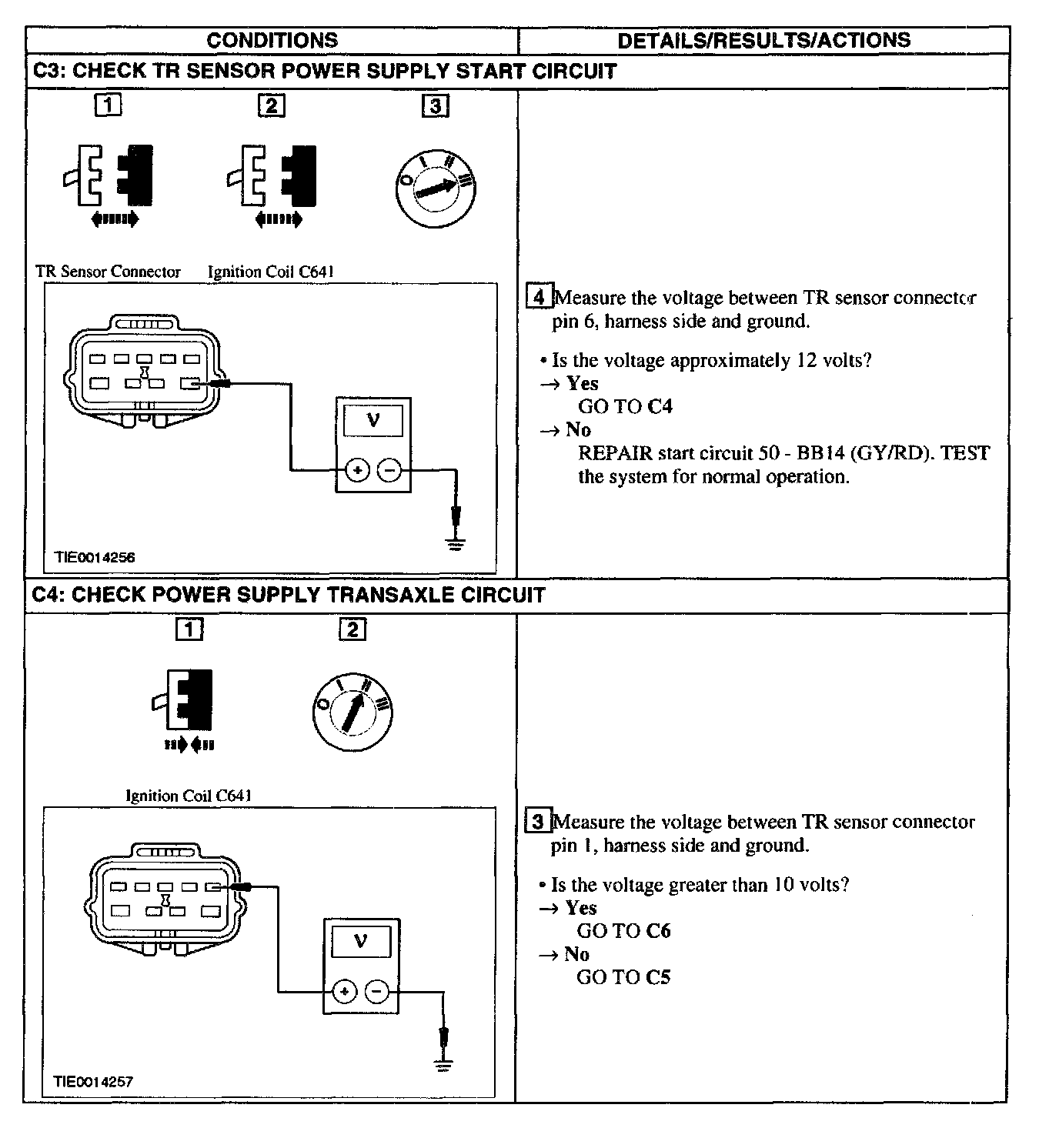

Test C3 - C4

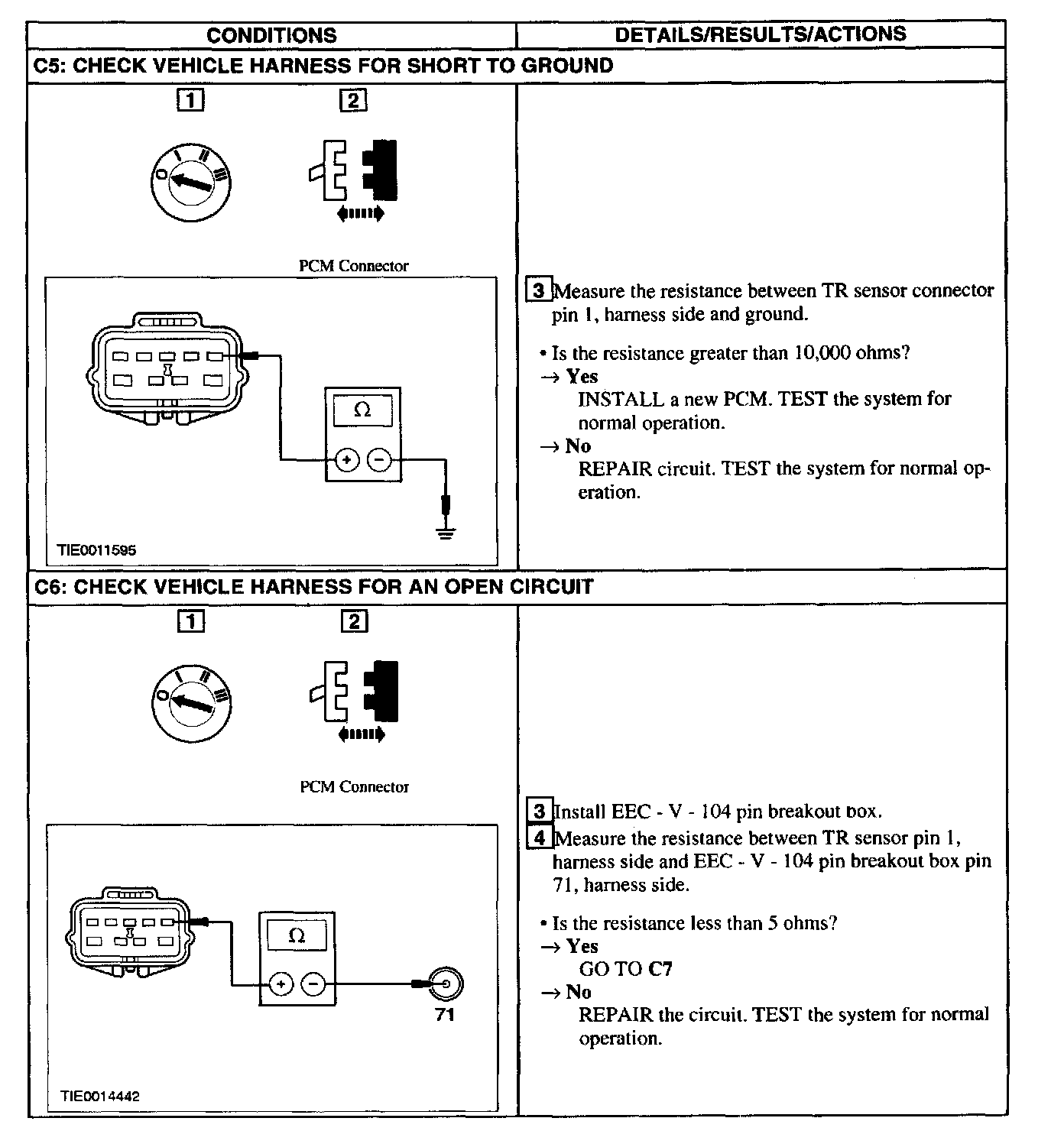

Test C5 - C6

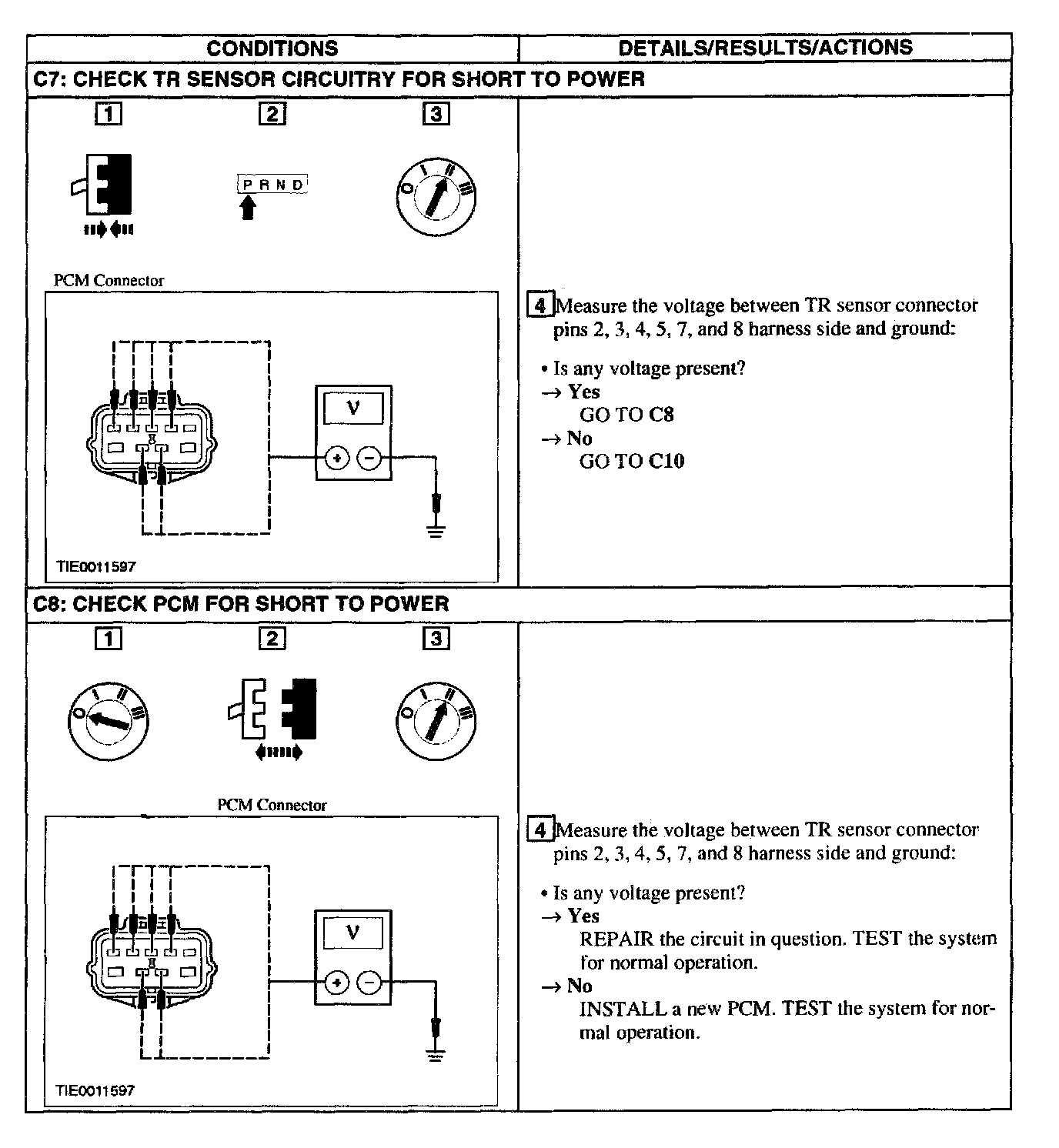

Test C7 - C8

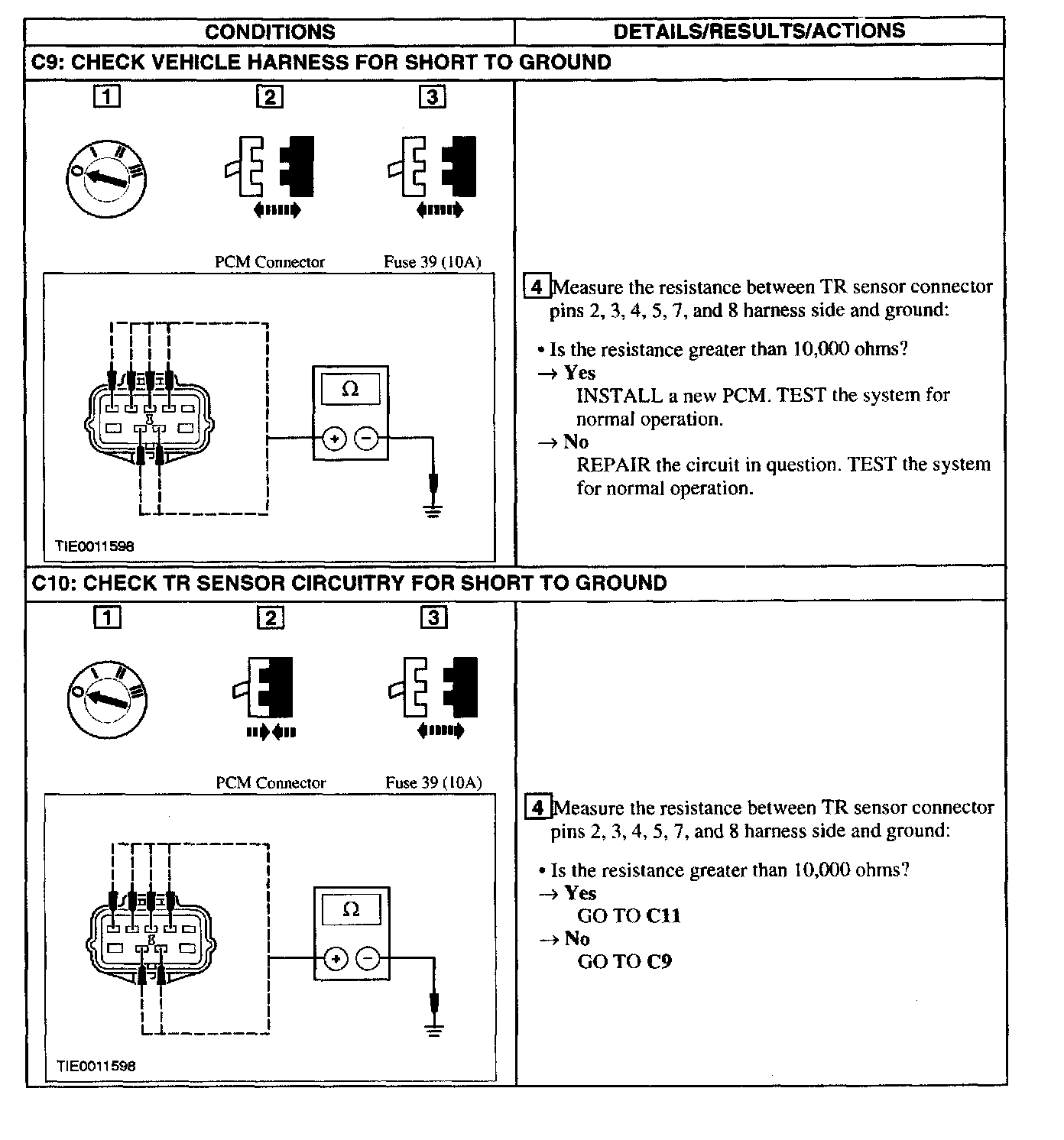

Test C9 - C10

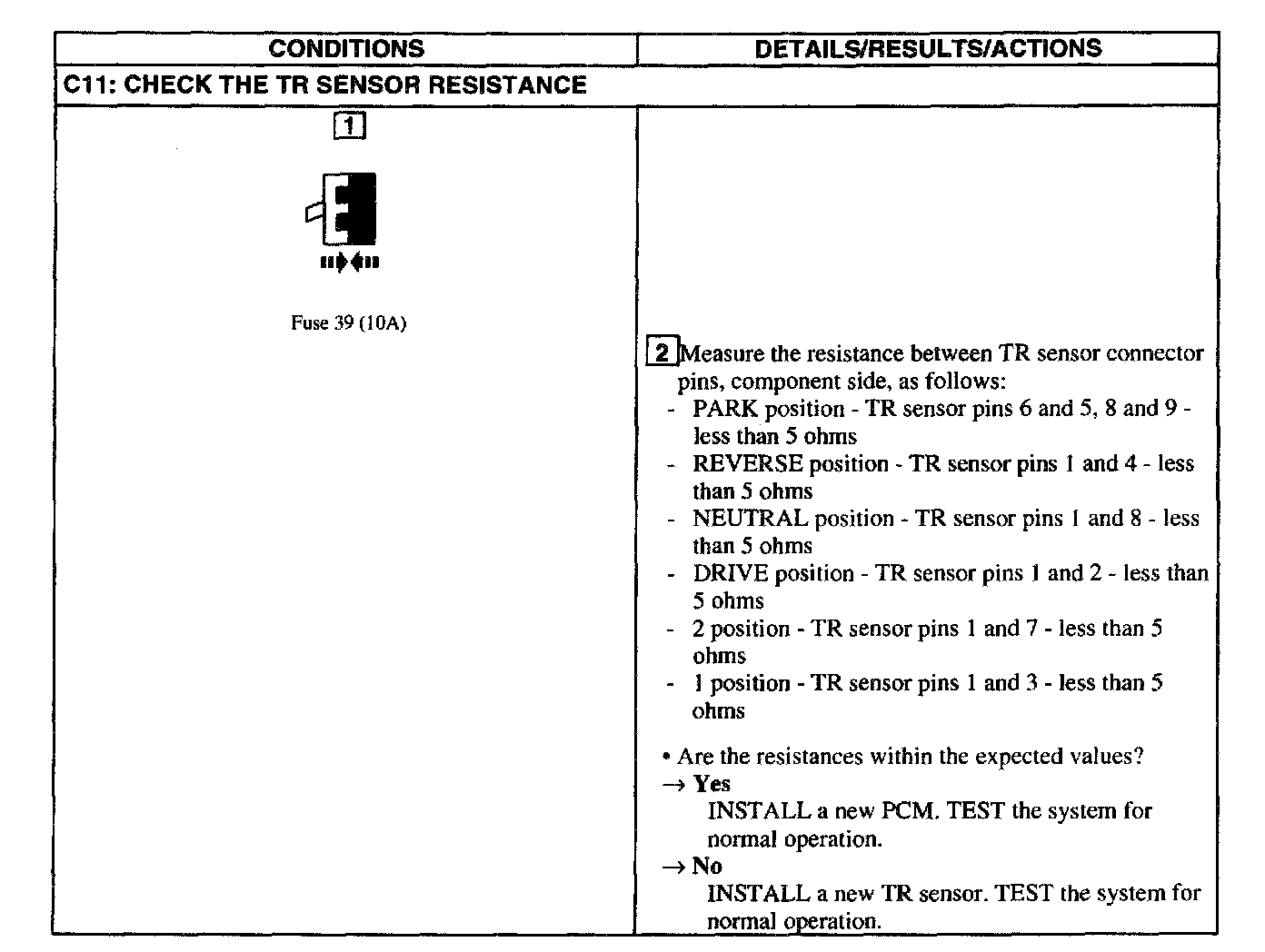

Test - C11
