Components

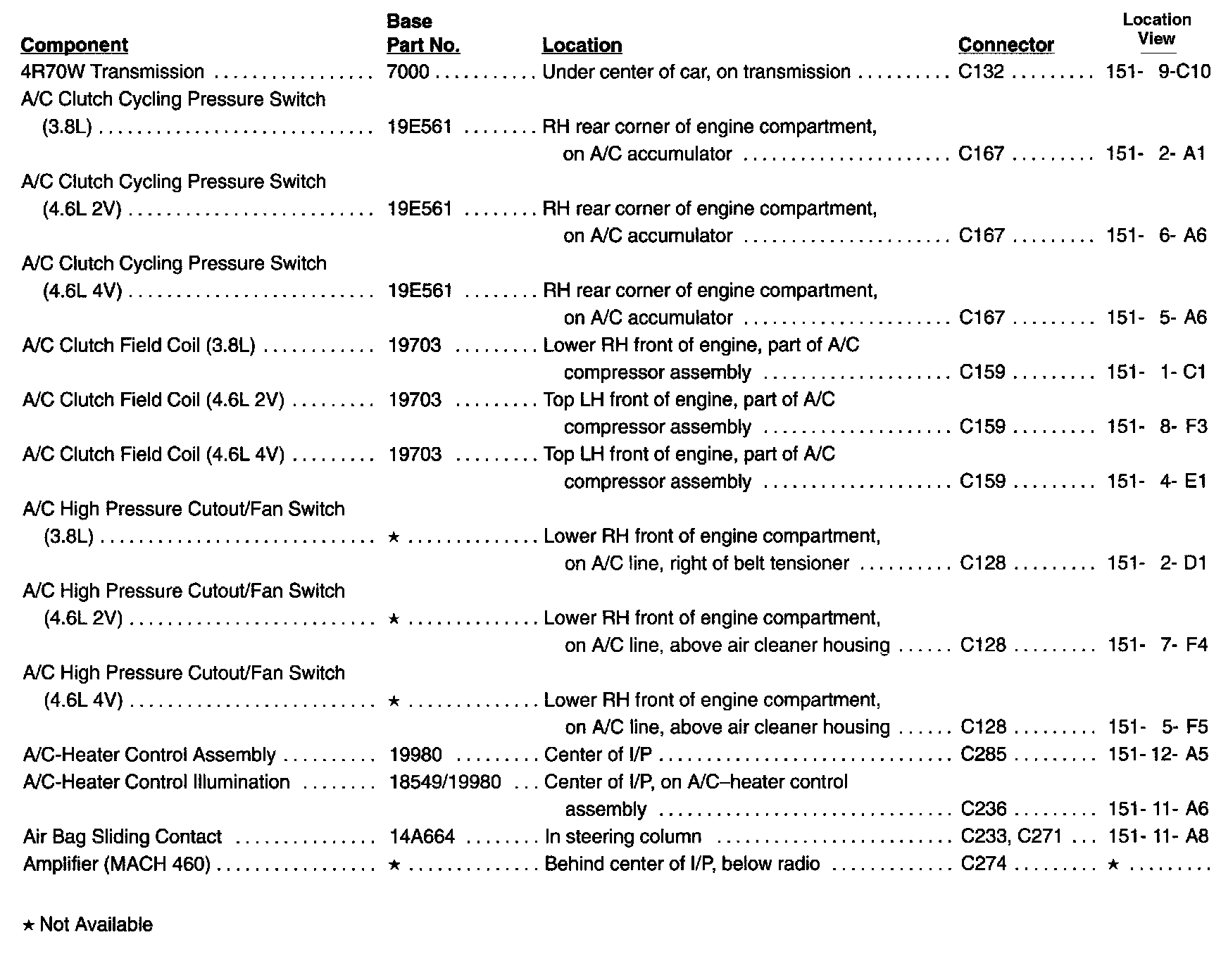

4R - Am:

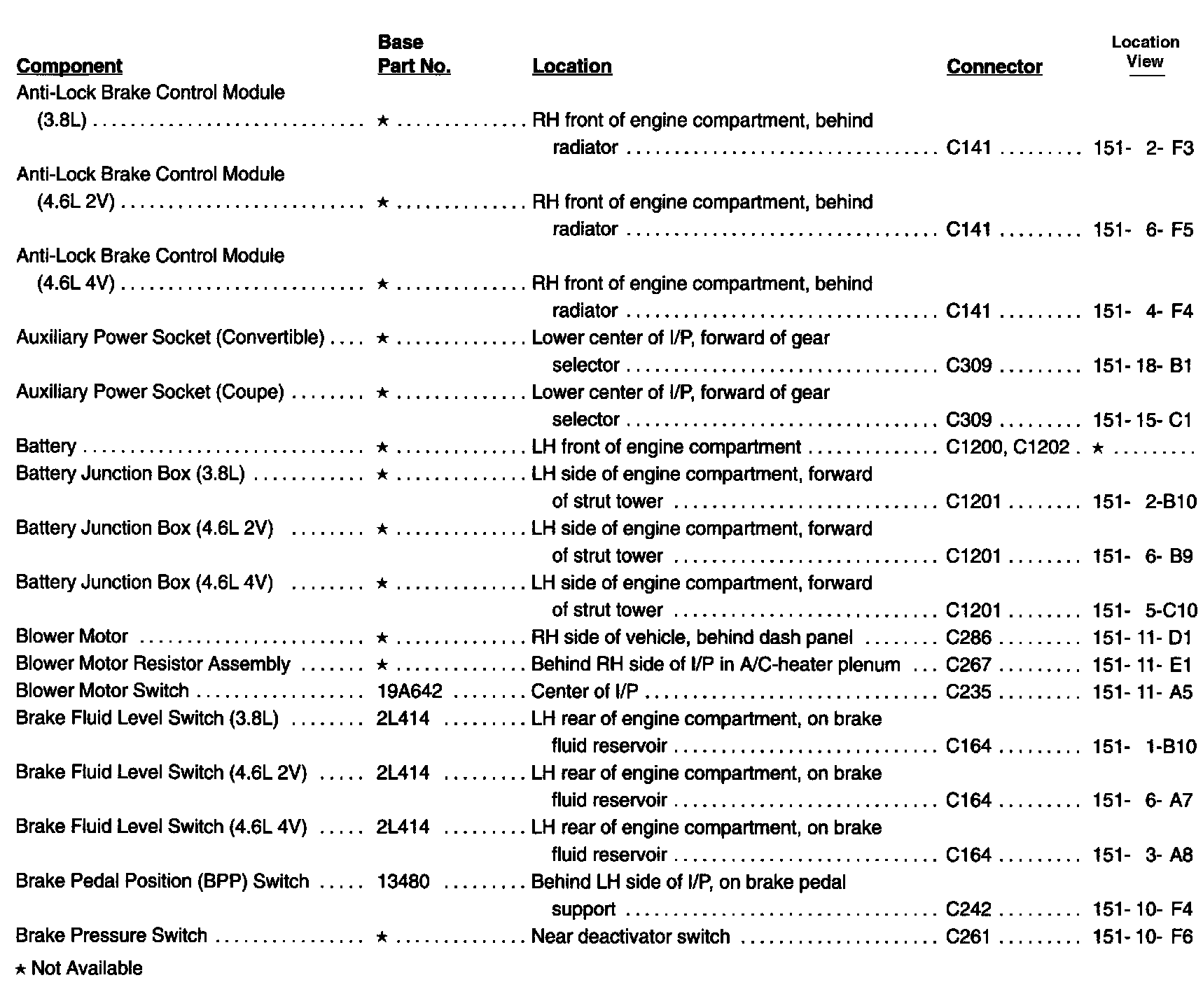

An - Br:

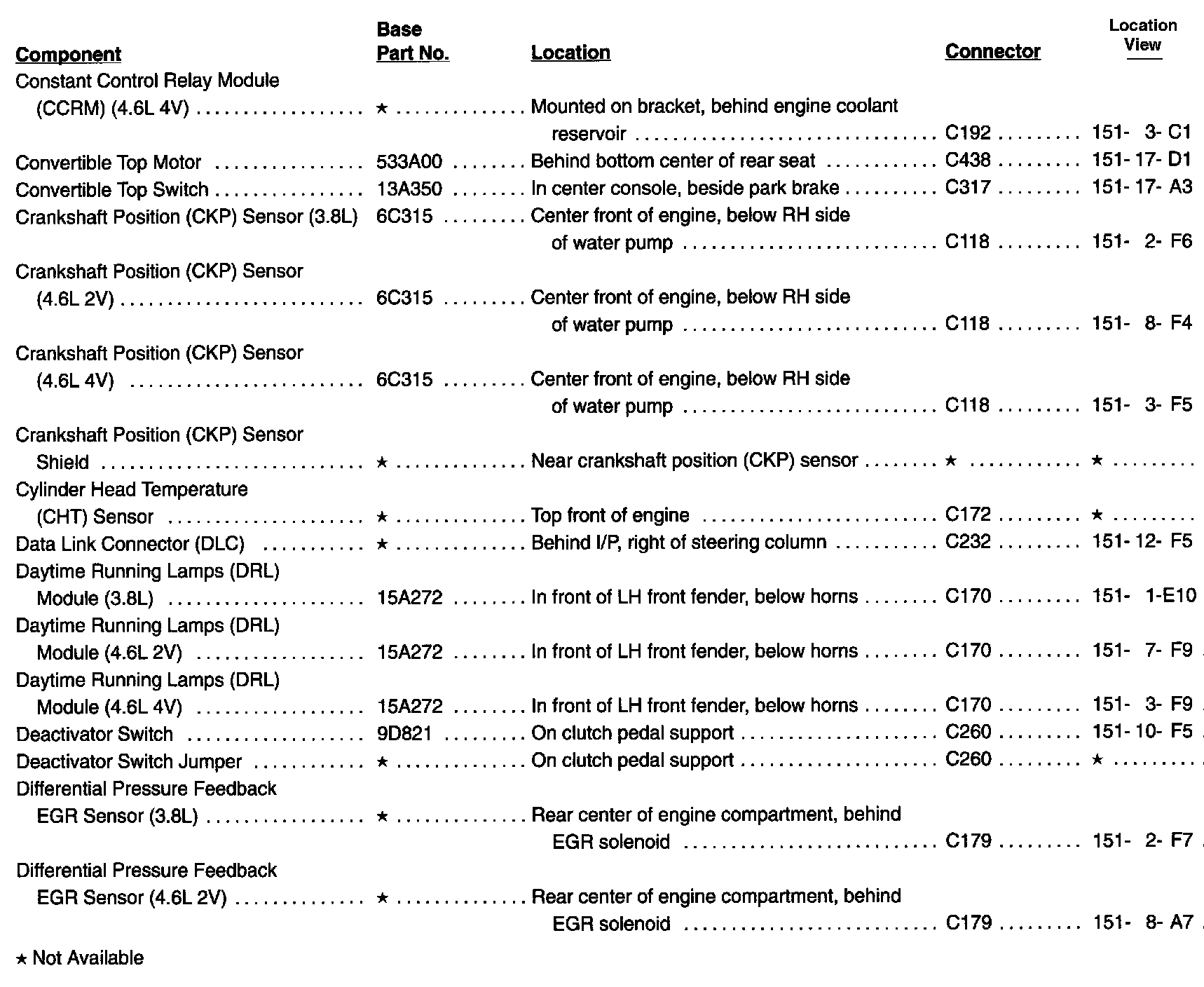

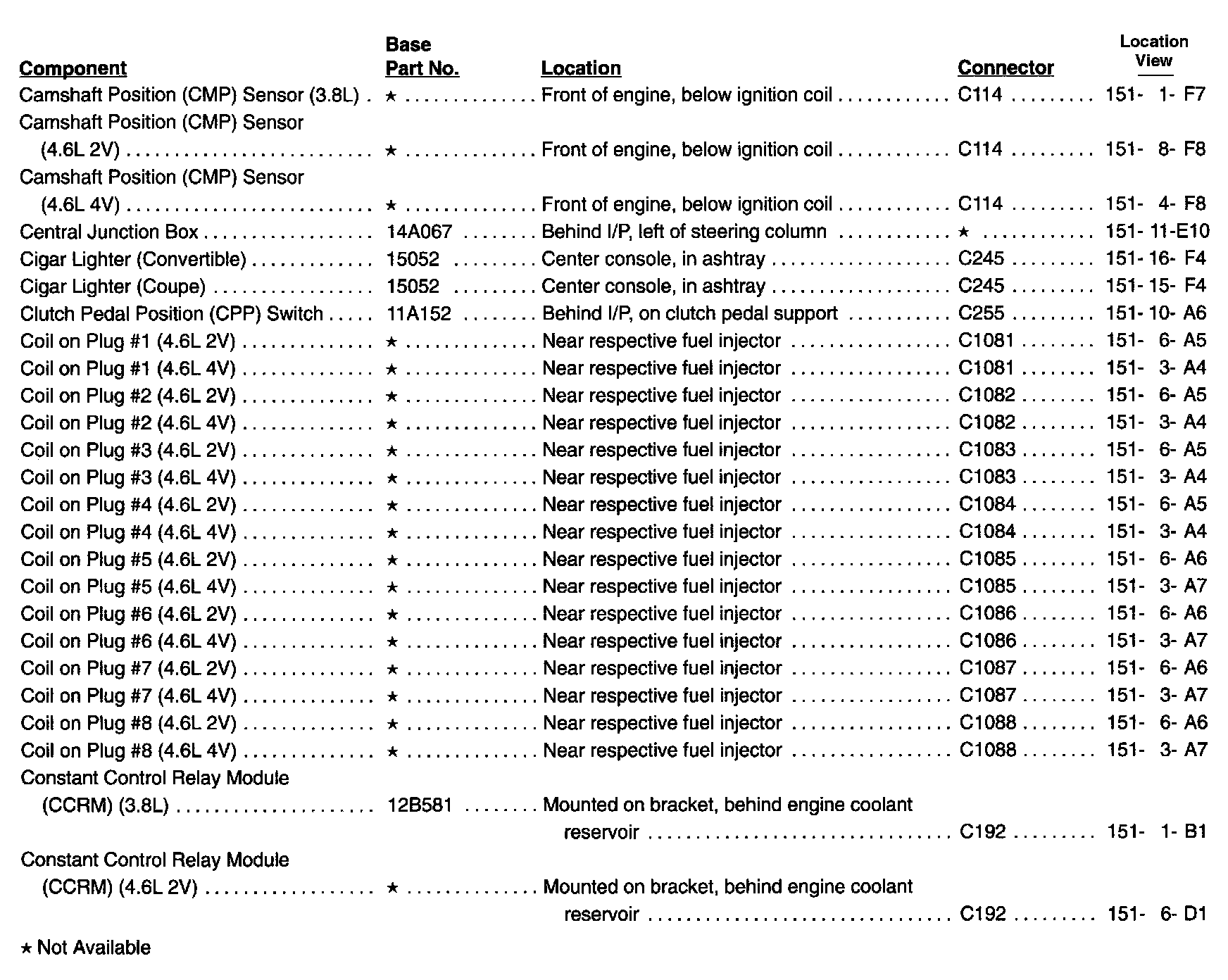

Ca - Co:






Co - Di:






Di - EV:

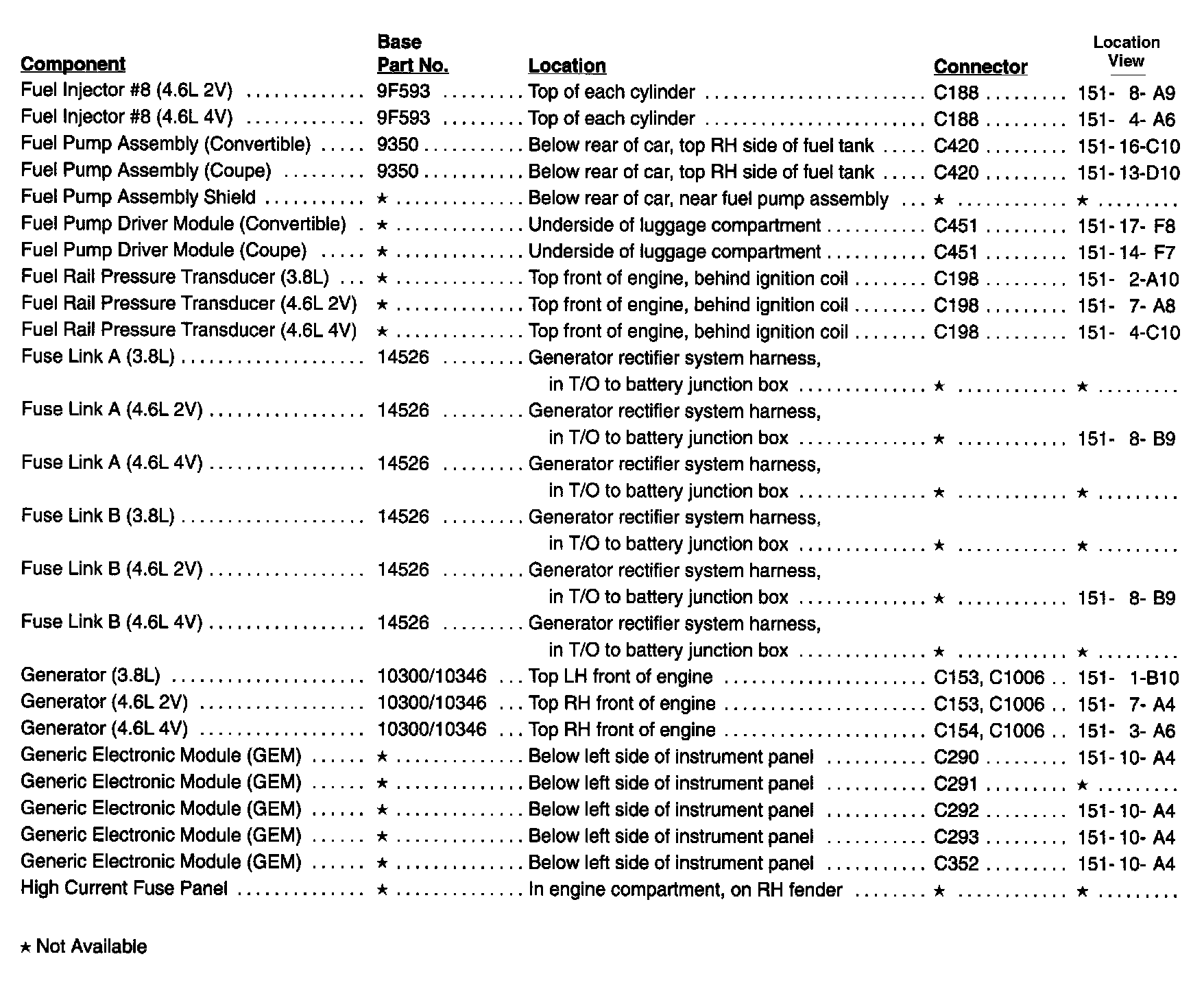

Ex - Fu:






Fu - Hi:

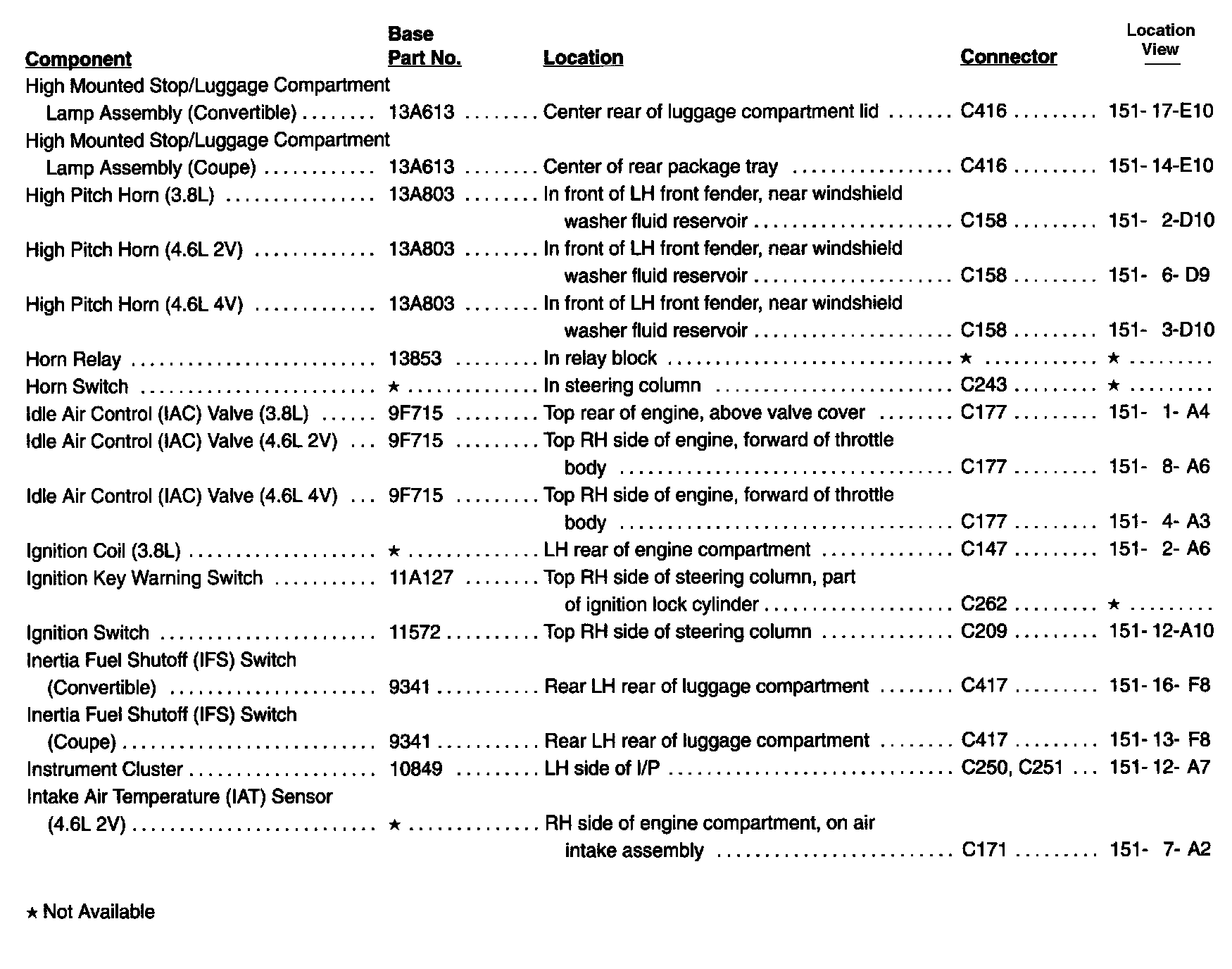

Hi - In:






In - Le:

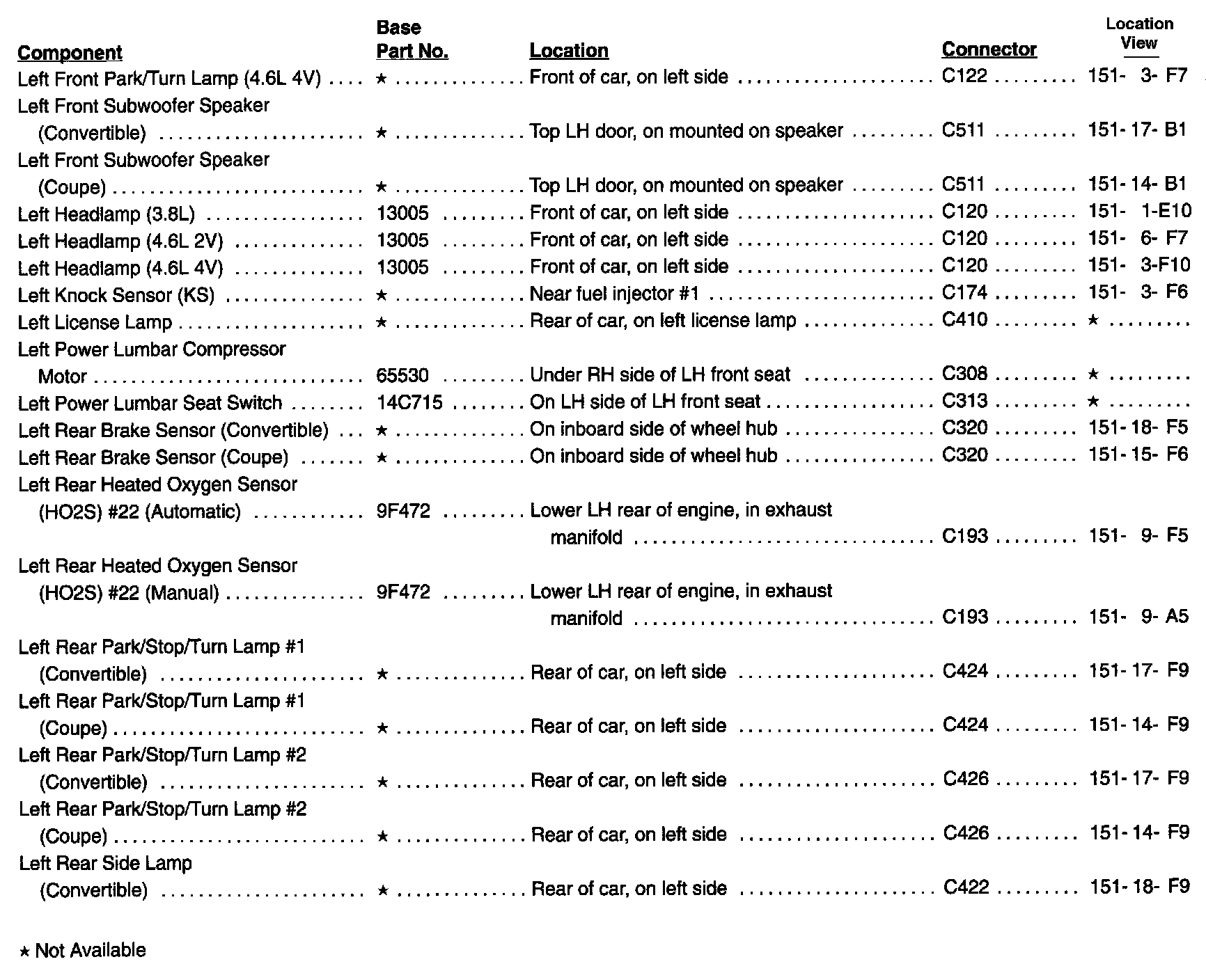

Le - Le:

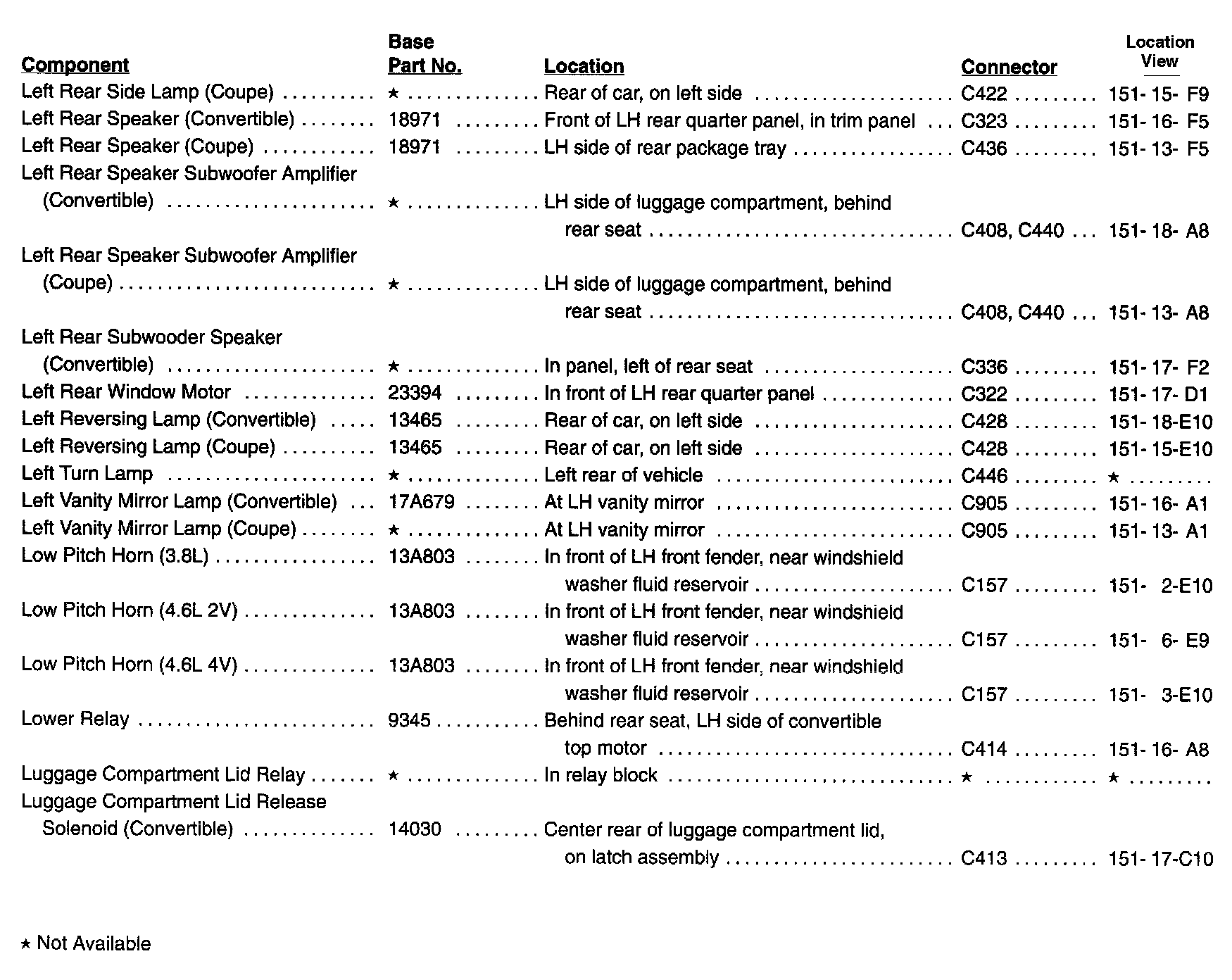

Le - Lu:

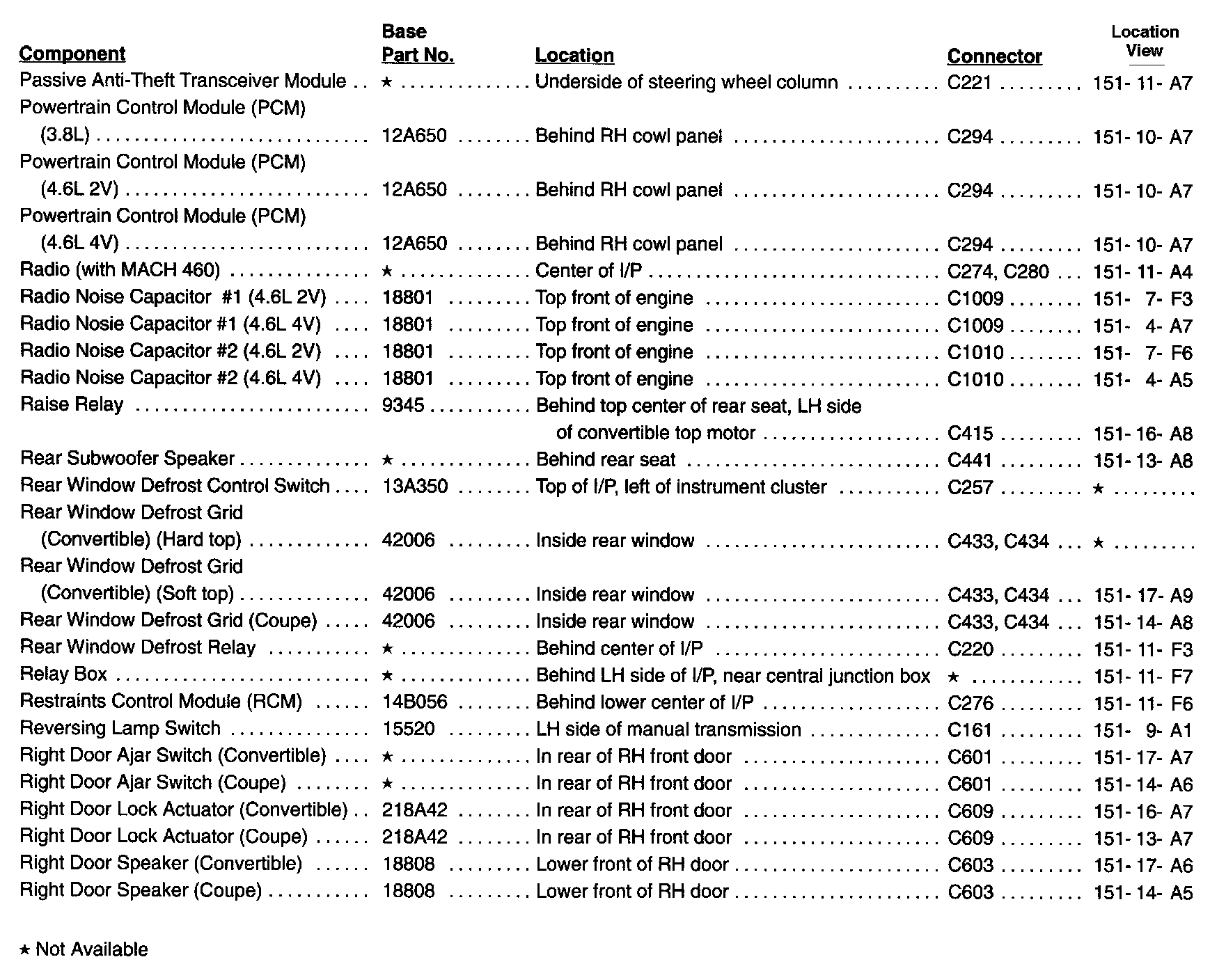

Lu - Pa:






Pa - Ri:

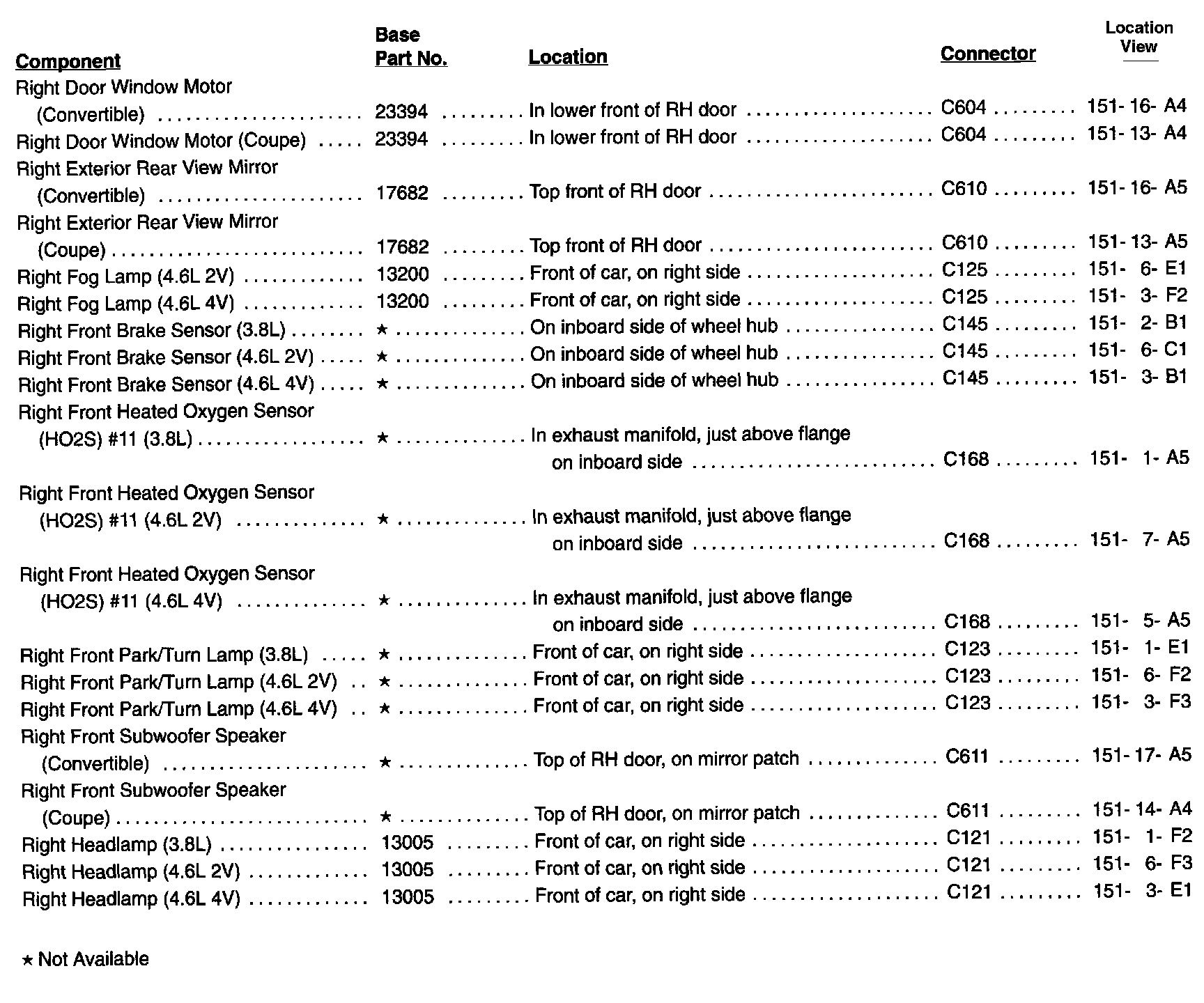

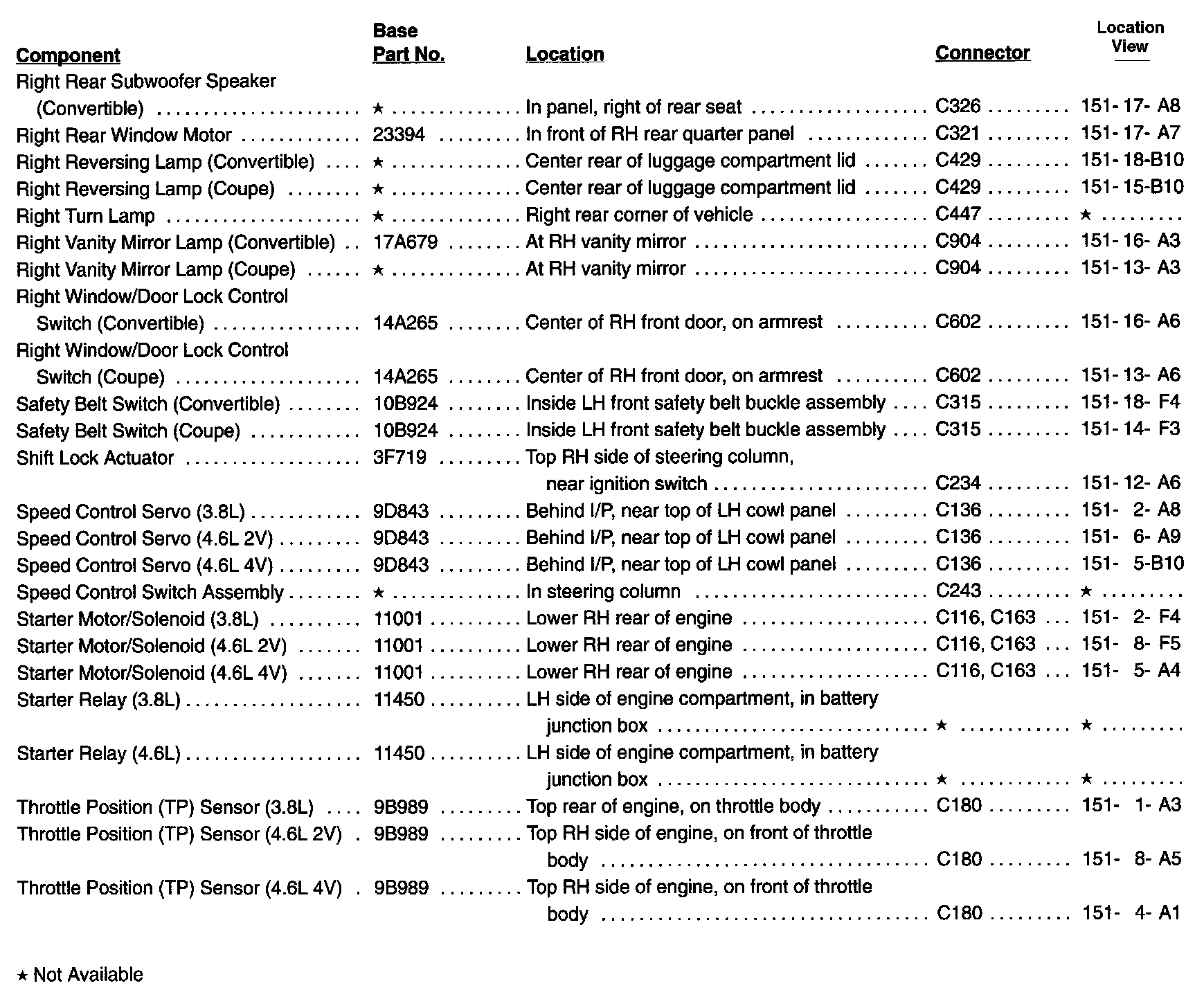

Ri - Ri:






Ri - Ri:






Ri - Th:

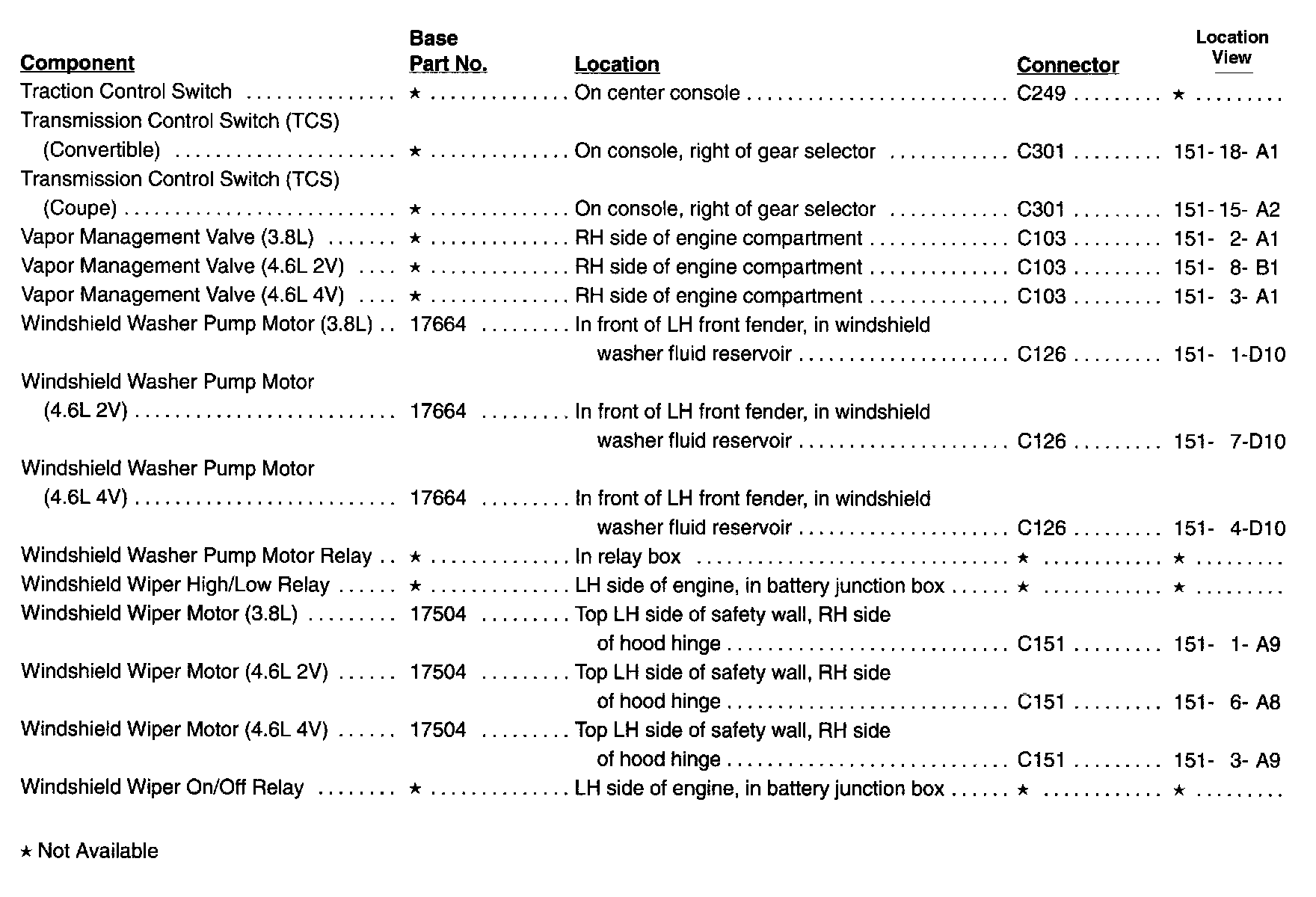

Tr - Wi:
