Automatic Transmission/Transaxle

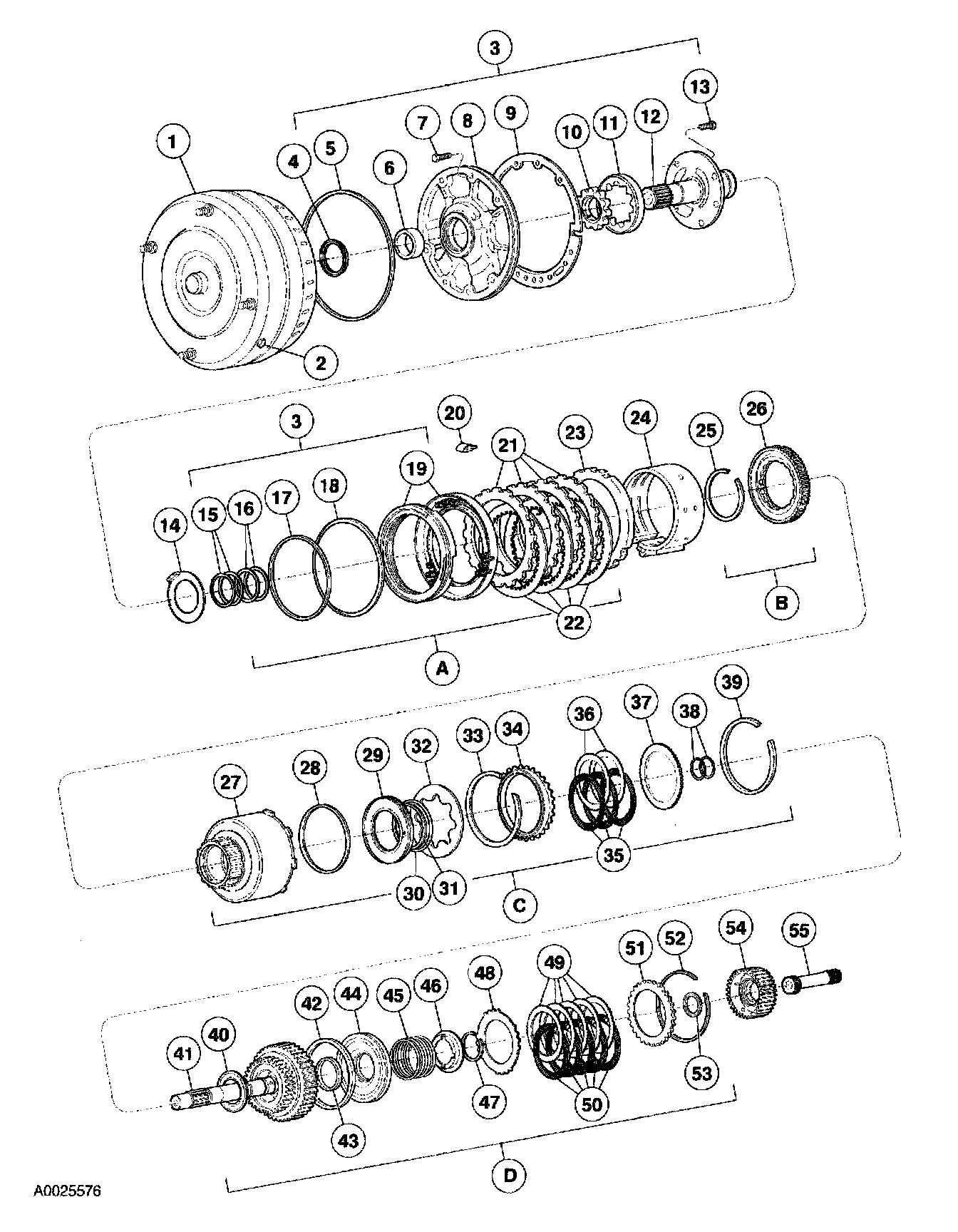

4R70W Automatic Transmission-Disassembled View

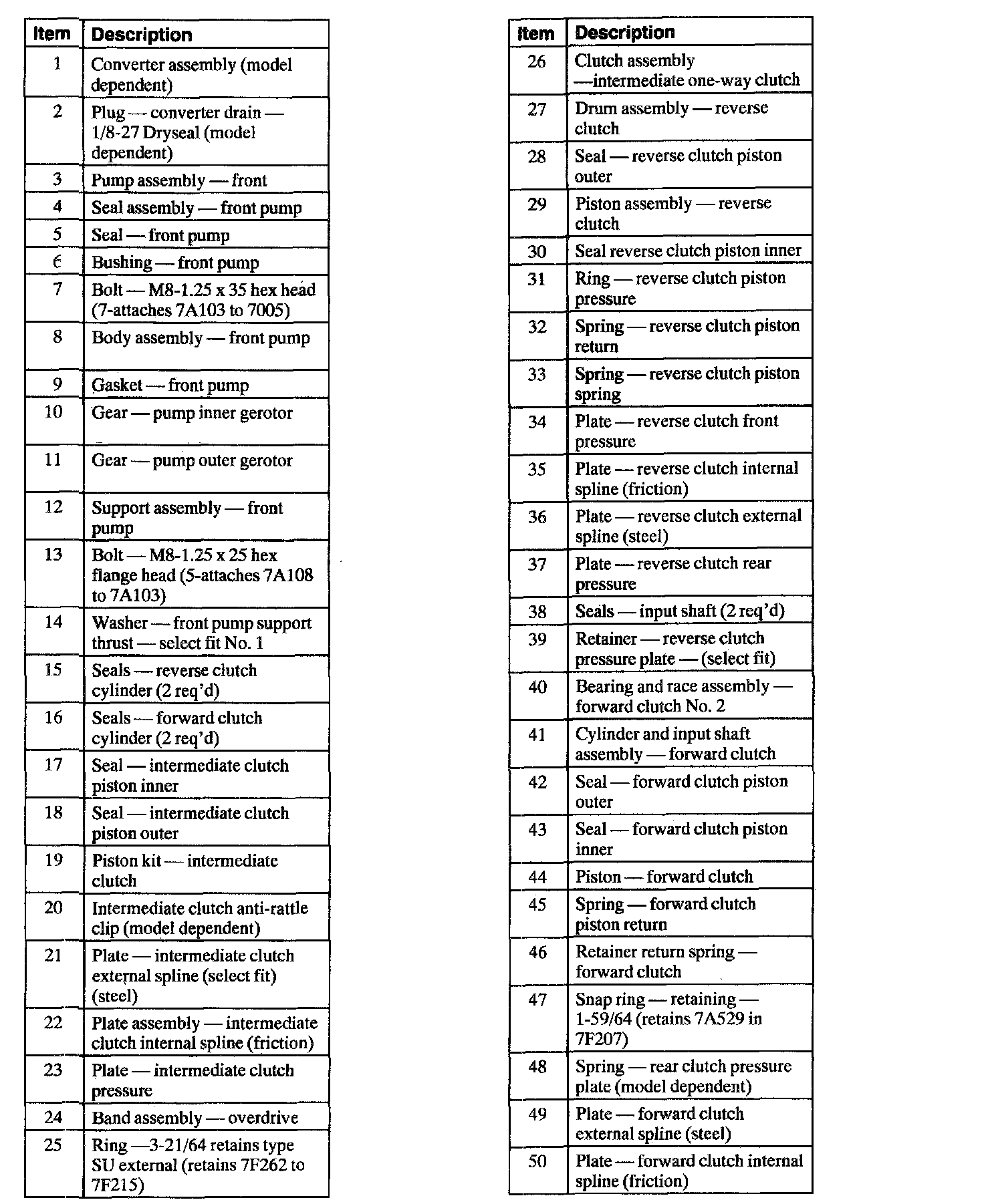

Part 1 of 6

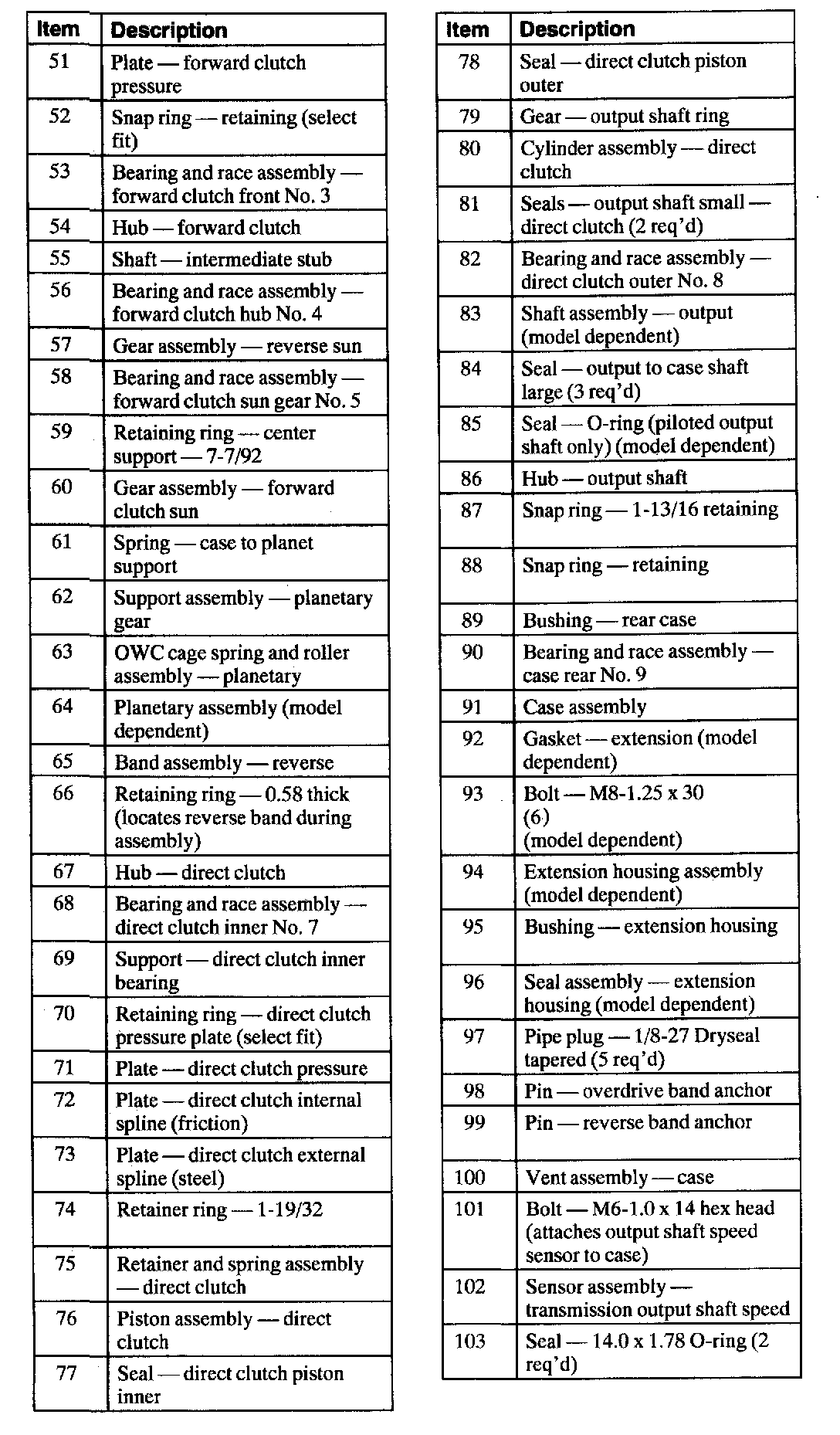

Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6

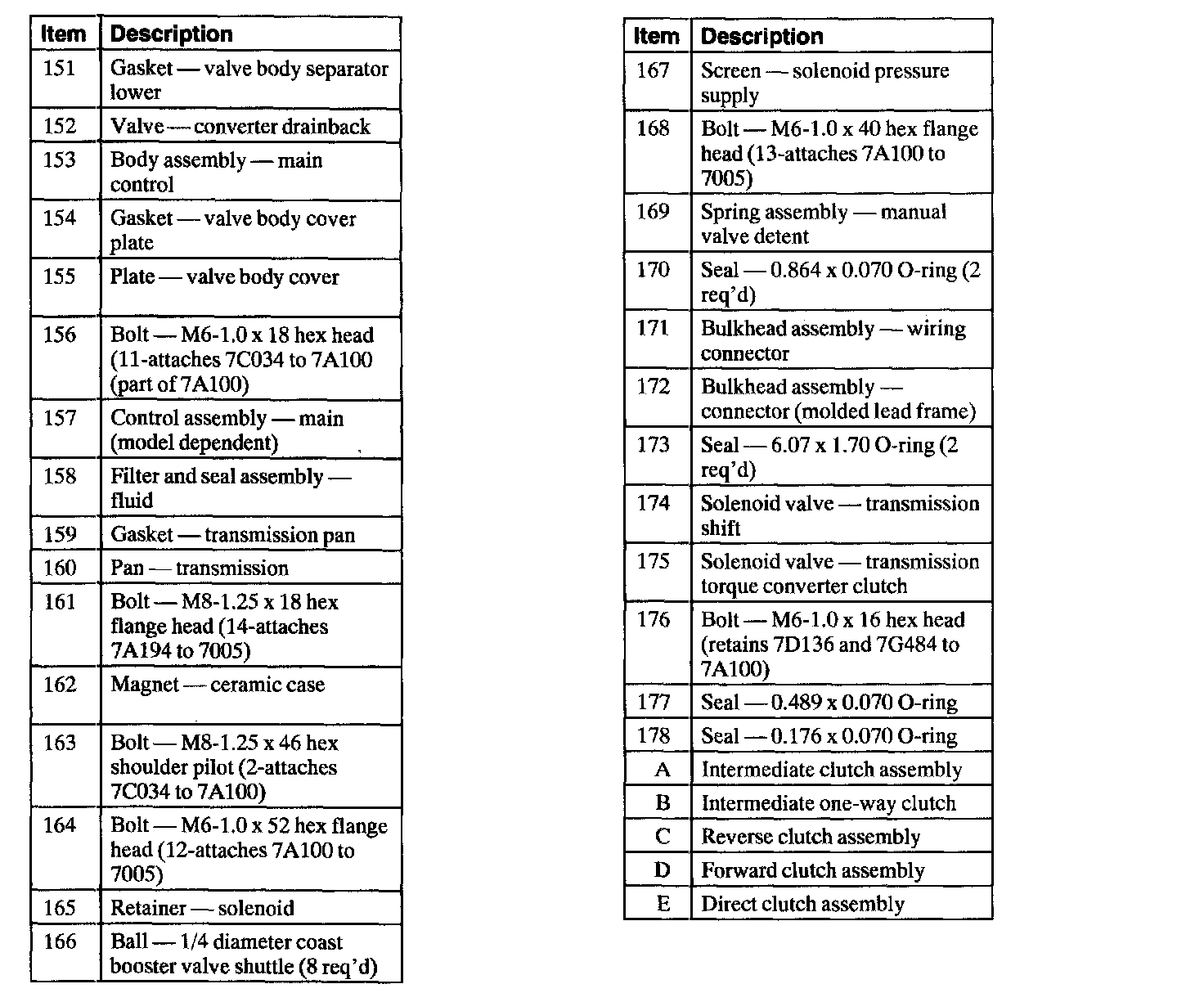

Part 6 of 6
