Component Tests
Vacuum Schematic - Manual Climate Control System, Part 1:
Vacuum Schematic - Manual Climate Control System, (Legend Continued) Part 2:
Function Selector Switch Vacuum Connector:

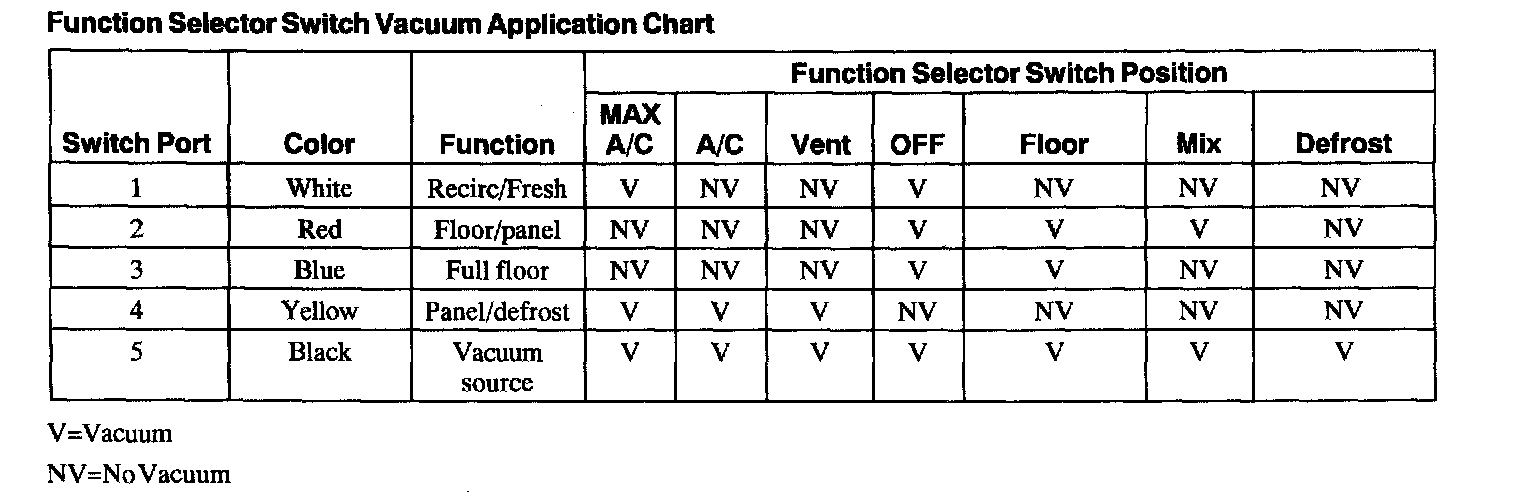

Function Selector Switch Vacuum Application Chart:
