Pressure Cutoff Switch - Dual Function

REMOVAL







1. Unlatch the breather.







2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

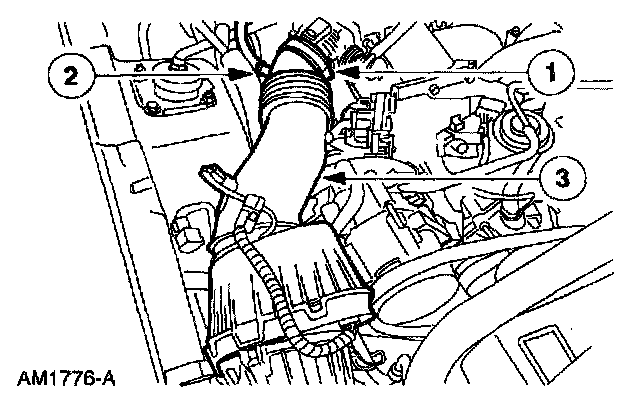

3. Remove the air cleaner outlet tube.
1 Loosen the clamp.
2 Disconnect the crankcase ventilation tube.
3 Remove the air cleaner outlet tube.

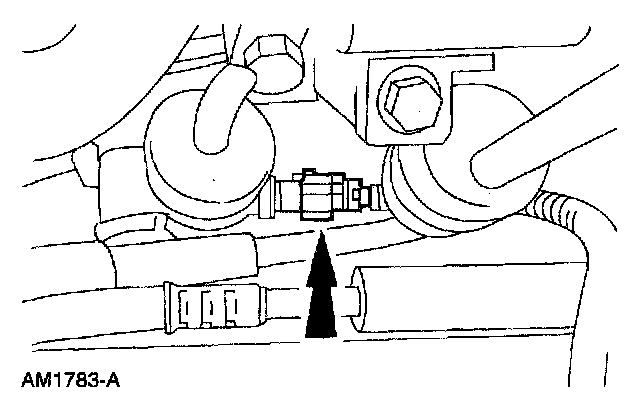

4. Disconnect the electrical connector.







5. Remove the A/C pressure cut-off switch.

INSTALLATION







1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG Compressor Oil, YN-12c, F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
