Connector Locations

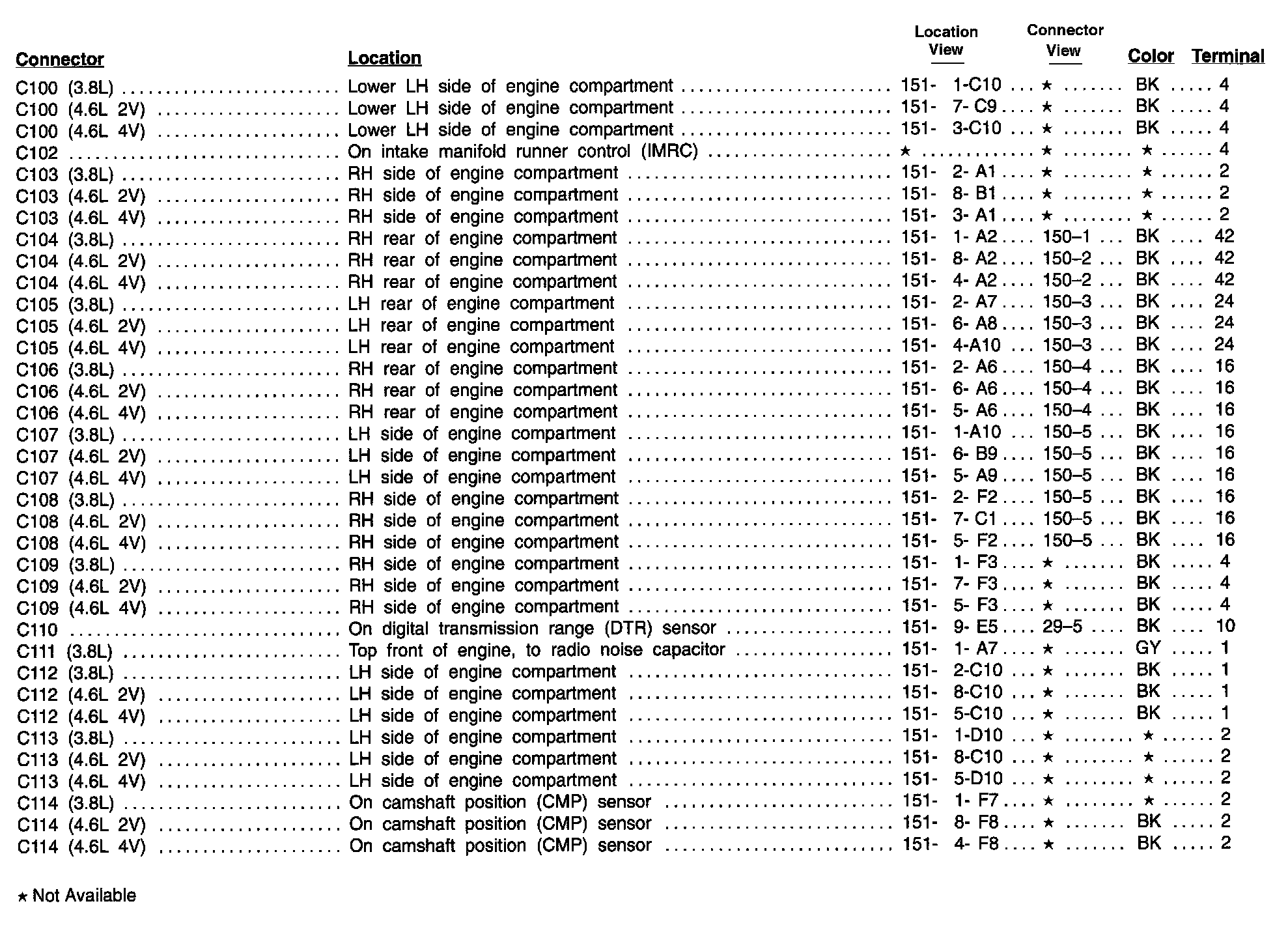

C100 - C114:

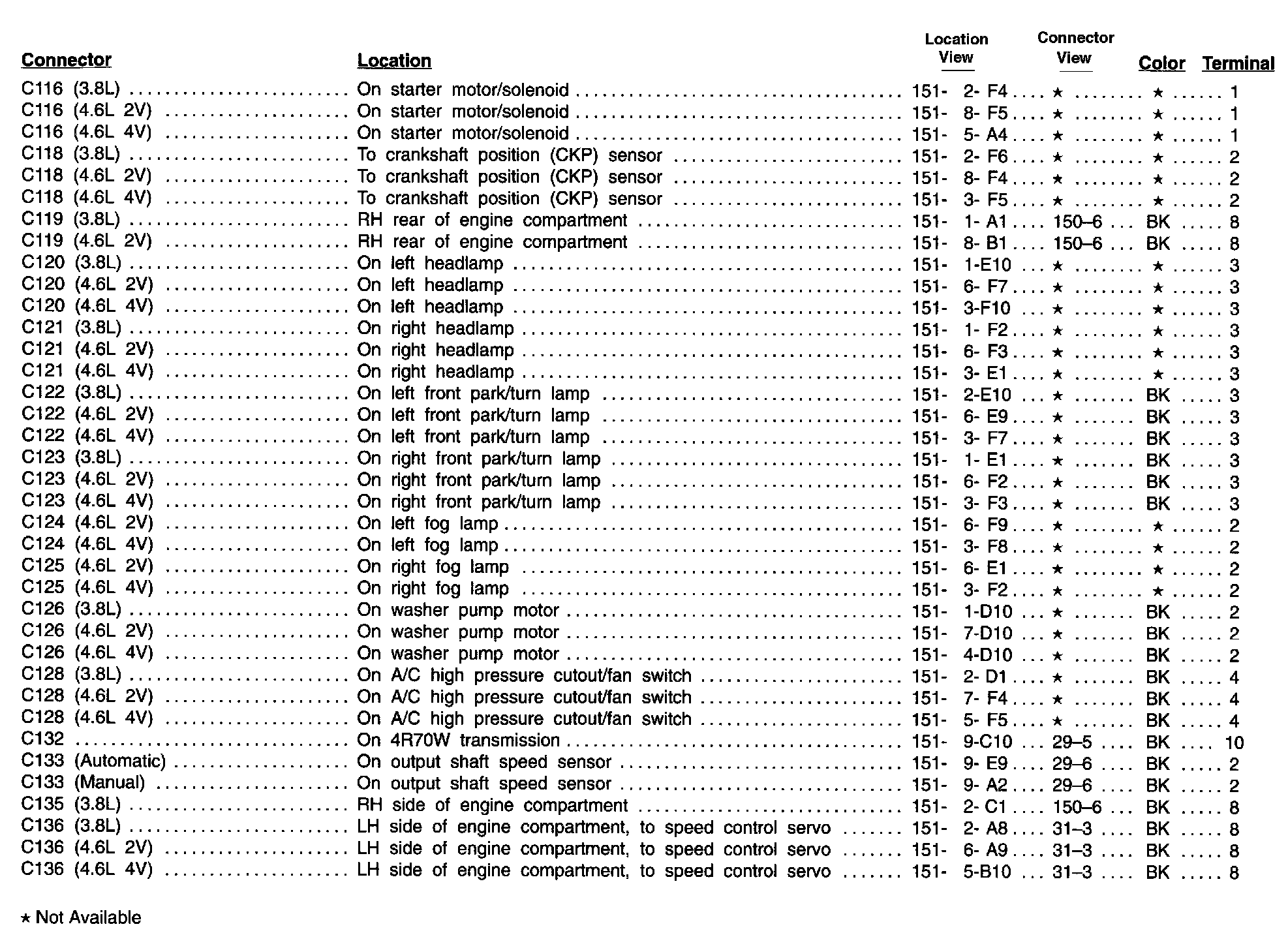

C116 - C136:

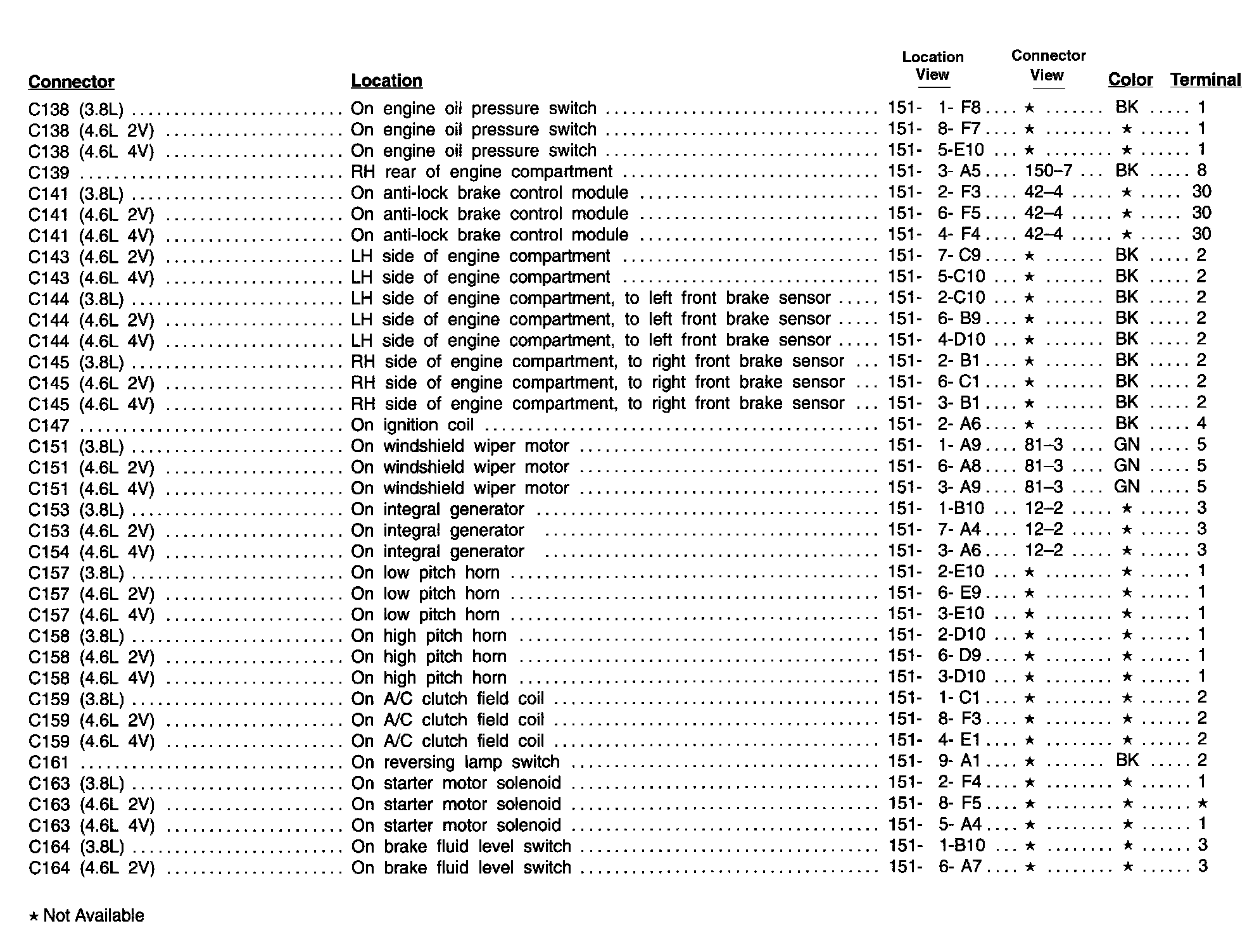

C138 - C164:

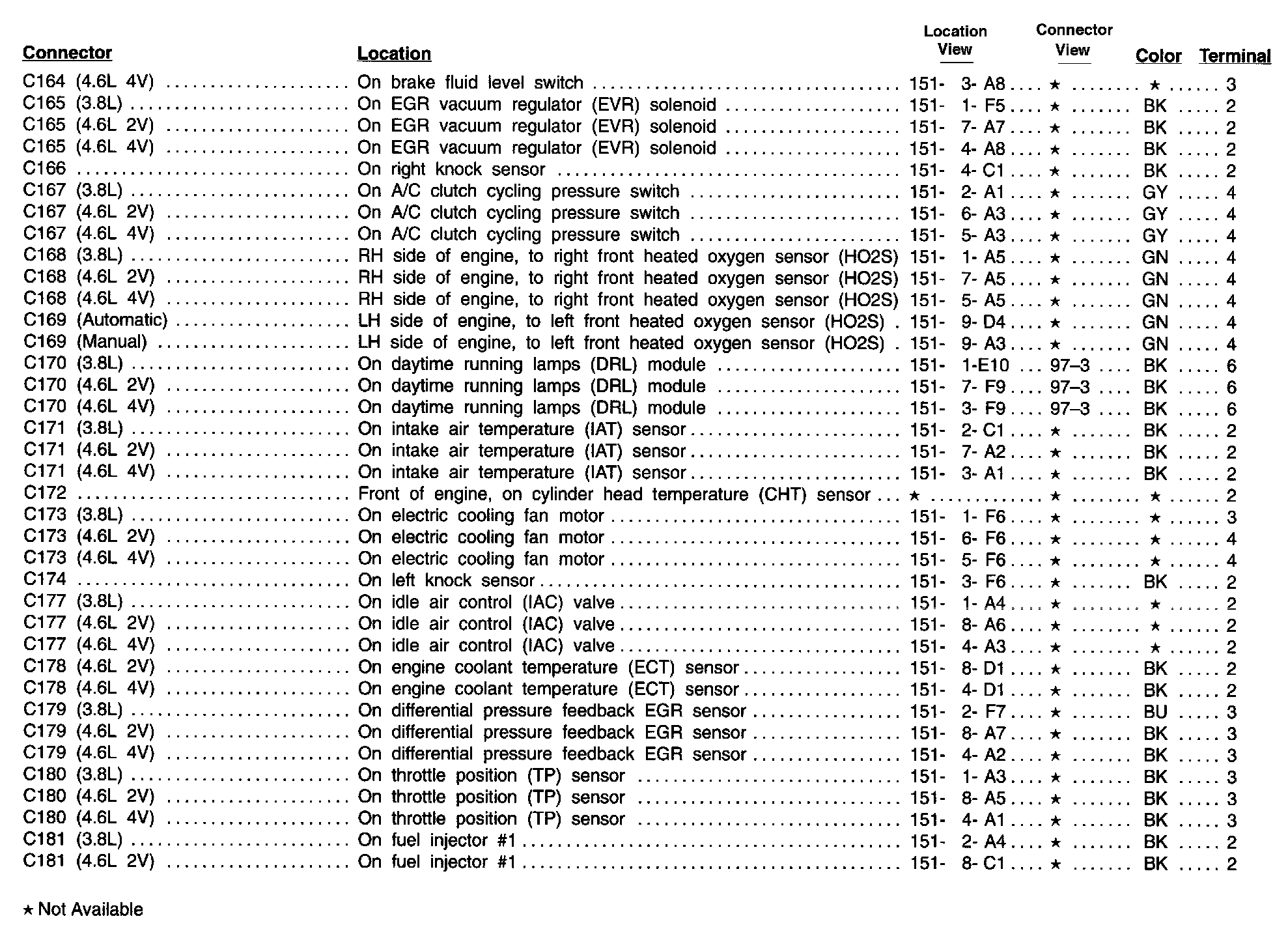

C164 - C181:

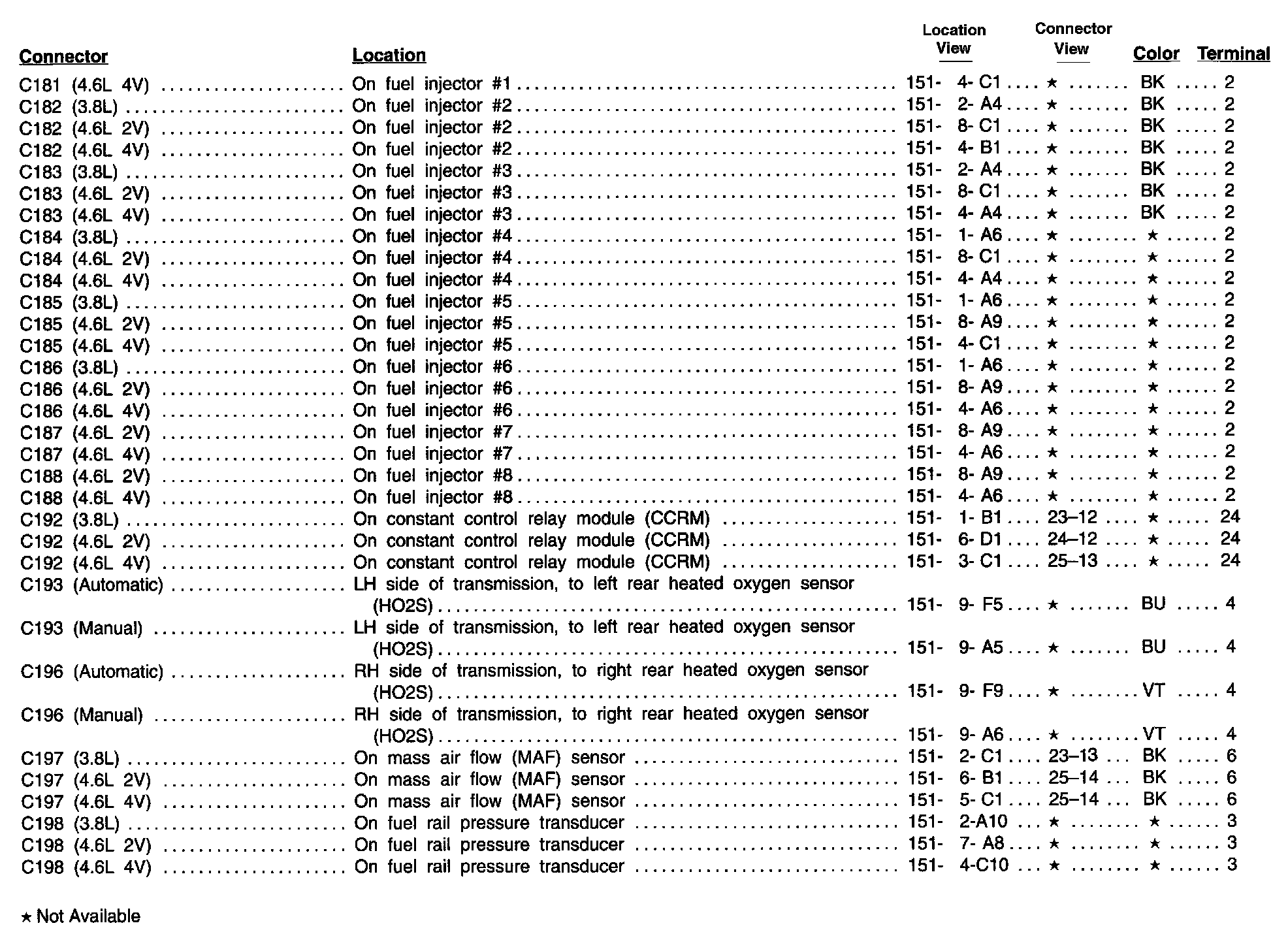

C181 - C198:

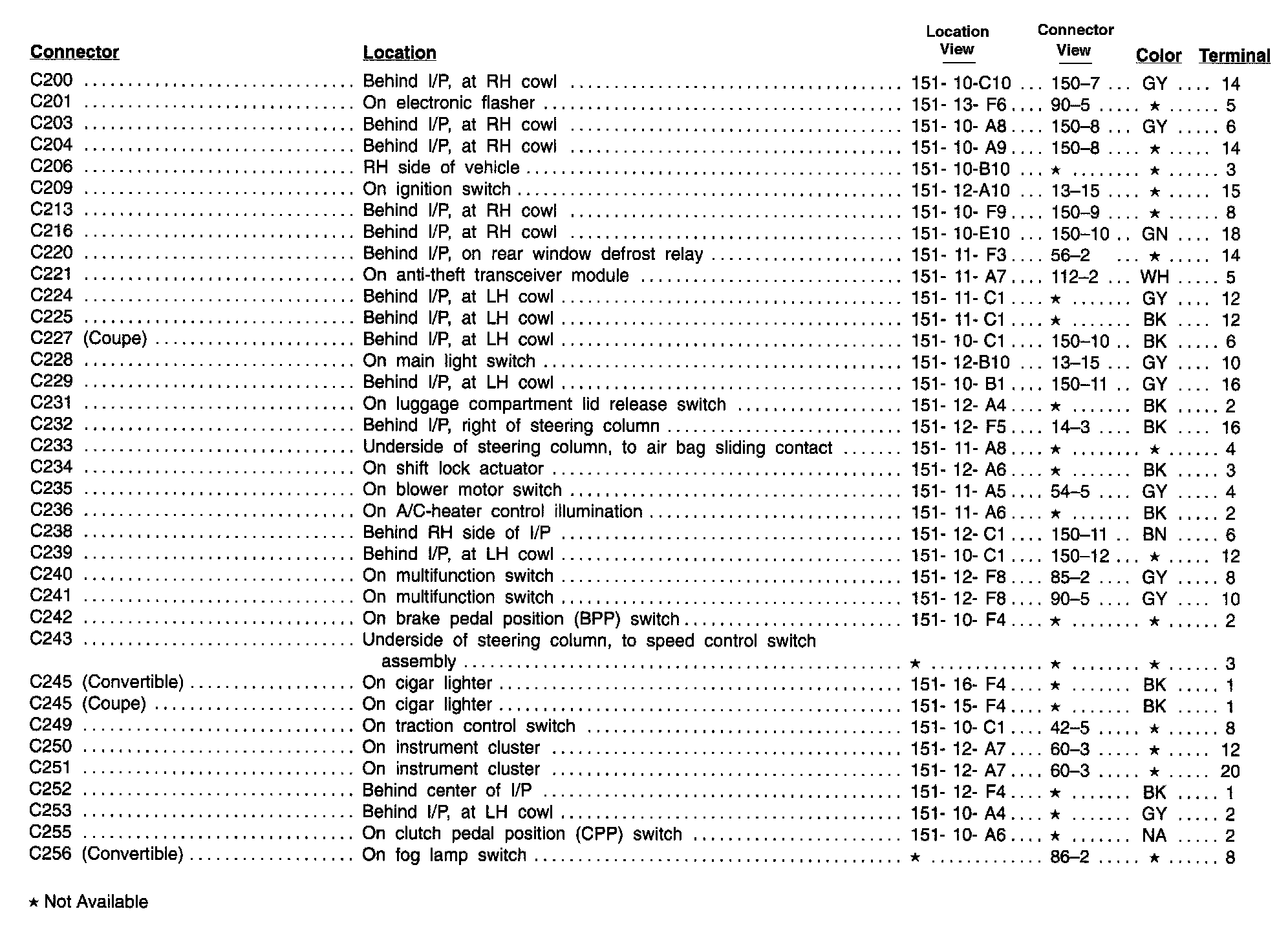

C200 - C256:

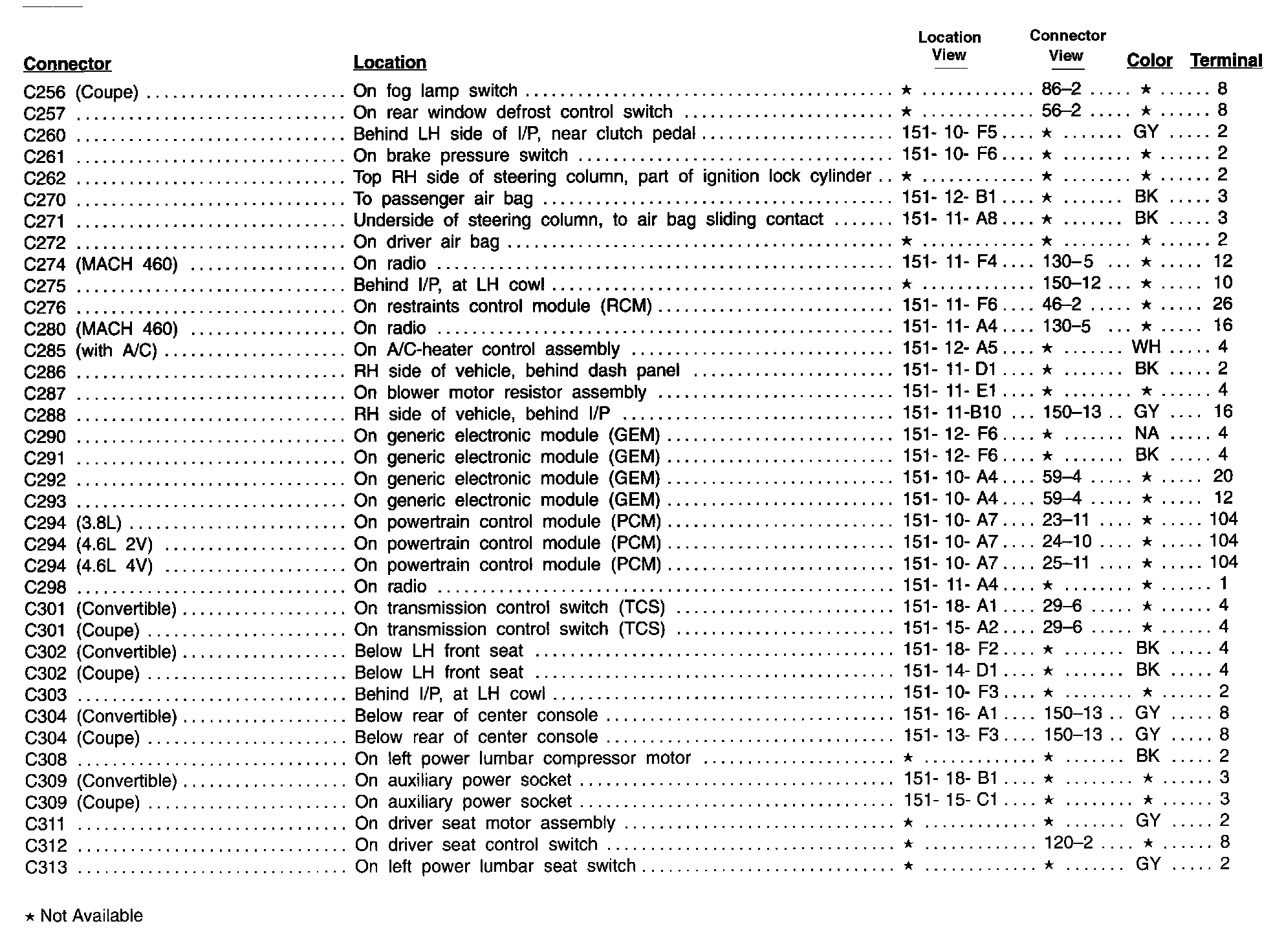

C 256 - C313:

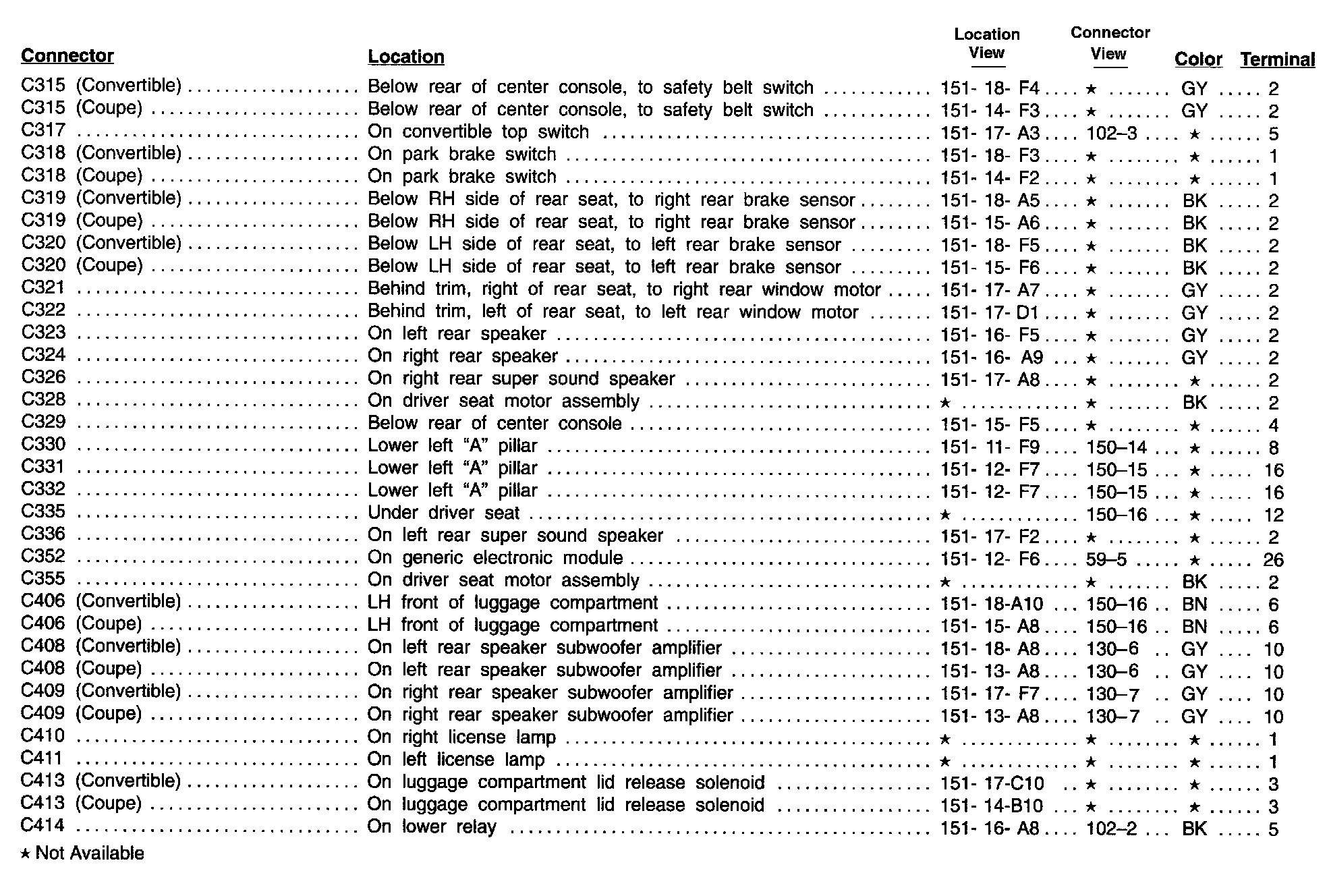

C315 - C414:

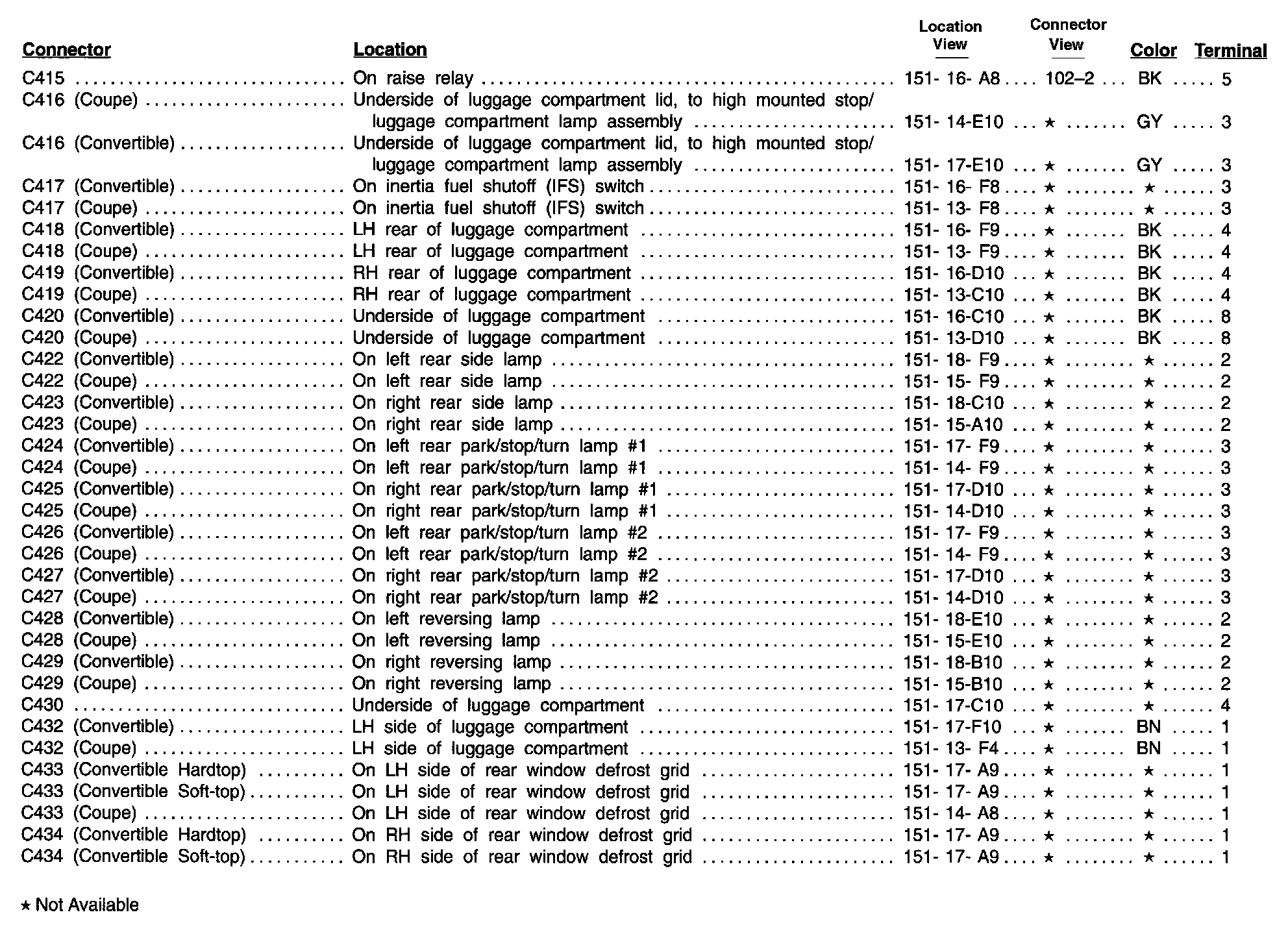

C415 - C434:

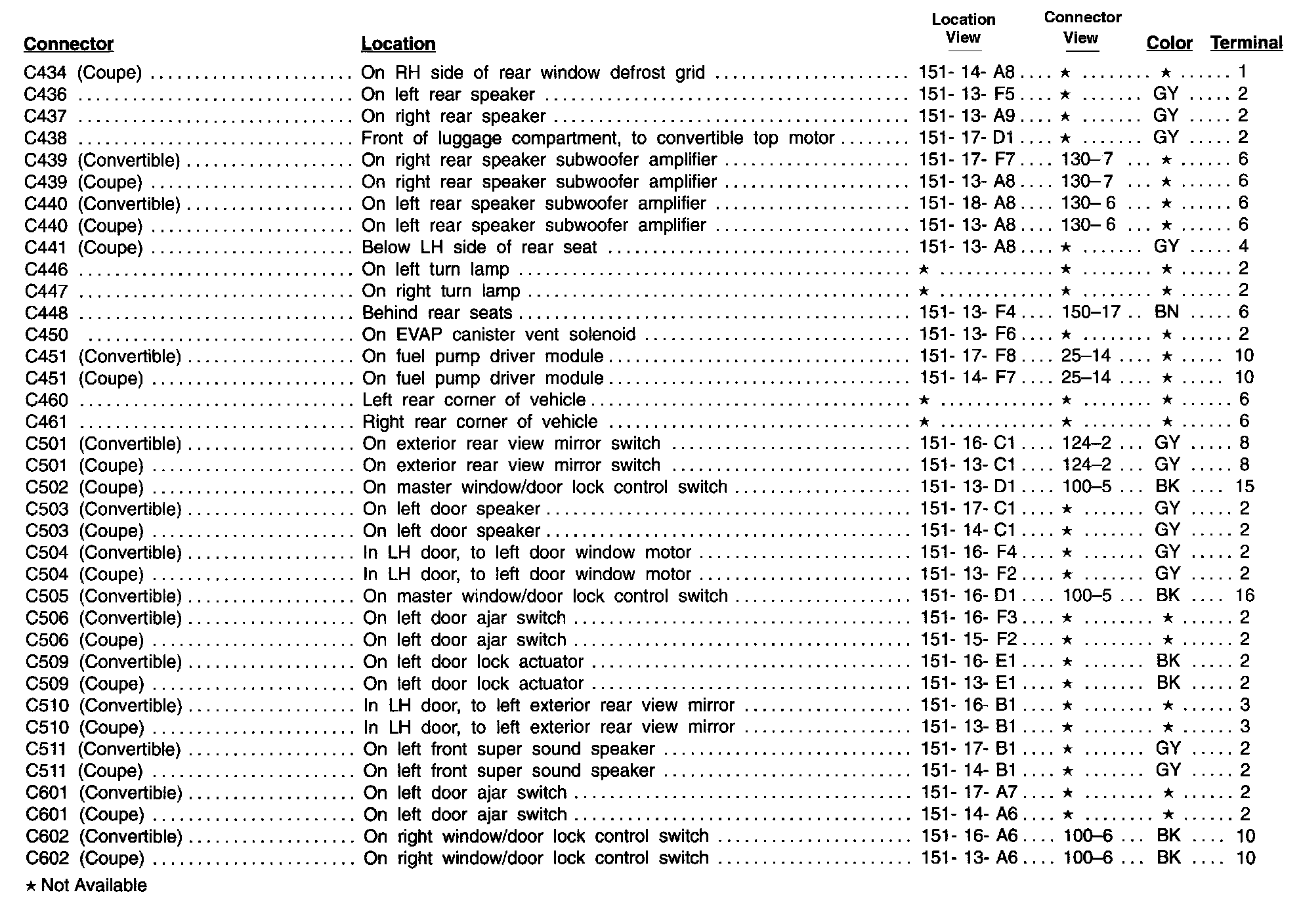

C434 - C602:

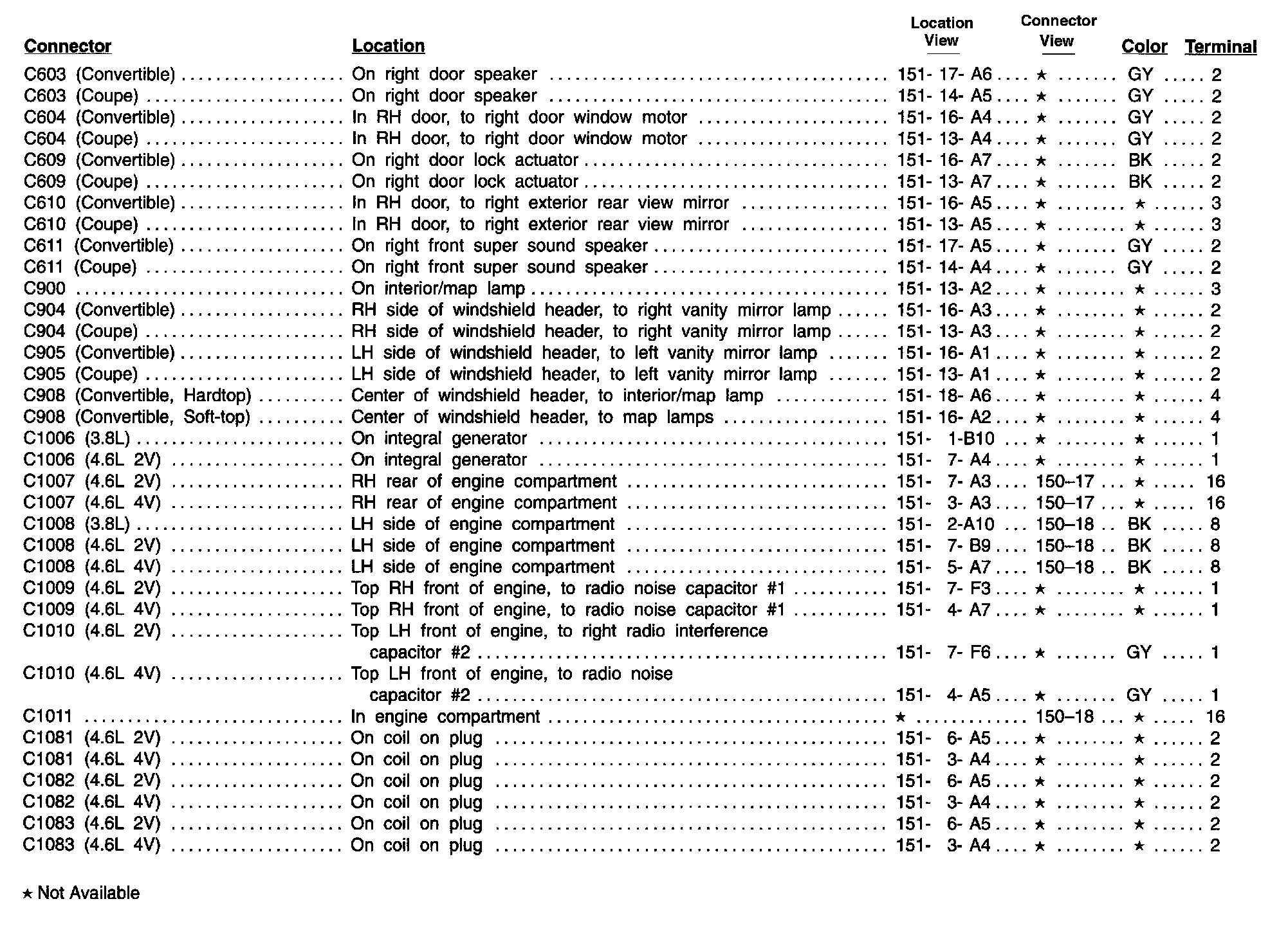

C603- C1083:

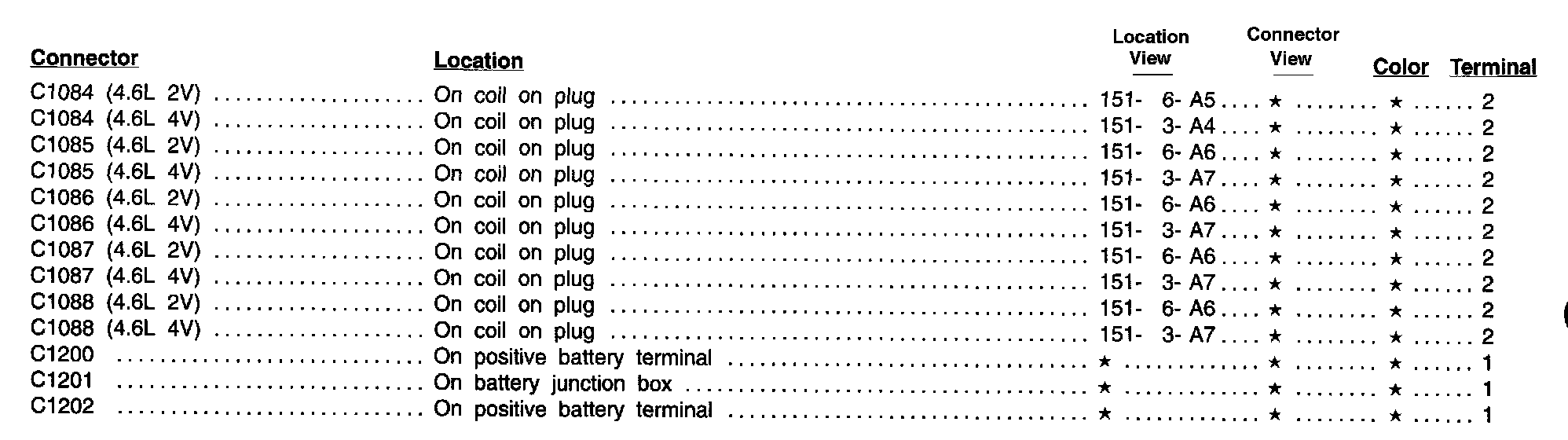

C1084 - C1202:
