Drive Belt: Service and Repair

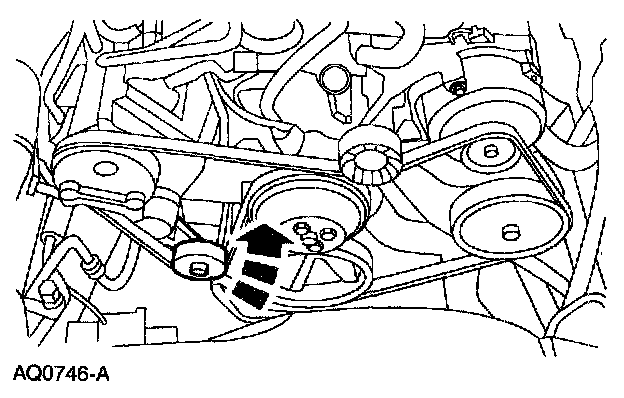

Belt Removal 1.
Rotate the drive belt tensioner counterclockwise and remove the
drive belt.
Installation 1.
NOTE: Make sure the
drive belt is correctly installed on each pulley.
To install, reverse the removal procedure.
-
Refer to Accessory Drive for
drive belt routing.
