Brake Disc Shield

Shield - 4x2

Removal and Installation
1. Remove the brake disc.

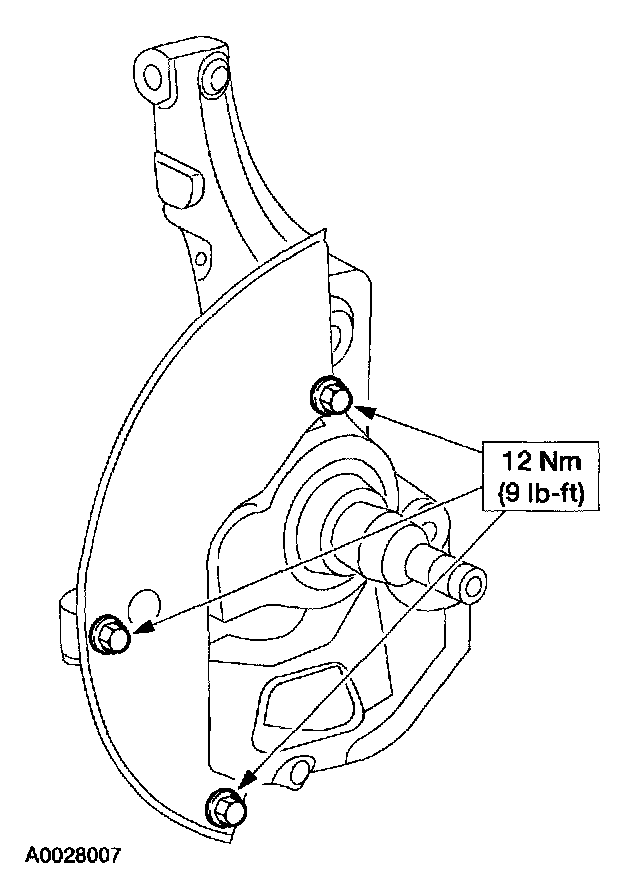

2. Remove the brake disc shield.
1 Remove the bolts.
2 Remove the brake disc shield.





3. To install, reverse the removal procedure.
