Cruise Control Servo Cable: Adjustments

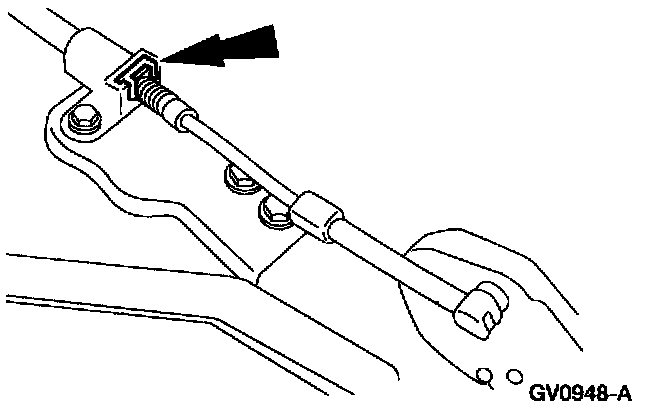

1. Remove the actuator cable clip.







2. Adjust the actuator cable.
1 Pull on the actuator cable to remove any slack.
2 Back off the actuator cable one notch.

NOTE:
^ For correct operation, the actuator cable must not be pulled taut.
^ The throttle body cam will automatically spring set to the closed position. The throttle body cam must be in the closed position.

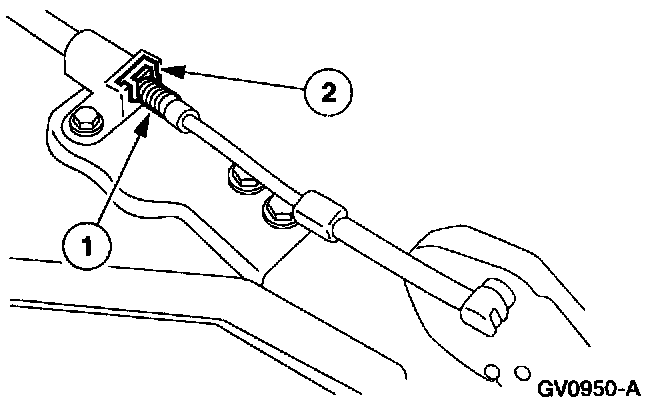

3. Install the actuator cable clip.
1 Hold the speed control actuator cable.
2 Insert the actuator clip securely.
