Center

Radio Removing Tool:

SPECIAL TOOL(S)

REMOVAL

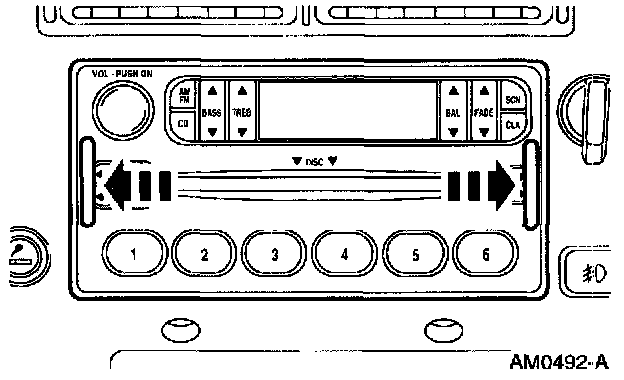

1. Using the special tool, remove the radio chassis.







2. Disconnect the antenna lead and the wire harness connectors.







3. Remove the instrument panel finish panel.

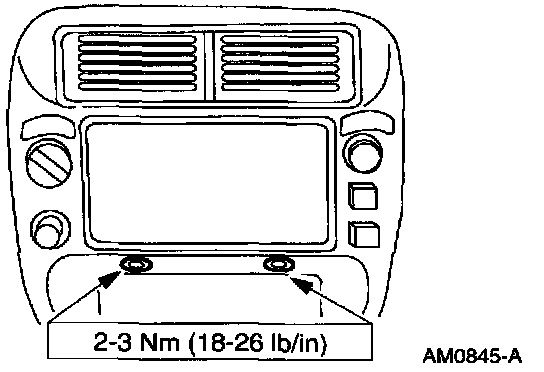

1 Remove the screws.
2 Disengage the spring clips and remove the instrument panel finish panel.

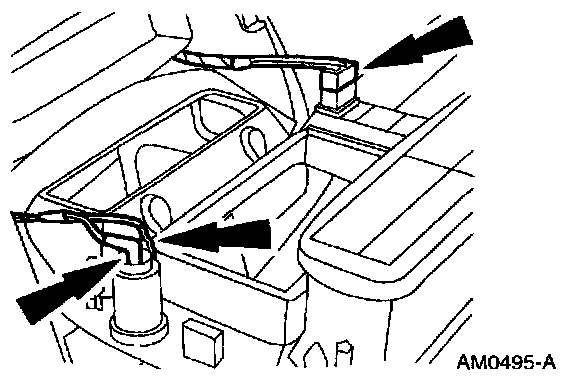

4. Disconnect the wire harness connectors.

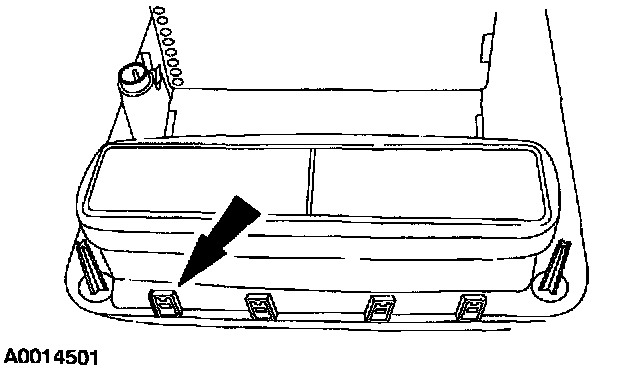

5. Release the eight clips and remove the center instrument panel register from the instrument panel finish panel.

INSTALLATION







1. To install, reverse the removal procedure.
