Driver Side

REMOVAL
1. Remove the audio unit.







2. Remove the instrument panel center finish panel.
1 Remove the screws.
2 Disengage the retaining clips and partially remove the instrument panel center finish panel.
^ Disconnect the electrical connectors and remove the instrument panel center finish panel.

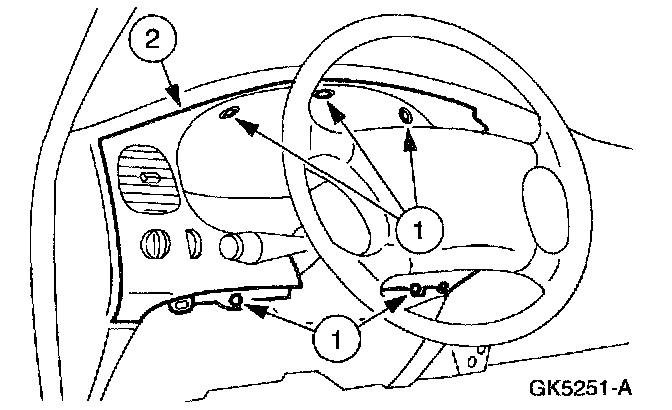

3. Remove the instrument cluster finish panel.
1 Remove the screws.
2 Disengage the retaining clips and partially remove the instrument cluster finish panel.
^ Disconnect the electrical connectors and remove the instrument cluster finish panel.

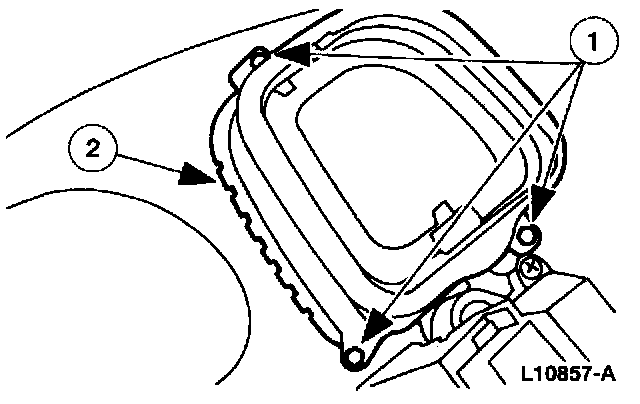

4. Remove the LH instrument panel register.
1 Remove the screws.
2 Remove the LH instrument panel register.

INSTALLATION
1. To install, reverse the removal procedure.
