Blower Motor: Service and Repair
REMOVAL 1.

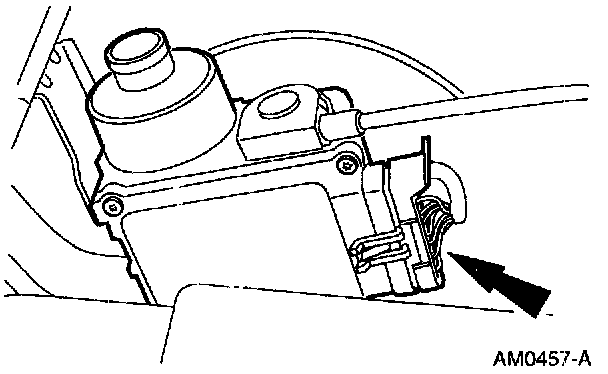

Disconnect the connector from the speed control servo.
2.

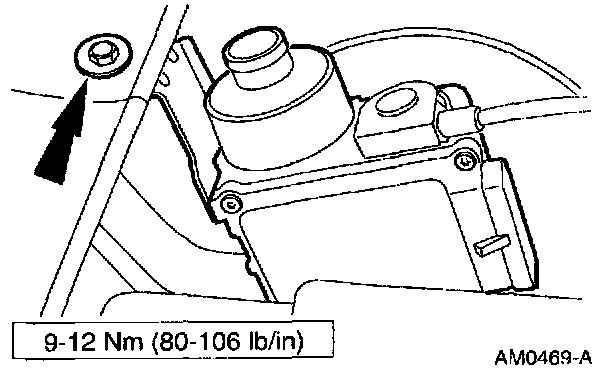

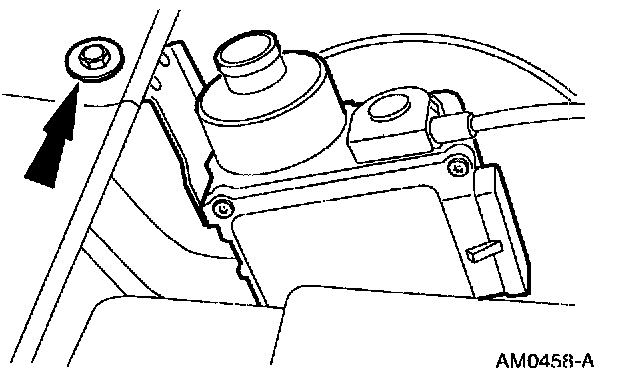

Remove the screw and reposition the speed control servo.
3.

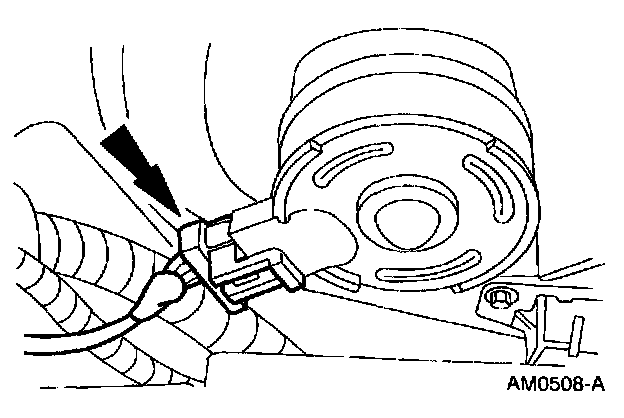

Disconnect the wire harness connector.
4.

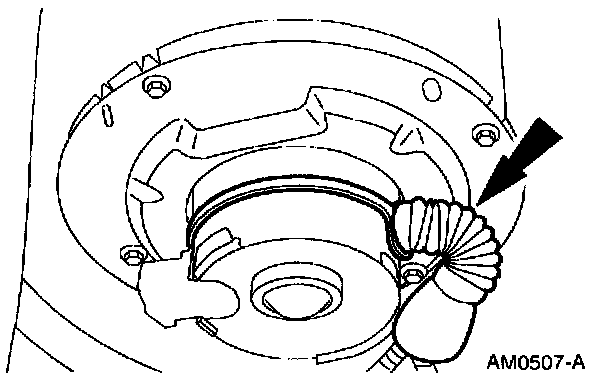

Remove the
blower motor housing tube.
5.

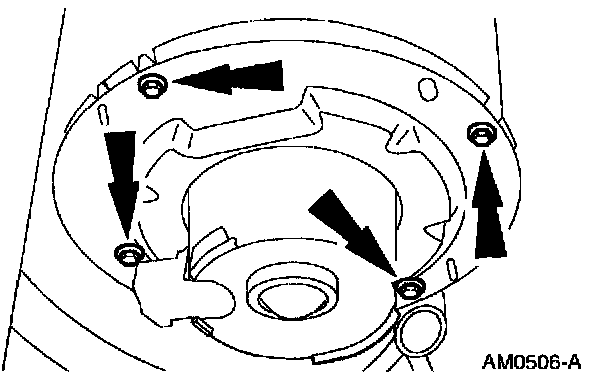

Remove the screws and the
blower motor.
6.

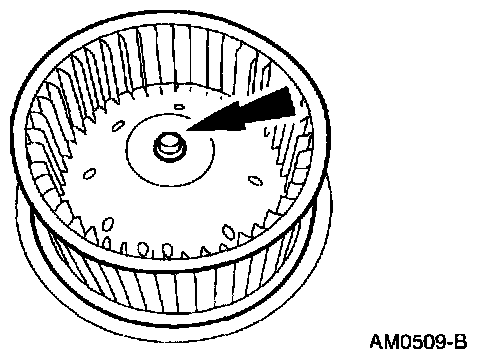

Remove the retaining clip and the
blower motor wheel from the blower motor.
INSTALLATION 1.
To install, reverse the removal procedure.
