Compressor HVAC: Service and Repair

REMOVAL

CAUTION: When installing a new A/C compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system:
^ If A/C flushing equipment is available, carry out flushing of the air conditioning system.
^ If A/C flushing equipment is not available, carry out filtering of the air conditioning system.
^ Install a new evaporator core orifice.
^ Install a new suction accumulator.

NOTE: Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. Perform the Refrigerant Discharging and Recovery Procedure.
2. Remove the accessory drive belt from the A/C compressor pulley.







3. Disconnect the electrical connector.







4. Disconnect the compressor manifold and tube assembly from the A/C compressor.
1 Loosen the bolt.
2 Disconnect and position aside the compressor manifold and tube assembly.

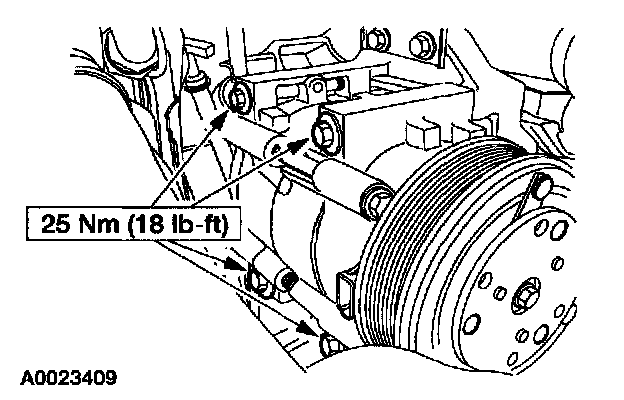

5. Remove the A/C compressor.
1 Remove the bolts.
2 Remove the A/C compressor.
^ Discard the O-ring seals.

INSTALLATION
1. To install, reverse the removal procedure.
^ If a new A/C compressor is to be installed, the A/C compressor clutch field coil and the A/C clutch plate must be transferred from the old unit.
^ Lubricate the refrigerant system with the correct amount of clean PAG oil or equivalent. See: Refrigerant Oil Addition.
^ Install new O-ring seals lubricated in clean PAG oil or equivalent.
2. Evacuate, leak test, and charge the refrigerant system.
