Housing Assembly HVAC: Service and Repair

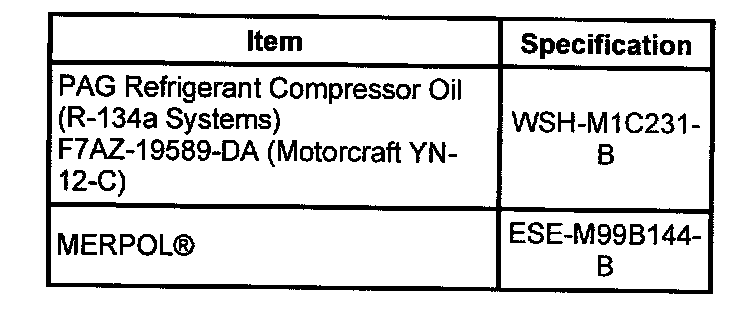

Material

Removal and Installation


NOTE: The evaporator core is not separately serviceable, it is serviced only with the evaporator core housing assembly.

NOTE: If an evaporator core leak is suspected, the evaporator core must be leak tested before it is removed from the vehicle.

NOTE: Replacement of the suction accumulator is not required when repairing the refrigerant system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. Drain the cooling system. Refer to Engine, Cooling and Exhaust/Cooling System/Service and Repair. Service and Repair

2. Recover the refrigerant. Refer to Heating and Air Conditioning/Service and Repair. Service and Repair

3. Remove the air cleaner outlet pipe. Refer to Powertrain Management/Fuel Delivery and Air Induction/Intake Air Duct/Service and Repair. Service and Repair

4. Remove the suction accumulator.


5. Remove the A/C compressor. Refer to Heating and Air Conditioning/Compressor/Service and Repair. Service and Repair


6. Remove the engine oil indicator and tube.

Vehicles with speed control

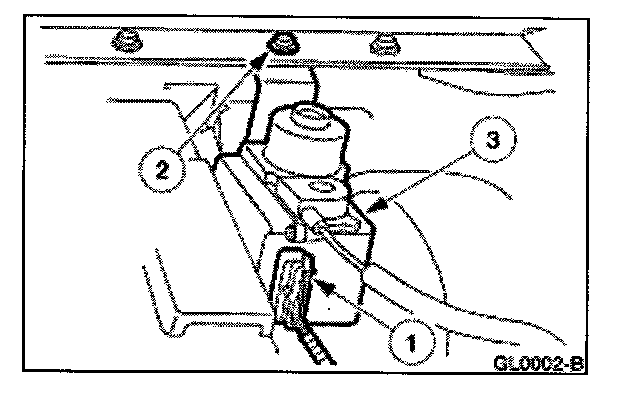

7. Detach the speed control servo.

1. Disconnect the electrical connector.

2. Remove the bolt.

3. Detach the cable from the evaporator core housing and position aside the speed control servo.

All vehicles

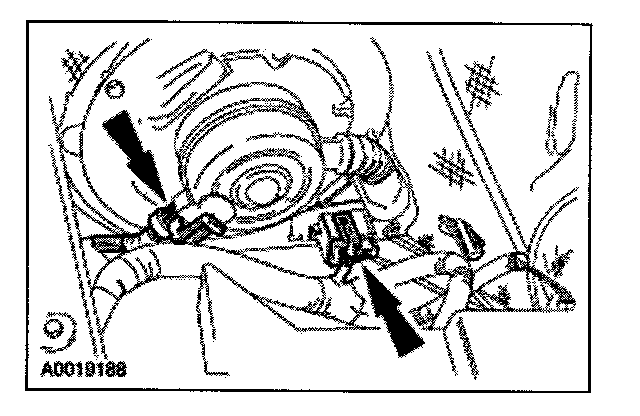

8. Disconnect the blower motor and blower motor resistor electrical connectors.

All Vehicles







9. Disconnect the heater hoses.






10. Detach the pin-type retainer and position aside the windshield washer hose.

11. Disconnect and detach the heater control valve vacuum hose.






12. NOTE: 2.3L engine shown, others are similar.

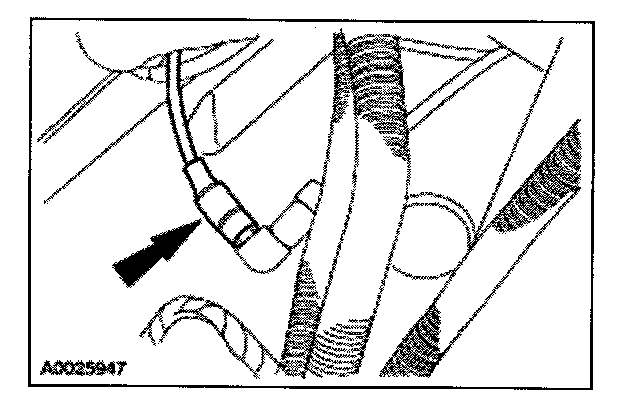

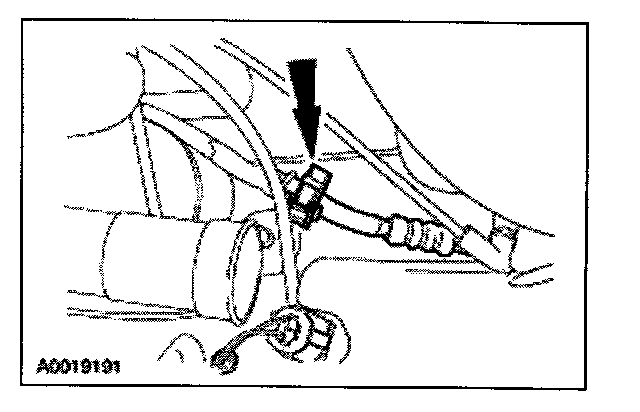

Disconnect the vacuum supply hose near the evaporator core housing.

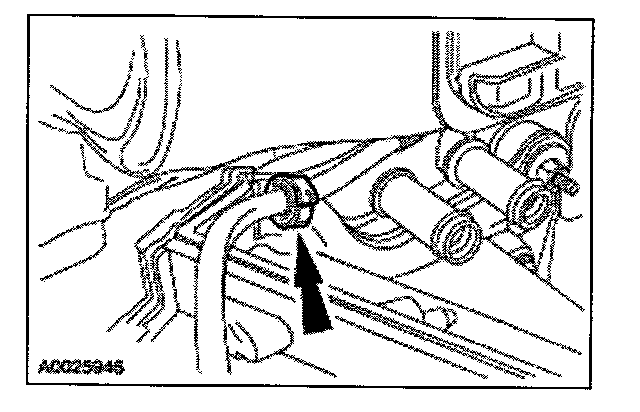

13. Disconnect the condenser to evaporator line [1][2]spring lock coupling from the evaporator core inlet.

Discard the O-ring seals.






14. NOTE: The following step is performed at the lower passenger side dash panel, inside the passenger compartment.

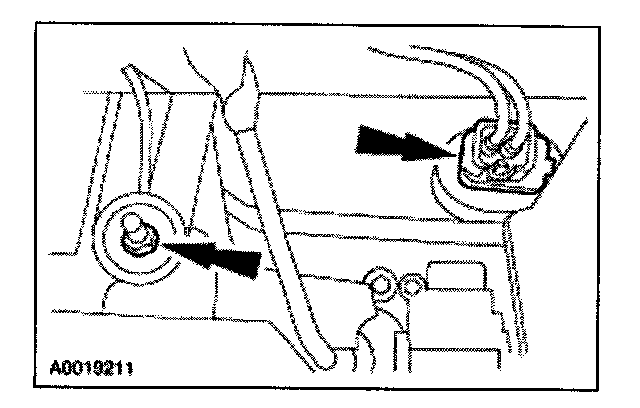

Disconnect the vacuum hose connector and remove the nut.

15. If equipped, remove the wheel splash guard.

16. CAUTION: Remove the electrical connector locators from the splash shield prior to removal.

CAUTION: On the RH splash shield, disconnect the vacuum lines from the vacuum storage reservoir.

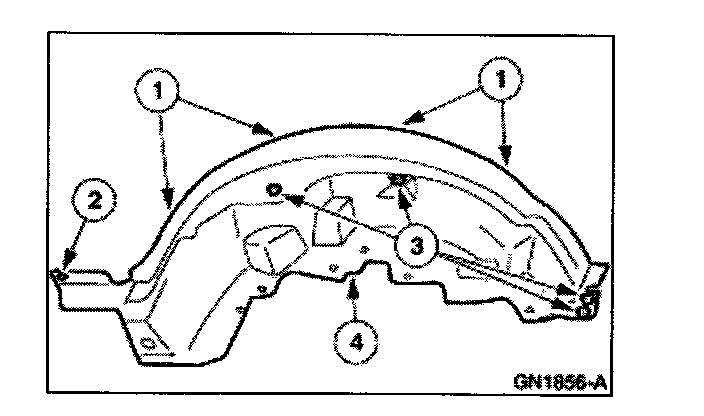

Remove the splash shield.

1. Remove the screws.

2. Remove the pushpin.

3. Remove the bolts.

4. Remove the splash shield.






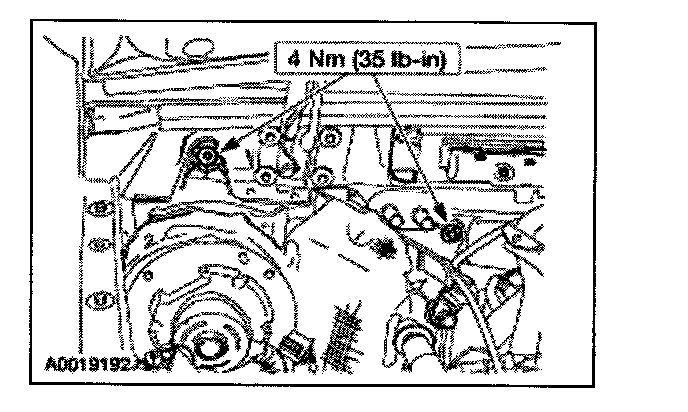

17. Remove the nuts and the evaporator core housing.

18. To install, reverse the removal procedure.

- Lubricate the refrigerant system with the correct amount of clean PAG oil or equivalent.

- Install new O-ring seals lubricated in clean PAG oil or equivalent.

- Lubricate the coolant hoses with coolant hose lubricant or plain water only, if needed.

19. Evacuate, leak test, and charge the refrigerant system. Refer to Heating and Air Conditioning/Service and Repair. Service and Repair
