Power Steering Line/Hose: Service and Repair
Special Tools:
Special Tool(s) Removal 1.

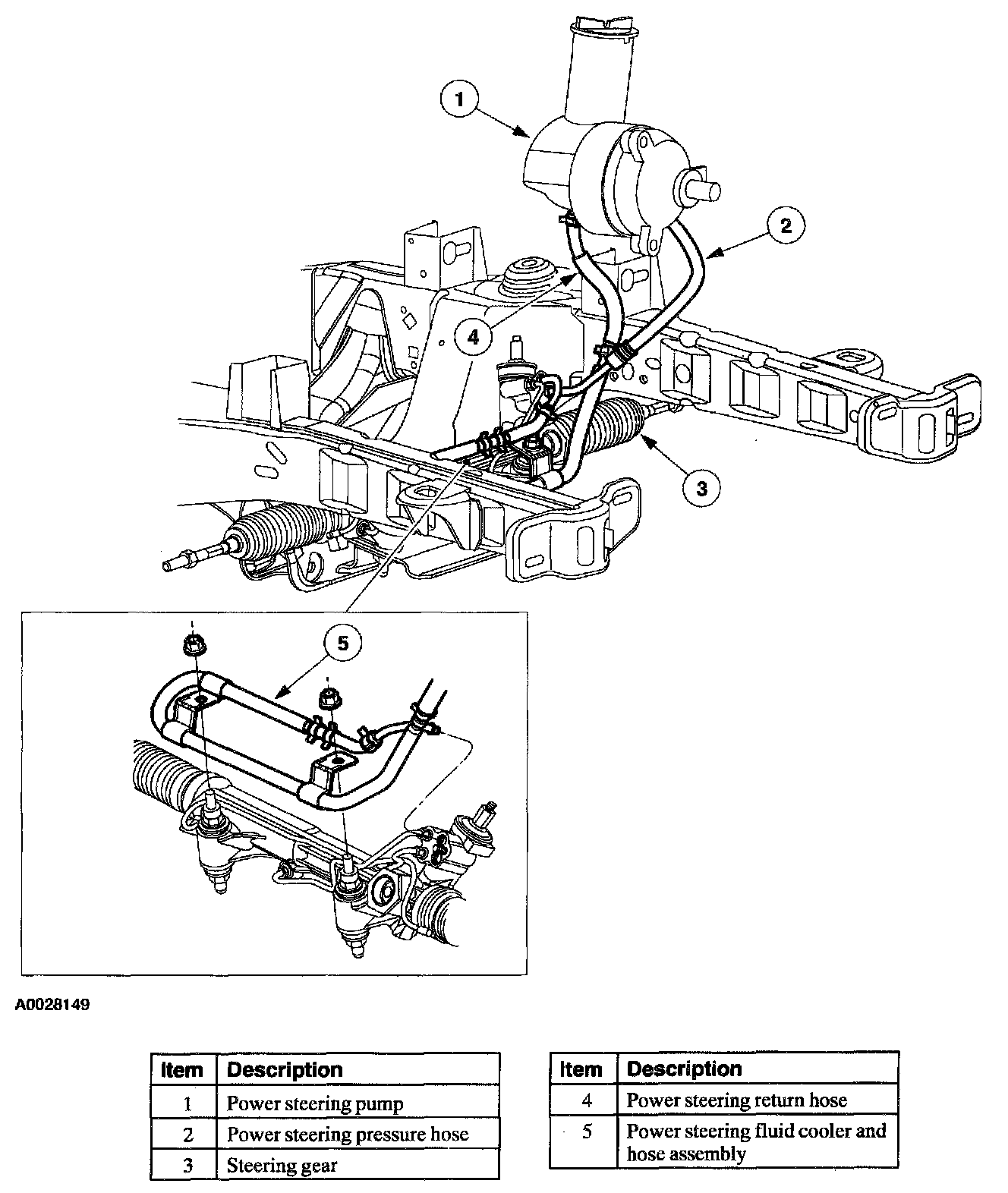

Refer to the System View illustration for the hose routing and retention points.
Installation 1.
When connecting a fitting with a seal ring, the ring must be replaced.
-
The Seal Replacer is used to install the return line connector seal and the pressure line connector seal.
2.
Fill, purge and leak check the system.
