Spark Plug: Service and Repair
REMOVAL 1.
Remove the spark plug wire from the
spark plug.
2.
Remove the
spark plug.
NOTE: Remove foreign material with compressed air.
3.

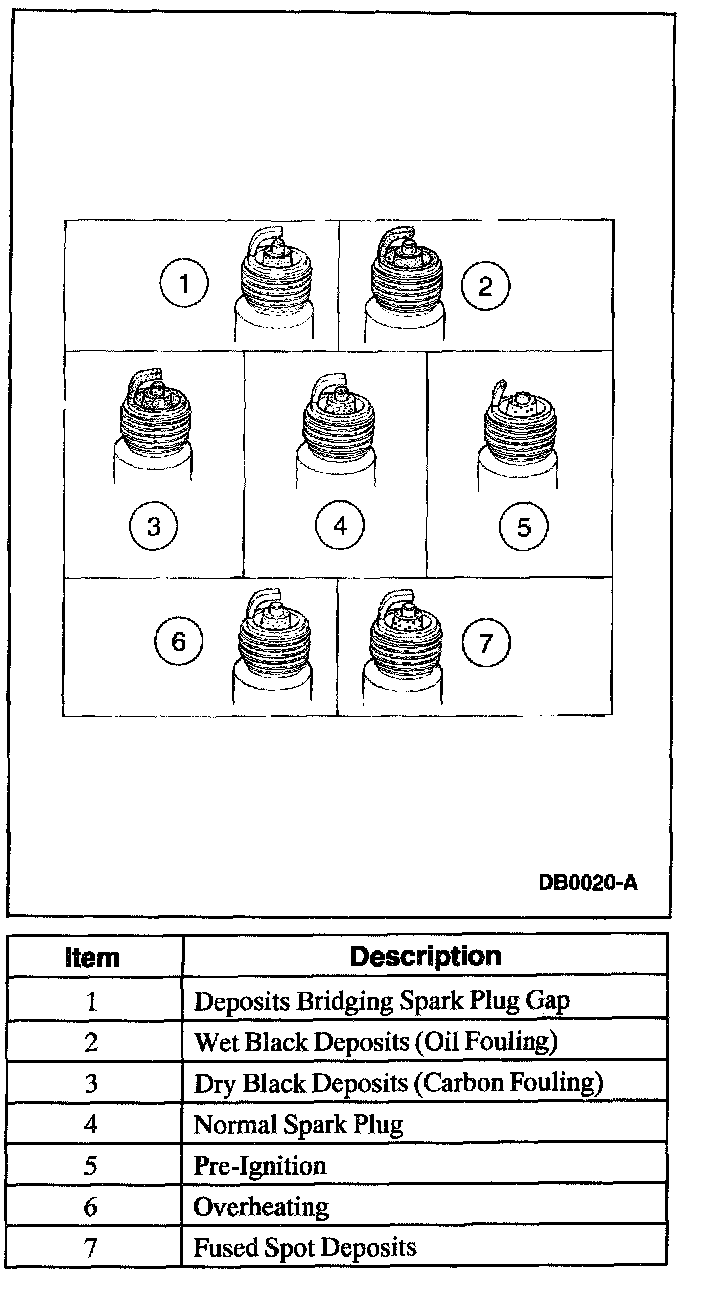

Inspect the
spark plugs.
4.

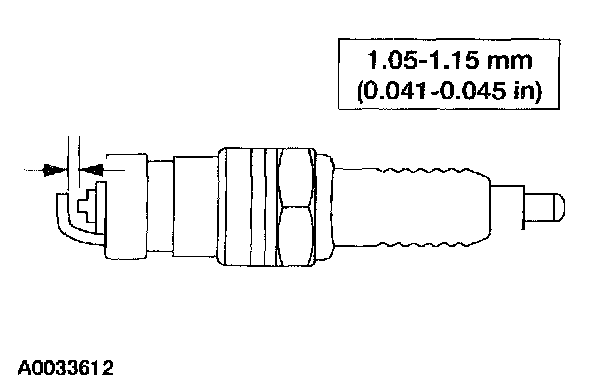

Check and adjust the
spark plug gap as necessary.

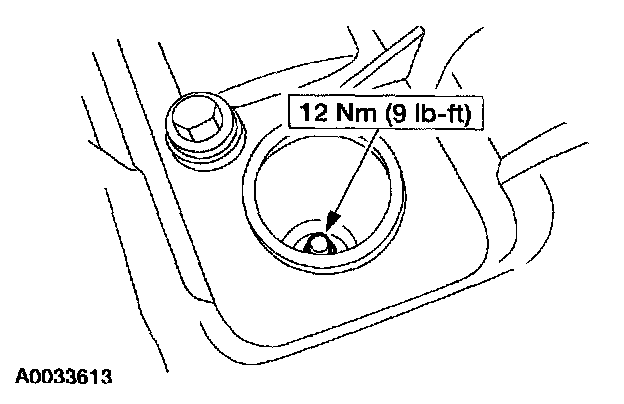

INSTALLATION 1.
To install, reverse the removal procedure.
