Cruise Control Servo Cable: Service and Repair

REMOVAL

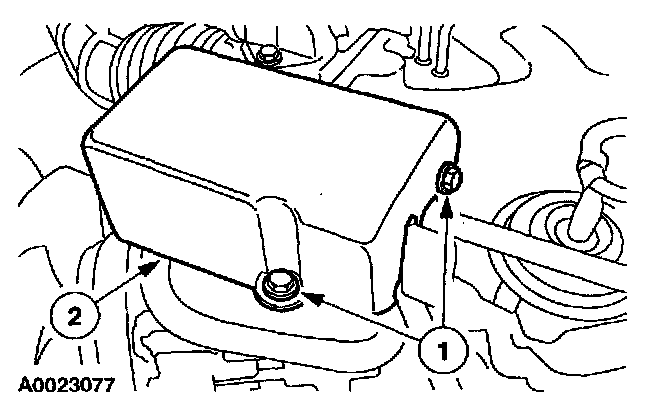

1. Remove the accelerator control splash shield.
1 Remove the bolts.
2 Remove the accelerator control splash shield.

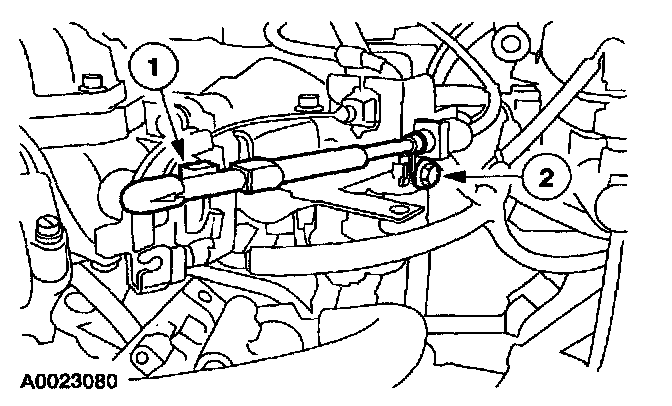

2. Disconnect the speed control cable.
1 Disconnect the cable from the throttle lever.
2 Remove the bolt and separate the speed control cable from the bracket.







3. Remove the speed control cable cap from the speed control servo.
^ Push in the locking arm on the speed control cable cap then rotate the cap counterclockwise.







4. Remove the speed control cable.
1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control cable.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.
