Alternator: Service and Repair

REMOVAL

NOTE: The 3.0L engine is shown, the 2.5L engine is similar.

1. Disconnect the battery.
2. Remove the accessory drive belt.

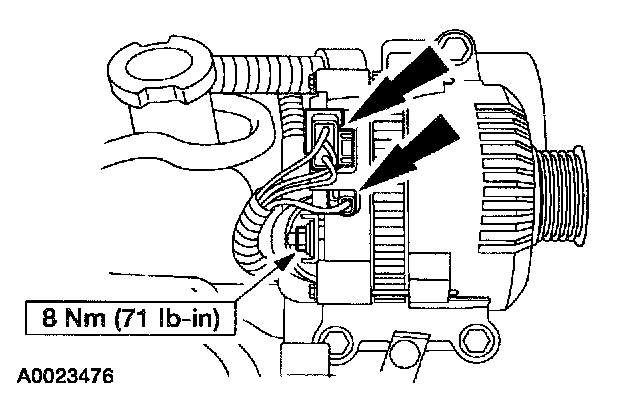

3. Remove the nut and disconnect the electrical connectors.

4. Remove the wire harness-to-generator pin-type retainer.

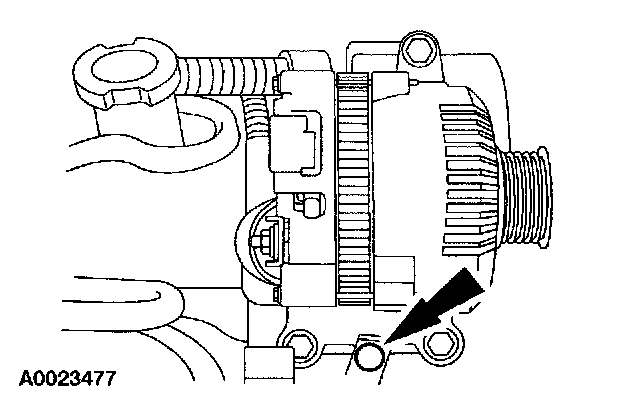

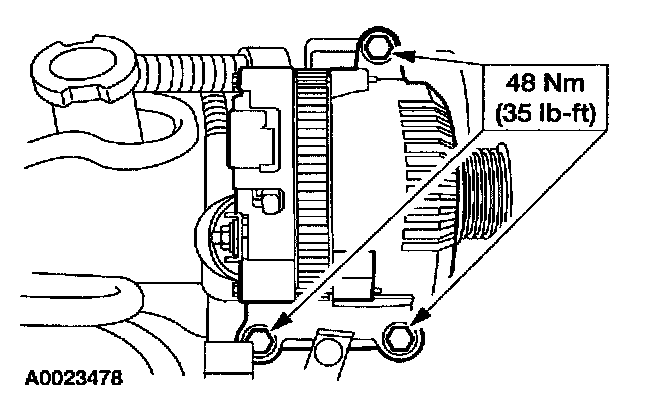

5. Remove the bolts and the generator.

INSTALLATION
1. To install, reverse the removal procedure.
